CNC Machine Flexible Plastic Cable Drag Chain for Sale

CNC Machine Flexible Plastic Cable Drag Chain for Sale
Price: US $ 8-20/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

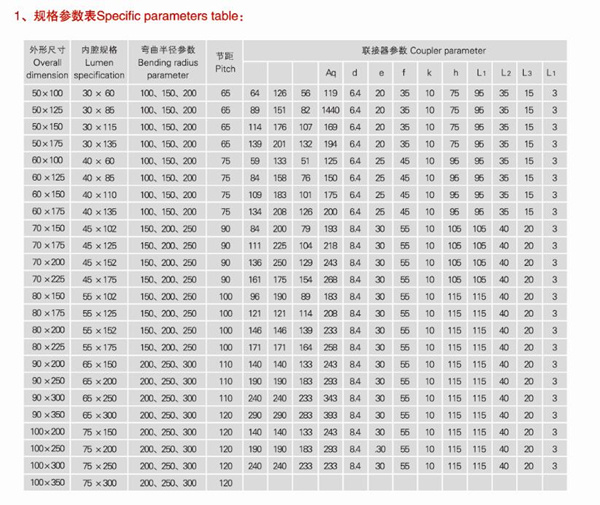

Pitch: 45mm-180mm
Bending Radius: 50mm-750mm
Min.Width(mm): 60mm-200mm
Max.Width(mm): 200mm-650mm
Length: as Customer's Requirements
Application: CNC Machine Tools, Electronic Equipment, Stone Mac

Product Description


CNC machine flexible plastic cable drag chain for sale


Basic parameters

1.Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity ,wearing and falmable resisance.
2.Resistances:It is oil and acceleration is 5m/sec.(specfic speed and acceleration depends on specific).
3.Service life:Under normal conmal condition,5 million reciprocating motions can be reached(which is also related to the operating conditions.)
Technical data:

Tensile strength
180N/mm2Volume resistance1010-1015
Impact strength50Kj/m2Water Absorption4%
Tenprature range-40.C-130.CFriction factor0.3
Surface resistaned1010-1012Falme resistanceHB(UL49)






Characteristics and Applications

1.The product can be used for such locations where repciprocating motions are required so that internally installed cables.oil pipes,gastubes and water tubes can be draged and protected.
2.Each joint of the chain can be opened up so as to facilitate repairs and maintenance.It can also be operated under high speed.
3.The drag  chains have already extensively used in digital-controlled machine tools.electronic equipment,machinery for stone windows.moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.

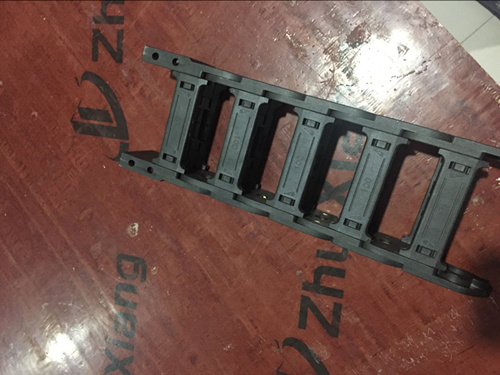

Construction

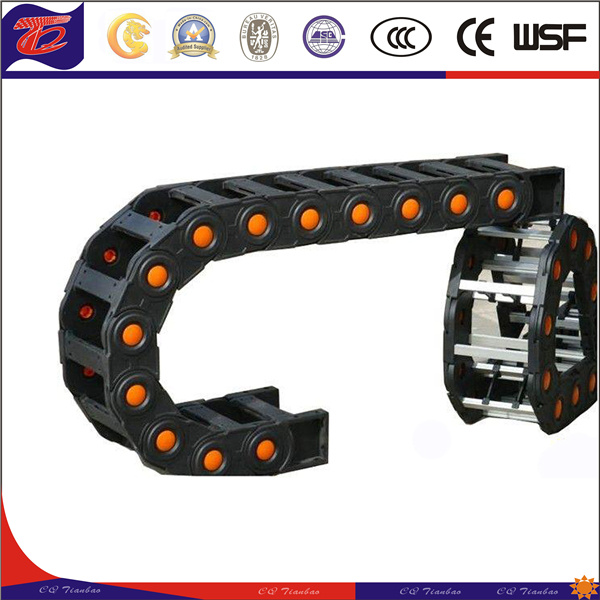

1.The appearance of the chain looks like the crawler of a tank consisting of certain number of joints ,The joints of crawler are freely turned round.
2.The same series of chain hsa same inner height and out height and same pitch but the inner herght radius R can be made per different specifications.
3.A unti chain joint is consisting of a left-right chain plate and updown cover.Each chain joint can be piened up so as to facilitate assembly and dismantal without threading.Cables,oil pipes and gaspipes can be put into the drag chain after the cover plate is opened.
4.Spacers are available for use,which are able to divide the space inside the chain into divisions according to requirements.


Installation

1.Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .Put the drag chain for cables and oip pipes according to the instructions provided .Put the cover back.Note that the fixed end and the moving end of a cable should be fixed by using a tension device
2.When used in a long sliding service,it is recommended to use a guiding grove,Please ask our technical personnel about the usage of the guiding grove.



Chongqing Tianbao Conductor Busbar Electrical Co., Ltd is located in Chongqing, which is a fast developing city and one of four municipalities directly under the central government with convenient transportation.

Established in 2001 and been involved in the field for over ten years. Tianbao is a professional enterprise in researching and developing the electrical products abd engineering. Our company has long been adhering to the development strategy of importing technology, integrated innovation, independent research and cooperative research new products.

The main products include: Conductor rail system, bus duct system, cable festoon system, cable tray, drag chain and related accessories. We have helped many customers to solve the mobile powerr supply for crane, electric hoist, as well as factory, high building power distribution.

For low capacity, both PVC and aluminum alloy enclosed ocnductor system available. For heavy load, the insulated copper and aluminum conductor system can reach 150-3000 AMP. The AMP range for the copper and aluminum busway system is from 25-6300, excellent replacement for cable, providing lighting and power for factory and buildings.

With excellent product quality, good service and cooperation prestige our products are greatly favored by the customers around the general domestic and foreign markets.

Looking forward to the future, Tianbao will be carrying out the principle of the "Technology advantage, quality basis, customer first, honesty and trust". Our company will continue to make contributions to our country's modernization development and social progress.

We will devote ourselves to struggle for vitalizing national industry.
