Structure:
Vertical Drilling Machine
Layout:
Horizontal
Controlling Mode:
CNC
Automatic Grade:
Automatic
Precision:
High Precision
Product Description

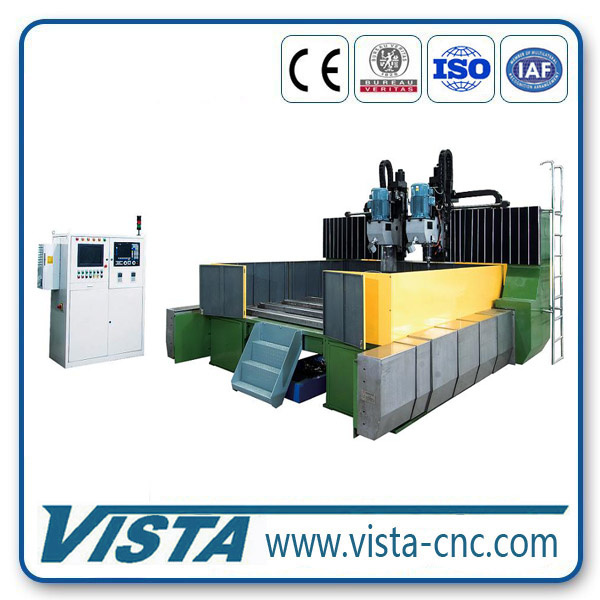

1. This machine is suitable for the drilling of accessories such as the steel structure, bridge, boiler of heat power station, flange etc. 2. High precision, high efficiency, high steel resistance, and high reliability.
3. This machine is mainly composed of the movable gantry, worktable of lathe bed, left and right support frame, servo slide-type power head, automatic chip removal machine, circulation cooling device, electrical system etc.
Model
DM4540/2B
work piece
Max. size Length x Width (mm)
4000 x 4500
Max. thickness (mm) (mm)
350
Worktable
Distance to the ground (mm)
800
Power head
Quantity
2
Drilling capacity(mm)
φ60
Tapping capacity (inch)
1"
Type of spindle
Slide type CNC servo control power head
Rotation speed ( stepless conversion) (r/min)
50-3000
Motor power (kw)
2 x 30
Longitudinal movement of gantry ( X axis )
Movement speed (m/min)
0-8
Servo motor power (kw)
2 x 4.3
Transverse movement of power head ( Y axis)
Movement speed (m/min)
0 - 8
Servo motor power (kw)
2 x 4.3
Feeding movement of vertical ram (Z axis)
Max. stroke (mm)
600
Servo motor power (kw)
2 x 4.3
Pump
Power of high-pressure cooling pump(kw)
22
Power of hydraulic pump(kw)
2.2
Pressure/flow of hydraulic pump
5.5Mp/30L/min
Positioning precision
X axis and Y axis (mm)
≤ 0.1/ (Full length)
Re-positioning precision
X axis and Y axis (mm)
≤ 0.05
Control system
FAGOR8055M(SPAIN)
Total power (kw)
≈110
Overall dimension
Length x Width x Height (mm)
(Approx.)12200×7900×3800
Weight (t)
(Approx.)45
Our company concentrates on the field of steel structure, petrol chemical and pressure vessel. Based on absorbing technical advantages of peer CNC equipments from domestic and international colleagues, we keep improving our products and provide cost-effective, user-friendly and reliable metal processing machinery. In current stage, the major equipments we produce and sell include CDMP series CNC plate drilling machines used for the processing of connection boards, BDM series CNC 3-D drilling machines used for the processing of section steel, SAW series CNC band sawing machines, SUK series section steel beveling machines and DM series CNC drilling machines for the processing of boilers, petrol, chemical plant pressure vessel and heat exchange, etc.
Our company centers on R&D. We entrust the processing of some parts to processional manufacturing companies and accomplish the assembly and adjustment of the complete machines by ourselves. First class products from the world famous enterprises are adopted for all key parts in our products, such as of electricity, hydraulic pressure, and mechanical drive and so on. In addition, there is strict QA management through the procedure in production and assembly, which can help to enhance the reliability and stability for the operation of our equipments.
A series of CNC drilling machines of VISTA have been exported to Korea, Russia, Ukraine, Iran and India for many times. Our company concentrates on enhancing organization management level of enterprise, makes efforts to perfect quality management system of production. And GB/T 19001-2000-ISO9001 has been certified in August, 2005.
Our company bases everything on Technology and Service; Self-reliance innovation, harmonious development. Colleagues are well welcomed for exchanges and cooperation. Let's prosper the steel structure market and seek common development and benefits together.
