| Prod Model: |
GB-70 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Speed Cutting: |
CNC |
Product Description
Specifications
Steel bar diameter: 70mm
Cutting speed: 11 seconds per piece
Cutting quantity per day (8 hours)=6*60*8=3600 pieces
Working steps: loading bars to automatic loading device, then set length you want, then operate it.
Can working 24 hours without human operation.
Suitable for mass production.

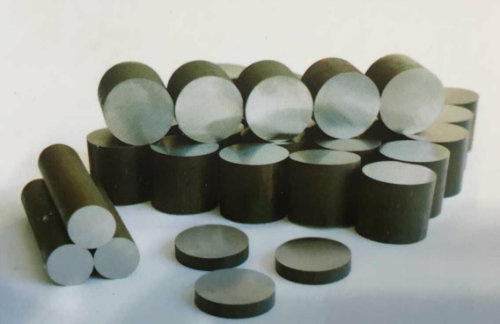

Widely used to manufacture gear, bearing, standard car accessory

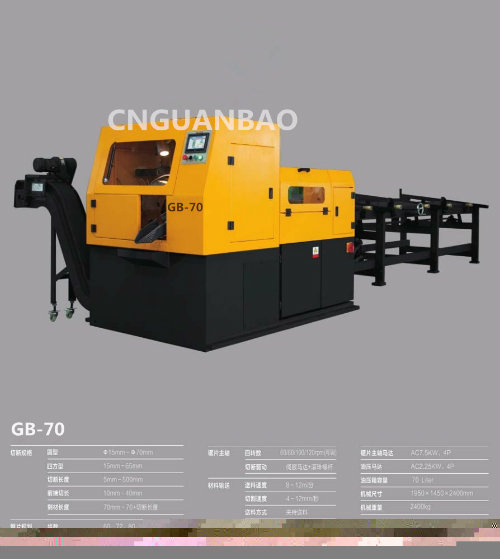

GB-70 Technical Data| 1 | cutting capacity | round | Φ15 mm--Φ70 mm |
| square | 15 mm--60 mm |
| Cutting length | 5mm--500mm |
| Front cut length | 10mm-40mm |
| Leaving length | 70mm--70+cutting length |
| 2 | saw blade | Teeth number | 60, 72, 80, 120 |
| size | Φ285xΦ32x2.0 mm |
| 3 | saw blade axis | rev | 60/80/100/120rpm |
| Cutting drive | Servo motor+ball screw |
| 4 | Material feeding | Feeding speed | 8-12m/m |
| Cutting speed | 4-12mm/s |
| Feeding mode | Clamp feeding |
| Feeding drive | Servo motor+ball screw |
| 5 | Saw blade motor |
| AC 7.5KW 4P |
| 6 | Oil pressure motor |
| AC 3.75KW 4P |
| 7 | Oil tank capacity |
| 100 L |
| 8 | Machine size |
| 2100x1500x1620mm |
| 9 | Machine weight |
| 1500kg |
Zhejing Guanbao Industrial Co., Ltd was founded in 1991. It covers a plot area of 89, 800 sq. M, Total assets of 116.8million yuan, and is located in Huzhen Xingwang industrial Area of Jinyun County on the upstream of Xiandu a nation's class AAAA scenic area, beside Tai_Jin Espressway and adjacent to No. 330 national highway. Here the traffic is convenient and the environment is nice.
Boasts strong technical strength, excellent mechanical equipment and advanced production processes. Its products ban sawing machines are well received in a host of clients due to their high technical contents, high efficiency, less energy, less energy consumption, reasonable structure, stable quality and so on. Where two major manufacturing bases, general machine, CNC sawing plane division and division base, the quality of the leading domestic level, the sales volume among the nation. We had obtained ISO9001: 2008 certificate, Also been well-known domestic and foreign enterprises and the 10largest steel plant of trust.
Sticking to the principle of"quality first and pursuit of excellence", the company has been carrying out quality management system in an all-rount way and endeavoring to make technical innovation, and offer best services. Markets its machines with best quality, most favorable prices and most professional services.
Looking into thr future, Guanbao peopke will continue to gather excellent talents, and produce fist-class products to repay the society.
