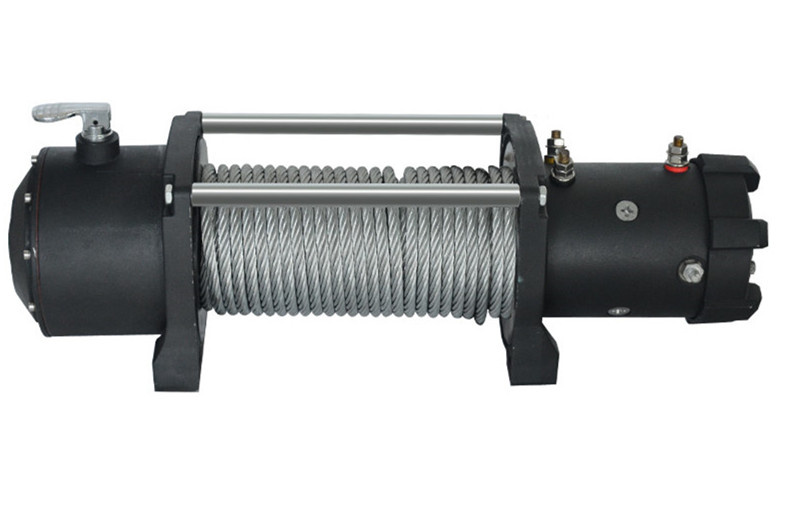

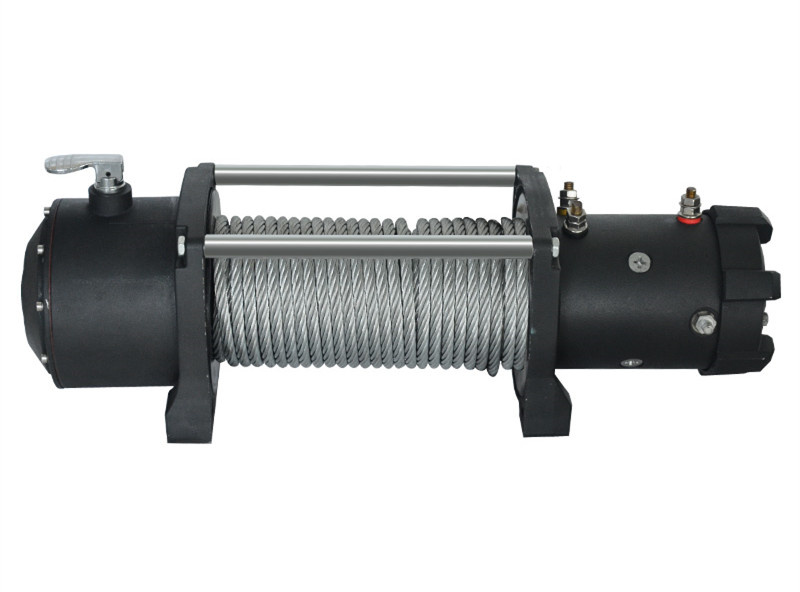

Classic design with heavy duty 10,500 lb winch . Powerful fast speed series would motor sealed ,mechanical design brake . sealed completed gear box with all steel gears , 265.2:1 gear ratio . steel cable and 4-way roller included . All -in-on remote control with the disassembled wire , two ends with airplane terminals ,waterproof .Reliable solenoid (450 A ,IP67 ) ,Separated control box . Features and Specifications : PN: XM-TE906 Performance: 12 V or 24 V DC Single line rated pull: 10,500lbs ( 4757kg) Motor: 6.0hp/4.5kw series -wound Sealed Braking action: Automatic locking with motor Clutch: Flip up and down Sliding ring gear Gear train : 3 -stage planetary Gear ratio: 265.2: 1 Remote Switch: 12ft ,wireless remote control integrated with Wired remote control Battery: Recommended:650CCA minimum for winching Battery Leads: 2 Gauge 72"(1.83m) Fairlead: 4-way roller fairlead Steel cable: Ф9.5 x 88 ft (Ф9.5 x 27 m ) Weight: 82 pound (37kg ) Overall dimension: 21.3" x 8.6" x 6.3" (550mm x 220mm x 160mm) Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm) Line Speed And Amp Draw ( First Layer )
Line Pull
lb
NO
4000
6000
8000
10500
kg
LOAD
1812
2718
3624
4757
Line speed
ft/ min
22.8
11.8
10.2
8.5
7.0
m/ min
6.95
3.6
3.1
2.6
2.13
Motor current
Amps
78
166
207
248
310
Line Pull And Cable Capacity
Layer of cable
1
2
3
4
Rated line pull per layer
lb
10500
8927
7250
5045
kg
4757
4497
3737
3191
Length of cable on drum
ft
17.8
38.2
64.2
72
m
5.93
12.73
19.57
24.00
Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!
