| Price: | US $ 86/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | GWTA |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design Advantage: | Clamp on Current Transformer |
| Accuracy: | 1% |
| Primary Current: | 0.1-1000A |
| Useable Frequency: | 10Hz to 100kHz |
| Window Size: | Check Specification Below |
| Maximum Voltage: | 600VAC |
| Operating Temp: | -10c to +50c |
| Frequency: | 40Hz-1000Hz |
| Application: | Metering, Energy, Monitoring Devices |
| Output Signal Type: | Clamp on CT |

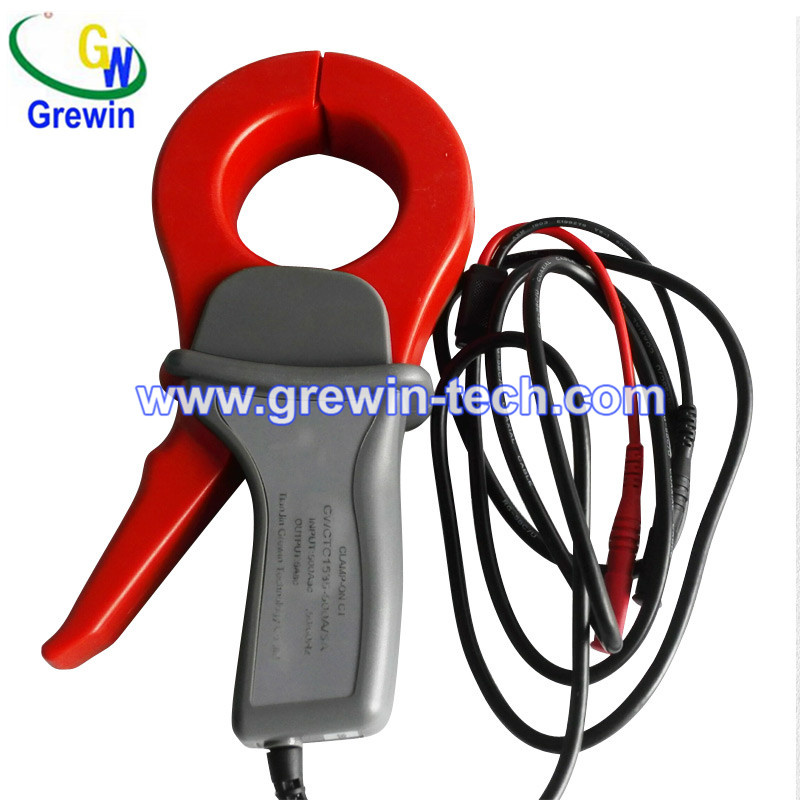

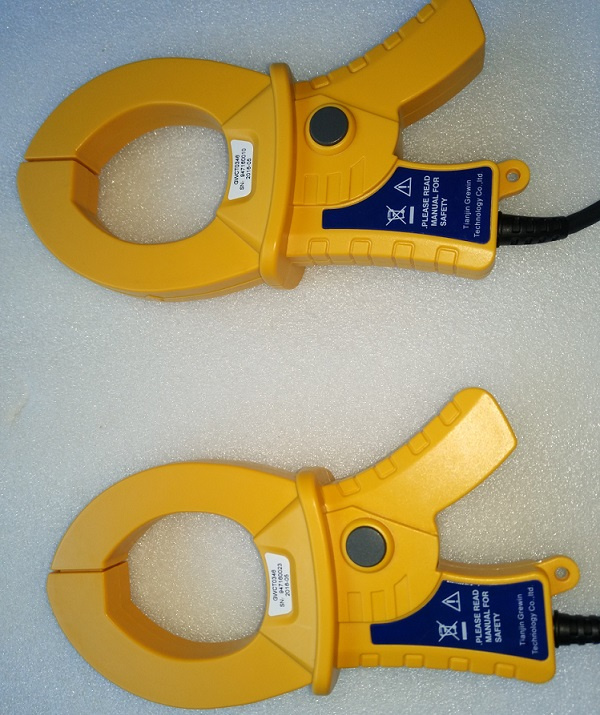

| Current probe(specifications) | |
| Rated Primary current | 0.1A-1000A |
| Output signal | mA/A or mV/A |
| Maximum Non-Destructive Current | 2000A |
| Basic Accuracy | 1% |
| Safety | CAT III 600V |
| Dielectric Resistance | 1000MOhms @ 500 Vdc |
| Case Material | Polypropylene resinUL flame retardant rating 94-V0 |
| Voltage rank | 600Vac(isolated condition), 30Vac(bareness condition) |
| Maximum voltage | 600Vac |
| Useable frequency | 10Hz - 100kHz |
| Maximum Cable Diameter | 2.05 inches (52 mm) |
| Dimensions | 4.37x8.5 x1.77 in. (111x216x45 mm) |
| Operating Temperature | -10ºC to +50ºC |
| Standard | IEC 60044-1 |
| Accessories | Supplied with feet for base mounting if required |
| Certification | RoHS compliant CE&ETL approved |
Current probe(features) |
| Good appearance |
| Low cost |
| 5 standard sizes |
| Clamp-on core design,safer,easier installation, portable |
| Both Silicon Steel & Nickel Alloy cores available |
| Current or three specs voltage output signal |
| Current probe(applications) |
| Current, power energy,monitoring devices |
| Power Factor Correction devices |
| Oscilloscope and harmonic waves analyzer |
Part number | Input current | Rated Output | Frequency (Hz) | Secondary Burden Resistance | Accuracy Class |
| GWCTC1535 | 0.5-1000A | 1mA/A | 40-1KHZ | ≤10 Ohms | 1% |
| 400-1000A | 5A,1A | 50/60HZ | ≤2VA | 1% | |
| 0.1-10A | 100mV/A | 10-1000K | ≥100KOhms | 3%±10mV | |
| 0.1-100A | 10mV/A | 2%±5mV | |||
| 1-1000A | 1mV/A | 1%±1mV | |||
| 0.5-1000A | 4-20mA | 50/60HZ | ≤100 Ohms | 1% |

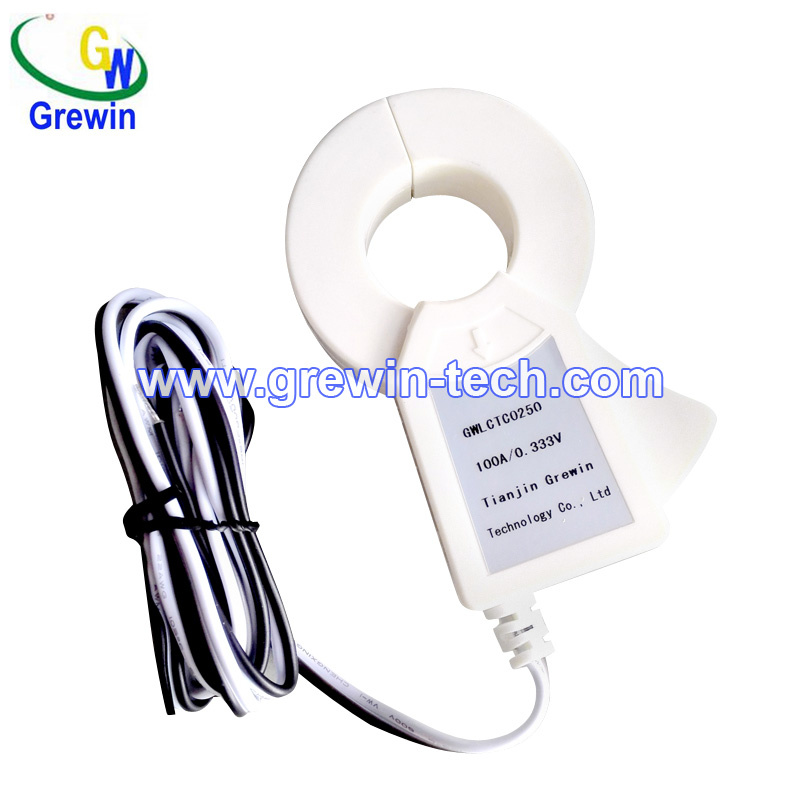

1-200A Clamp on current transformer(specifications) | |
| Rated Primary current | 1-200A |
| Turn ratio | 1:1000 1:2000 1:2500 |
| Output | 0.333V 1.5V |
| Accuracy | 0.1, 0.2 ,1.0 Class |
| Second burden(Ohms) | <=5, <=50 ,>=100k |
| Dielectric Resistance | 1000MOhms @ 500 Vdc |
| Case Material | Polypropylene resinUL flame retardant rating 94-V0 |
| Voltage rank | 600Vac(isolated condition), 30Vac(bareness condition) |
| High Potential | 2500Volts/min |
| Frequency Range: | 50/60Hz |
| Operating Temperature | -25ºC to +70ºC |
| Standard | IEC 60044-1 |
| Accessories | Supplied with feet for base mounting if required |
| Certification | RoHS compliant CE&ETL approved |
Clamp on current transformer(features) |
| Low cost |
| 5 standard sizes |
| Clamp-on core design,safer,easier installation, portable |
| Both Silicon Steel & Nickel Alloy cores available |
Clamp on current transformer(applications) |
| Silicon Steel cores provide moderate accuracy and lower cost for appropriate current measurement |
| Nickel Alloy cores are suitable for applications that require the highest accuracy with minimal phase angle error. Applications would include electric power quality monitoring devices |
| WHY CHOOSE US? |
| Quality and honest first! |
| A. Flexible service for diffierent transformers with high efficiency performance. |
| B. Over 40 years experience of transformer designing and producing. |
| C. 100% test of every single product we produce from incoming material checking. |
| D. UL, CE, ROHS, ISO9001:2008 |
| E. We offer custom-made transformers, OEM and ODM are welcome |
| F. We deliver the quality you expect at consistently competitive prices |
| G. Transformer quality lifetime:10 Years. |
| H. Specialty Sales service:5 -10 Years |
