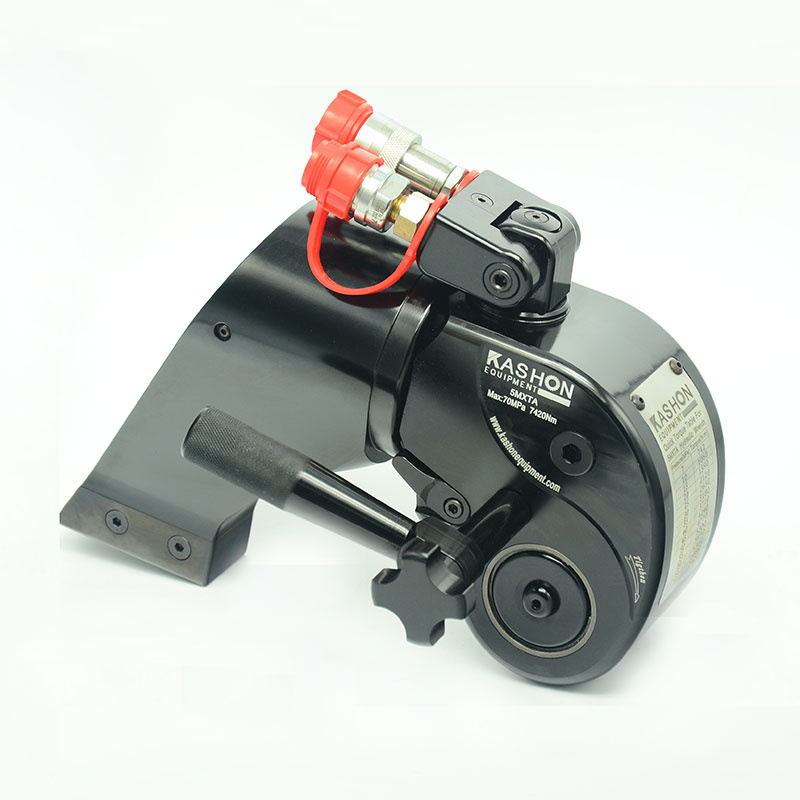

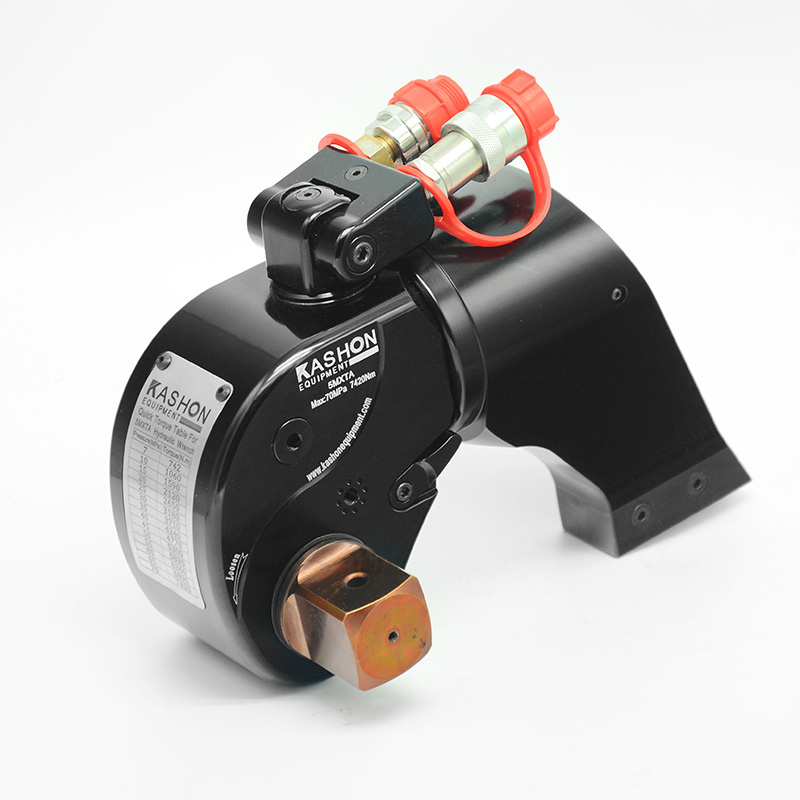

China Square Drive Hydraulic Power Torque Wrench

Name: China Square Drive Hydraulic Power Torque Wrench
Brand: tool-buy.com
SKU: 813189625
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 1000-5000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Taizhou Kashon Power Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	MXTA
Max.Pressure:	700bar/10, 000psi
OEM Service:	Can Put Customers' Brand
Warranty:	18 Months

Product Description

Kashon Square drive hydraulic torque wrench with 18 months warranty, trusted for bolting!

FEATURES:

1.Material of hydraulic torque wrench are Aluminum-Titanium alloy and super high strength alloy steel for increased strength, intensity and durability of the tool. High repeatability, a precise design is with accuracy ±3%.
2. The 360°*180° degree hose uni-swivel allows easy fit in confined areas, and eliminates hose kinking. It is unbeaten for durability, and unequalled accuracy.
3. Square drive wrench: the lock of trigger is pressed slightly, and it may as you please situate the reaction arm of 360° trimming style on the support.
4.Anti-reverse pawl designed for preventing ratchet return to maintain required torque.
5. OEM offered, customized design

SPECIFICATIONS:

Model	1MXTA	3MXTA	5MXTA	8MXTA	10MXTA	15MXTA	20MXTA	25MXTA	35MXTA	50MXTA
Max.Torque(in Nm)	1760	4332	7420	10430	15030	19409	26447	34626	47414	69247
Min. Torque(in Nm)	176	433	742	1043	1503	1940	2644	3462	4741	6925
Max.Torque(in ft.lbs)	1329	3148	5396	7586	10985	14631	19230	25184	34484	50361
Min.Torque(in ft.lbs)	134	315	540	738	1097	1462	1821	2407	3448	5036
Drive	3/4″	1″	1-1/2″	1-1/2″	1-1/2″	2-1/2″	2-1/2″	2-1/2″	2-1/2″	2-1/2″
Nut hex range(mm)	24-55	32-75	41-85	46-95	55-105	60-115	65-130	75-145	95-170	105-185
Bolt size range (mm)	16-36	22-48	27-56	30-64	36-72	39-80	42-90	48-100	64-120	72-130

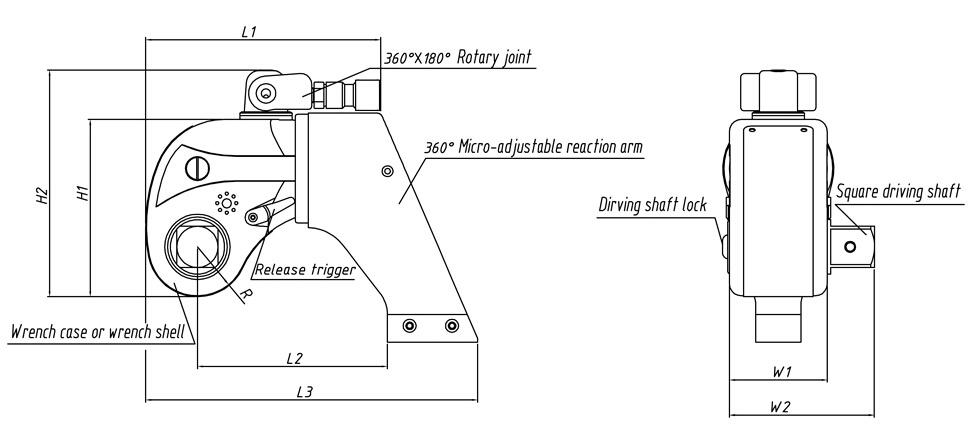

L1(mm)	130	170	202	228	237	273	287	323	351	376
L2(mm)	102	140	160	184	192	223	248	256	271	295
L3(mm)	182	249	286	3265	336	391	433	464	494	528
H1(mm)	52	70	81	90	100	110	120	138	153	162
H2(mm)	77	98	125	134	144	164	187	206	217	226
H3(mm)	96	127	149	172	181	206	221	258	279	291
H4(mm)	133	165	184	207	216	241	256	293	315	326
R(mm)	25.8	34.8	39.8	46.8	50.8	56.8	59.8	70.8	76.8	78.8
Weight(kgs)	2	4	7	10.6	12.9	20	25	33.8	43	52

Photos

Company Information:

Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

FAQ:
Q1: How to make payment?
A1: PAYPAL,WEST UNION, MONEYGRAM OR BANK TRANSFER
Q2: How long does it take to process orders?
A2: It usually takes 5-7 business days to process most orders for no stock, if stock available, only take 2- 3 business days.
Q3: What is the packing method?

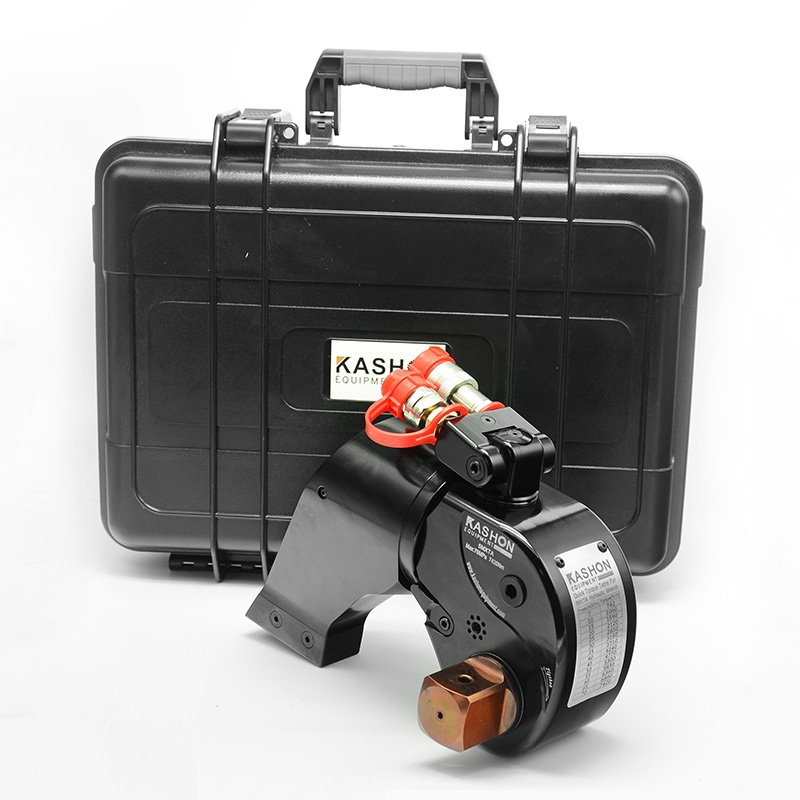

A3: ABS material TOOL BOX.
Q4: How to ship?
A4: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q5: What is the warranty
A5: 18 months against B/L or AWB date

Taizhou Kashon Power Equipment Co., Ltd founded in 2015, its predecessor is Kashon Hydraulic Tools Factory, began in 2002. We keep devoting all our efforts on R&D, advanced accurately manufacturing unique design with top quality tools, we mainly export:

Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; Low height, lock nut;

Hydraulic torque wrenches(100-72000Nm);

Electric and pneumatic torque wrench Max 13500Nm;

Hydraulic lifting and torque pumps, manual and electric type;

Hydraulic pullers, manual and hydraulic type;

Hydraulic flange spreader, manual and hydraulic type;

Hydraulic steel wire rope press machine

Hydraulic accessories(hoses, couplers, oil distributors, etc. )

All KASHON tools and equipment meet ISO and international quality standards so as to satisfy every customer s demands.

Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
