China Bearing Factory Machinery Conveyor Bearing Pillow Block Bearing 209

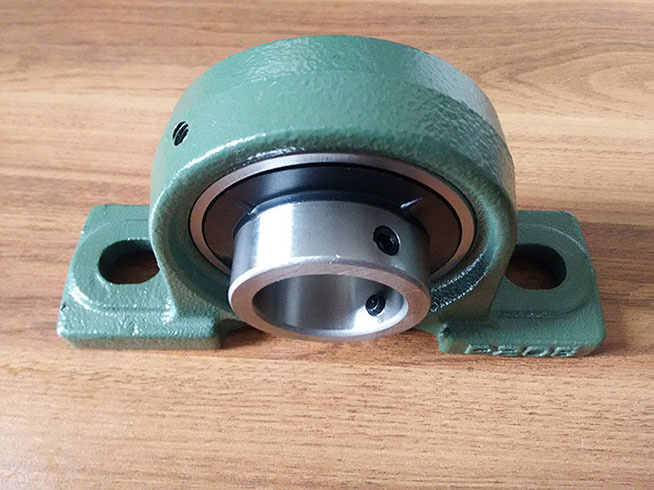

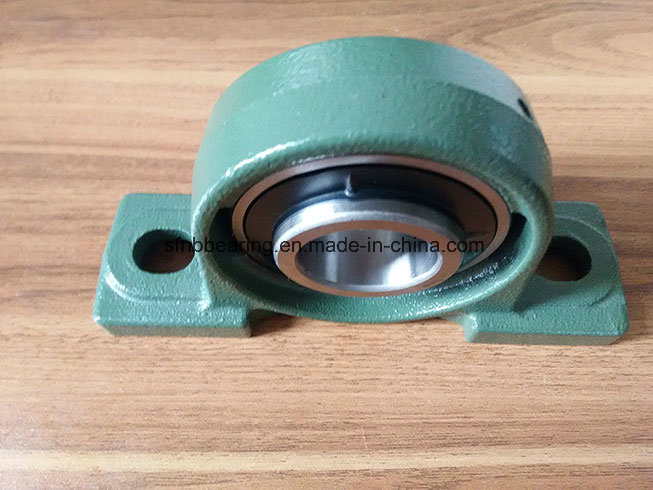

Name: China Bearing Factory Machinery Conveyor Bearing Pillow Block Bearing 209
Brand: tool-buy.com
SKU: 715570182
Availability: InStock
Rating: 4.6 (33 reviews)

Price:	US $ 5-6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

KORTON INDUSTRIAL LIMITED

Showroom Product Company Profile

Prod Model:	UCP209
Inner:	45mm
Seals:	RS
Type:	UCP

Product Description

Welcome to choose KORTON INDUSTRIAL LIMITED.

NO 1. our adwantages:

1. 14 years bearing products manufacturing and 4 years exporting experiences.

2. OEM order and non-standard bearing order can be accepted.

3. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical rollerbearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings pump bearings, and many nonstandard bearings are also in our product range.

4. Sample available

NO 2. Description: Pillow block bearing

Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.

Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.

Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature+long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.

NO 3. Types of Pillow Block Bearing

SERIES: UCP UCF UCFB UCFA UCK UCT UCFL UCFLU UCFC UCFU UELP UELK UKP UKF UKFL NAP NAFC NAFU NAFL NAFLU UCPH UCPA ......

NO 4. OEM all brand bearing

NO 5. Pillow Block Bearing Specification:

Seals Types	RS
Vibration Level	Z1V1,Z2V2,Z3V3
Clearance	C2,C0,C3,C4,C5
Tolerance Codes	ABEC-1,ABEC-3,ABEC-5
Materral	GCr15-China/AISI52100-USA/Din100Cr6-Germany
MOQ	1Set at least
Delivery Time	5-10 days after contract
Payment Terms	TT/PAPAL/WESTERN UNION
Package	Tube package+outer carton+pallets; Single box+outer carton+pallets; Tube pavkge+middle box+outer carton+pallets; According to your requirement

NO 6. Self-aligning Ball Bearing Models and Parameters:

Models

(mm)
L	J	A2	A1	A	E	N	S

housing

(kg)

UCF202
         202-10
         203
        203-11

15
5/8
17
11/16

25.5

30.9

11.5

F203

0.57
0.50

UCF204-12
204

3/4
20

25.5

33.3

11.5

12.7

F204

0.61

UCF205-14
         205-15
         205
        205-16

7/8
15/16
25
1

35.7

11.5

14.3

F205

0.80

UCF206-18
         206
         206-19
        206-20

1-1/8
30
1-3/16
1-1/4

108

40.2

11.5

15.9

F206

1.07

UCF207-20
         207-21
         207-22
         207
        207-23

1-1/4
1-5/16
1-3/8
35
1-7/16

117

44.4

17.5

F207

1.40

UCF208-24
208-25
208

1-1/2
1-9/16
40

130

102

51.2

F208

1.80

UCF209-26
         209-27
         209-28
         209

1-5/8
1-11/16
1-3/4
45

137

105

52.2

F209

2.20

UCF210-30
210-31
210

1-7/8
1-15/16
50

143

111

54.6

F210

2.40

UCF211-32
         211-34
         211
        211-35

2
2-1/8
55
2-3/16

162

130

58.4

22.2

F211

3.50

UCF212-36
         212
         212-38
        212-39

2-1/4
60
2-3/8
2-7/16

175

143

68.7

25.4

F212

4.20

UCF213-40
213

2-1/2
65

187

149

69.7

25.4

F213

5.30

UCF214-44
214

2-3/4
70

193

152

75.4

30.2

F214

5.90

UCF215
215-48

75
3

200

159

78.5

33.3

F215

6.30

UCF216

208

165

83.3

33.3

F216

7.30

UCF217-52
217

3-1/4
85

220

175

87.6

34.1

F217

8.90

Models	(mm)									(mm)			(kg)
	d	L	J	A2	A1	A	E1	N	S1	Bolt	bearing	housing
NAFU202	15	76	54	15	11	25.5	38.4	11.5	13.9	M10	NA202	NF202	0.68
NAFU203	17	76	54	15	11	25.5	38.4	11.5	13.9	M10	NA203	NF203	0.66
NAFU204	20	86	63.5	19	15	29.5	45.5	11.5	17	M10	NA204	NF204	0.77
NAFU205	25	93	70	19	15	30	45.9	11.5	17.4	M10	NA205	NF205	0.95
NAFU206	30	106	82.5	20	16	32.5	50.1	11.5	18.2	M10	NA206	NF206	1.32
NAFU207	35	116	92	21	17	35	53.3	14	18.8	M12	NA207	NF207	1.77
NAFU208	40	129	101.5	24	17	39	58.6	14	21.4	M12	NA208	NF208	2.22
NAFU209	45	135	105	24	18	40	58.9	16	21.4	M14	NA209	NF209	2.63
NAFU210	50	143	111	28	20	45	66.1	18	24.6	M16	NA210	NF210	2.95
NAFU211	55	162	130	31	21	49	74.6	18	27.7	M16	NA211	NF211	4.1
NAFU212	60	175	143	34	22	53.5	80.8	18	30.9	M16	NA212	NF212	4.86
NAFU213	65	184	149	38	22	58	89.6	18	34.1	M16	NA213	NF213	5.9
NAFU214	70	188	152	38	23	60	89.6	18	34.1	M16	NA214	NF214	6.45
NAFU215	75	200	159	41	24	62	95.8	18	37.3	M16	NA215	NF215	7.55
NAFU216	80	207	165	42	25	63	99.9	22	37.3	M20	NA216	NF216	8.65

Unit NO.	Shaft Dia.		Dimensions(mm)												Bolt Used		Housing NO.	Weight (kg)
	(in)	(mm)	a	e	i			g	l	s	b	z	Bi	n	(mm)	(in)
UCFL202		15	99	76.5	15			11	25.5	11.5	57	30.9	31.0	11.5	M10	3/8	FL203	0.45
202-10	5/8
203		17
203-11	11/16
UCFL204 204-12	3/4	20	113	90	15			11	22.5	11.5	60	33.3	31.0	12.7	M10	3/8	FL204	0.48
UCFL205		25	130	99	16			13	27	11.5	68	35.7	34.0	14.3	M10	3/8	FL205	0.6
205-13	13/16
205-14	7/8
205-15	15/16
205-16	1
UCFL206		30	148	117	18			13	31	11.5	80	40.2	38.1	15.9	M10	3/8	FL206	0.9
206-17	11/16
206-18	11/8
206-19	13/16
205-16	11/4
UCFL207		35	161	130	19			14	34	14	90	44.4	42.9	19.0	M12	1/2	FL207	1.2
207-20	11/4
207-21	15/16
207-22	13/8
207-23	17/16
UCFL208		40	175	144	21			14	36	14	100	51.2	49.2	19.0	M12	1/2	FL208	1.6
208-24	11/2
208-25	19/16
UCFL209		45	188	148	22			16	38	18	108	52.2	49.2	19.0	M16	5/8	FL209	1.9
209-26	15/8
209-27	111/16
209-28	13/4
UCFL210		50	197	157	22			16	40	18	115	54.6	51.6	19.0	M16	5/8	FL210	2.2
210-29	113/16
210-30	17/8
210-31	115/16
210-32	2
UCFL211		55	224	184	25			18	43	18	130	58.4	55.6	22.2	M16	5/8	FL211	3.1
211-32	2
211-33	21/16
211-34	21/8
211-35	23/16
UCFL212		60	250	202	29			18	48	18	140	68.7	65.1	25.4	M16	5/8	FL212	4.0
212-36	21/4
212-37	25/16
212-38	23/8
212-39	27/16
UCFL213		65	258	210	30			20	50	23	155	69.7	65.1	25.4	M20	3/4	FL213	5.0
213-40	21/2
213-41	29/16
UCFL214		70	265	216	31			20	54	23	160	75.4	74.6	30.2	M20	3/4	FL214	5.6
214-42	25/8
214-43	211/16
214-44	23/4
UCFL215		75	275	225	34			20	56	23	165	78.5	77.8	33.3	M20	3/4	FL215	6.2
215-45	213/16
215-46	27/8
215-46	215/16
215-48	3
UCFL216 216-50	31/8	80	290	233		34	20		57	25	180	83.3	82.6	33.3	M22	7/8	FL216	7.8

Why Choose Us:

We are an industrial and trading company.We have our own brand: SFNB .If you interested in our product,I can take you to visit our factory.

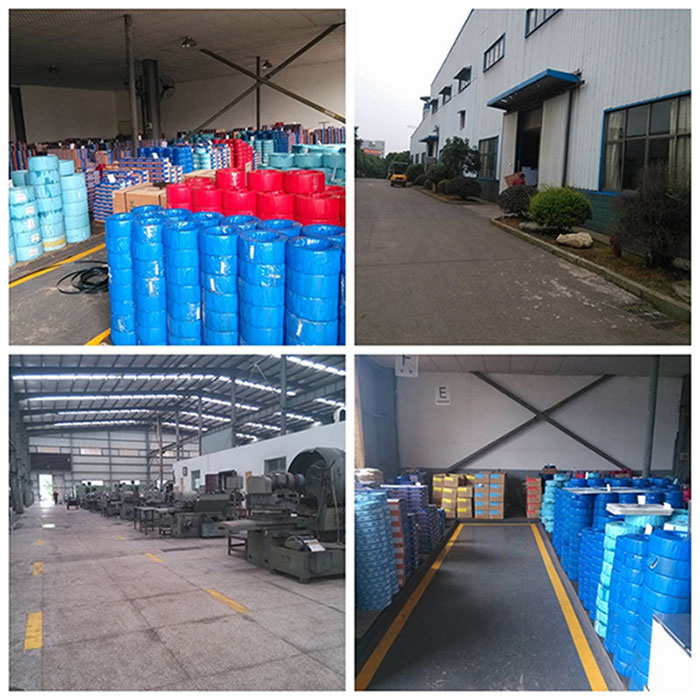

Our factory have advanced testing equipment,before the every product leave the factory,we will be testing.We can send samples to you,you can test the quality,and if you accept the sample quality,we can promise: the follow-up orders' quality will be the same as samples.
About ordinary standard type of bearing ,We have rich inventory,not have MOQ,if your need a product is Non-standard size,need customize,we will according the product size to determine the MOQ.
Our company can accept OEM,you can send sample to me,we can manufacturing products the same as sample.Meanwhile,we also can accept some well-known brands of OEM,
If the amount of money is less,you can pay it by Paypal .Of course you can payment by TT or Western Union etc.

SFNB bearing company was founded in March 2008. We are not only principally engaged in the research, development and manufacture of bearings but also engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.

Main product:

1, Deep groove ball bearings

2, Ceramic ball bearings

3, Angular contact ball bearings

4, Self-aligning ball bearings

5, Thrust ball bearings

6, Linear bearings

7, Needle bearings

8, Pillow block bearings

9, Rod end bearings

10, Cylindrical roller bearings

11, Spherical roller bearings

12, spherical Thrust roller bearings

13, Taper roller bearings

14, Slewing bearings

15, sliding bearings

16, Excavator bearings

17, Blender bearings

18, Other bearings

In addition, our company can customize according to customers' needs of various types of products.

Our bearings have been widely used in various industries, such as

1) Mining, mineral processing, and cement

2) Motors and generators

3) Wind

4) Industrial pumps

5) Industrial transmission

6) Industrial fans

7) Aerospace

8) Buildings

9) Two rounds of cars

10) Skidding of the wheel

11) Food and drink

12) Plastic and rubber

13) Railway

14) Line drive control

15) Compressors

16) Printing equipment

17) Pulp and paper

18) Bicycle

In order to meet the needs of the masses of customers and improve the market competitiveness of our company, we can provide OEM service according to our customers' needs. We have gained ISO9001 certificate, CE certificate, GOST certificate and SGS certificate. Our target is to carry out the strategic investment along with the development of market and need of new products. With our strategic, excellent products, top technology and outstanding service, we sincerely expect cooperation with more customers and friends for a better future.
