Ce Certificate Wire Saw Cutting Machine, Multi Function Stone Wire Saw Cutting Machine, Qurry Stone Cutting Machine Bwt-3500

Ce Certificate Wire Saw Cutting Machine, Multi Function Stone Wire Saw Cutting Machine, Qurry Stone Cutting Machine Bwt-3500
Price: US $ 37500-45000Set
Min Order: 1Set
Pay Type: T/T
Prod Model: BWT-3500
Warranty: 12 Months
Wire Length: 20.6m
Worktable Rotating(Optional): 360°
Max Processing Size: 3500X3500X2100mm
Dimension Of Worktable: 2500X2000mm
Water Consumption: 4m3/H
Main Motor: 15kw
Total Motor: 24kw
Weight: 8000kg
Condition: New
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic
Type: Stone Block Trimming Machine
Control: PLC

Product Description

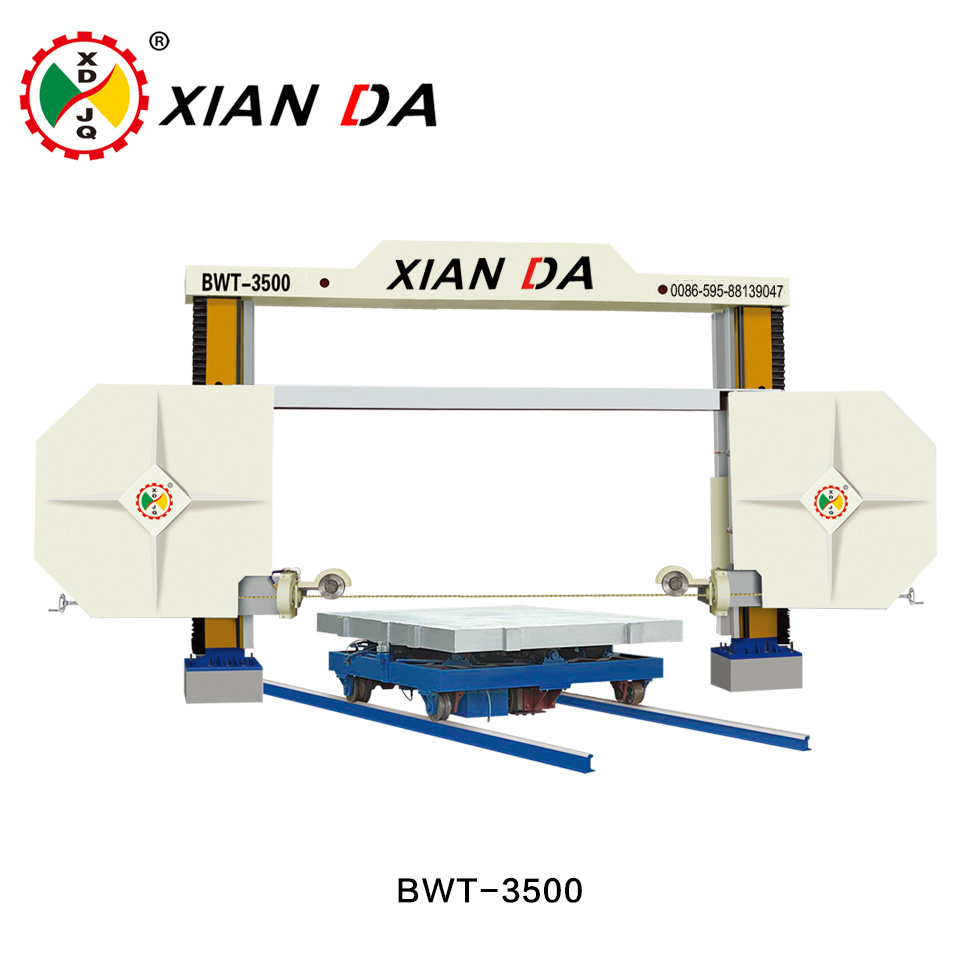

BWT-3500 diamond wire-saw trimming machine adopts PLC control,CNC is available also.The special design for 360° worktables will fulfil your need,used to trimming the four surfaces of the block,also can cut the block to slab,which is the ideal equipment for cutting and trimming block.Some more it compatible with CNC system,which can process the column slab,pillar,roman column,numeral,letter,Chinese characters and other shapes for the stone.

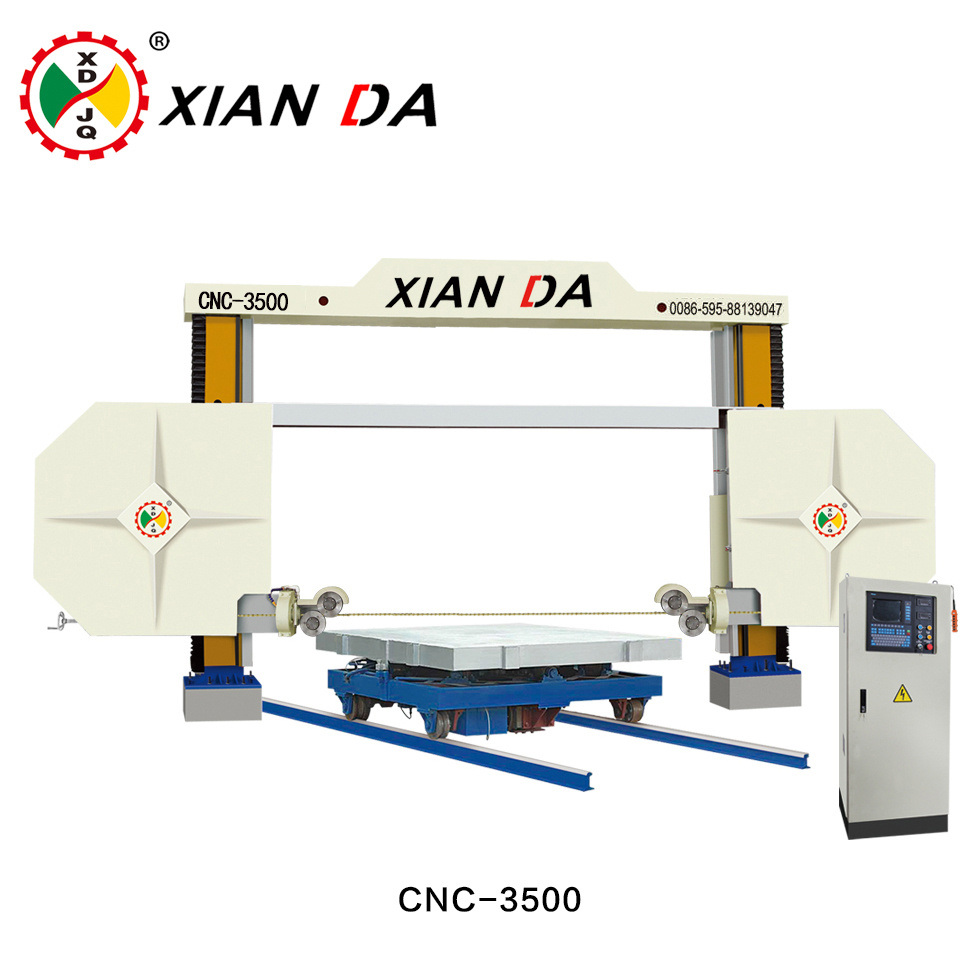

ParameterUnitBWT-35000CNC-3500
Max processing sizemm3500x3500x21003500x3500x2100
Dimension of worktablemm2500x20002500x2000
Main motorkw1515
Gross motorkw2423
Outline dimensionmm9500x6800x47009500x6800x4700
Gross weightkg80008000
Water consumptionkw44

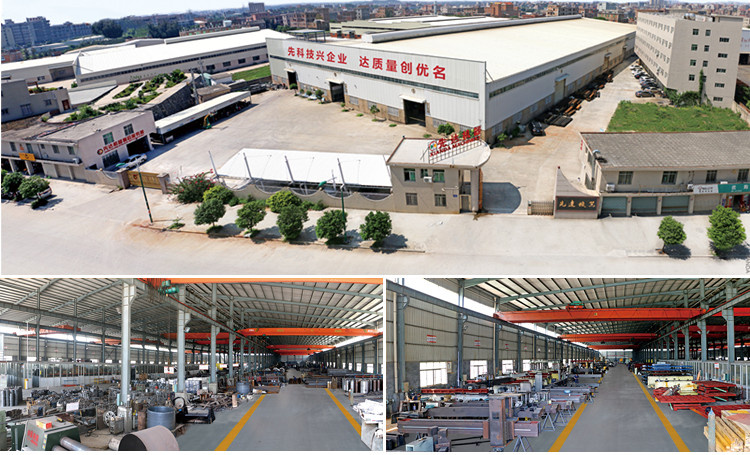

Factory Overviews


Certifications





Our Services




We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.

Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.

With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.

Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".

Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
