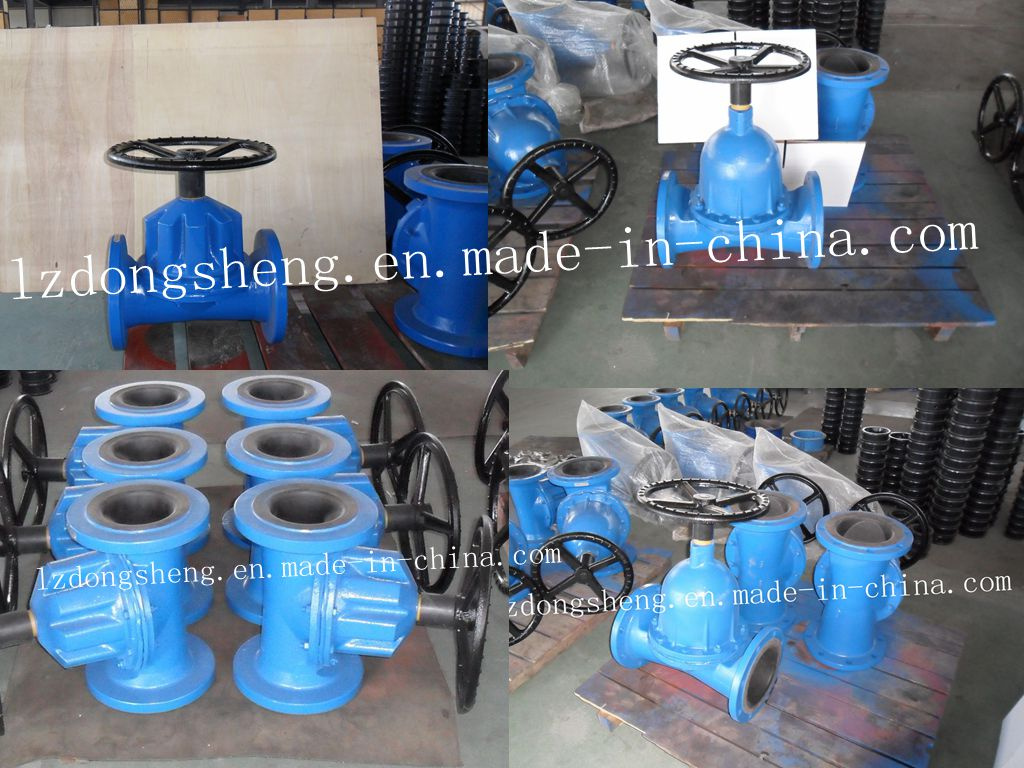

Cast Iron Diaphragm Valve with Rubber Lined

Cast Iron Diaphragm Valve with Rubber Lined
Price: US $ 1.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: G41X-16Z
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nomianl Diameter: Dn50-Dn300
Valve Body Material: Cast Iron or Ductile Iron
Max. Temp: 80 Celsius
Suitable Medium: Water,Liquid,Steam
Face To Face: En558-1
Type: Saunders Diaphragm Valve
Ends: Flanged
Valve Usable: Any Position
Flange Standards: En1092-2, Bs4504
Test & Check: API 598
Material: Cast Iron
Structure: Through Way Diaphragm Valve
Actuator: Manual
Function: Field Bus
Connection: Flanged Diaphragm Valve
Standard: JIS

Product Description

Straight-through type Diaphragm Valve

DESCRIPTION:
1.Working pressure: DN50-DN125     1.0Mpa

                                      DN150-DN200   0.6Mpa
                                      DN250-DN300   0.4Mpa
2. Working temperature: NBR:-20°C ~ +60°C
3. Face to face: EN588-1
4. Flange standards: EN1092-2,BS4504 etc.
5. Testing: DIN3230,API598
6. Medium: Cement, Clay, Cinder, Granular fertilizer and so on solid fluid, Fresh Water, Sea water, inorganic acid and alkaline liquid etc.

Feature:
1.Consistently leaktight, even with solids in the line
2.Full straight through fluid flow
3.Excellent for sludges, slurries or viscous fluids
4.Flows in either direction
5.Isolation of bonnet from fluid
6.Easily cleaned with variety of pigs
7.Simple in-line maintenance


PN Nominal pressure   1.6Mba

Sealing test pressure   1.76Mba

Strength test pressure  2.4Mba

Suitable temperature     80°C


Materials:

.Body/Bonnet: Cast Iron, Ductile Iron,

.Lining:Rubber-NR

.Diaphragm: Rubber

.Disc:Cast Iron,Ductile Iron,Stainless Steel

.Valve spindle:Carbon Steel & Stainless Steel

.Handwheel: Iron & Steel

.Screw nut:Copper alloy

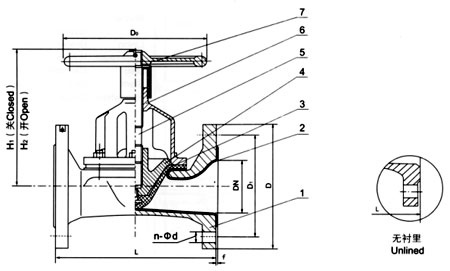

Parts list:1.Body 2.Body lining 3.Diaphragm 4.Disc 5.valve spindle 6.valve cap 7.handwheel



Structure characteristics:

Flow resistance small,   Relative to weir type it's long journey,Cut performance and circulation ability is very good ,Can be used in high vacuum equipment.Corrosion resistance, can used for granular media,Lumen can line into Plastic,glue,or enamel.

face and face end:flange

size:DN50~DN300


Application:
DIMENSION:                                                                                                                                                          Units(mm)
DN 50 65 80 100 125 150 200 250 300
L 194 216 258 309 362 412 527 640 755
L1 188 222 252 301 354 404 517 630 745
ΦE 165 185 198 220 250 283 335 395 445
ΦD PN10 Φ125 Φ145 Φ160 Φ180 Φ210 Φ240 Φ295 Φ350 Φ400
(EN1092-2) PN16 Φ355 Φ410

Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.

We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.

We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
