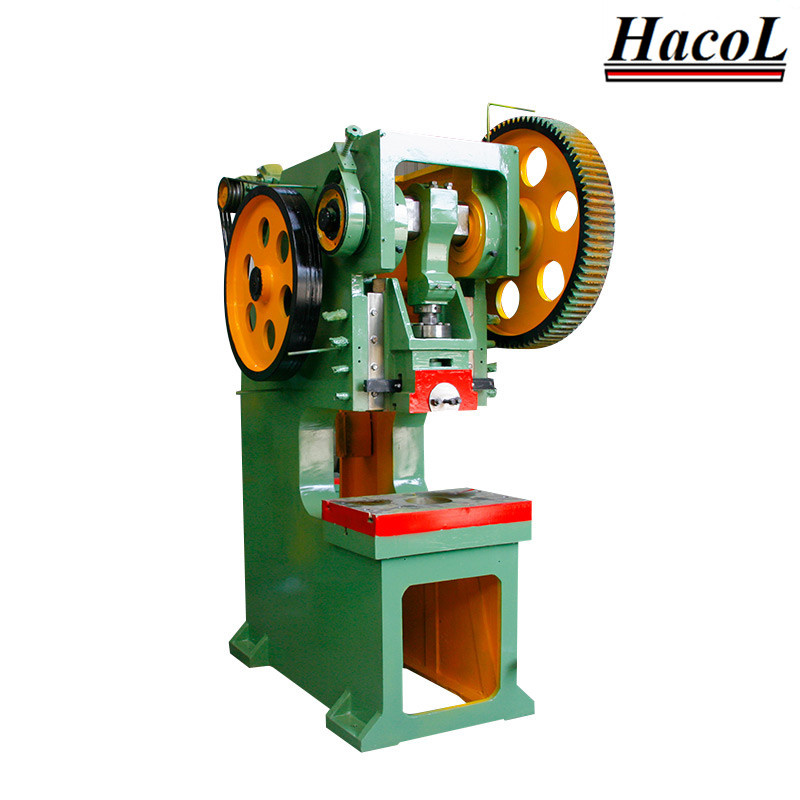

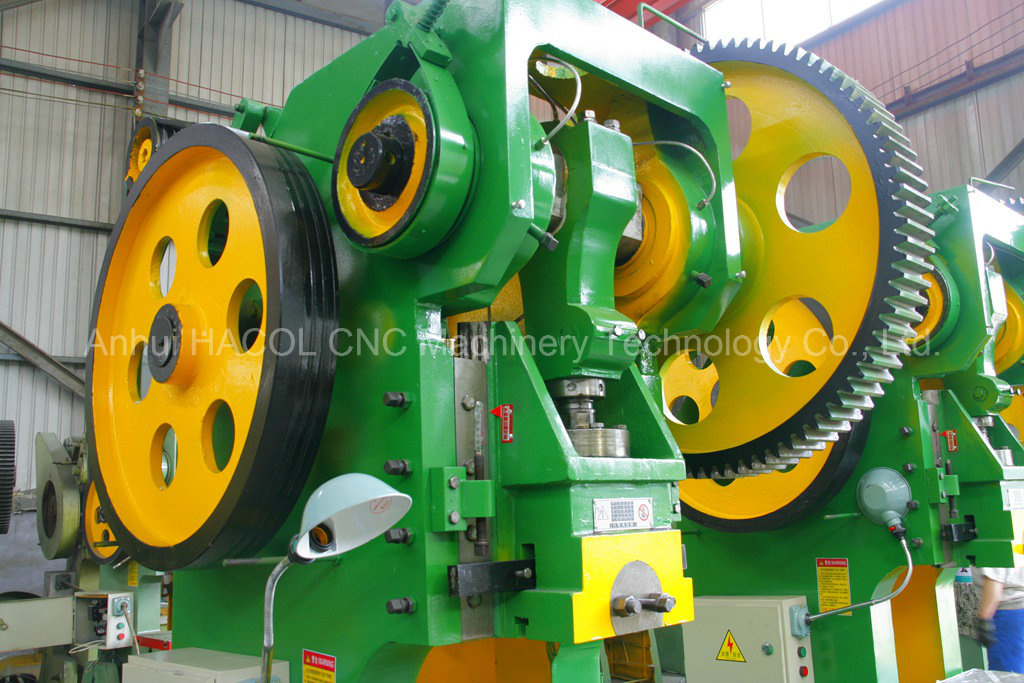

J23 series Open Tilting Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate. Standard Accessories 1. Motor pulley 2. Clutch key 3. Clutch key springs 4. Slide adj. Spanner 5. Fly wheel & grar guard 6. Oil cups for lubrication point 7. Knock-out system 8. Inclination arrangement in 50 ton & abovem Optional Accessories 1. Tow hand operated clutch 2. Single / continuous stroke 3. Lubrication pump automatic 4. Electrical 5. Tie - rod 6. Toomy bar 7. Extra base plate 8. Inclination arrangement
Technical parameters
Unit
J23-6.3
J23-10
J23-16
J23-25
J23-40
J23-63
J23-80
J23-100
Nominal pressure
KN
63
100
160
250
400
630
800
1000
Slipper stroke
mm
35
50
60
75
100
100
120
130
Stroke times
Times/min
140
145
125
78
54
40
40
38
Closing height
mm
225
260
310
345
380
430
430
590
Closing height adjuster
mm
30
35
45
55
75
100
100
100
Distance between slipper center and machine
mm
130
130
170
200
210
290
300
400
Polo distance
mm
160
180
220
250
300
430
440
530
Worktable dimension
Front&back
mm
240
245
300
355
400
570
580
720
Left&right
mm
390
395
480
560
630
870
880
1100
Slipper underside bore
Front&back
mm
140
150
180
200
205
360
365
370
Left&right
mm
140
150
210
230
230
395
405
430
Size of die handle bore
Diameter
mm
30
30
40
40
50
50
50
60
Depth
mm
55
55
60
60
70
70
70
75
Worktable thickness
mm
45
50
50
55
60
80
80
100
Distance between bench to guideway
mm
725
770
800
830
900
950
800
850
dimension
Front&back
mm
900
900
1100
1345
1550
1950
2000
2470
Left&right
mm
650
670
850
950
1150
1500
1550
1735
height
mm
1580
1750
1950
2100
2280
2850
2950
3310
Foundation bolt distance
Front&back
mm
485
590
800
850
950
13000
10000
12000
Left&right
Mm
380
400
470
580
590
920
830
10000
Motor power
Kw
1.1
1.5
2.2
2.2
4
7.5
7.5
11
Weight
kg
480
580
1100
1550
2450
3800
5800
10100
