Brand New Power Press:
25ton to 400ton
Power:
380V/50Hz/3phase
Delivery Time:
30 Days
Certificate:
Ce
Options:
Cushion
Control:
PLC
Warranty:
One Year
Slide Stroke:
80-350mm
Max. Die Height:
250-600mm
Name:

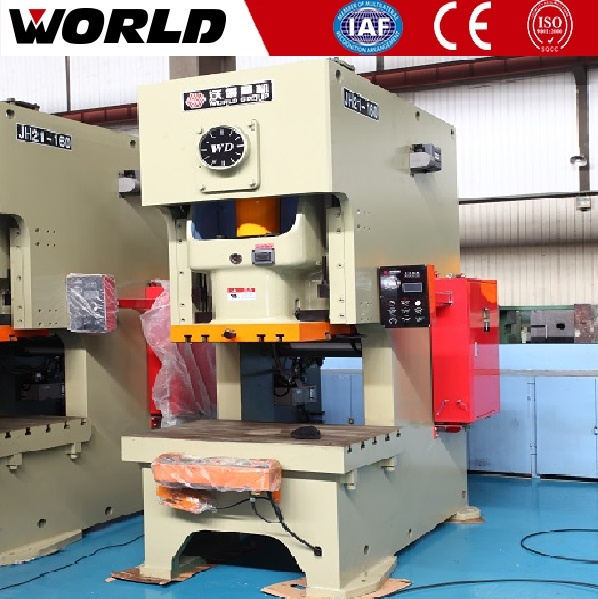

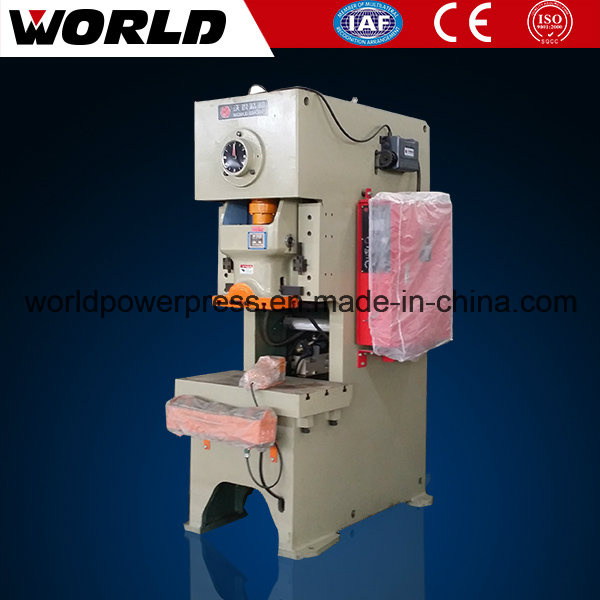

C Frame Eccentric Power Press
Type:
General Punching Machine
Controlling Mode:
Artificial
Automatic Grade:
Semiautomatic
Power Source:
Mechanical Drive
Precision:
High Precision
Product Description
C Frame Eccentric Power Press Spare Parts of Power Press Specifications of JH21 Power Press:
ITEM
UNIT
JH21-25
JH21-45
JH21-60
JH21-80
JH21-125
JH21-160
JH21-200
JH21-250
JH21-315
JH21-400
Nominal Capacity
KN
250
450
600
800
1250
1600
2000
2500
3150
4000
Slide Stroke
mm
80
120
140
160
180
200
220
250
250
270
Slide Strokes
Fixed
Times/min
100
80
70
60
50
45
45
30
30
30
Variable(optional)
Times/min
60-100
50-80
45-70
40-60
35-50
30-45
25-45
20-30
20-30
20-30
Max. Die Height
mm
250
270
300
320
350
400
450
500
500
550
Die Height Adjustment
mm
50
60
70
80
90
100
110
120
120
120
Throat Depth
mm
210
225
270
310
350
400
430
450
450
490
Distance Between Uprights
mm
450
515
560
610
670
736
910
980
980
1050
Slide Bottom Size
Forward - Rear
mm
250
340
400
460
520
580
650
700
700
750
Left - Right
mm
360
410
480
540
620
700
880
950
950
1020
Shank Hole Size
Diameter
mm
40
50
50
50
70
70
70
70
70
70
Depth
mm
65
60
70
65
90
100
100
130
130
130
Bolster Size
Forward - Rear
mm
400
440
520
600
680
760
840
880
880
950
Left - Right
mm
720
825
930
950
1100
1170
1390
1500
1540
1700
Thickness
mm
80
110
130
140
155
165
180
190
190
210
Bed Opening Hole Diameter
mm
150
150
150
180
200
220
250
270
270
290
Overall Dimensions
Forward -Rear
mm
1496
1585
1540
1765
2040
2305
2600
2660
2720
2850
Left - Right
mm
945
1075
1200
1200
1320
1420
1540
1640
1680
1750
Height
mm
2120
2391
2570
2725
3035
3215
3800
3865
3865
4150
Motor Power
KW
3
5.5
5.5
7.5
11
15
18.5
22
30
37
Weight(approximate)
kg
2450
3550
5150
6450
9550
13600
19200
23200
26600
31600

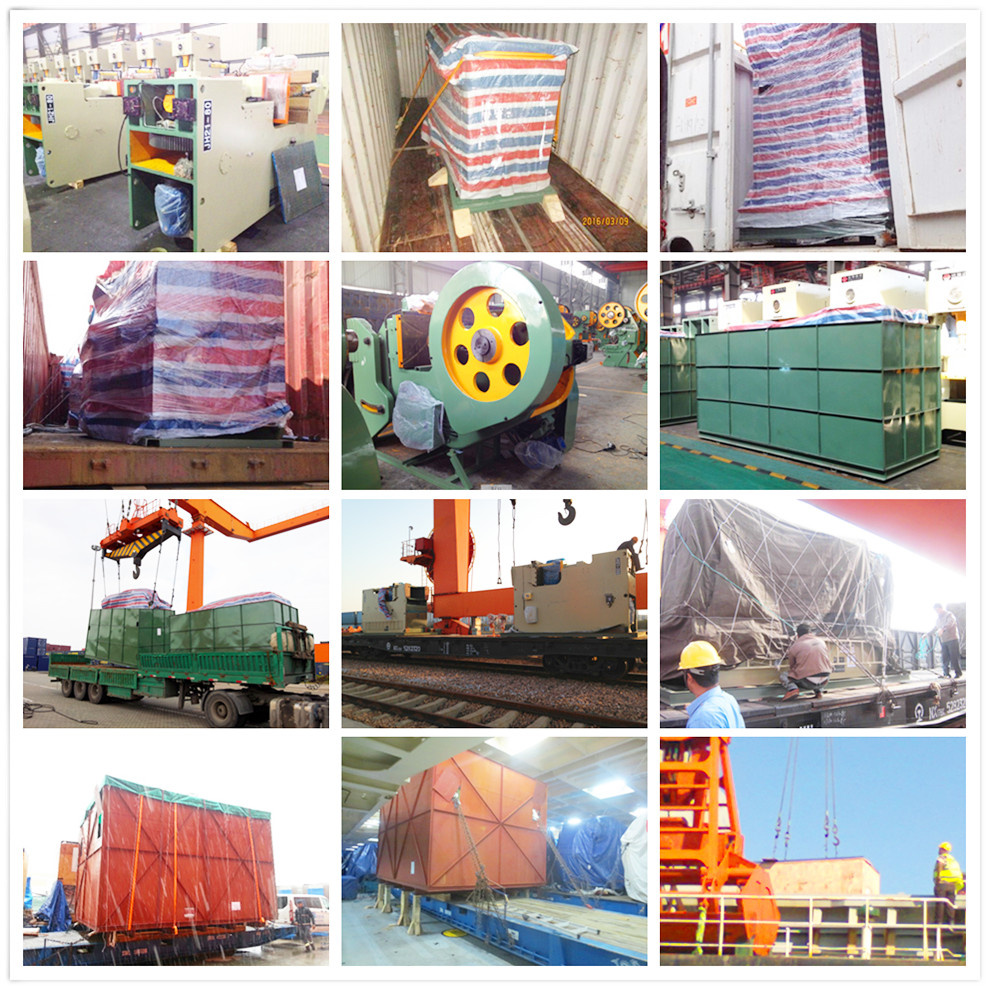

Certification and Quality Assurance Packing and Shipment Clients Visit Features: 1. Steel welded body, tempering treatment, high rigidity, accuracy and stability; 2. Vertical located crankshaft, compact structure; 3. The crankshaft undergoes grinding treatment after high frequency quenching; 4. Lengthened rectangular guideway with a surface of bronze plate; 5. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact; 6. PLC control and imported safety dual valve; 7. Wet clutch and hydraulic overload protector. 8. CE certificate

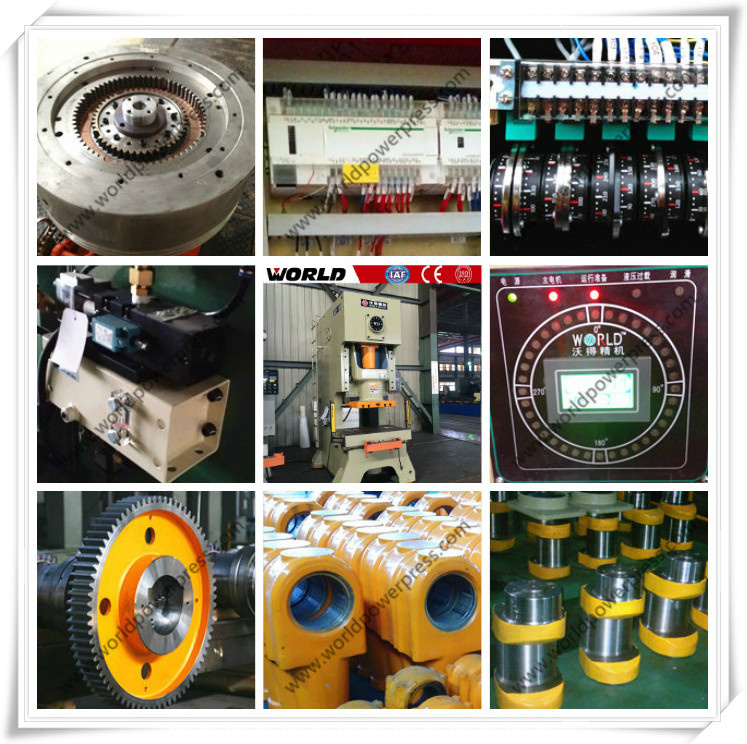

Details: 1. Steel plate welded c frame body, heat treatment, produced by cnc boring and milling center, high rigidity and precission 2. Wet type pneumatic clutch with safety solenoid valve, lower noise and longer service life. 3. Best quality gears, bushes, cylinders, link rods and ball screw ensure the high performance, high reliability and longer service life. 4. Hydraulic overload protected system is standard equipped. The press will stop with oil pressure release if overload to protect the press and the die. It is easy to reset to normal status. 5. PLC control, Omron or Panasonic brand, high quality with global warranty. 6. Double hands control buttons, touch screen control panel, cam controller with encoder. 7. Slide adjust motor is equipped on the back of the slide. This position is better to protect the motor and the press is more compact in this way. The slide is motorized adjusted with digital displayer. 8. Center auto grease lubrication system is standard equipped and the lubrication frequency can be setted with the touchscreen. In the meanwhile, manual thin oil lubrication system is equipped too.
Warranty and Service: - one year warranty for whole press. - all spare parts are available as we produce most of the parts in our factory. - it is easy to get the electric parts as all are international famous brands. - we can provide technical support via email, phone or video. - we can send out engineers for service, installation or training with reasonable additional cost. - English operation and maintenance manual is provided with the press. - All safety warning tags and control panels are in English.
Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.
We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.
We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.
Warranty Policy
Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.
Installation Support
We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
