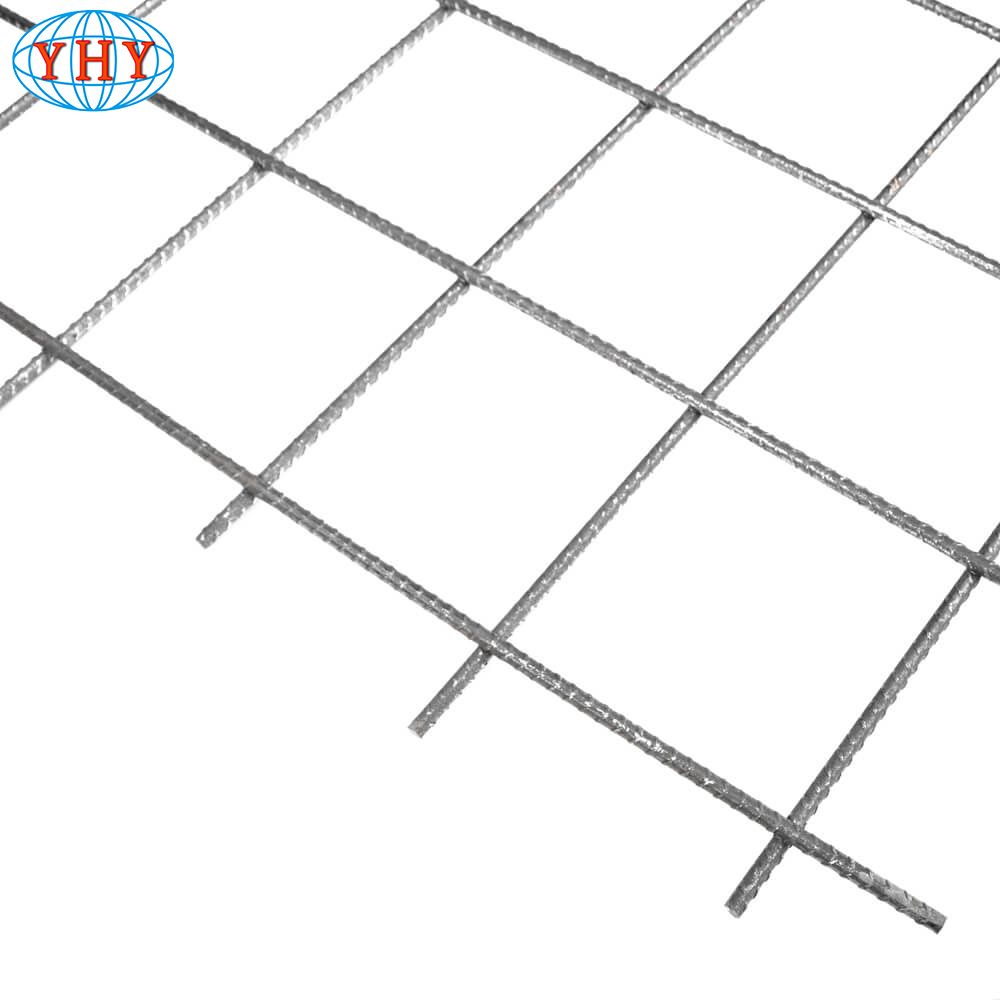

Welded reinforcing mesh also known as welded wire reinforcement, is a kind of mesh reinforcement. Reinforcing mesh is a high efficient, economical and flexible for concrete reinforcement, greatly save the construction time and reducing the labor force. It is widely used in road and highway construction, bridge engineering, tunnel lining, housing construction, floor, roof and walls, etc.
Features of our concrete reinforcing mes h
The welded wire fabric makes them easier to work on.
There are different diameters of steel reinforcing mesh each suited for a particular application.

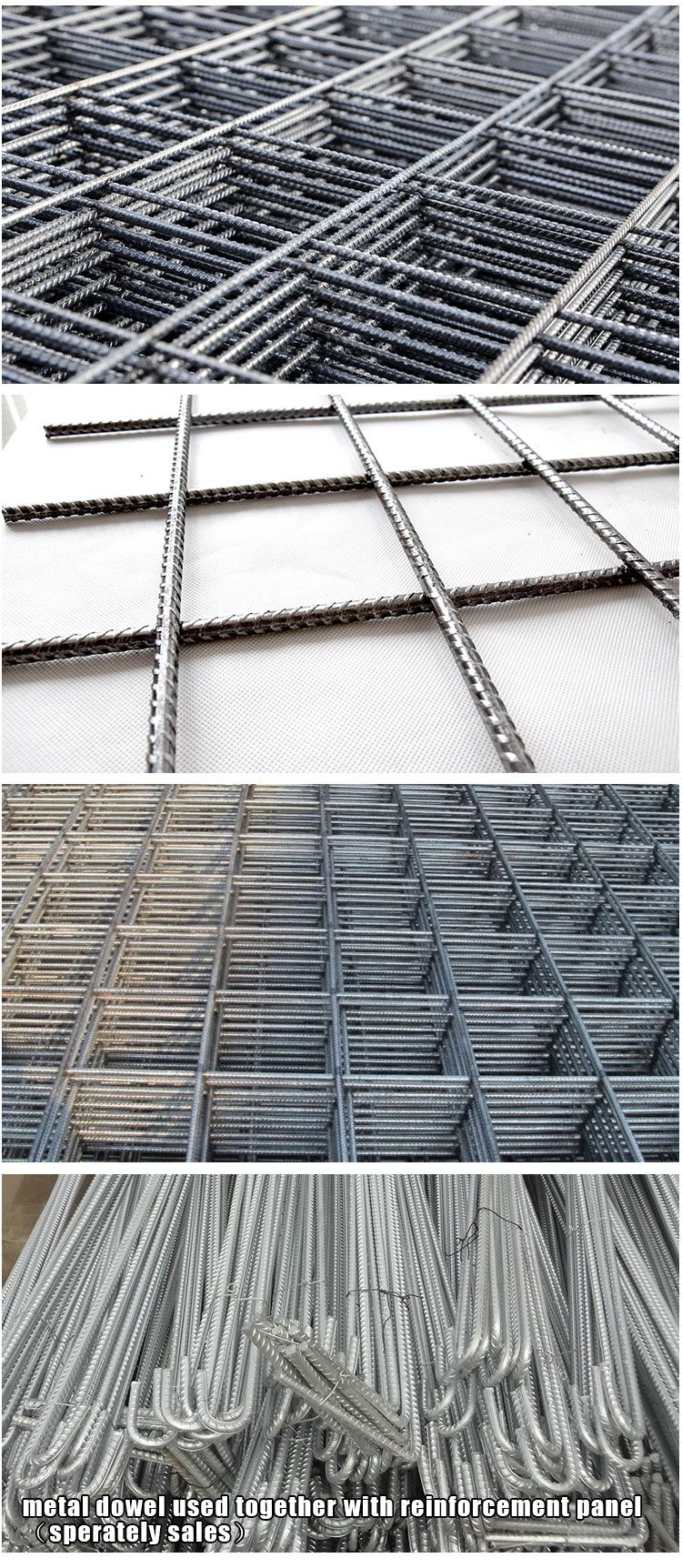

There are different designs of steel reinforcing mesh from bent and rolls to flat sheets.
As per BS 4482 standards and codes, the stainless steel wire used in the manufacture of the steel reinforcing mesh has a 510MPa tensile strength and 485MPa minimum proof stress.
The steel reinforcing mesh is rigid making it possible for you to control concrete cover during construction.
Manufacturers produce steel reinforcing mesh under SANS1024 Standard Specifications.
The steel bars stay intact whenever immersed in concrete because they are carefully welded in mats.
You don't have to apply additional surface treatment to the steel reinforcing mesh before use.
Less field labor needed when making reinforced concrete slabs using this mesh thus drastically speeding up the construction process.
The mesh is easy to load and unload, and easy to handle at the working site.
Properly mixed concrete is poured into the mesh and then given time to dry out. Theconcrete, as it continues to dry out, it grips the steel bars tightly creating a bond stress between these two materials. This bond stress is essential because it reduces bending and makes reinforced concrete slabs stronger.
1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)
Ref No.
Std Unit
Longitudinal Wires(mm)
Cross Wires(mm)
Pitch of wire(mm)
Mass(Kg)
Mass(Kg/m2)
Q131
Sheet
5
5
150 x 150
22.476
2.091
Q188
Sheet
6
6
150 x 150
32.401
3.014
Q221
Sheet
6.5/5.0
6.5
150 x 150
33.707
3.136
Q295
Sheet
7.5/5.5
7.5
150 x 150
44.245
4.116
Q378
Sheet
8.5/6
8.5
150 x 150
66.659
5.157
2.Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)
Ref No.
Std Unit
Longitudinal Wires(mm)
Edge Wires(mm)
Cross Wires(mm)
Mass(Kg)
SL81 (F81)
Sheet
7.6 @ 100
7.60 @ 100
7.60 @ 100
105
SL102 (F102)
Sheet
9.5 @ 200
6.75 @ 100
9.50 @ 200
80
SL92 (F92)
Sheet
8.6 @ 200
6 @ 100
8.60 @ 200
66
SL82 (F82)
Sheet
7.6 @ 200
5.37 @ 100
7.60 @ 200
52
SL72 (F72)
Sheet
6.75@ 200
4.77 @ 100
6.75 @ 200
41
SL62 (F62)
Sheet
6 @ 200
4.77 @ 100
6 @ 200
33
SL52 (F52)
Sheet
4.77 @ 200
4.77 @ 100
4.77 @ 200
21
3.BRITISH STANDARD BS4483
Ref No.
Std Unit
Longitudinal Wires(mm)
Cross Wires(mm)
Pitch of wire(mm)
No. of sheet per ton
Mass(Kg/m2)
A393
Sheet
10
10
200 x 200
15
6.16
A252
Sheet
8
8
200 x 200
22
3.95
A193
Sheet
7
7
200 x 200
29
3.02
A142
Sheet
6
6
200 x 200
40
2.22
A98
Sheet
5
5
200 x 200
57
1.54
YHY products have been exported to 50 courtiers and area. Now our sales department have a completely sales system, we offer customers price within 8 hours, and make samples within 5 days.
YHY People always making efforts to improve our technical and develop new products. Our target is to be the top one of metal wire mesh industry in China within 5 five years and make our customer's satisfactions be 100%.
1. Are you a manufacturer? Yes, we are the ISO and CE certificated Manufacturer and our factory founded in this industry since 1989.
2. Will your price competitive? Yes , we have stable and large raw material supplier ,we work with them for nearly 20 years . Our machine and technical it is most advanced , we will send our technical to aboard to learning new technical every year.
3.Can we have a sample ? Yes , if the samples it is not much big , we can offer free sample , the courier it is paid by customers.
4.Can we visit your factory ? Yes , you are welcome to visit us . we can pick you up from the airport .
5. What are the payment terms? We can accept TT , LC , West Union , Money Gram , Cash .
Name:LucyLi Anping Ying Hang Yuan Metal Mesh Factory Website:http://www.wiremesh-yhy.com T:008631189918897 F:008631189918897 Mobile:+86-13323118386
Anping YingHangYuan Metal Wire Mesh Co., Ltd. (The predecessor is Anping County Hongshuo wire-Drawing and Woven Factory) was founded in 1988. It is located in the largest wire mesh manufacture base in Asia, Anping County, Hebei, China. It has become a big comprehensive wire mesh company which is engaged in domestic and foreign trade. Since our international business department set up now our products are sold 50 countries and area, such as USA, Germany, Italy, Australia and Southeast Asia etc.
Now Our main products are Steel Screen Mesh, Welded Wire Mesh, Wire Fence, Fiberglass Mesh And the other metal wire mesh products.
Our factory have been passed the Bureau Veritas certificated: ISO 9001: 2015 and CE certificate. We have cooperated with China big steel factory for 20 years, our steel raw material quality meets the international standard. We also can offer difference steel raw material test report.
Our international department set up at 2008, difference of metal wire mesh products have been exported to 50 courties and area. Now our sales department have a competely system, we offer customers price within 8 hours, and make samples within 5 days. Our sales will offer difference solution for your purhcase. We will help you to make your hard-earned money well spend.
YHY People always making efforts to improve our technical and develop new products. Our target is to be the top one of metal wire mesh industry in China within 5 five years and make our customer' s satification be 100%.
If you need to get the price list and catalogue of our company, please kindly send us a inquiry from the website or just call us. We can reply your messages or calls on time.
Our international department have 8 English speckers, we can understand your inquiry by our knowleage and experience.
If you want to visit us, you are also welcome, we can pick you up from the air port and train station.
