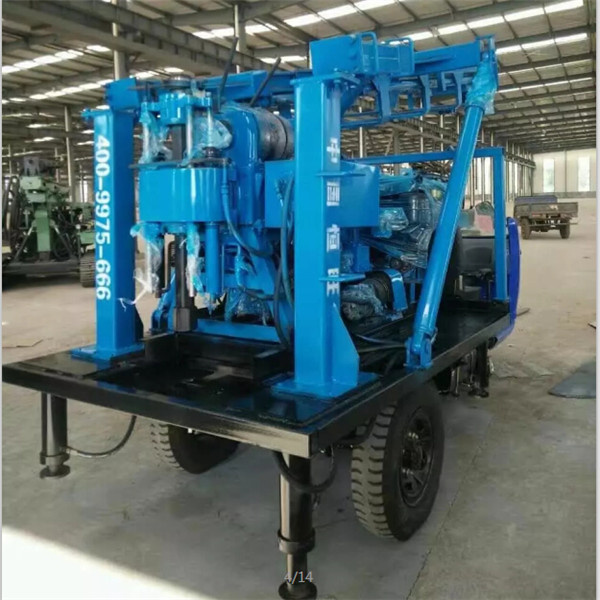

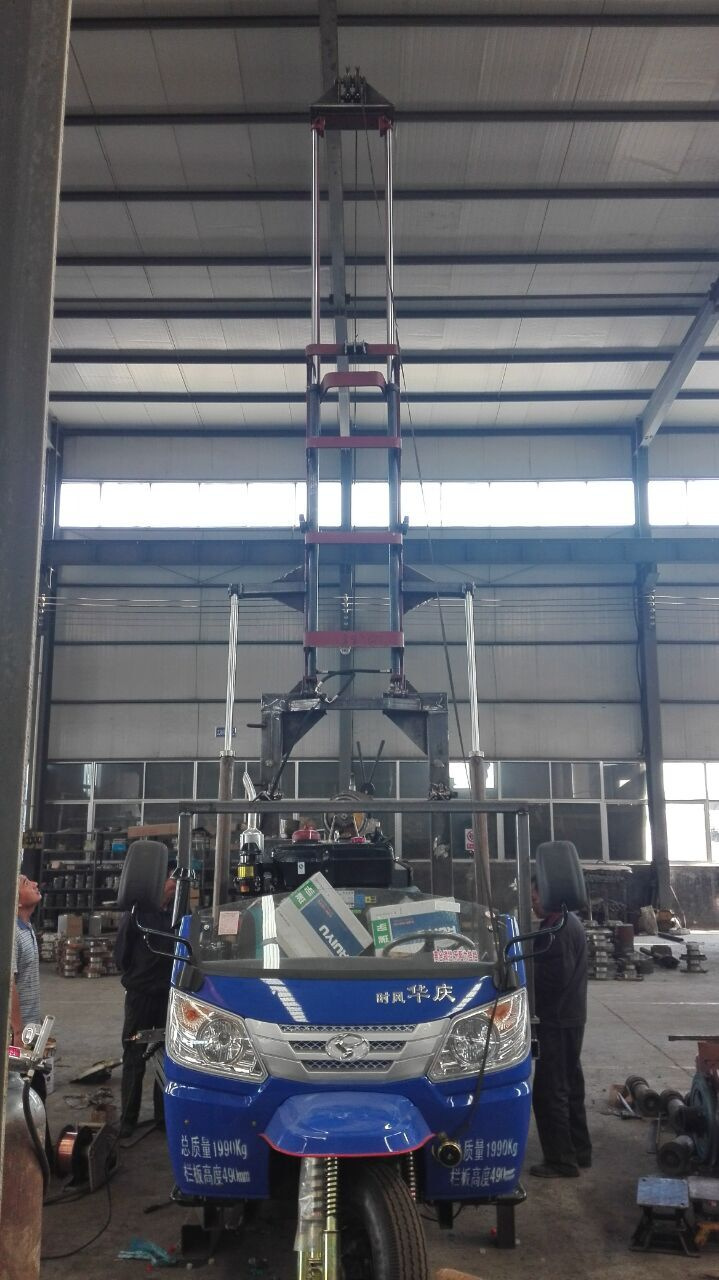

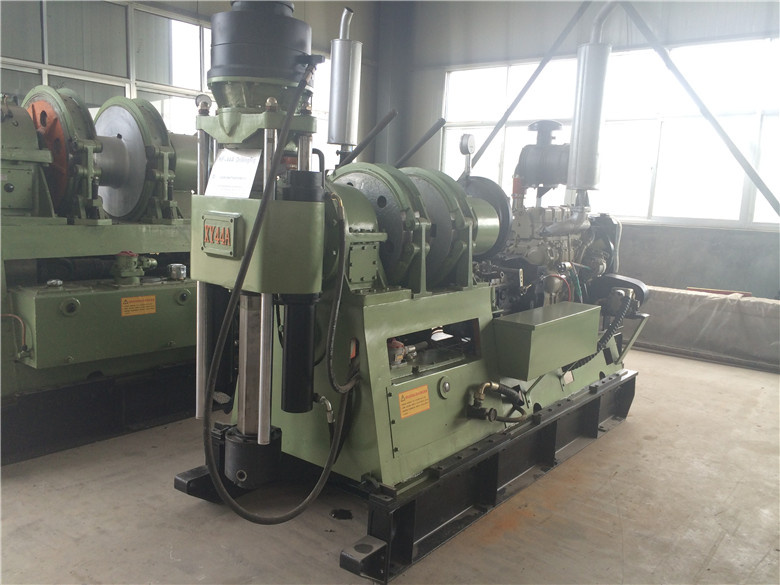

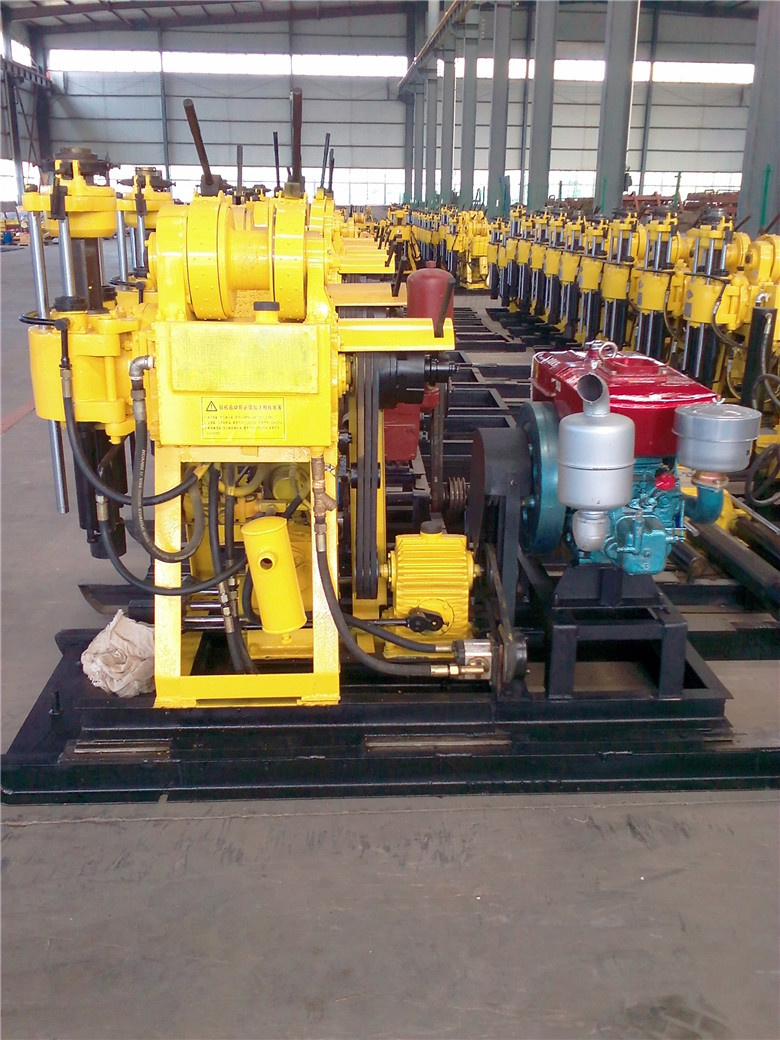

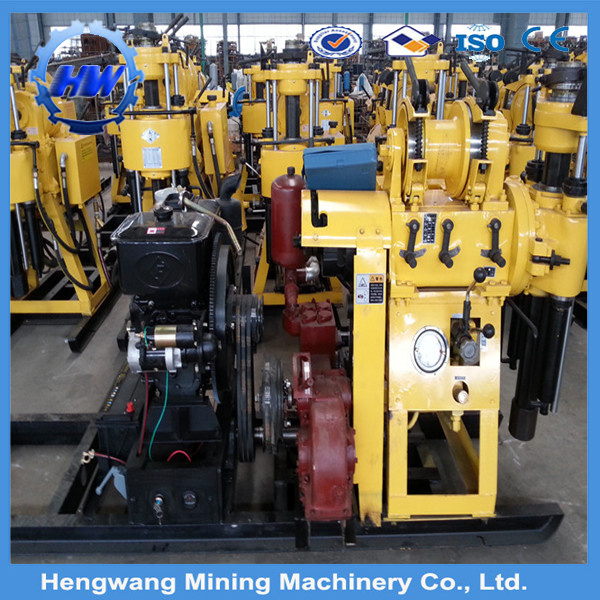

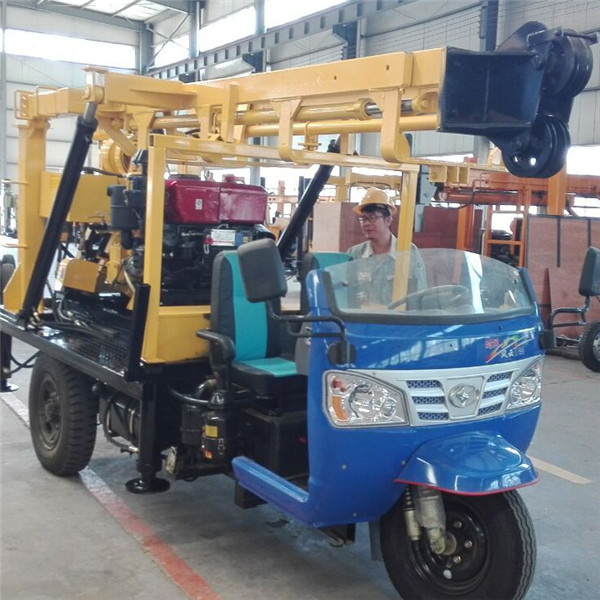

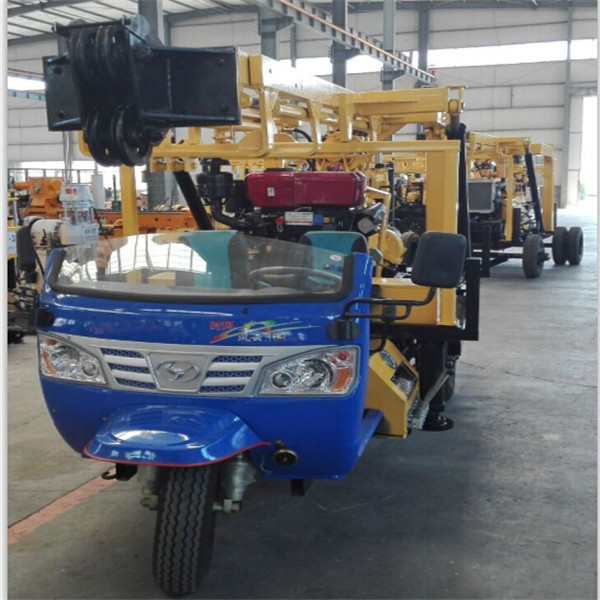

Borehole Deep Well Drilling Rig Machine for Sale

Borehole Deep Well Drilling Rig Machine for Sale
Price: US $ 4500/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: HW-230
Name: Water Well Drilling Rig
Drilling Depth: 160m
Maximum Open Hole Caliber: 260m
End Hole Caliber: 75mm
Drill Rod Caliber: 50mm
Drilling Angle: 90-75
Mud Pump: Bw Mud Pump
Usage: Water Well
Power Type: Diesel

Product Description

HW160 Core Water Well Drilling Rig Equipment
HW-160 Water well drilling rig Features

a. five gears, and the highest speed can reach 1045r/min, improving drill efficiency
b. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
e. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

HW-160 Water well drilling rig Applications

HW-160 drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner,etc

Main parameters


Unity machine parameter

Drilling depth

10-160m

Maximum open hole caliber

260mm

End hole caliber

75mm

Drill rod caliber

50mm

Drilling angle

90~75

Drill weight (No include power)

510 560kg

Unity machine dimensions

2.5×1×1.3 2.5×0.9×1.3m

Spindle

spindle speed

142,285,570r/min

Spindle stroke

450mm

Hoist

Max.single line hoisting capacity

960kg

Single line lifting speed

0.41,0.82,1.64m/s

Tightrope caliber

27m

Mud pump

Type

Horizontal single urn twin-action

Displacement

95/77L/min

Diesle engine

Model s1110  18HP

Electric motor

Y160M-4 11kw 1440r/min

Maximum pressure

1.2Mpa

Work pressure

0.7Mpa

Water inlet caliber

30mm

Water to exit caliber

25mm

Triangle conveyor belt

B1575mm






Sally
Tel:0086 13608916725


Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.

Specializing in the Drilling equipment; Railway equipment; Road machinery; Electrical equipment; Pumps; Hydraulic tools; New energy etc.

Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers. Our Companies adhere business philosophy "to provide convenient service to customers, to create development opportunities for employees" and "continuous improvement, enjoy the" spirit of enterprise. Warmly welcome new and old friends from home and abroad came to our company, to make negotiation.

Our company long term commitment to science connect with market, keep up with Reform Development, take science to be commercialization, marketization and industrialization, work with Coal science and design institute, Metallurgy Design institute, Coal science and technology university and some other famous scientific research, develop and research some mine machines and devices, we not only sell at home but also abroad, Southeast Asia: Vietnam, Malaysia, Korea, Africa and Middle East, our products get great popular from clients. We rely on top quality,

Competitive price and good service to offer metallurgy, coal, hydroelectric, railway, highway, mine etc, we quickly Occupied the Market, Achieved remarkable results.

Insist on "offer excellent service for customers, create development chance for employees" as operation principle and take "keep forging ahead, enjoy great success" as enterprise spirit, we sincerely welcome friends from home and abroad to visit us for business, Let us create great undertaking and brilliant togerther!
