220V/380V/415V/440V etc ; Single Phase/Three Phase
Hertz:
50Hz or 60Hz
Max. Cutting Length:
2670mm
Motor Power:
11kw
Saw Blade Diameter:
355mm/160mm
Warranty Period:
12 Months
Weight:
2500kgs
Saw Type:
Reciprocating Saw
Application:
Wood Saw
Type:
Fixed
Power Source:
Electricity
Brand:
Peral
Product Description
1. Features: 1) Maximum cutting thickness 120mm; 2) Rear feeding with heavy duty hydraulic lift; 3) High cutting efficiency and labor work saving due to utilization of rear feeding and cutting in front; 4) Use of IPC together with Nanxing control system managing data well for production; 5) Nanxing optimizing software for best utilization of boards; 6) Two side aligners to ensure cutting precision; 7) Front air float working table for transferring boards smoothly and prevent any scratches on panels.; 8) Suitable for production required mass cutting.
2. Main technical parameter:

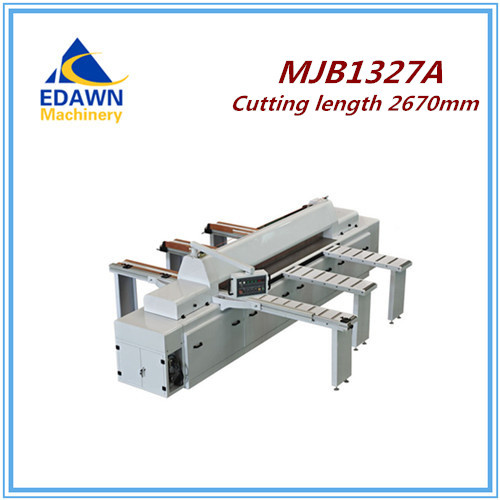

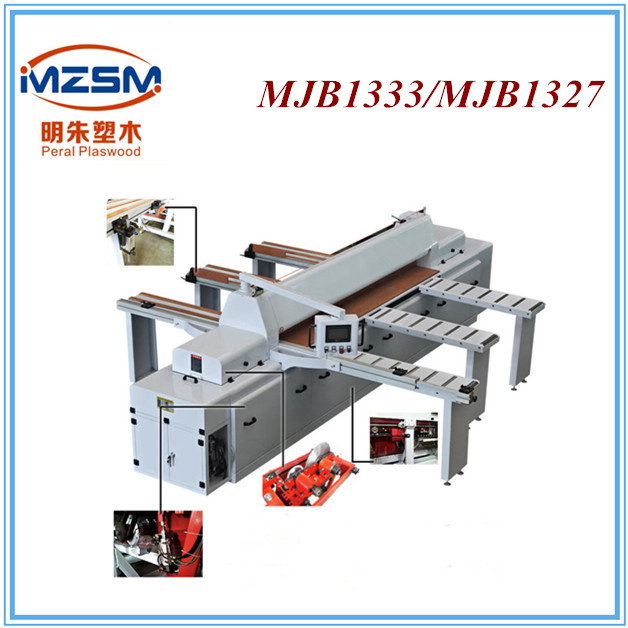

Model
MJB1327
MJB1333
Working Thickness
80mm
80mm
Working Width
2670mm
3270mm
Main Saw Blade Power
11kw(frequency control)
11kw(frequency control)
Saw block Driving Power
1.3kw/1.8kw
1.3kw/1.8kw
Main Saw Blade Diameter
355mm
355mm
Auxiliary Saw Blade Diameter
160mm
160mm
Main Saw Spindle Diameter
30mm
30mm
Auxiliary Saw Spindle Diameter
30mm
30mm
Saw Forward Speed
6-30m/min
6-30m/min
Main Saw Spindle Speed
4800rpm
4800rpm
Auxiliary Saw Spindle Speed
6500rpm
6500rpm
Net Weight
2500kg
2700kg
Dimension
5360/3650/1930(mm)
5960/3650/1930(mm)
3. Terms of payment: The buyer should make 30% down payment by T/T as deposit, the balance 70% should be made before delivery. Delivery time: 7 days Packing: Standard Export Packing Loading port: Qingdao, China Warranty: 12 months
4. Our Superiority We are direct manufacturer with many years experience; European standard design and manufacture: Same quality, but Chinese market price; Working life more than 10 years, pass CE certificate, etc.
5. Reasons to choose PERAL: QINGDAO PERAL PLASWOOD TRADE Co., Ltd, has been dealing in kinds of woodworking machinery, plastic machinery, wood product, plastic product and hardware tool for more than 15 years! During the past few years, with the development of the company and the staff, we also expanded our production line to related fields like general machinery, CNC routers, Laser machinery, Plywood making machine and related hardware, ect. A. Professional team--as much as possible to meet your needs B. Quick delivery--timely and effective C. Excellent after-sale services--no worries anymore D. Friend partner relationship--a win-win cooperation
6. Customers first! We possess the profesional R&D department. Your customized design is always available.
7. Picture
If any question, feel free to contact us.
