Product Description

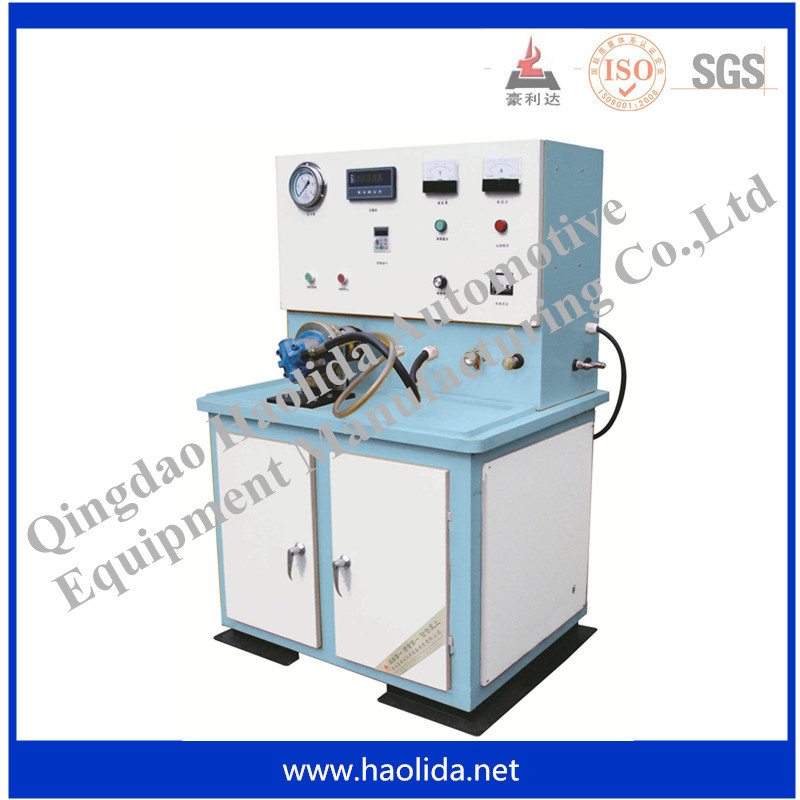

QFY-2 model Automobile Power Steering Pump Test Bench
General introduction:
This power steering pump test bench is used for testing and repairing hydraulic steering pumps of various trucks in steering system. Regulating speed by frequency converter to drive the pump work. Adopting high precision press regulating valve and sensor, it possesses convenient operation and reliable data.
Advantages:
It uses variable frequency speed regulation to drive the pump work.
It displays result by pointer instruments.
It adopts high-precision pressure regulator valve and sensor.
It is with indicator lamp following each step and warn you the problems.
It is easy to learn and operate.
Test items:
pressure of the power pump, can preinstall the rated pressure and disassembling automatically
the flow of the power pump
the rotating speed of the power pump
Technical parameter:
Model no
QFY-2
Language
English, etc
Material
Metal plate
Painting
Powder painting, durable and beautiful
Color
Blue
Voltage
380V 50Hz
Motor power of power steering pump
7.5KW
Frequency converter power
7.5KW
Speed
0-2400rpm(frequency regulation)
Direction
Clockwise, anti-clockwise
Working pressure range of power pump
0-18Mpa
Accessories:
Accessory wires , etc.
Others you may want to know:
MOQ
1set
Warranty period
12 months
Payment term
T/T 50% in advance, the balance should be paid before delivery (negotiable)
Delivery time
30 days after receiving downpayment
HS code
90312000.90
Packing sizes
1140x860x1630mm=1.6CBM N.W:250kgs G.W:295kgs
Why Choose us:
32 years' design,development and produce experience
Professional R&D team
Strict QC
A good pre-sale and after-sale service
Can design and make according to customer's requests
Company Introduction: Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
