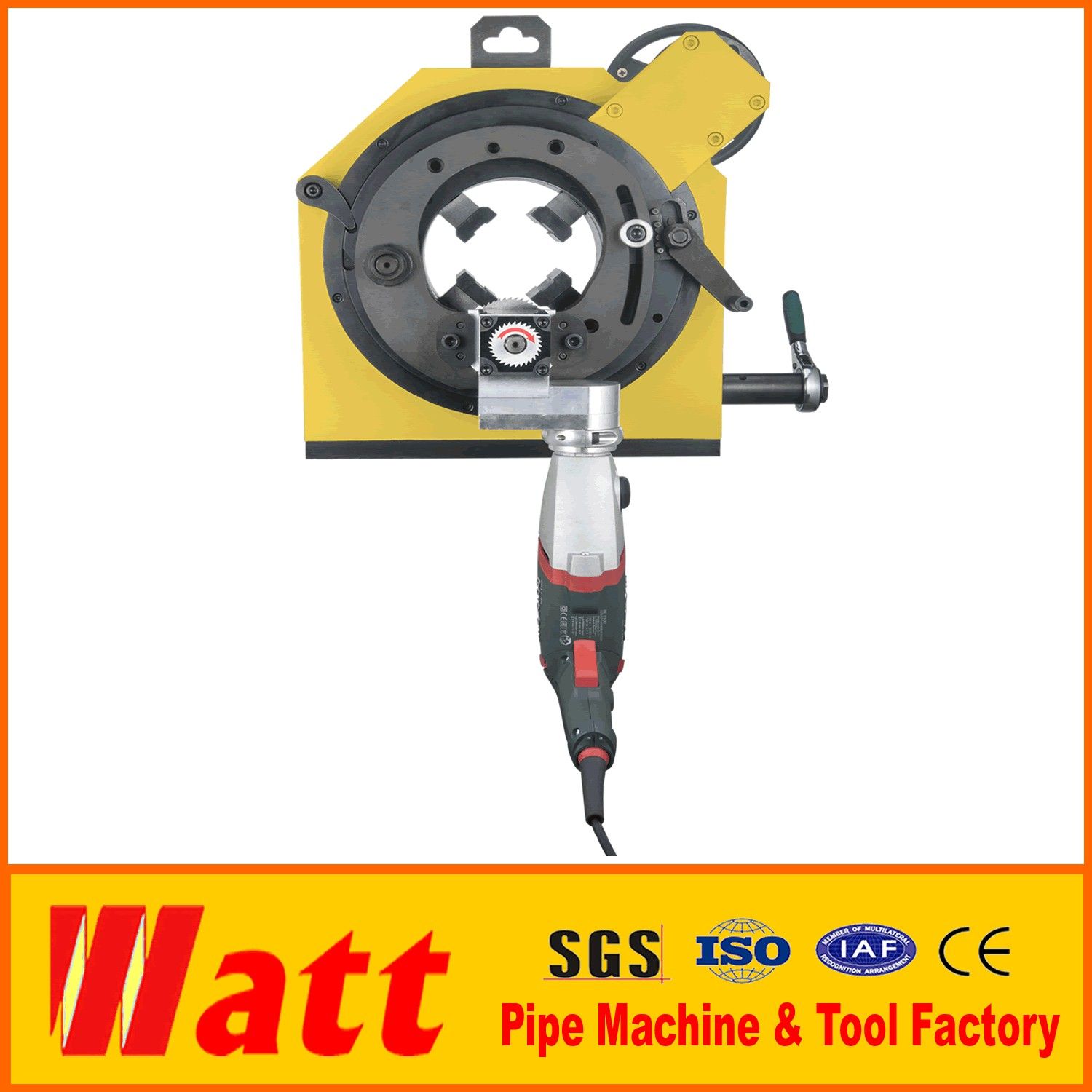

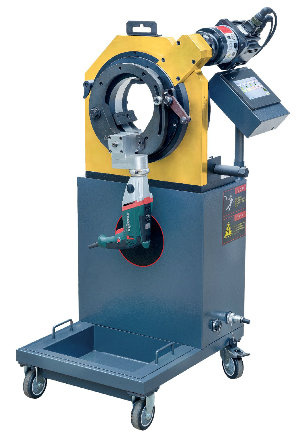

Product Description Automatic Pipe Cutting Machine Model: E4 A Cutting Range: OD 15~120mm Wall thickness: 1~4mm (for stainless steel)
Product Show Stainless pipe cutting
Production Description This series is Welding Preparation Automatic Orbital Pipe Cutting Machine with the following advantages:
High speed to cut the pipe
Pipe cutting is to rotate machine automatically
Use round blade with 1300W electric motor to cut
Pipe will be cut after the machine rotated 360 degree
The powerful and stable electric motor have 6 choices;
Driveing Type:Electric Servo motor.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.
Machine Selection
Model
Range OD(mm)
Wallthickness(mm)
Cutting Motor
FeedMotor
CS
SS
E4A
Φ15-120
≤12mm
≤4mm
Metabo motor speed adjustable 220~230V 50~60Hz 1.1KW
Servo motor speed adjustable 220~230V 50~60Hz 0.75KW
E6A
Φ30-170
≤12mm
≤4mm
E9A
Φ60-225
≤12mm
≤4mm
E13A
Φ140-330
≤12mm
≤4mm
E16A
Φ215-420
≤12mm
≤4mm
E20A
Φ315-520
≤12mm
≤4mm
E24A
Φ346-630
≤12mm
≤4mm
E30A
Φ486-760
≤12mm
≤4mm
Order Guide Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
Advise your pipe wall thickness
