Auto Granite Marble Tiles Cutting Machine Stone Cutter

Auto Granite Marble Tiles Cutting Machine Stone Cutter
Price: US $ 17500-31500/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: GB-900
Function: Granite marble tiles cutting machine
Operation: Auto and easy
Main Motor: 18.5kw
Weight: 5200kg
Color: customer needing
Key Word: auto tiles cutting machine
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic
Type: electrical cutting machine

Product Description

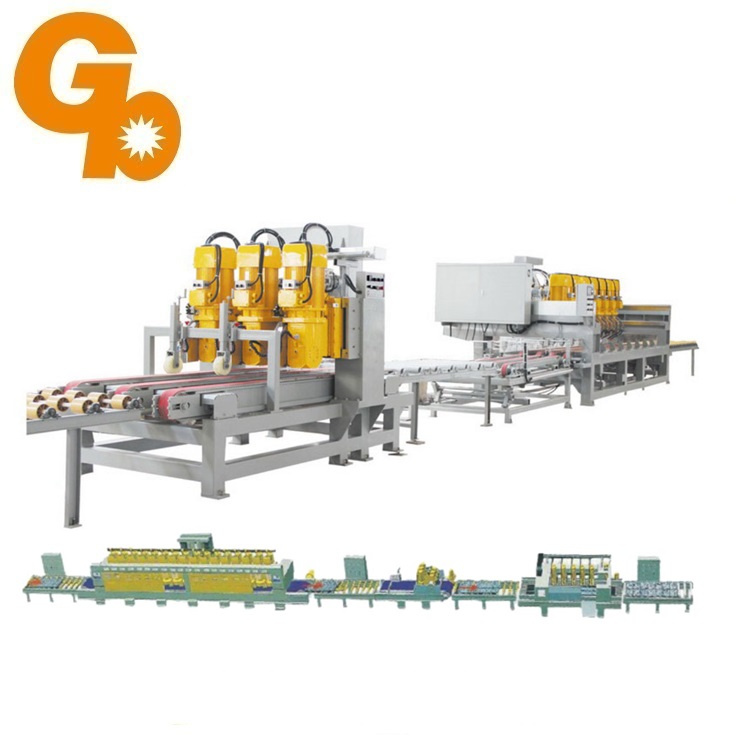

GB-900 Auto Tiles Cutting Line

Features:

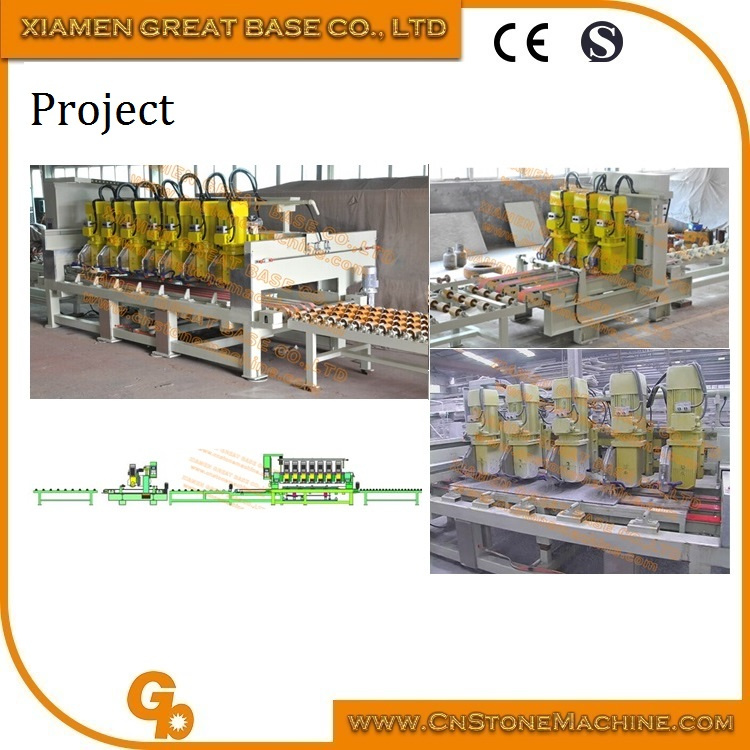

This machine is special for cutting to size tiles, it including slab conveyor, GBL-900 Multi Heads Longitudinal Cutting Machine, GBC-900 Multi Heads Cross Cutting Machine

Both machine adopts 18.5KW spindle motor, it means the motor drive the saw blade directly, did not transfer by belt, that is very powerful, so if we cut thick hard granite, also easy and do not let slab move during cutting. Conveyor moving speed is controlled by inverter, so you can set this speed according to the different hardness of stone. Also each head go up/down , moving on the beam is by motor,

For GBC-900 Multi Heads Cross Cutting Machine, there are several sensor for checking the length of slab in the front, and three nerrow belt taking the slab inso the mchine, then the table will go up, so the slab will lay on the worktable which surface is wood, there are hydraulic cylinder will push the slab to the one guide ruller ,so that fix the slab, then cutter head will move to cut it, after finished, cutter head will move back automatically, then the table will go down, the slab will lay on the belt again, belt moving to take the slab outside of machine.

The distance between each head is controlled by motor; beam moving speed, belt moving speed are all controlled by inverter, adjustable, when the cutter move the edge of slab, speed will be slower automatically;machine is with one hydraulic tank, and control the table up and down, and hydraulic cylinder to fix the slab. 18.5KW main motor, powerful enoguh for cutting5cm thickness slab here.

Also you can choose how many head for each machine you need according to the size of your slab and final tiles size you need.

Technical Data:
ModelUnit GBL-650/3GBC-650/7GBC-650/9GBC-650/11
Saw blade sizemm D.400D.400D.400D.400
Max.cutting thickness mm50505050
Max.cutting widthmm900900900900
Main motor kw18.5KW (3pcs)18.5KW (7pcs)18.5KW (9pcs)18.5KW (11pcs)
Dimensions(LxWxH) mm3550x2000x18004550x2000x18005200x2000x18005850x2000x1800
Approximate Weightkg2200520052005200





Great Base, was founded by a experienced and professional team, all the members are the export in Chinese Stone Machinery Industry, Diamond Tools Industry, Stone Industry.

Though Great Base is very young, she is rapidly becoming known as a professional and reliable company within the Stone Industry of China and abroad.

The Head Office of Great Base is located in Xiamen known as today's "Capital of the international market for natural stone". Our own stone machine factory is located in, Xiang'an industry, Xiamen, we can produce series Stone Processing Machine, such as GBQS series Block Cutter, GBQQJ series Bridge Type Block Cutter, GBHW series Laser Bridge Edge Cutter, GBLXM series Granite Polishing Line, GBMM series Marble Slab Polishing Line, GBSJ series CNC Wire Saw/ Block Cutting Wire Saw, GBXJ series Automatic Profile Saw, GBYZ series Column Cutting Machine, and so on. All machines are improved based on current machine in China because of all the technician/managers with more than 20 years working experience in Stone Machine industry. We know what kind of quality/price/service we need provide for our abroad clients, and hope long term cooperation. At this moment our machines are working in USA, Canada, Australia, Bulgaria, Russia, Ukraine, Moldova, Kyrgyzstan, Armenia, Saudi Arabia, Egypt, Dubai, Oman, Sudan, Uganda, South Africa, Vietnam and other places, We also participate in Coverings in USA Apirl, Dubai Stone Fair in May, Moscow Stone Fair in June, Cairo Stone Fair in DEC. We also have already several partners in different countries.

Any inquiry, any question, please call/email us, and we also warmly invite you to visit us, Great Base looks forward to cooperating with you and building a better future together.
