API6d Trunnion Forged Steel Ball Valve (Q347-A105)

API6d Trunnion Forged Steel Ball Valve (Q347-A105)
Price: US $ 123/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: Q347
Body: A105
Ball: F304
Seat: Devlon
Standard: API6d
Flange: ASME B16.5
Test: API598
Material: Stainless Steel
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Application: Industrial Usage

Product Description

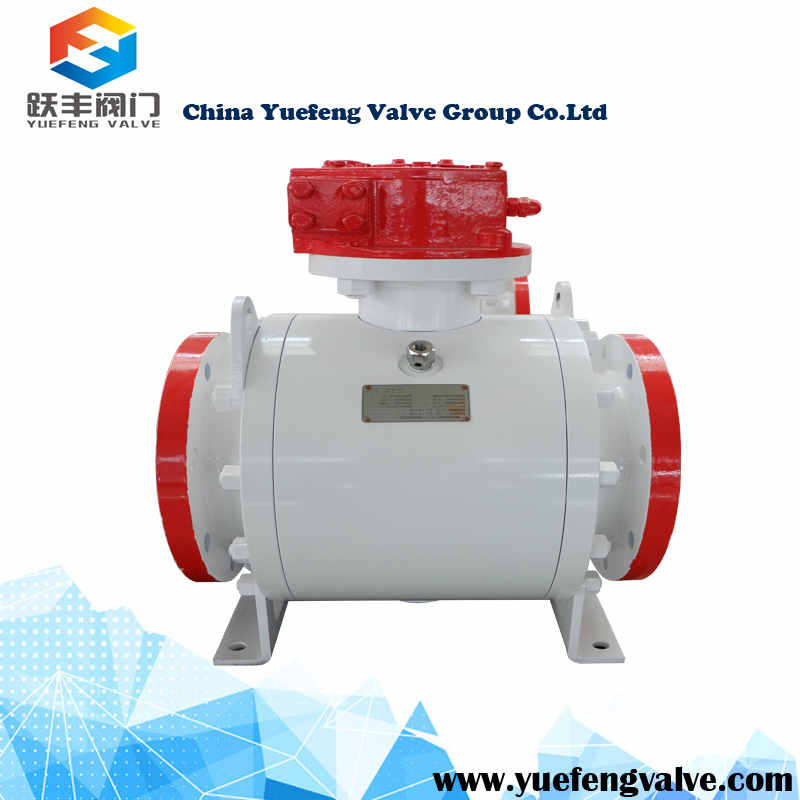

API6d Trunnion Forged Steel Ball Valve

MAIN FEATURES:


The YFV FIX ball valve adopts forged material, welded body, instead of bolts and nuts, to aviod any potential leakage from body.

The forged body with regular structure and even thickness can avoid shrinkage cavities, pin holes, cracks, sand holes and other defects occurring to casting body valves.

fix trunnion ball valves can be spherical and cylindrical type. Usually the spherical type has only one welding seam on the body, the cylindrical type has two welding seam on the body.


DN(mm)
50-1200
PN(MPa)1.62.54.0
TestStrength2.4 3.75 6.4
Sealing1.82.754.4
Material codeCPR
Major partsBodyWCB ZG1Cr18Ni9Ti ZG1Cr18Ni12Mo2Ti
Plate2Cr131Cr18Ni9Ti1Cr18Ni12Mo2Ti
Stem2Cr13 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
Sealing ringRPTFEPPL

FillingPTFEFlexible graphite
Working conditionsMediumWater,gas ,oilNitric acidAcetic acid
Temperature-28ºC~300ºC
ActutorTypeGT Or AW Series
Air pressure0.3-0.7MPa
Design Features
1.The ball valve are designed in accordance with ISO14313,API 6D;
2.Simple structure with good tightness and small torque;
3.With a fully-welded valve body, full bore and the minimum flow resistance (zero actually);
4.Emergency sealant injection;
5.Cavity pressure self relief;
6.Low emission packing;
7.Fire safe, anti-static and anti-blowout stem design;
8.Valve seat function DBB, DIB-1, DIB-2;
9.Optional extended bonnet;
10.Optional overlay stainless steel on body to seat surface and/or gasket container surface;
11.Be able to be used for underground installation without corrosion of interior parts, therefore, it is the best application for petroleum and natural gas line systems;
12.Service life up to 30 years

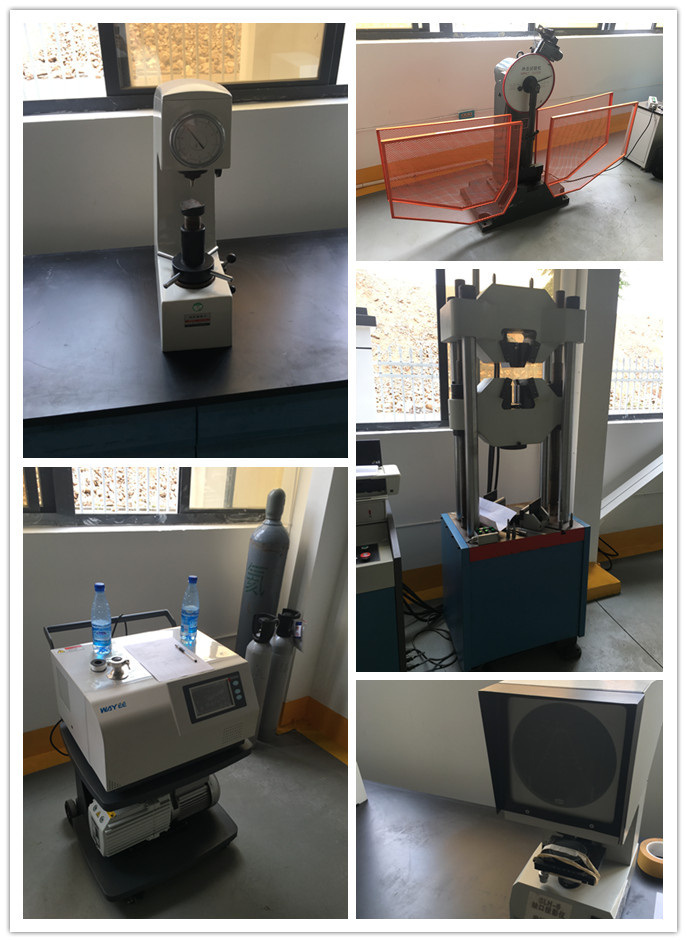

.TEST EQUIPMENT

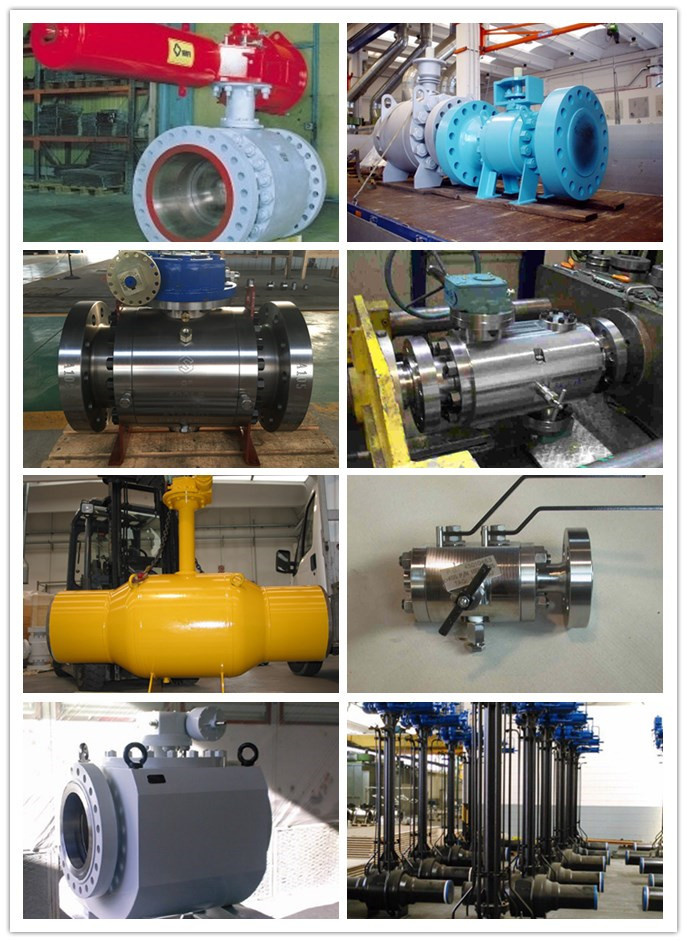

PRODUCT

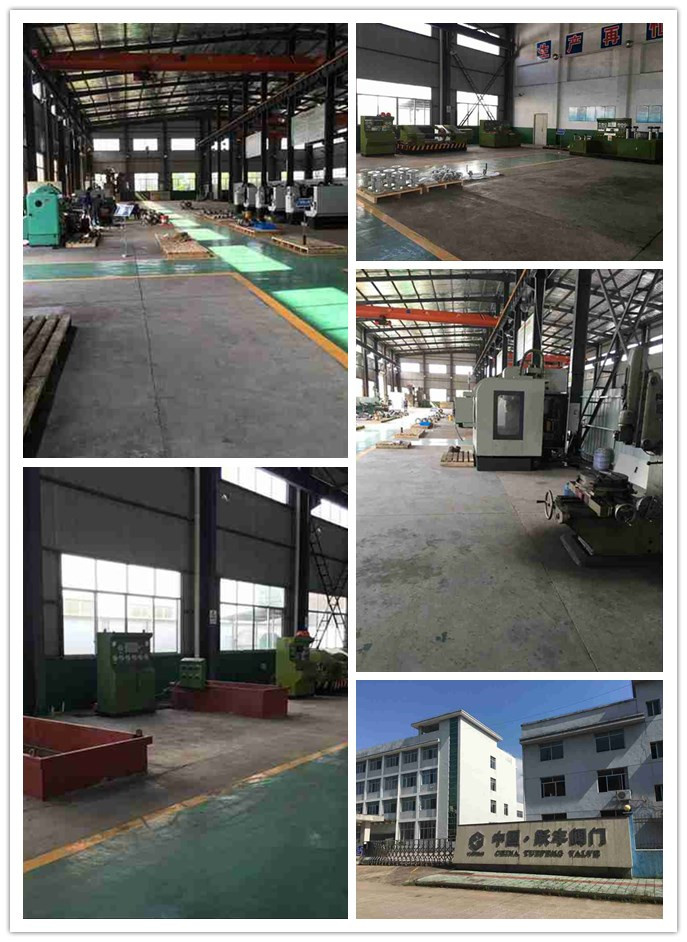

WORKSHOP
China YueFeng Valve Manufacturing Co., Ltd was established in 2003, located in Yangliuhe industrial zone, yunhe town, zhejiang province. Yuefeng is a comprehensiveness non-affiliated enterprises which specialized in ball valve production and sales. In recent years, Yuefeng is mainly engaged in the development and production of welded ball valve, all-welded ball valve, directly-buried ball valve, large didameter welding ball valve, forged steel ball valve, high class ball valve, pigging valve and other valves.

Yuefeng built CAD/CAM valve disign center and Three-dimensional simulation system for manufacturing testing and designing. We have a number of practical patents. And Yuefeng has the right of import and export, with ISO9001 national quality system certification, ISO14001 environment management system certification, OHSAS18001 Occupational health and safety management system certification, national pressure piping components manufacturing license TS authentication, the United States API 6D authentication, the European Union CE certification. All of these above provide us the technical support to enter the international market.

Yuefeng covers the total area of 13, 000 square meters, with the existing staff more than 100 people within 3 senior engineers, 12 specialized engineers. We also have our machine ceters, digital controlled lathe, the physics and chemistry centers, the spectral analysis facilty and other advanced facilities for production and testing. Yuefeng products are all designed by modernized CAD, CAM, UG, PRO/E three dimensional design system and produced strictly according to the ISO9001-2015 International quality system certification. Our main products all-welded ball valve, forged steel ball valve, high pressure ball valve and pigging valve hold advantages in domestic market share for years. And our products also exported to Europe, Amercia, Southeast Aisa and Ausralia and other counties and areas. Our products share a good reputation in both domestic and abroad market. Yuefeng owns customers' belief with the high quality products, professional technical supports and impeccable customer services.

Yuefeng are willing to cooperate with customers all around the world. Our policy is to continuously improve customer satisfaction by supplying high quality products when promised at a good value. Yuefeng are looking forward to creat a glorious tomorrow.
