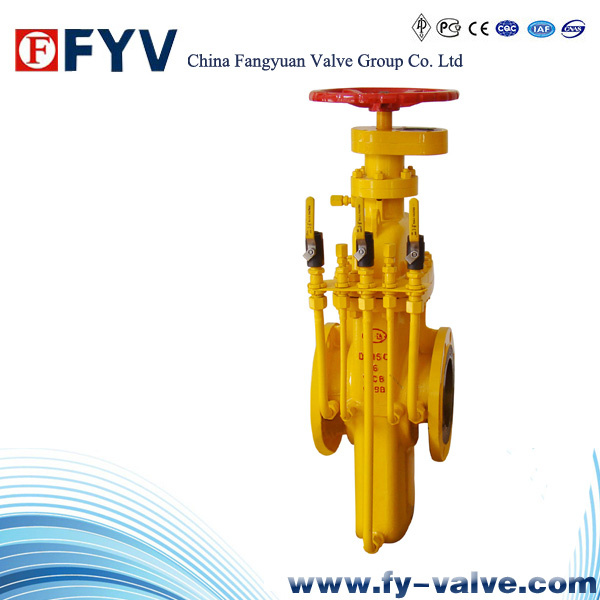

API 6D Gas Flat Gate Valve for Petroleum Natural Gas
Price: |
US $ 29-299/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
Z43 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2"-48" |
Class: |
150lbs-1500lbs |
Applicable Medium: |
Ordinary/Antisulphur Type |
Ends Con.: |
Sw, Bw, Rtj, RF, Butt-Bolt |
Material: |
Carbon Steel |
Connection Form: |
Flange |
Seal Surface: |
Parallel Gate Valve |
Thread Position Of Valve Rod: |
Inside Gate Valve |
Application: |
Industrial Usage |
Product Description
Gate Valves: API 6D Flat Gate Valve used for natural gas Main Feature:1) The seat ring uses the floating seat ring structure with O-seal ring sealed and pre-tightening force applied to have inlet and outlet dual-way sealed, and the open-close moment with this structure is 1/2 that of the common valves only, able to lightly open and close valve. 2) When fully opened, the valve's channel is smooth and linear,with an extremely small flow resisting coefficient and no pressure loss ,and the pipeline can be cleaned with hair-ball through it . 3) Automatic removal of the high pressure in the internal cavity when the valve is about to close so as to ensure safety. 4) Fully sealed structure leaves a good protective property, suitable for the requirement of 24-hour duty. Standard for gate valves:Design manufacture standard: API 6D
Length of structure: API 6D
Flange connecting end: ASME B16.5/ASME B16.47
Butt welding connecting end: ASME B16.25
Wall thickness: ASME B16.34
Inspection and test: API 6D
Pressure and temperature rating: ASME B16.34
Product scope: NPS 2inch-NPS 48inch,CL150-CL2500
Main body material:WCB,LCB,WCC,WC6,WC9,CF8,CF8M,CF3,CF3M,A890 4A etc.
Drive device: handle, bevel gear, electric, pneumatic, etc. Our Advantages:1.We Are Factory: FYV has 3 production bases and 1 foundry which located in Wenzhou, Shanghai and Lishui city of China. The Factory Size in Square Meters : 110,000. FYV has over 600 staff members, more than 60 technical engineers, a digital process center and more than 350 sets of various middle and large equipments. The annual sales revenue reaches above $80 million US Dollars.2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.7. Quick Delivery: We have the large stock for some hot products.8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer. We are the professional manufacturer of Slab Gate Valve. Fangyuan Valve Group has a series of quality control system.
Design reference | API |
Design standard | API 6D ASME B16.34 |
Structual length | Flanged ends | API 6D ASME B16.10 |
Welded connection |
Flanged ends | ASME B16.5 MSS SP44 |
Butt-welding ends | ASME B16.25 |
Test &inspection | API 6D API598 |
Note:valve can be designed according to customers' request.
Major parts material form No. Accessory Name | Material | |
1- Body | A216-WCB |
2-Gate disc | A216-WCB |
3-Wedge block | A216-WCB+STL |
4- Seat | A105+STL |
5-Disc | A105+STL |
6-Gasket | Graphite+304 |
7-Packing press-sleeve | A276-420 |
8-Stem | A276-410 |
9-Packing | Graphite |
10-Bonnet | A216-WCB |
11-Stud | A193-B7 |
12-Nut | A194-2H |
13-Packing gland | A276-WCB |
14-Back seat | A276-410 |
15-Yoke | A216-WCB |
16-Stem nut | C95500 |
17-Gland | A105 |
18-Hand wheel | A536-60-40-18 |
19-Indicating cover | A105 |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
