Anchor DTH Hammer Land Drilling Rigs Piling Foundation Drill Mdl-150h

Anchor DTH Hammer Land Drilling Rigs Piling Foundation Drill Mdl-150h
Price: US $ 21000-37000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Mdl-150h
Application: Urban Subway, High-Rise Buildings, Airport, Ground

Product Description





1.

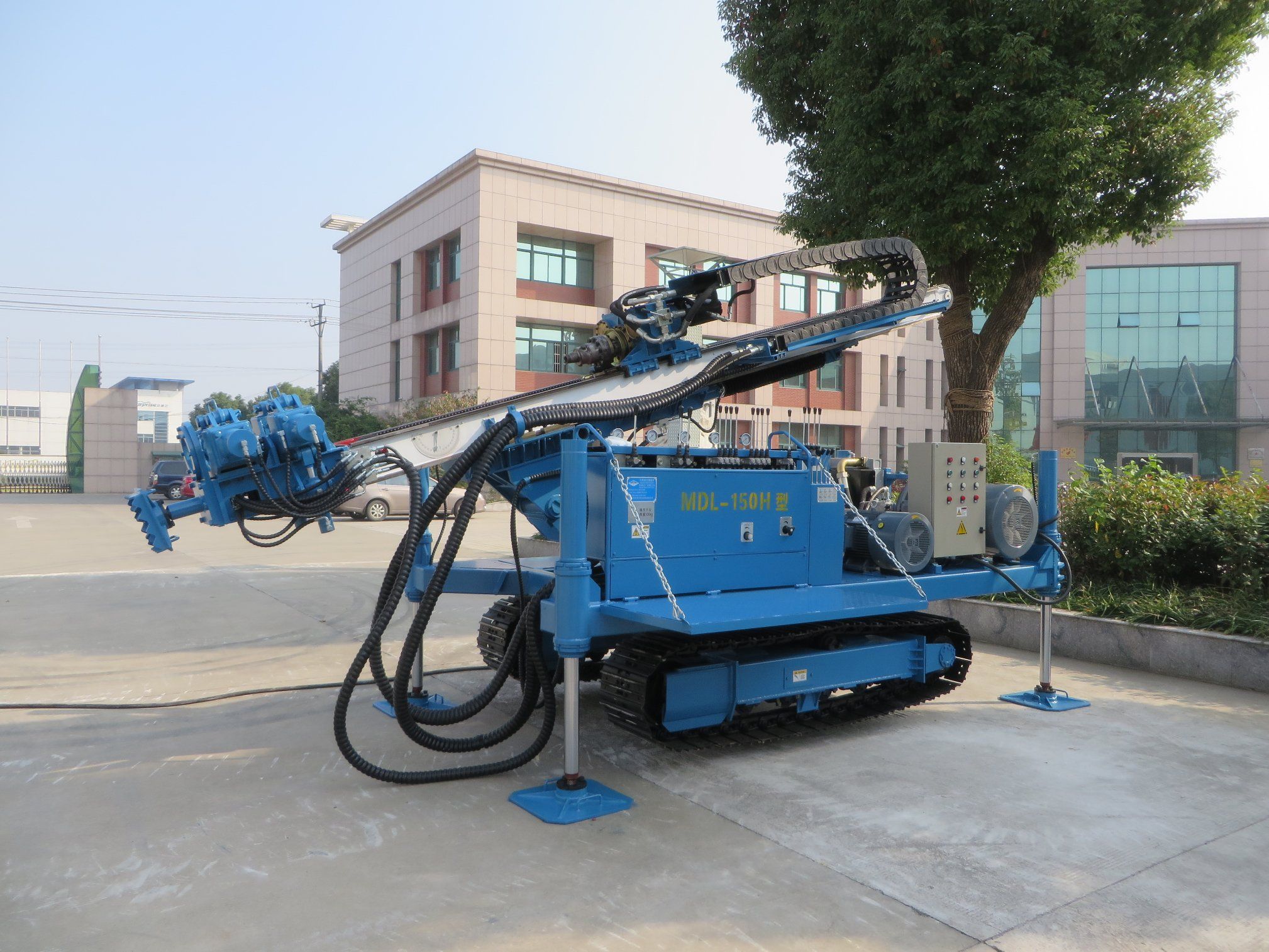

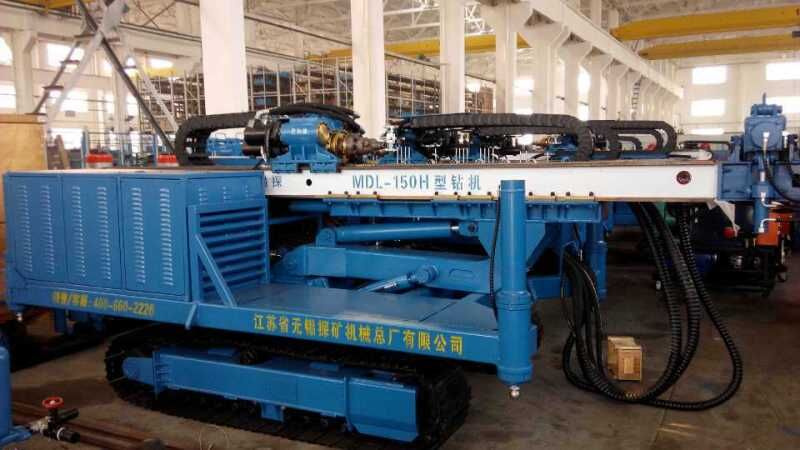

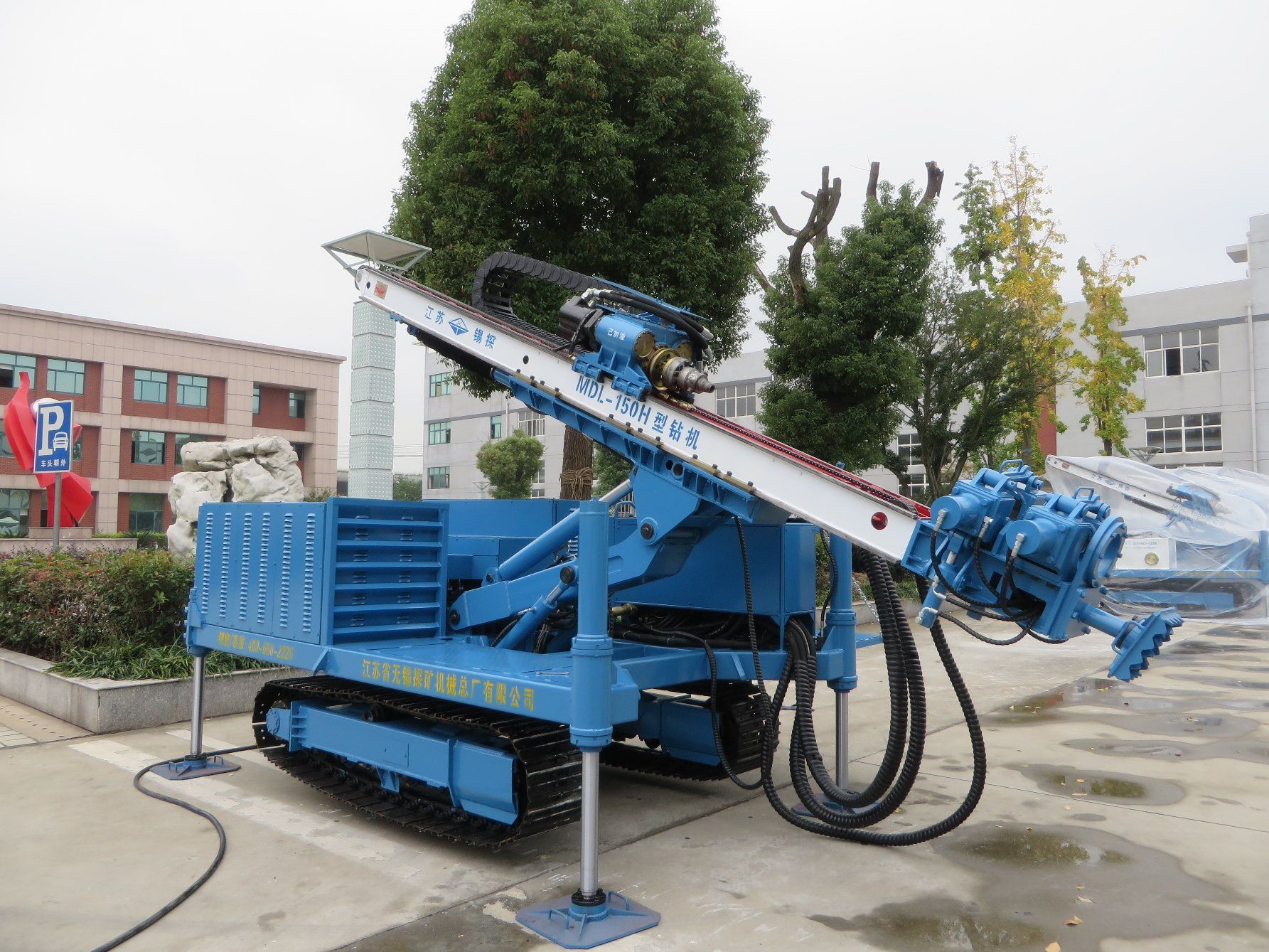

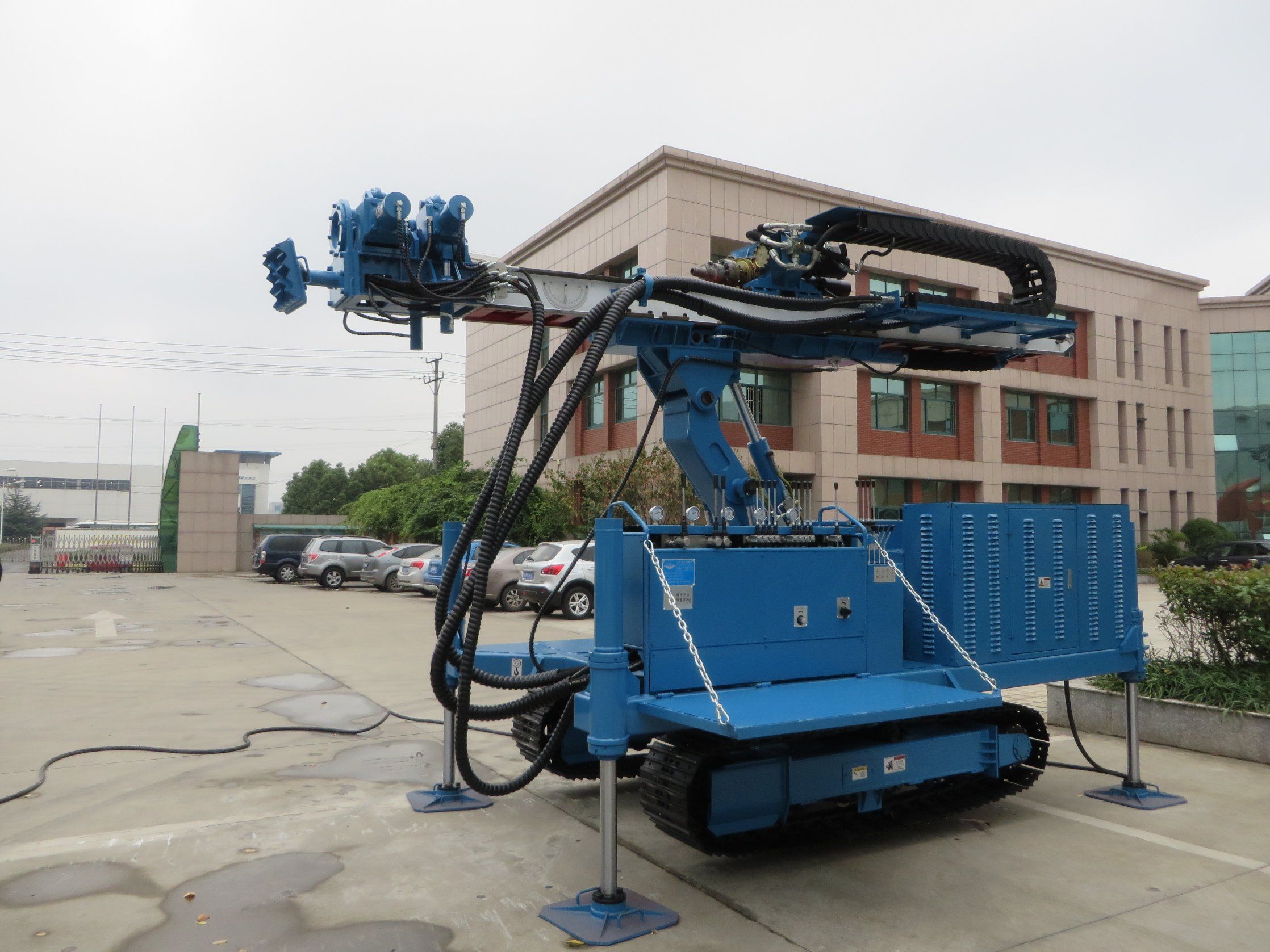

MDL-150H drilling rig is a kind of full hydraulic multifunctional power head crawler drilling rig. It is mainly applied in drilling work of the anchoring hole of deep basement foundation,urban subway,slope supporting, tunnel,high building,airport,geothermal construction,pipe shed and so on.

2. When meeting unstable strata, some drilling auxiliaries (rod, casing pipe and eccentric bit) are in your choice to be added to increase safety, efficiency and quality.

3.Due to big torque, the depth of hydraulic multifunctional drilling rig is deeper.

4. MDL-150H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.

5. The big arm like excavator with double cylinders has the stability of any lifting condition.

6. The crawler from the ground space is so large to adapt for bad environment construction.Landing leg can not only prevent oil cylinder from spoiling, but also increase supporting intensity.

7. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.

Applications:

1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.

2. Jet grouting and dewatering, blast hole,the anti-floating anchoring hole .

3. This engineering drill rig can be used for drilling geothermal hole and well.

4. It can be also used for pipe shed engineering.

Specifications:

Hole depth

130-170m

Rod dia

150-250mm



Hole angle(°)



0-100°

Output rotary speed of power head

10/20/30/35/40/60//65/70/85/130/170r/min

Stroke of power head

3400mm

Output torque of power head

7500N.m

Stroke of slide frame

1500mm

Lifting force of power head

70KN

Feeding force of power head

36kN

Power

Electric motor:

55+18.5+2.2KW

Weight

6500KG

Dimensions (L×W×H)

5400×2100×2000mm



Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets

Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.

Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.

We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.

Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
