Alumium Wheel Polish Machine CNC Diamond Cutting Wheel Lathe for Rim Repair Awr2840PC

Alumium Wheel Polish Machine CNC Diamond Cutting Wheel Lathe for Rim Repair Awr2840PC
Price: US $ 14000-17000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: AWR2840PC
Max Wheel Size: up to 27inch, 30inch or 32inch
Oversea Service: Offer Oversea Service
Cutter: Special Diamond Cutter
Probe: Touch Ruby Probe
Cutting Effect: Rainbow Line Effect or Cutting Line
Optimized Software: Designed for Optimize Program
Controller: CNC or PC
Clamping Form: 3 Jaws Chuck
Machine Type: Flat Bed Machine
Voltage: 3 Phase 380 or Your Request Voltage
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

Alumium wheel polish machine cnc diamond cutting wheel lathe for rim repair AWR2840PC
A.Standard configuration



    1.  Wireless key&mouse 1 set                  2.  Diamond cutter 1 set inner
    3.  Diamond cutter 1 set outer                  4.  Special ordered soft jaws 1 set
    5. High precision prob system 1 set        6. 4 station tool which can adjust X stroke
    7.  light system                                           8.  Automatic lubrication system
    9.  Cooling system(standard)                  10.  Full cover safety door
    11.  Tool case                                           12.  Training videos

B.Specification list

ITEMS

AWR2840PC

Max. swig over bed (mm)

Φ720(28 inch)

Max. swig over cross slide (mm)

Φ540

Max. Size of alloy wheel

27'

Cross slide travel (mm)

350

Width of the rail

330

Length of the rail

1320

Size of the three-jaw chuck

12'

Range of spindle speed (RPM)

50~2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ60

Taper of spindle bore

MT6

Taper of spindle nose

A2-6

Max. size of tool post

25×25mm

Stations of tool carrier

4 station

Min. setting unit of motor

(Z) long    0.001mm,

(X) cross   0.001mm

Moving speed of post

(Z) long     8m/min,

(X) cross    4m/min

Motor power

7.5KW

Mchine base

Whole cast iron base

Machine size(L×W×H) (mm³)

2300×1750×1950

Net weight

2200kgs

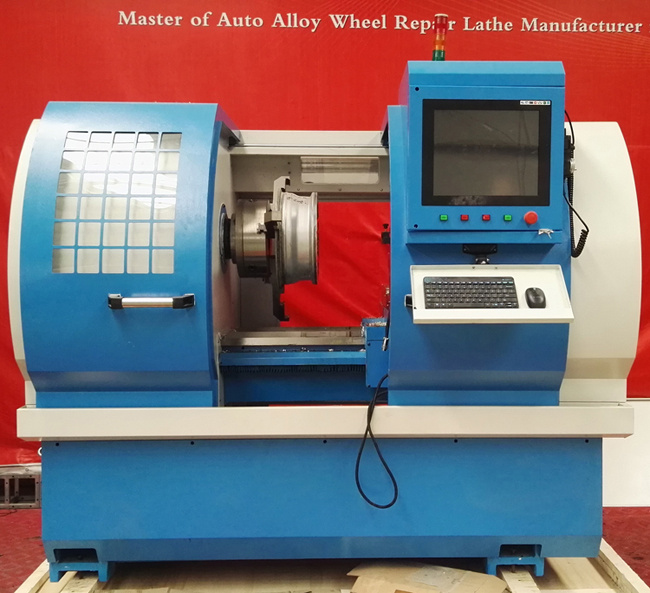

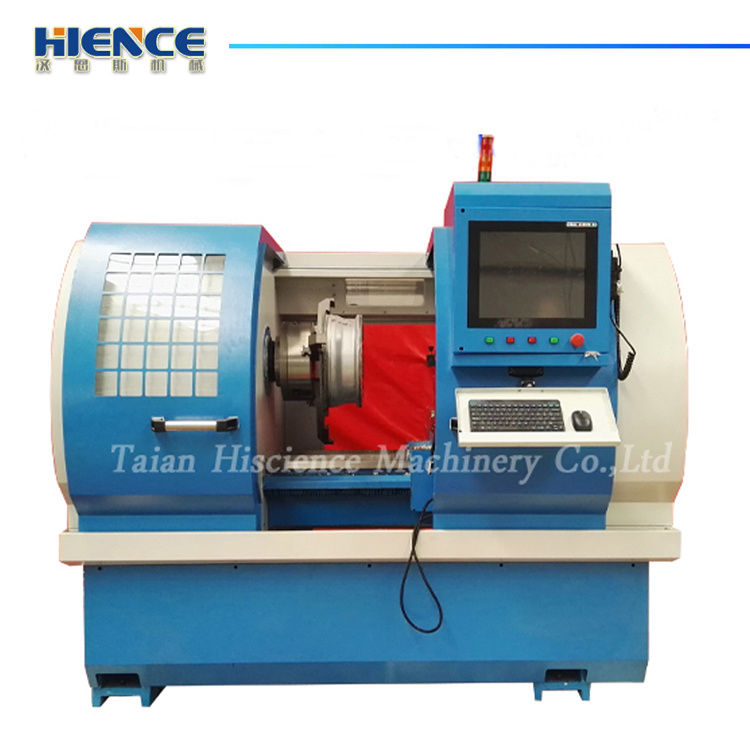

C.Pictures of AWR2840PC





D.Buyer Show

Company Information

FAQ:
1)Q: What is PC Alloy wheel repair machine?
A: PC alloy wheel repair machine is developed based on CNC wheel repair machine for alloy wheel repair or refurbishment. PC machine adopt 17'' muti-function touch screen industrial PC, can opereate easier and high efficient. We have improve the performance and add more function on the machine.
2)Q: What Max wheel size the wheel machine can cut?
A: We have many model machine can meet different customer's request. It is no problem for most of wheel size 22'', and can up to 32''.
3)Q: Can the machine cut special wheel,such as deep dish wheel?
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We have self developed professional wheel repair software, can repair all wheel and can realize rainbow line effect.
4)Q: If your machine all steps are operated on machine, not need go to computer?
A: Detection, optimization and cutting can be finished in one system in a time.
5)Q: Is it easy to learn?
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
6)Q: Is it easy to use?
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse are set up and the mouse can be used together with the touch screen. The customer can establish their own database of different models of wheels and the saved data can be used in the cutting of same model.
7)Q:What is your service for the machine.
A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can contact with our company to start the after sale service.The software support remote upgrade, enjoy life free upgrade to the latest version.



Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.

We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.

Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.

CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.

The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.

The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.

Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
