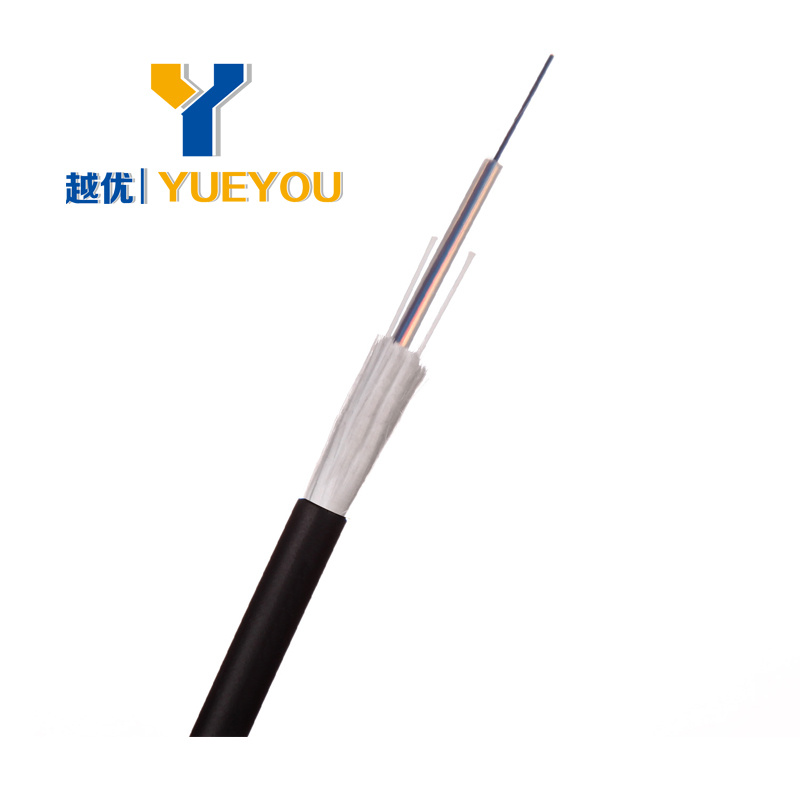

ADSS Dielectric Cable 4/6/12fibers Sm/mm 80m Span Fiber Optic Cable

ADSS Dielectric Cable 4/6/12fibers Sm/mm 80m Span Fiber Optic Cable
Price: US $ 0.15-0.4/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: GYFXTY-FG
Fiber Count: 4/6/12 Fibers
Fiber Type: G652D/G657A1
Strength Member: Aramid Yarn/Glass Yarn
Applications: Aerial Cable
Span: 50meters/80meters
Installation Temperature: -40~+70
Application: Telecommunication
Type: Single-mode Fiber
Connection Structure: SC
Certification: ISO9001
Material Shape: Round
Brand: Yueyou
Sheath Material: PE Material

Product Description

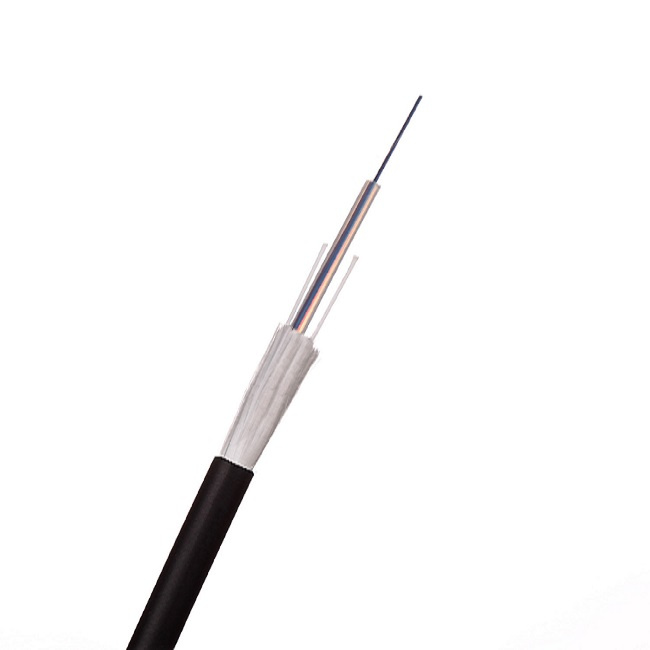

ADSS Dielectric Cable 4/6/12fibers SM/MM 80M Span Fiber Optic Cable



Description:

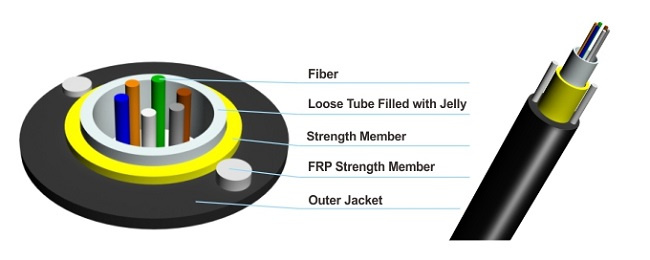

The fiber are positioned in a loose tube made of high modulus plastic,PBT loose tube are filled with
water-resistance filling compound,Overall Glass Yarn is covered with loose tube.Two parallel FRP as
strength member(Fiber Reinforced Plastic).Outer sheath is made of UV resistance PE jacket.





Features:

    Fiber count: 2-24 Fibers in Gel filled loose tube.

    Fiber selection: Single mode or Multimode.

    Strength member: Glass Yarn.

    Gel filled loose tubes for a critical protection of fiber.

    Glass Yarn to offer higher strength and enhanced rodent protection.

    Large span reach 80 meters.

    Small diameter, Light weight, easy installation.

    Sheath materials suit a variety of installation environments, UV and moisture resistance design.

    IEC 60794-1 standard.


Application:

Aerial.



Fiber Characteristics:

Fiber G.652DG.65550/125um62.5/125um
Attenuation(+20ºC)@850nm  ≤3.0dB/km≤3.3dB/km
@1300nm  ≤1.0dB/km≤1.0dB/km
@1310nm≤0.36dB/km≤0.40dB/km
@1550nm≤0.22dB/km≤0.23dB/km
Bandwidth@850nm  ≥500MHz.km≥200MHz.km
@1300nm  ≥500MHz.km≥500MHz.km

Physical characteristics and mechanical performance:


Fiber countCable diameter(mm)Cable Weight(kg/km)Allowable Tensile Load
(N)
Allowable Crush resistance
(N/100mm)
Dynamic and Static Bend
(mm)
Installation Temperature Range(ºC)
2-126.5±0.235±101000/4001000/30020D/10D-40~+70
14-247.0±0.240±101200/5001000/30020D/10D

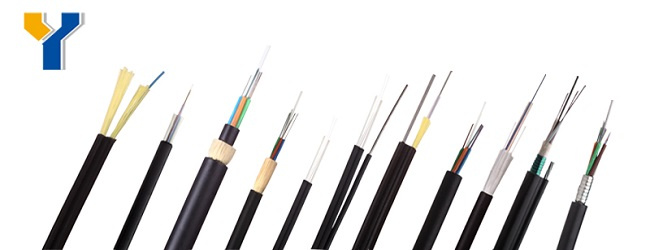

More popular products:
