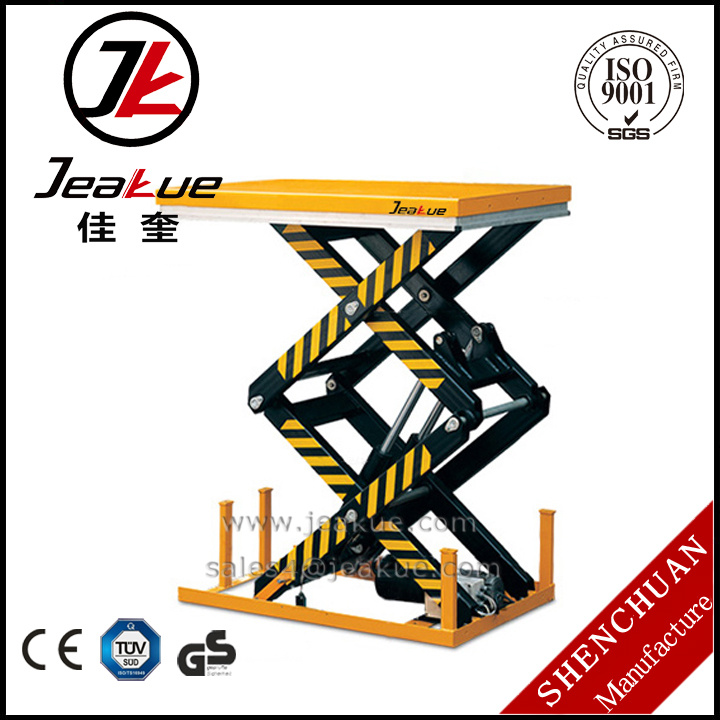

Product name :4000kg High Quality AC Power Electric Lift Table( Double Scissors) Rated capacity : 4000kg Scissor lift table
Details descritpion :
1.Heavy-duty design, max. load 4000 kg,double scissors electric lift table; 2.Double scissors design, lifting height up to 2050mm,electric lift table; 3.Complying with EN standard and ANSI / ASME safety standard,double scissors electric lift table;
4.European original high-quality AC power supply components; IP class: IP 54; Power supply: AC 380V/50HZ/3 phase,electric lift table 5.Low-voltage (24V) control box with up-down and stop buttons,electric lift table; 6.Anti-overload valve and flow compensated valve, precisely control of lowering speed; 7.Safety device beneath the table ensures the table stopped lowering when there is obstacle;
8.Heavy duty cylinders with drainage system and check valve to stop the table lowering in case of hose burst 9.Safety clearance between scissors can prevent jamming,double scissors electric lift table. 10.Auto lubrication guide rings on pivot points; reducing friction between components,electric lift table; 11.Unique designed removable hoisting ring provides convenience to table installation and maintenance.
Model
JK8699
JK8700
JK8701
Rated load
kg
1000
2000
4000
Min. height
mm
305
360
400
Max. height
mm
1780
1780
2050
Table size
mm
1300×820
1300×850
1700×1200
Base size
mm
1240×640
1220×785
1600×900
Lifting time
s
35-45
35-45
55-65
Power supplying
380V/50HZ,AC,1.1KW
380V/50HZ,AC,1.5KW
380V/50HZ,AC2.2KW
Net weight
kg
210
295
520
