Max Platform Height:
7.99m
Max Working Height:
10.00m
Platform Size:
2.26*0.8m
Load Capacity:
230kg
Extend Platform:
900mm
Max. Drive Speed(Stowed):
3.2km/H
Color:
Orange, Blue or According to Request
Grade-Ability:
25%
Warranty:
12 Months Apart From Man-Made Faults
Maintenance-Free Battery:
4*6/230V/Ah
Application:
Building Crane
Feature:
Explosion-Proof
Carrying Capacity:
Special Weight Level
Driven Type:
DC
Running Mode:
Moving
Product Description

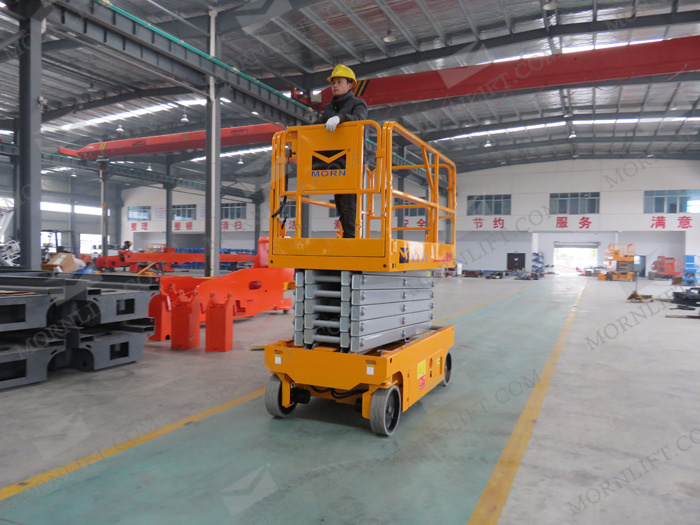

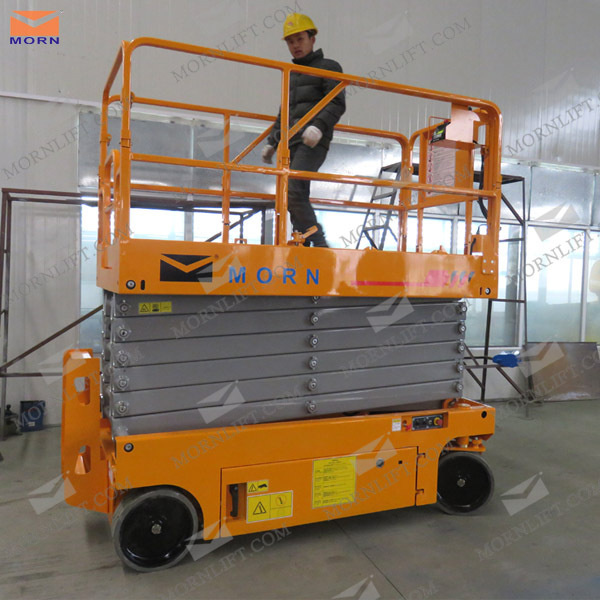

8m mini scissor lift with battery power
1. Brief introduction:
1) Hydraulic Self-propelled Scissor Lifts is the professional high-altitude operation equipment. 2) Its scissor mechanical structure makes the lifting platform lift more stably. Wide working platform and large loading capacity can make the work scope bigger. Suitable for several people working together. 3) Lifting height: 4m ,6m, 8m,10m ,12m, 13m, 14m, 16m 4. Loading capacity: 230kg, 280kg, 320kg, 680kg,1150kg for different models.
2. Model list for reference
Data/Model
SPS-6
SPS-8
SPS-10
SPS-12
SPS-14
Lifting height(mm)
6150
8000
10000
12020
14.26
Max.working height(mm)
7850
9700
11700
13720
15.96
Min. Platform Height
1060mm
1190mm
1320mm
1530mm
1740mm
Ground Clearance
100/19mm
100/19mm
100/19mm
200mm
200mm
Load capacity(kg)
380kg
450kg
320kg
230kg
320kg
Extend platform length
900mm
900mm
900mm
900mm
1100mm
Extend platform capacity
113kg
113kg
113kg
113kg
120kg
Platform Size(mm)
2270*810
2270*1120
2270*1120
2260*1130
2930*1650
Overall size(mm)
2480*810*1060
2480*1150*1190
2480*1150*1320
2485*1150*1310
2900*1750*1740
Grade ability
25%
25%
25%
25%
20%
Min. Turning Radius
2190
2330
2330mm
4500mm
Lift motor
24V/3KW
24V/3KW
24V/3KW
24V/3KW
48/5 v/kw
Lifting up/lifting down speed
22/34 sec
30/33 sec
30/38 sec
33/39 sec
33/39 sec
Drive speed(stowed)
4.0km/h
4.0km/h
4.0km/h
3.2km/h
3.2km/h
Drive speed(raised)
0.8km/h
0.8km/h
0.8km/h
0.8km/h
0.8km/h
Maintenance-free Battery
4*6/210v/Ah
4*6/210v/Ah
4*6/210v/Ah
4*6/230v/Ah
8*6/215V/Ah
Charger
24/25 v/A
24/25 v/A
24/25 v/A
24/25 v/A
48/50 v/A
Overall Net Weight(kg)
1950
2300
2730
2850
3650
3. Power
1) Electricity or diesel: local power available at the working sites(110V,220V,380V,415V), diesel engines and generators. 2) It can be equipped with manual hydraulic device, so when there is no power at occasions or the power supply goes out, the lift can still work normally.
4. Safety
1) In special circumstance, the scissor lift can equip explosion-proof electric equipment. 2) The platform is equipped with antiskid plate to prevent slipping, it is enough safe when workers on the platform. 3) The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity. 4) The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
5. Main features of Morn scissor lifts
1) Quite and convenient Battery power makes low noise and no emission when working
2) Scissor structure The scissor structures are made by advanced CNC machine, which make every lift parts extremely precise.
3) Flexible The steering wheel can make a 90°turn in situ, can run in both high and low speeds, and can used in small space.
4) Solid rubber wheels The small solid rubber wheels moves slightly, has no any damage to the floor
5) Larger working space The platform can extend on one side, which can enlarge the working space
6) Folding guardrails The guardrails of platform are folding and can reduce the height of the whole machine, which facilitates the transportation and pass of places such as openings.

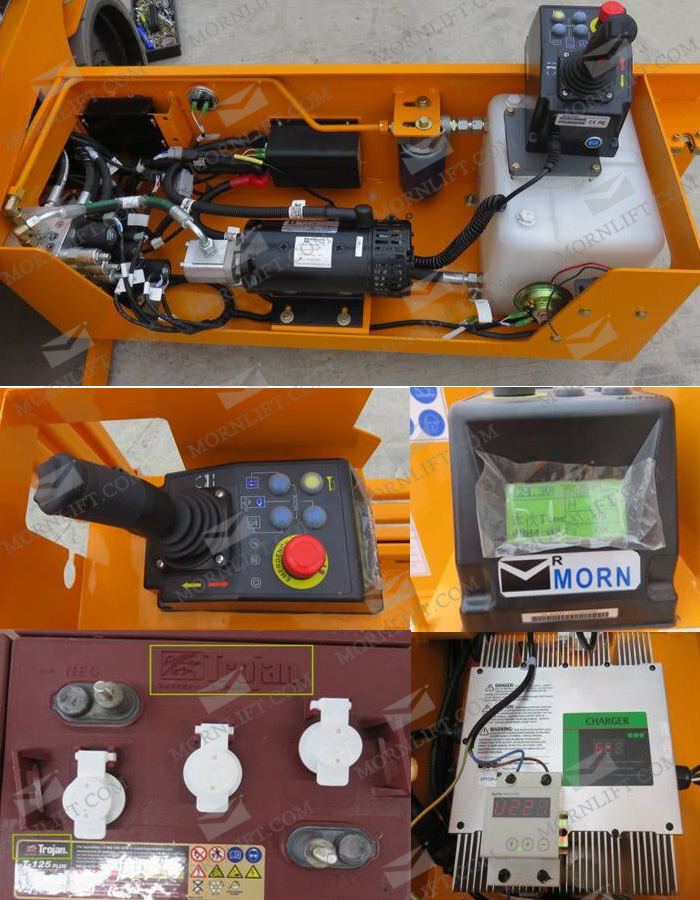

7) Swing-out tray The trays in both sides of the chassis can be swing out, which facilitate the maintenance, inspection and replacement
8) Battery brand-----Trojan with easy charging system for your convenient.
9) Maintenance schedules and other warnings are printed on the lift
10) Spare parts, some tools and operation manual, service manual will be sent with machine
6. Applications:
They are widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds such as in factories, Star Hotels, restaurants, railway stations, airports theaters, exhibition halls, bus/railway stations, large factory, workshops, warehouse, granary, and other places. It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and pipeline recondition etc.
7. Warranty
1) User-friendly English manual for machine using and maintenance. 2) One year warranty for whole machine without man-made fault; 3) We will send you parts for free if there are any non-human factors problem during warranty time 4) 24-hours technical support by email, telephone or other communication online. 5) We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
MORN GROUP was founded by Mr. Astone, Ms. Rena and their followers in 2008, harboring the dream of producing high quality made-in-China machinery for world market. The office area is located in High-Tech Zone, Jinan, China, an industrial machinery production center. Our office area takes up 1000 square meters and the factory has 27000 square meters, adjacent to Jinan's largest logistics center.
MORN has two independent business department - LASER Business Department and LIFT Business Department. Respectively, LASER Business Department runs the sub-brand "MORNLASER" and LIFT Business Department runs "MORNLIFT" sub-brand. In August 2017, MORN purchased "GEMWAY" as its sub-brand also operated by LIFT Business Department. Production, R&D, sales, quality control and marketing sectors are set under each business department. MORN now has more than 360 senior technicians, including 26 senior engineers and over 150 sales and professional pre-sales & after-sales staff.
MORN products covers laser machines (fiber laser cutting/marking machines, CO2 engraving/cutting/marking machines) and lift equipment (hydraulic lift platforms, aerial platforms, home elevators and auxiliary loading equipment). Multiple models and configurations, standard and customized production solutions can meet customers' diverse work needs. Currently MORN products have been exported to 155 countries and areas, and overseas warehouses and after-sales service center have been established in America, Britain and Philippines.
