| Prod Model: |
CKT070D025CGC-A5 |
| Active Area (W*H): |
154.08*85.92 |
| Resolution: |
800*480 |
| Interface Type: |
24-Bit RGB |
| Usage: |
Automotive Electronics |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Infrared |
| Type: |
LCM |
| Response Time: |
5ms |
| Viewing Angle: |
IPS |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Non-Customized |
Product Description
PRODUCT PREVIEW:

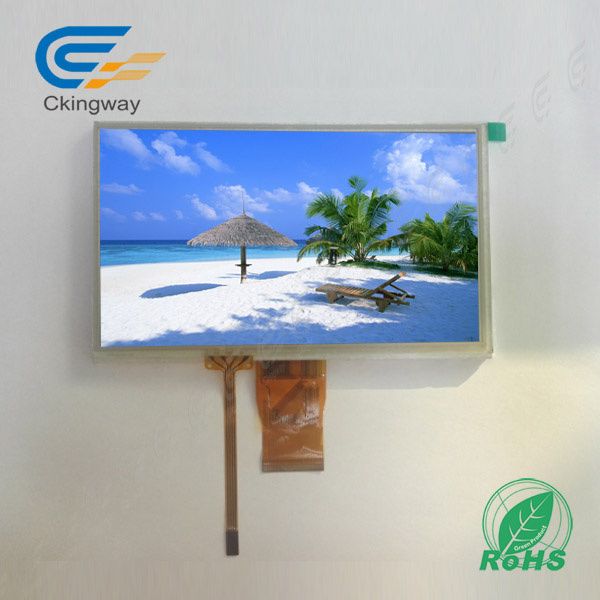

Small Size TFT, The CKT070D025CGC-A5 , is a small-size 7" TFT with Rtp/P-Cap Touch Screen . All our color display products can be modified to be sunlight-readable, and touch panels can added or removed. upon request (there may or may not be tooling associated with sunlightreadability or touch-panel changes).
| Model | CKT070D025CGC-A5 |
| Size | 7.0" |
| Moudle Area(W*H*T) | 164.90×100.00×5.55 |
| Active Area(W*H) | 154.08×85.92 |
| Pixel Pitch(W*H) | 0.1926X0.179 mm |
| Contrast | 400 CR |
| brightness | 350 Cd/m2 |
| Resolution | 800xRGBX480 |
| Driver IC | HX8664B+HX8264D |
| Viewing Direction | 12:00 |
| Interface Type | 24 bit RGB |
| Colors | 16.7 M |
| Backlight Type | 3X7LED |

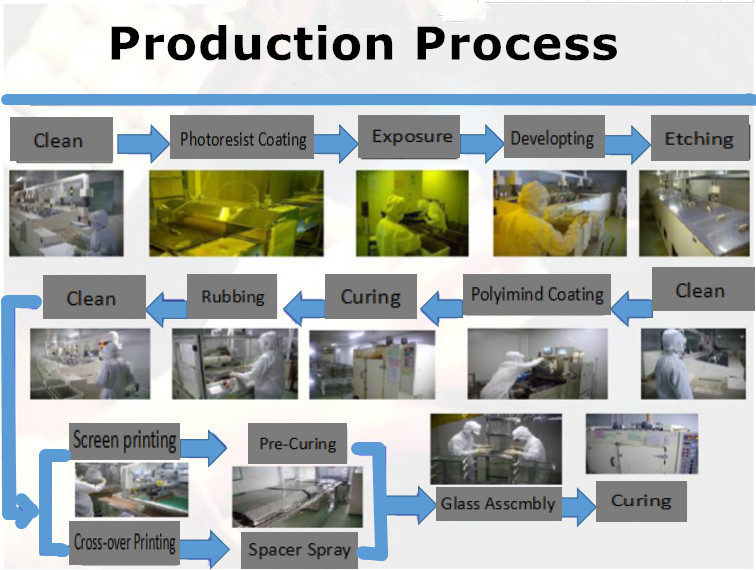

Product Process
Our Company Shenzhen Ckingway's Introduction
Hello guys.,
Enjoy your working time with me!
I'm a manufacturer,my name is Shenzhen Ckingway Technology Co.Ltd. I specialize in producing TFT LCD/Touch screen/Mono LCD,the detail as below:
Touch Panel, Size: 1.44"~32.0"
Graphic character LCD Module, Size: 24.1×9.0 mm~153.0×103 mm
LCM (Liquid Crystal Display Module), Size: 0.96"~15.6"
Maybe you want to know if my reach your standard?
I approved the ISO9000 quality management system
I approved the ISO14000 environmental management system
I fully comply with the ROHS requirements
So,welcome to visit my home and take me to your home with confidence.
If you have other doubt please do not ask my master anytime.
Sincerely blessing you full of happiness and love everyday.

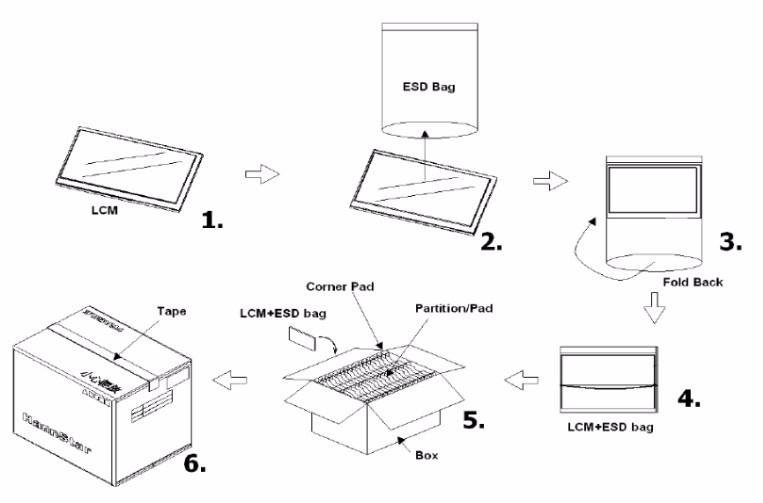

Package
Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
Delivery
Delivery Details:
Normal order we will ship the goods within 3-7 working days after we get the payment, the bulk order need about 5 -35 working days, any delay we will inform you at once.
Shipping Details:
1) Can Ship by express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on your requirement.(The express shipping time is about 3 - 7 working days.)
2) The tracking number will be informed after 1-3 working days the package delivered.
3) We will follow the shipment info after delivering. If you can't receive the goods on time, please contact with us, we will assist to find the solution as soon as possible.
