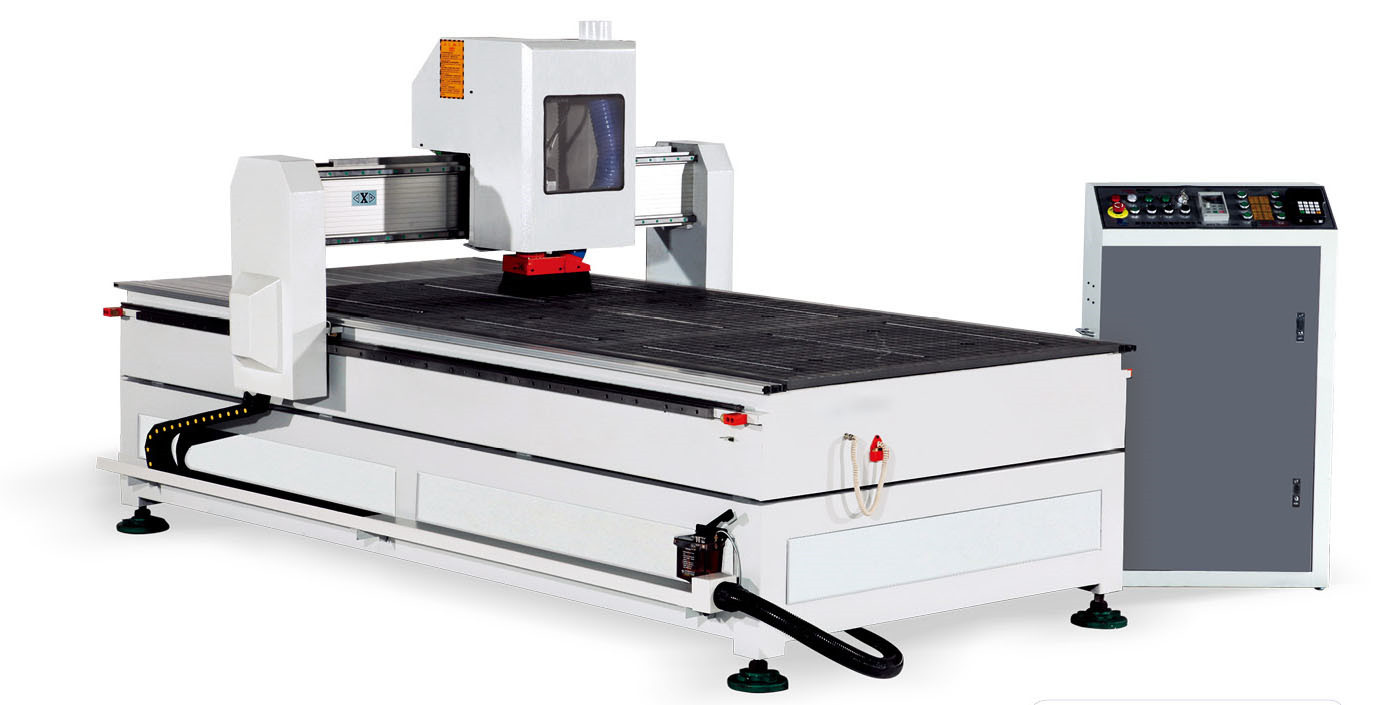

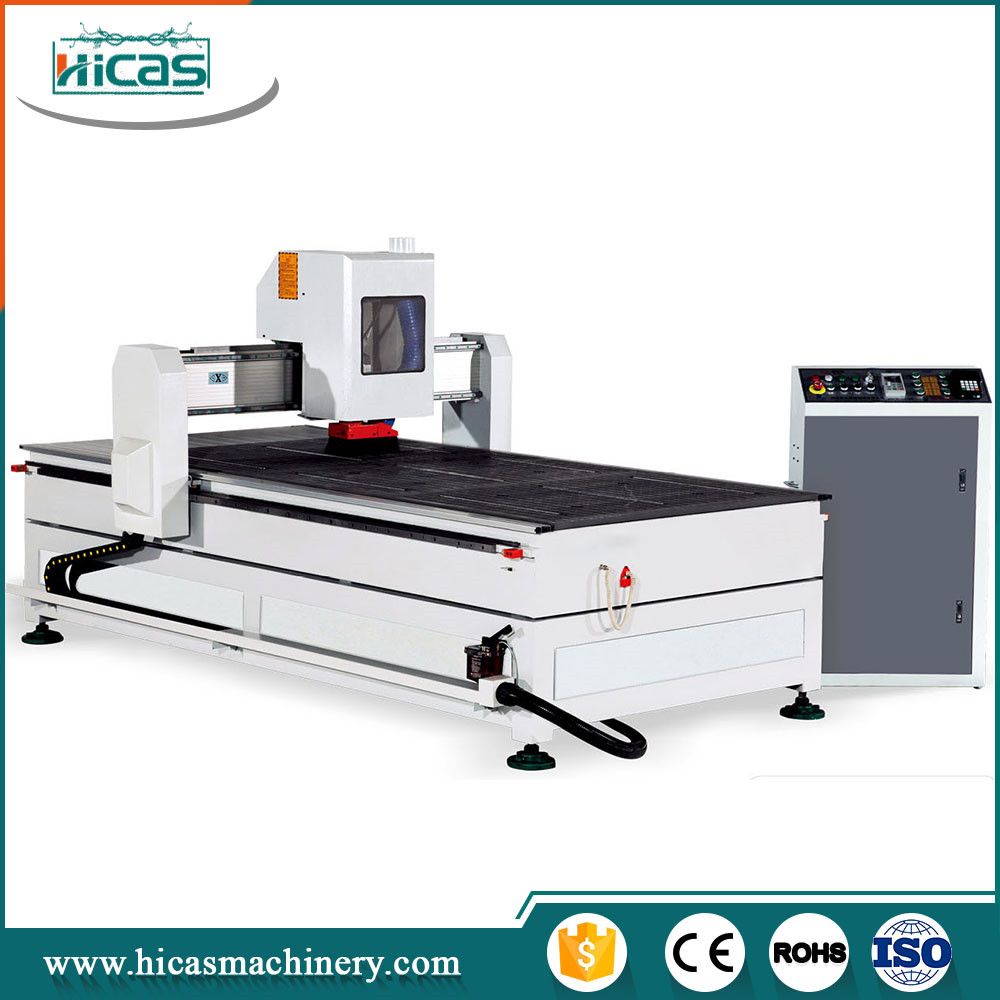

7.5kw Inverter Power CNC Router Price

7.5kw Inverter Power CNC Router Price
Price: US $ 6000-8000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: K45MT
Product Name: CNC Router
Color: Optional
Brand: Hicas
Working Voltage: 220V/380V
Certificate: Ce
Use: Woodworking Piece Engraving
Working Area: 2, 000 X 3, 000 X 200mm
Max. Speed: 35, 000mm/Min
Spindle: 4.5kw Hsd Spindle
Drive Motors: Stepper

Product Description

7.5kw Inverter Power Cnc Router Price

PRODUCT DISCRIPTION
K45MT is a model with good cost of preformance and universal application,mainly designed for composite and solid wooden doors,and suitable for large-scale production in factory.
Furniture decoration industry:A large area flat plate engraving,wood,panle furniture carving,wood art murals,wood cabiet doors carving.

ModelK45MT
X-Y-Z axis working area2,000 x 3,000 x 200mm
Resolutions0.0025mm
X-Y movementRack and pinion, gear drive/Taiwan
Z movementBall screw drive/Germany
GuideLinear ¢20 square/Taiwan
Max. speed35,000mm/min
Max. cutting speed25,000mm/min
Spindle4.5KW HSD Spindle
Spindle speed18,000rpm
Inverter power7.5kw
Drive motorsstepper
Working voltageAC380V/50-60Hz, 3-phase
Command codeG code
Computer interfaceUSB 2.2
ColletER32-12mm,6mm,3.175mm
SoftwareType3
ControlsNC-Studio
Packing dimensions3720*2280*1870 mm, 1600KGS
Equipment availablea. Oil lubrication system
b. Clamps

PRODUCT SHOW

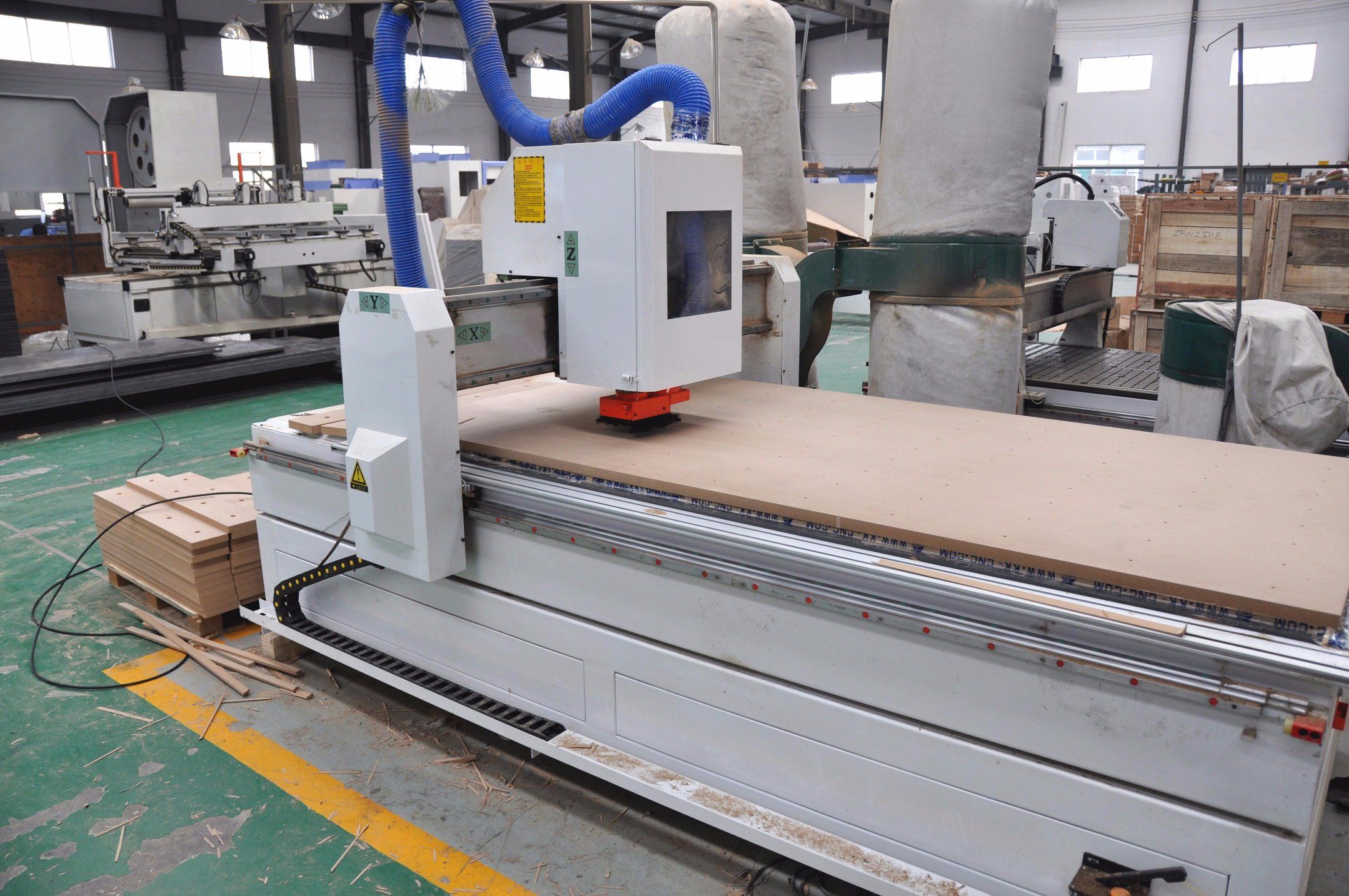

CNC Router Working Picture

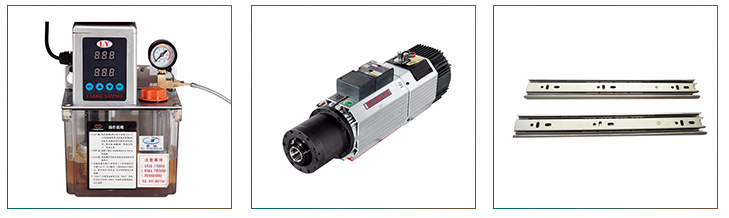

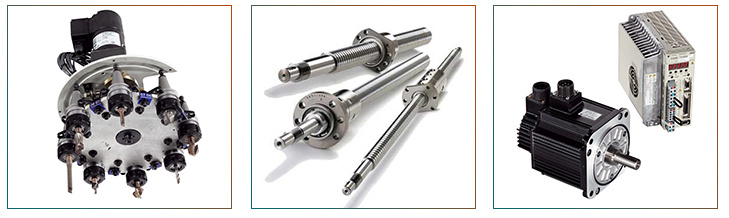

 Spare Parts Introduction



Taiyuan Tool Magazine German Ball ScrewServo Motor
Lubrication System Italy Main SindleTaiwan Rack

APPLICATION
Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.

Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

PACKING&SHIPPING

Packaging:
1.Stretch film and plastic film for humidity.   2.Standard marine export plywood case.
3.Pallet packing.

Shipping:
1.We support maritime and land transport.   2.Shipped in 15-30 working days after payment.

WHY CHOOSE US
1.Company proflie
Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services. Now, we are engaged in offering woodworking machinery,
metal working machinery, packing machinery,
WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well. With years of experience, we have established long and strong business relationships with more than10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together. Under the guideline of "High Class Service", we would like to continue providing the best service for customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.
2.Our after-sale service

1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
3.FAQ

List some questions below we think you may want to know, if you have more doubts, we are right here to help you.

1.Can we visit your factory?

We do welcome our new and regular friends come here to have a visit. Besides, we would send you

2.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.
3.How about your after-sales serive?

We offer you 24 hours service phone,skype or MSN.
4.How about your guarantee period?

One year and during the time,if you have  any questions ,we will solve it for free.

5.How to maintenance the CNC Router?

a. First cut the power when maintain the machine. When check work must open the power, need the professional electrician to do this check work.

b. Repair and replacement the parts, please first confirm the specifications of the technical.

c. Regular clean the cooling system.

d. Should always monitor the voltage and electricity grid of the CNC Router.

e. Prevent the dust into the machine.
6.What's your payment term?

30% advance payment and the balance payment should be paid before delivery but after inspection.

Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
