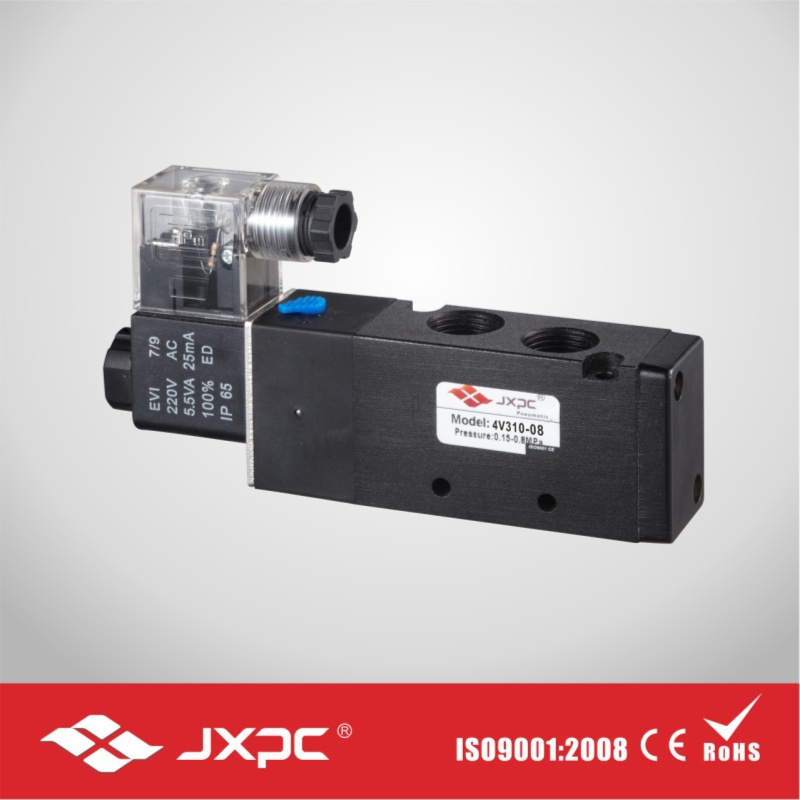

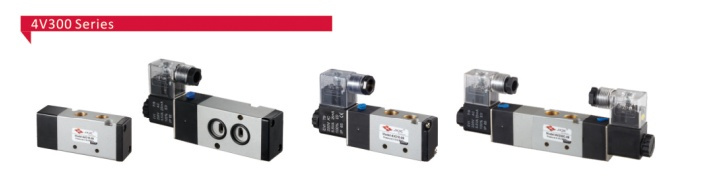

4V300 Series Solenoid Valve

4V300 Series Solenoid Valve
Price: US $ 5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: 4V300-10
Working Pressure: 0.15-0.8MPa
Position And Way No.: 5/2,5/3
Working Temperature: 5-50
Insulation & Protection Class: F Class IP 65
Voltage Range: 220VAC,24VDC,12VDC,24VAC
Acting Guide: Inner Guide Type
Joint Pipe Form: Nc,No,B

Product Description





Model4V310-084V320-084V330C-084V330E-084V330P-084V310-104V320-104V330C-104V330E-104V330P-10
Position and Way No. 5/25/35/25/3
Effective Sectional Area25mm2(CV=1.4)18mm2(CV=1)30mm2(CV=1.68)18mm2(CV=1)
 3V210-083V320-083A310-083A320-083V310-103V320-103A310-103A320-10
Position and Way No. 3/23/2
Effective Sectional Area25mm2(CV=1.4)30mm2(CV=1.68)
Port SizeAir inlet=Air outlet=Exhuast=G1/4"Air inlet=Air outlet= G3/8" Exhuast=G1/4"
Working MediumAir(40 um Filtered)
Action TypeInner Guide Type
Working Pressure0.15-0.8MPa
Max.Pressure Resistance1.2MPa
Working Temperature5-50
Voltage Range+- 10%
Power ConsumptionAC:2.8VA DC:2.8W
Activate Time0.05 second

Ningbo new jiaxing Automatic industry Co., Ltd (JXPC) was founded in 1979, is one of leading professional pneumatic mould design, manufacturing and market -oriendted sales mechanism group company, also is the first chairman unit of Ningbo city pneumatic industry society and a director unit of National Pneumatic & Hydraulic seal industry association. Passing 30 years JXPC has developed to international and modern enterprise, enjoying more than 20000m2, workshop with a large sales network, specialized in manufacturing F. R. L combination, solenoid valve, directional valve, pneumatic cylinder, fitting, silencer, PU tube and air gun etc. 100 kinds of series, approximate to 1000 various different pneumatic products. We have adpoted the first -class CNC machining center, high speed automatic lathes, injection molding machine, die-casting machine and other advanced testing machinery.
