Price: US $ 19200-19500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: 6060S
Work Stroke Of X/Y/Z: 600×600×230mm
Spindle: 5.5kw Frequency Conversion Water-Cooled
System: 6MB/6mA / Nk300Taiwan Syntec/ Shanghai (Optional)

Product Description


                                                    Characteristics and applications

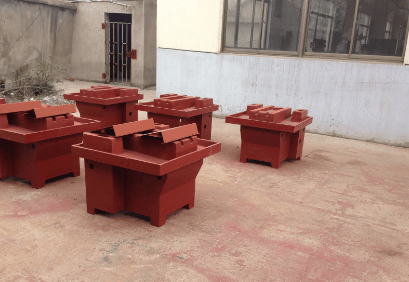

(1), airframe base, pillar casting beams are an organic whole, through the year-long outdoor natural aging, and the two tempering treatment, good rigidity, good stability.

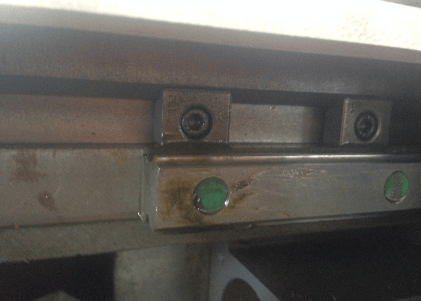

(2), linear guide, adopt unique wedge orientation and compaction of installation, ensure the accuracy of machine tool.
(3), with imported servo system and high precision transmission components, high processing precision, stable running.
(4) one-piece, industrial control system design, convenient operation, powerful functions.
(5), the three axes linkage, carved for three axis CNC engraving machine, suitable for copper, aluminum, steel and other metal, ABS plastic, PVC, polymer composite materials such as product or mould, fixture processing

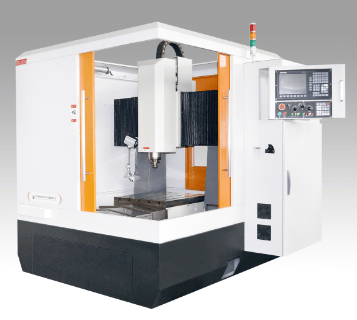

                    TSL6060 - 4 axis cnc laser cnc machine cnc wood lathe cnc tools

One,Main parameter
Functional indexStandard valueinstruction
Driving systemAC SERVO
X/Y/Z positioning accuracy±0.012/300mm
X/Y/Z repeat positioning accuracy±0.008mm
Idle fast movement speed12m/min
Maximum cutting speed6m/min
Maximum tool diameter¢20 mm
Spindle power / rpm5.5KW / 7000-18000rpmAC220V/50HZ
Operating stroke600×600×230mmX / Y / Z
Size of working table650x630mm
Outline dimensions2050 x 1950 x 2000mm
Weight4T

Two,Main configuration list
NameModel and specificationSupplier or brand
Linear Guide wayMODLE
XHGH32CAHIWIN
YHGH32CA
ZHGH25CA
Ball screwMODLE
X32 X 05QIJIAN
Y32 X 05
Z32 X 05
Spindle5.5kw frequency conversion water-cooledCHANGSHENG Changzhou
Converter5.5kw steplees speed regulationDEMA
System6MB/6MA / NK300Taiwan Syntec/ Shanghai (optional)
Servo motor1kW / 850WJapan Mitsubishi/ Panasonic/Yaskawa(optional)


Description:

The company headquarters and production base located in "China smart" city - changzhou city, jiangsu province economic development zone, is a high-tech private joint-stock enterprise, as the national science and technology innovation fund projects to undertake unit.

Our company focus on all kinds of high precision multi-function carved machine, engraving and milling machine and the development and application of metal drilling and tapping machine. The company has a professionala research and development team, mature manufacturing process control, and has a strict quality control system and perfect pre-sales, after-sales service system, has passed ISO9001 and 3 c certification, a number of products obtained national patent for invention or utility model patents.

My company's products sell well in domestic jade crafts, seal, hardware parts, automobile and motorcycle accessories, electronic instrumentation, measuring tool, denture, metal mold, fixture and other industries and fields, depth cooperation with the domestic many large enterprises, listed companies, colleges and vocational colleges, exported to southeast Asia, the Middle East, Africa and other regions and countries.

Main products:

1, TSL100120, 80100, 8080, 6060, such as heavy-weigh knife library series engraving and milling machine;

2, TSL6080, 6060, 5080, 5060, 4242, 4040, 3030, such as light-weigh libraries/four axis series of carved machine;

3, measuring tool (Vernier caliper) or hardware industry small screw drilling and tapping machine series;

4, TSL3020 vertical/horizontal series denture processing machine (tooth die engraving machine);

5, formulated in accordance with user requirements process solution, custom all kinds of CNC engraving machine or product processing required for automatic tooling fixture, etc.;

6, D scanner and 3D printer sales and application.

Product main features:

Structure of HT250/300 casting, two sections of the design, lathe bed and frame for the box structure, longmen for U the whole structure, the secondary tempering and outdoor natural aging for a long time, machine tool rigidity is strong, not deformation; Carrying Taiwan HIWIN high precision linear guide and ball screw, the configuration of international or domestic famous AC servo drive system and control system, the machine of high precision, good stability.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
