Note: Short-circuit J24/J25 to choose Power Input as 5V (3.5V~6V)
Interface
Item
Conditions
Min
Typ
Max
Unit
Baudrate
Standard
1200
-
115200
bps
Interface
RS232C
Data Format
1 byte for initial, 8 bytes for data, invalid bytes for checksum, 1 byte for end
Socket
SMD2.0-8P with lock catch
Peripherals
No.
Parameter
Description
1
Touch Screen

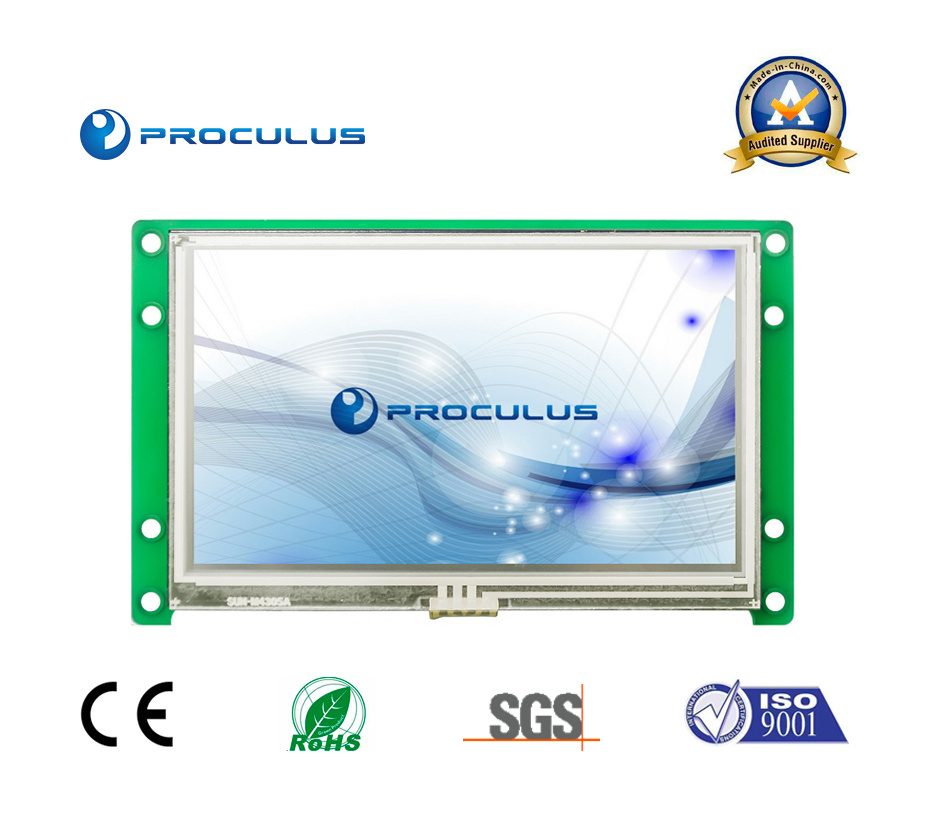

4-wire resistance touch screen: P48272V43I_T30
4-wire capacitive touch screen: P48272V43I_P30
No touch screen: P48272V43I_N30
2
Buzzer
YES
3
RTC
YES
4
USB
YES. For downloading offline or user data copy.
5
USB Mini
YES. For online debugging.
6
Audio
Support *.MP3 files. Theoretically 4096 file in maximum. Speaker power: 4Ω2W or 8Ω2W.
7
Keyboard
Support external row keyboard.
8
Memory
128M(support *.jpg files, maximum 65536 files theoretically)
Founded in the year of 2010, Proculus Technologies has been putting concentration on intelligent display solution with a kind of easy-to-go software UnicView AD which empowers user to have a more cost-effective and quicker access to finish the GUIs as well as communication with embedded system. Unlike other user interface technologies, the strength that we emphasize is visualization of interface design from low cost software and simplification of programming in project construction as well as easy-to-use in processing.
Proculus business range mainly expanded into hardware display introducing and production, and assorted software developments. Besides, Proculus Technologies accepts customization of display-related for control in embedded world as of that advantages to being on the project to assistance for machines in end field.
In further step, Proculus Technologies is going to move forward on smallest size display besides of 3.5'' inches to 18.5'' inches that we are working currently, based on serving for over 2000 end users in the industry. We will release out different options including software and hardware to resolve the obstacles that you met possibly in the course of products design in terms of controller/display part.
As an overall design-to-display touch screen solution provider, Proculus Technologies saved lots of troubles for users in terms of researching and developing on display part by providing an entire solution including professional software and stable plug-and-play hardware.
