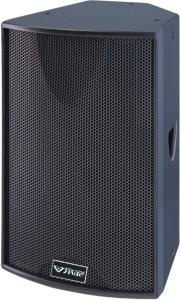

300watts 8Ohms Suit for outdoor and indoor professional speaker
Beautiful sound: Low particularly strong, flexible, strong sense of space, dive well, sounds strong and full of mag-netism, with a small distortion of the large SPL output. Highly specialized: The divider can be designed to adjust high and low frequency to the time difference between the corrected phase angle differences, and to ensure a smooth wave front, the velocity graph provides accur-ate control while eliminating the interference of the re-gion near the crossover. Superior material: High quality imported materials sele- cted units in Europe, with excellent performance stand- ards, to meet the needs of a variety of indoor and outd-oor applications.
Model
F15+
F12+
System
2-WAY FULL RANGE
2-WAY FULL RANGE
Frequency response
43Hz-18KHz
50Hz-18KHz
Driver
LF:15" × 1,HF:1.73"×1
LF:12" × 1,HF:1.73"×1
Nomina limpedance
8 Ohms
8 Ohms
System sensitivity
98dB
97dB
Rated power
450W
300W
Peak power
1800W
1200W
Maximum SPL
131dB
128dB
Coverage angle
horizon80°,verticality50°
horizon80°,verticality50°
Crossover mode
Inside crossovers
Inside crossovers
Suspension
with flying points
with flying points
Net weight
26.5KG
20kg
Size(mm)
475W × 445D × 685H
396W × 368D × 575H
Package size(mm)
530W × 505D × 750H
460W × 425D × 635H
Model
F10+
F8+
System
2-WAY FULL RANGE
2-WAY FULL RANGE
Frequency response
57Hz-18KHz
60Hz-18KHz
Driver
LF:10" × 1,HF:1.34"×1
LF:8" × 1,HF:1.34"×1
Nomina limpedance
8 Ohms
8 Ohms
System sensitivity
95dB
94dB
Rated power
200W
150W
Peak power
800W
600W
Maximum SPL
124dB
122dB
Coverage angle
horizon80°,verticality50°
horizon80°,verticality50°
Crossover mode
Inside crossovers
Inside crossovers
Suspension
with flying points
with flying points
Net weight
15kg
14kg
Size(mm)
351W × 320D × 533H
299W × 269D × 435H
Package size(mm)
390W × 360D × 610H
375W × 343D × 518H
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
