South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Usage:
Heavy Duty Big Machine Transport
China Famouse Alxe:
3 Axle *13 Ton Axle
Main Beam Material:
Carbon Steel Q345
Low Work Plate Height:
700mm or Customerised
Landing Gear / Leg:
28 Ton
Towing Pin Material:
Carbon Steel
Brake Pad Material:
Semimetal
Towing Pin Type:
"I" Type
Differential Gear Type:
Anti-slip Type
Independent Suspension Type:
Trailing Arm Type
Type:
Truck Trailer Semi Trailer
Towing Pin Diameter:
20inch or 35inch
Shape:
Low Flatbed
Axle Number:
3 Axle
Tire Number:
12 Wheels
ABS Anti-lock Braking System:
ABS Optional
Material:
Carbon Steel
Product Description

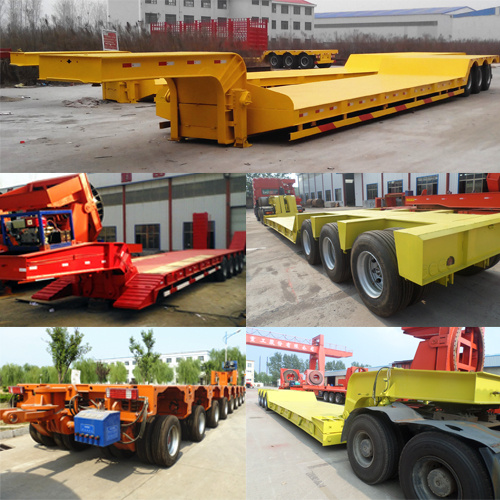

AIN FUNCTION: This lowbed trailer is available for carrying heavy equipments such as bulldozer, road roller, construction equipments, large scale equipments, steel products or other cargo,project machines.
MAIN SPECIFICATION DETAILS:
Model Number
SCD9400TDP
Main specification
Carry
Big machinery or bulk
Over all size (L* W * H)
13000mm x 3000mm x1700mm
Working size (L* W * H)
9000x3000x1250mm
Curb Weight(KG)
6500kgs
Loading Weight(KG)
60000kgs
Workingplatform to the ground
1250mm
Departure Angle
16
Chassis material
The material of Main beam Material is Q345B
The height of the beam is 500 mm, upper plate is 16 mm, down plate is 18mm, middle plateis 10mm.
Side beam
16mm channel steel
Platform thickness
4mm Diamond plate
Suspension Tire and valve
Axle
3 axle * 16tonFUWA Brand axle
Tire Type and quantity
1100R20 12pcs Triangle brand
Rim
8.5-22.5 12pcs
Wheelbase(mm)
1310+1310+1310
Steel Spring
10/10/10 90mm*13mm*10pcs leaf spring suspension
Brake system
Dual Line braking system,
Brake air chamber
Two double and two single chamber
Valve
WABCO VALVE
Accessories
Landing leg
28ton zhenghua brand
Mechanical Ladder
Spring Ladder
Traction Pin
2inch or 3.5inch
Electrical system
Voltage: 24v Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Optional items
Spare Wheel Bracket
2 pieces
Tool Box
2 Standard
Extension Side hinge
According to customer's requirement
Painting
Color as customer's requirement
More low bed truck models, we welcome your customized. 2 axle, 3 axle, 4 axle, 40ton, 60ton, 80ton, 100ton, 120ton Spring ladder, hydraulic ladder Gooseneck, Disassembly Gooseneck
Most fast delivery time
Quantity
1 set
3 set
5 set
10 set
15 set
Bulk days
10~15days
10~15days
15~25days
10~15days
10~15days

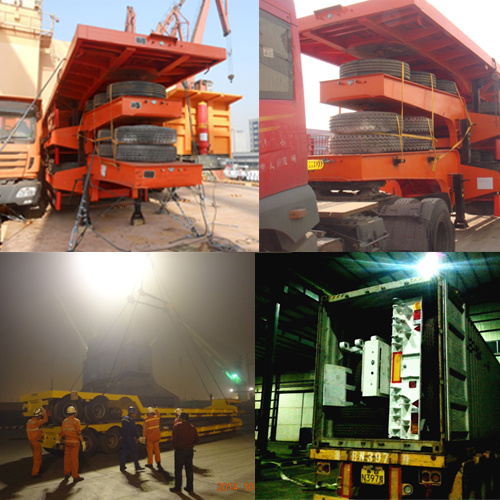

PACKAGING & SHIPPING Nude and wax, lowbed trailer could be shipped by container, Bulk or RO-RO. We always use the best packaging solution to decrease transportation cost and give your the very competitive price. We support transit report with pictures.
FAQ 1. Q: Are you a manufacturer or trading company? A: We are professional trailer manufacturer . 2.Q:What payment do you accept? A: T/T, L/C and order on line with alibaba trade assurance. 3.Q: Logo print on the trailer ok ? A: We welcome your logo artwork requirement.
Tell us your needs and we'll let you know how we can help.
Brief company Introduction: Shandong Chengda Trailer Manufacturing Co., Ltd. Established in 2005 is one of the qualified manufacturers of various trailers. Integrated production, scientific research & development and professional sales teams, all those advantages can provide the full service of trailers, semi-trailers, tractor head, dump truck, engineering machinery and trailer parts, our company is a leading provider in this industry, with annual export value reaching above 50million dollars and revenue almost 600 million yuan RMB. With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built a long business relationship with many world famous enterprises.
We can provide various trailers such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer, stainless steel tank trailer, aluminum tank trailer, car carrier semi trailer, and can be manufactured as special design
As the first class the agent of SINOTRUCK and SHACMAN, we can export the SINOTRUCK and SHACMAN brand tractor head, dump truck, fuel tanker truck, water tanker truck, cargo truck, concrete mixture truck etc with great price and service advantages.
Except trucks and trailers, our company can also provide trailer parts and engineering machinery such as crane and excavator etc.
Service: Customers can enjoy great purchase process from our professional sales team. With professional and mature after-sales systems, our service to you does't end after you receive the cargo from our company, it is just a new beginning of our cooperation.
Main Markets: Our company has enjoyed great preference by customers from African, South America, Middle East, North Asia, South Asia and South east Asia. So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Uganda, Fiji, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru, Uruguay, Argentina etc.
Our company's future vision: Become a globally-famous and long-standing corporation.
Our company's Mission: Share interests and happiness with all partners.
