2500mm Length Woodworking Table Sliding Saw
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BLM2500X300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Processing Diameter: |
300mm or 500mm |
| Max Processing Length: |
1500mm - 4500mm |
| Type: |
Table Panel Saw |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Controlling Mode: |
CNC |
| Layout: |
Horizontal |
| Certification: |
CE |
Product Description
HIGH PRECISE WOOD SLIDING TABLE SAW
MAIN CHARACTOR
1. With wood saw function, but 4times high efficient than it
2. Simplify the sawing process, no need dig holes, easy operate and sawing.
3. Suitable for short logs, large diameter logs, sliding convenient and accuracy on the table
4. Sliding way adopts straight guide, high accuracy, high wear resisting.
5. Adopts 2 independent motor with 2 switch, easy for customer use. Can open only 1 switch when sawing small diameter logs.
WORKING VIDEO
1. AUTO FEED: https://www.youtube.com/watch?v=PTG3N2ea2Gk
2. MANUAL FEED: https://www.youtube.com/watch?v=ytWp1vjlyuM
SAWING MATERIAL
1. Sawing material : Round logs & Squared Timber
2. Max sawing Diameter: 300mm,500mm (can customized)
3. Max sawing length:1500mm, 2000mm, 2500mm, 3000mm, 3500mm, 4000mm (can customized)
4. Sawing thickness range : 0.5mm - 150mm ( can customized)
FEED METHOD
1. Auto Feed
2. Manual Feed
CONSUMTABLE PART
1. Sawing blade
2. Belt
3. Sliding block
4. Bearing 209, 208

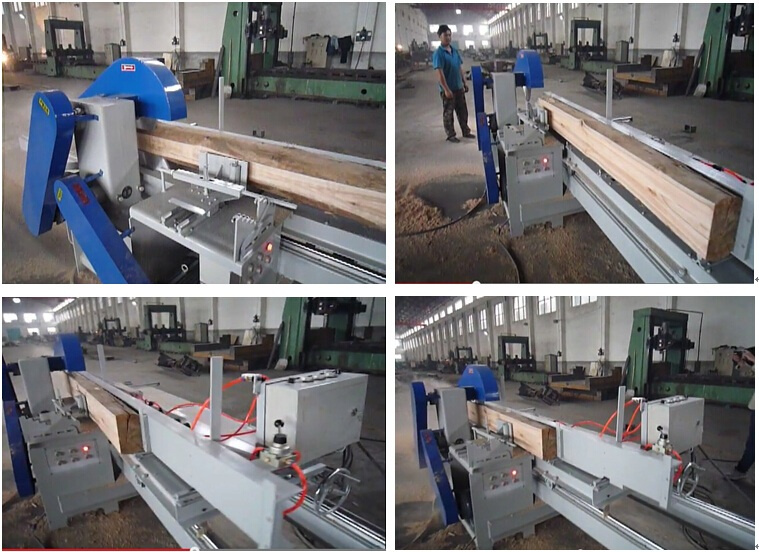

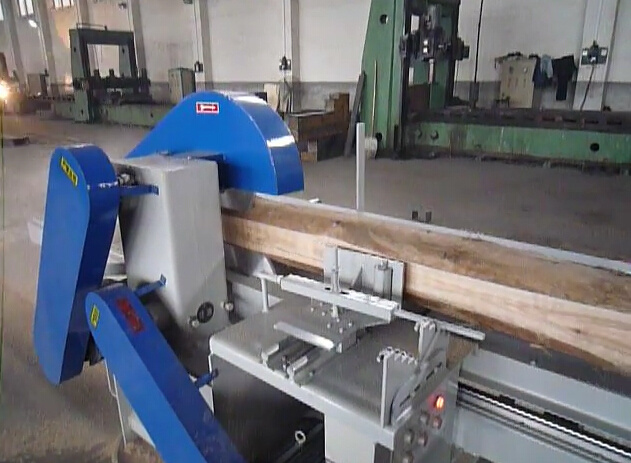

WORKING PHOTO
SPECIFICATION
|
Main Parameter (Small process length models) |
|
Item |
Specification |
BLM1000x300 |
BLM1500X300 |
BLM2000X300 |
BLM2500X300 |
|
1 |
Max Processing Diameter |
300mm( able to customize upto 500mm) |
|
2 |
Max Processing Length |
1000mm |
1500mm |
2000mm |
2500mm |
|
3 |
Worktable Length |
|
4 |
Spindle rotate speed |
3600r/min |
|
5 |
Feed speed |
10meter ( adjustable) |
|
6 |
Main Motor |
5.5KW X 2set |
|
7 |
Dimension |
1000x1200x1000mm |
1500x1200x1000mm |
2000x1200x1000mm |
2500x1200x1000mm |
|
8 |
Total Weight |
510kg |
600kg |
780kg |
950kg |
