Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking
DC braking frequency:0.00 Hz to maximum frequency
Braking time:0.0-100.0s
Braking action current value:0.0%-100%
tandard Function
JOG control
JOG frequency range:0.00-50.00Hz
JOG acceleration/deceleration time:0.0-6500.s
Onboard multiple
It implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID
It realizes process-controlled closed loop control systerm easily
Auto voltage regulation(AVR)
It can keep constant output voltage automatically when the main voltage changes
Overvoltage/Overcurrent stall control
The current and voltage are limited automatically during the running process so
as to avoid frequent tripping due to overvoltage/over current
Torque limit and control
It can limit the torque automatically and prevent frquent over current tripping
during the running process
Instantaneous stop doesn't stop
The load feedback energy compensates the voltage reduction so that
the AC drive can continue to run for a short time
Rapid current limit
It helps to avoid frequent over current faults of the AC drive
High performace
Control of asynchronous motor is implemented throgh the high-performance
current vector
Control technology
Timing control
Time range:0.0-6500.0 minutes
Communication methods
RS485
Running command channel
Given by the panel,control terminals.Serial communication port,can
be switched by many ways
Frequency source
10 kinds of frequency source,given by Digital analog voltage,analog current,Pulse,serial port.can be switched by man ways.
Auxiliary frequency source
10 kinds of Frequency source,can easily realize Micro ajustment,frequency Synthesizer.
Input terminal
6 digitak input terinals,one of which supports up to100kHz high-speed
pulse input.
2 analog input terminal,one of which only supports 0-10v voltage input
and the other supports 0-10v voltage input or 4-20 mA current input
Input and output
Output termianl
1 digital output terminal
1 relay output terminal
1 analog output termianl:that supports 0-20 mA current output or 0-10V
voltage ouput

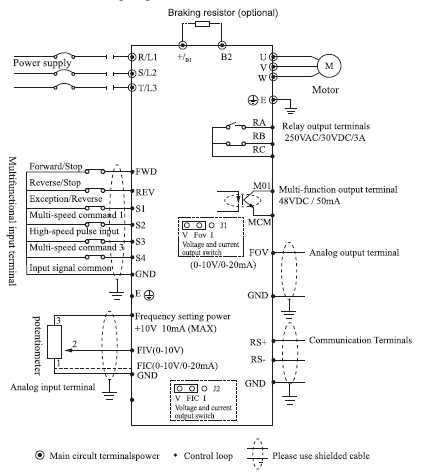

Wiring diagram
