Prod Model: |
HW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max. Drilling Diameter: |
150mm |
No-Load Speed: |
0-700r/Min |
Frequency: |
50-60Hz |
Rated Input Power: |
3200W |
Rated Torque: |
18n.M |
Rated Voltage: |
110V/220V/240V |
Weight: |
25kgs |
Power: |
5.5HP |
Rotated Speed: |
200 - 1000r/Min |
Max Drilling Depth: |
400mm |
Type: |
Core Drill |
Product Description

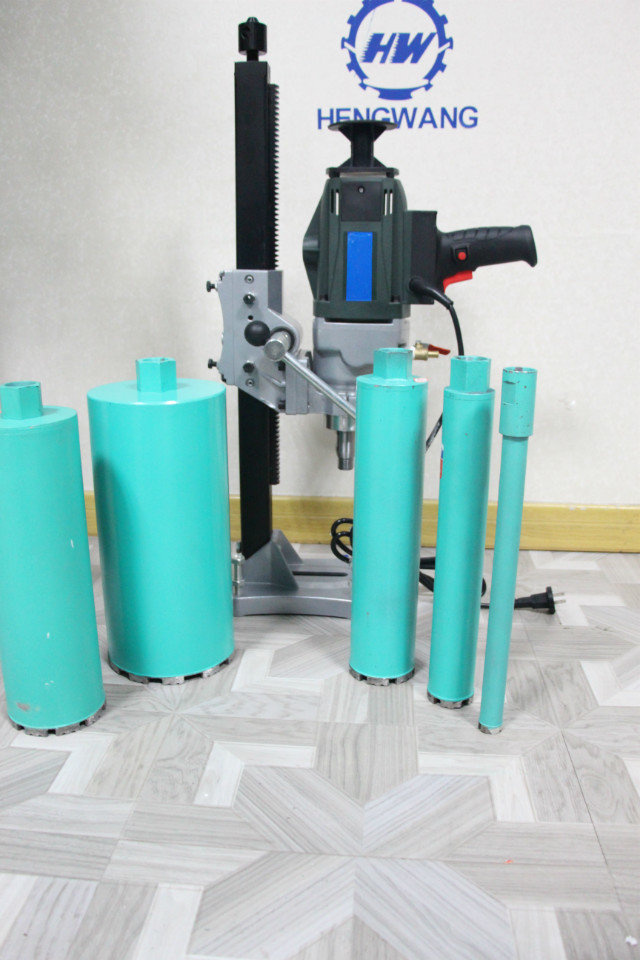

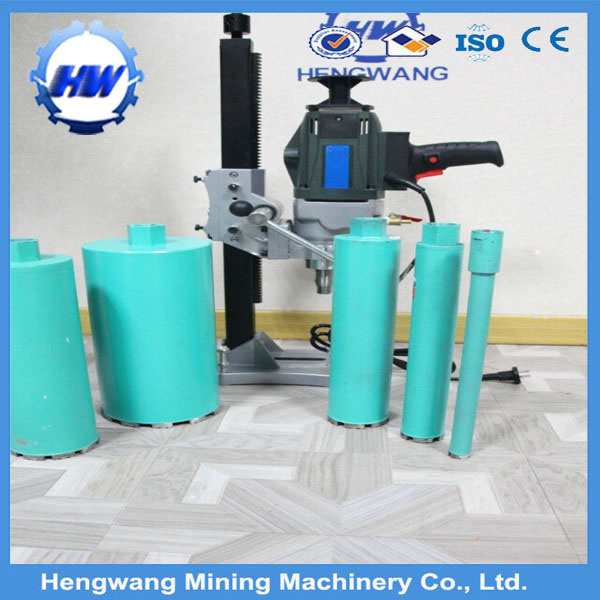

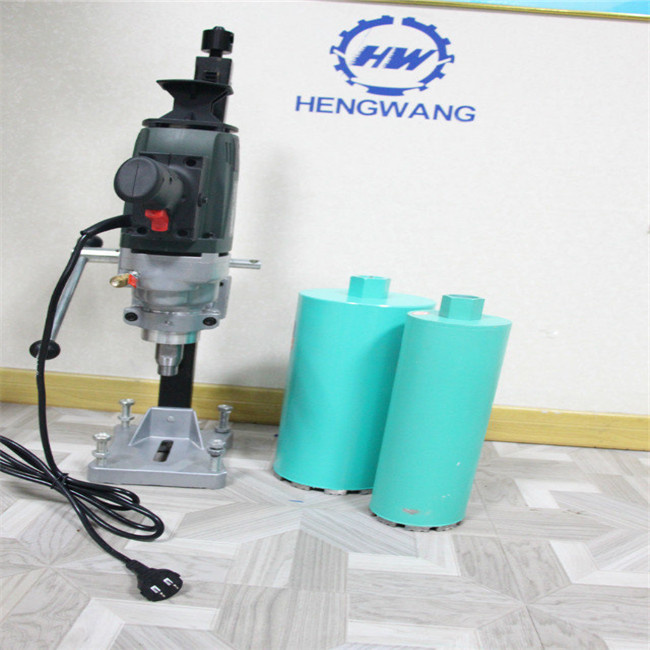

220v Diamond Core Drill Machine with Holder
Product Features
Diamonc core drills for reinforced concrete wall, floor, cement. We have different sizes, from dia 5mm to 505mm and different stands, vertical steel stand, angle adjustable steel stand, angle adjustable aluminum stand, angle adjustable aluminum vacuum base stand.
Magnetic drills for take hole or twist or tapping on steel sheet.
Concrete wall cutter/saw for cut reinforced concrete wall and floor, slab and beam, roadway, etc.
1) For core drilling in walls, floors, roofs and road surface, up to 300mm.
2) Suitable for various materials such as reinforced concrete. Brick and other construction materials.
3) For deep hole drilling, plumbing, electrical installation etc
4) Different drilling speed version for appropriate situations.
5) Electric leakage protection.
6) Low noise, vibration, power consumption.
7) Available for dry bit drilling.
8) Replaceable stand options can provide further functions, such as angle and stitch drilling
Technology Parameters
Product Model | HW-18/2EBM | HW-18/2EBMI | HW-26/3EBM | HW-26/3EBMI |
Brick Drilling Range | 5" 132mm | 5" 132mm | 6.5" 165mm | 6.5" 165mm |
Concrete Drilling Range | 3" 80mm | 4" 110mm | 4" 102mm | 5" 130mm |
Rated Voltage(V) | 110/220 | 110/220 | 110/220 | 110/220 |
Rated Frequency(HZ) | 50-60 | 50-60 | 50-60 | 50-60 |
Rated Input Power(W) | 1900 | 1900 | 2300 | 2300 |
No-load Speed(RPM) | 700-1200 1050-1750 | 700-1200 1050-1750 | 400-850 750/1650 1200/2650 | 400-850 750/1650 1200/2650 |
