| Price: | US $ 0.15-7.5/Piece |
|---|---|
| Min Order: | 200/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | HT-Fitting All Sizes |
|---|---|

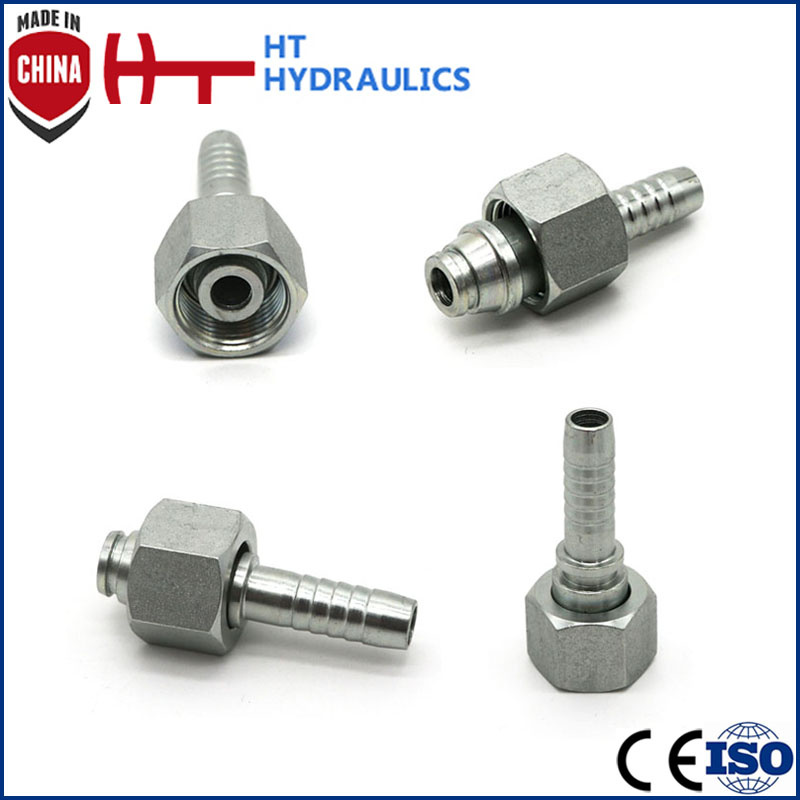

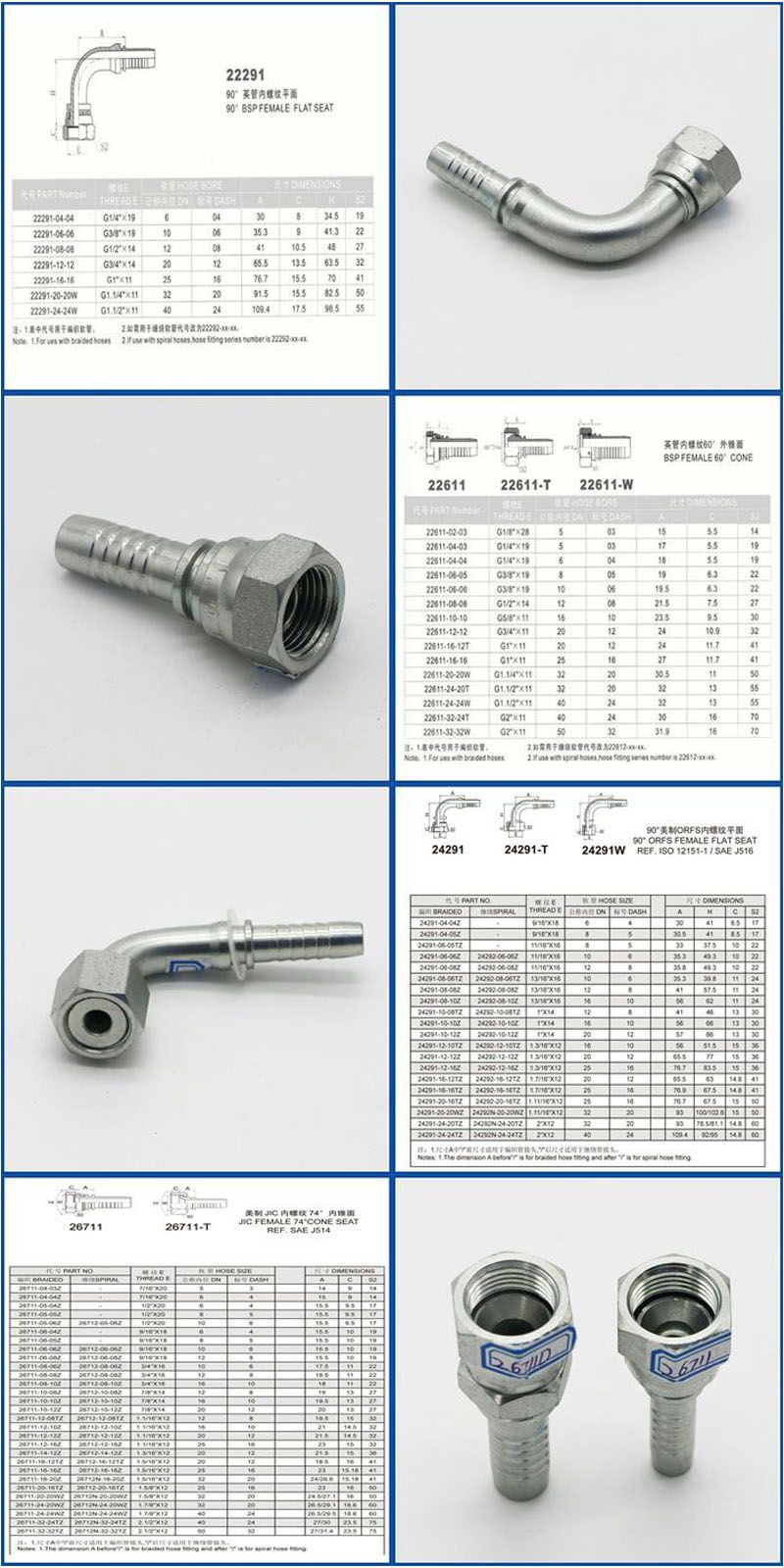

| Production Name: | Stainless Steel Hydraulic Hose Pipe Fitting |
| Application: | Oil, Gas, Water |
| Technology: | Hot Forging |
| Certificate: | ISO 9001, Ce |
| Size: | 1/4 to 2 Inch |
| Plating Color: | White, Gold, Colorful |
| Service: | OEM Service |
| Warranty: | 1 Year |
| Item: | Hydraulic System |
| Customize: | Available |
| Standard: | Jic Bsp JIS Orfes Orfs BSPT |
| Connection: | Female |
| Material: | Carbon Steel |
| Surface Treatment: | Zinc Plating |
| Product Specification | |
| Brand Name | Huatai |
| Material | Carbon steel, stainless steel, aluminum |
| Surface Treatment | Zinc plating, nickle plating |
| Technology | Hot forging |
| Weight | According to your order |
| Package | Carton, pallet or wooden box as your need |
| MOQ | 100pcs |
| Certificate | CE, ISO: 9001 |
| OEM Service | Available |
| Warranty | 1 year |
| Delivery Way | Air trabsportation, express delivery, sea shipping according to your order and need |
| Delivery Time | 7-30 days after receving your payment |
| Payment Terms | 30% T/T payment in advance, and 70% before the shipment |
| Samples Available | Samples are free with you pay the freight |
| Samples Delivery | DHL, TNT, UPS, FEDEX, EMS, etc. |
| Application | Precision parts, machinery accessories, truck and auto parts, industrial parts, mining accessories, off-shore applicances, agricultral facilities and construction material etc.. |
| Code | Thread E | Tube ID | Tube OD | A | C | H | S2 |
| 20511-14-04 | M16×1.5 | 6 | 6 | 28.5 | 1.1 | 28 | 19 |
| 20511-16-04 | M16×1.5 | 6 | 8 | 29 | 1.5 | 28.3 | 22 |
| 20511-16-05 | M16×1.5 | 8 | 8 | 29 | 1.5 | 28.9 | 22 |
| 20511-18-04-T | M18×1.5 | 6 | 10 | 26.5 | 2 | 21.3 | 22 |
| 20511-18-06 | M18×1.5 | 10 | 10 | 29 | 2 | 29.6 | 24 |
| 20511-20-06-T | M20×1.5 | 10 | 12 | 28.5 | 2.5 | 25 | 24 |
| 20511-20-08 | M20×1.5 | 12 | 12 | 31.5 | 2.5 | 32.8 | 27 |
| 20511-22-06-T | M22×1.5 | 10 | 14 | 28.5 | 2.5 | 25.3 | 27 |
| 20511-22-08 | M22×1.5 | 12 | 14 | 31.5 | 2.5 | 33.2 | 27 |
| 20511-24-06-T | M24×1.5 | 10 | 14 | 28.5 | 2.5 | 30 | |
| 20511-24-08-T | M24×1.5 | 12 | 16 | 30 | 3 | 27.5 | 30 |
| 20511-30-10-T | M30×2 | 16 | 16 | 36 | 3 | 35.9 | 36 |
| 20511-30-12 | M30×2 | 20 | 20 | 39 | 3 | 31 | 36 |
| 20511-36-12-T | M36×2 | 20 | 20 | 36 | 3 | 42.4 | 41 |
| 20511-36-14-T | M36×2 | 22 | 25 | 36 | 3 | 34.6 | 41 |
| 20511-42-12-T | M42×2 | 20 | 25 | 40 | 5 | 34 | 50 |
| 20511-42-16-T | M42×2 | 25 | 30 | 41 | 5 | 36.8 | 50 |
| 20511-52-20-T | M52×2 | 32 | 38 | 44 | 6.5 | 41.2 | 60 |
| 20511-52-24-T | M52×2 | 40 | 38 | 44 | 6.5 | 45.1 | 60 |

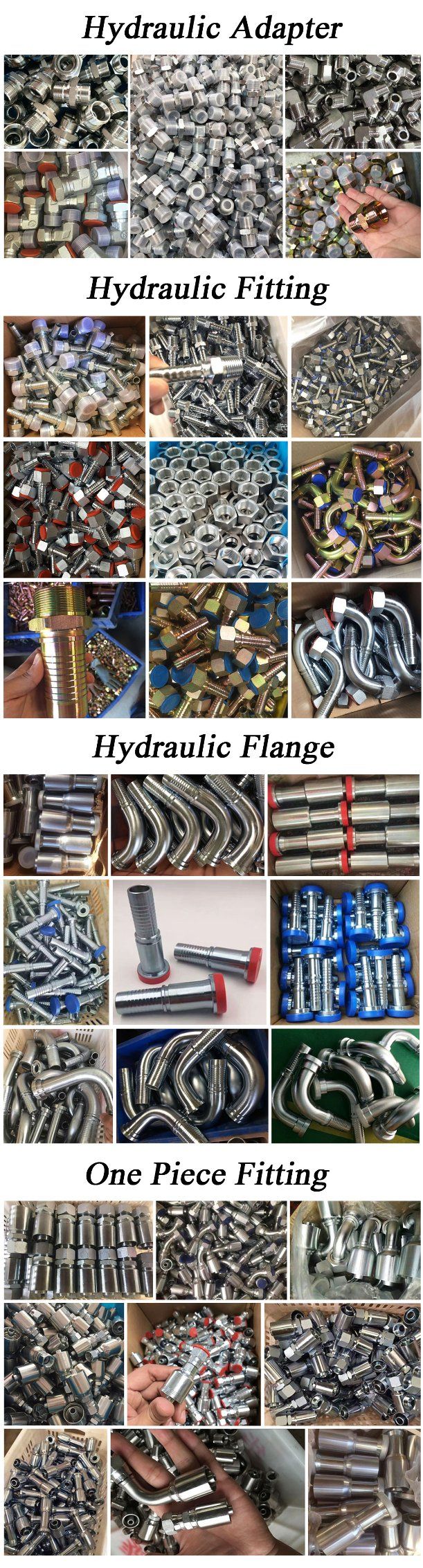

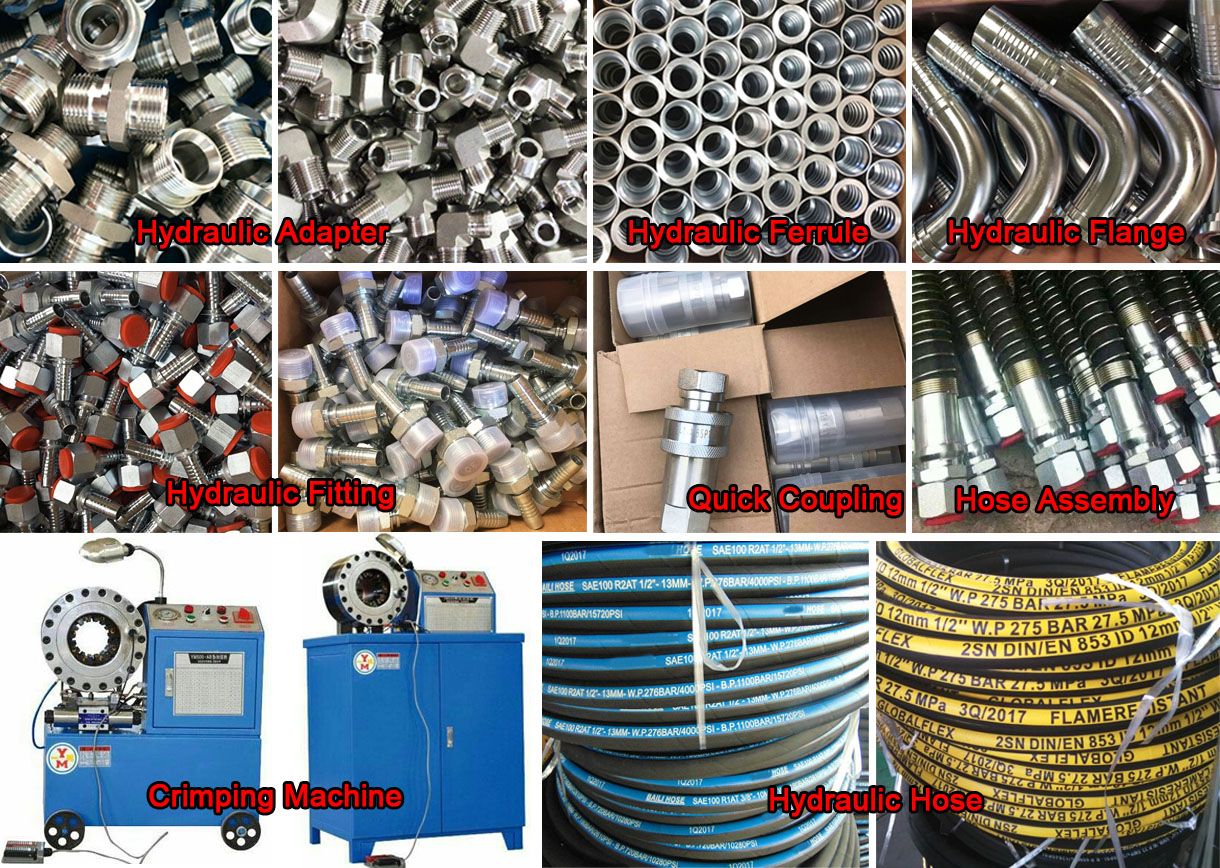

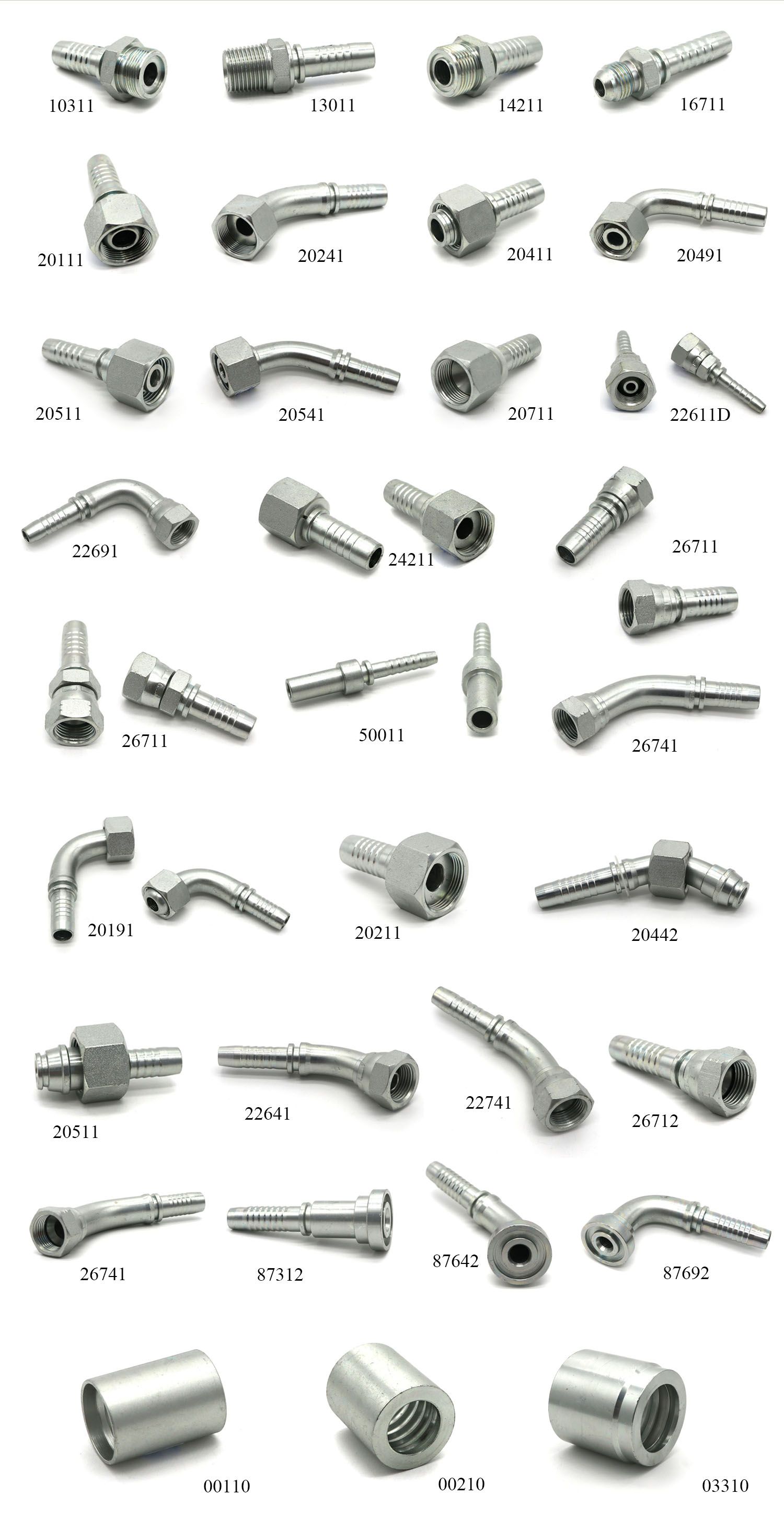

Hoses fittings, ferrules, adapters, stainless steel fittings Quick couplings, hose assembly, flexible metal hose series Hydraulic hoses, crimping machine. |
1. Swaged Metric Fittings Mertic Flat Seal Fittings Metric Multiseal Fittings Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings Metric 24°Cone O-RING Seal L..T Fittings Metric 24°Cone O-RING Seal H.T.Fittings Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fitting 2. Swaged British Fittings BSP O-RING Seal Fittings BSP Flat Seal Fittings BSP Multiseal Fittings BSP 60°Cone Seal Fittings BSPT Fittings JIS BSP 60°Cone Seal Fittings 3. Swaged American Fittings SAE O-RING Seal Fittings ORFS Flat Seal Fittings NPSM 60°Cone Seal Fittings JIC 74°Cone Seal Fittings NPT Fittings SAE Flange L.T. Fittiings SAE Flange H.T.Fittings 4. Staplelok Fittings Banjo Double connection Interlock Hose Fittings 5. Ferrule Ferrule for SAE100R1AT/ EN 853 1SN Hose Ferrule for SAE100R1A EN 853 1ST Hose Ferrule for SAE100R2AT/DIN20022 2SN Hose Ferrule for SAE100R2A/EN 853 2SN Hose Ferrule for SAE100R1AT-R2AT, EN853 1SN-2SN and EN 857 2SC Ferrule for 4SP, 4SH/10-16,R12-06-16 Hose Ferrule for 4SH, R12/32 Hose 6. Metric Adapters Metric Thread O-RING Face Seal Adapters Metric Thread Bite Type Tube Adapters JIS Metric Thread 60°Cone Adapters Metric Thread 74°Cone Flared Tube Adapters 7. British Adapters BSP Thread 60°Cone Adapters JIS BSP Thread 60°Cone Adapters BSPT Thread Adapters 8. American Adapters ORFS Adapters JIC 74°Cone Flared Tube Adapters NPT Thread Adapters |

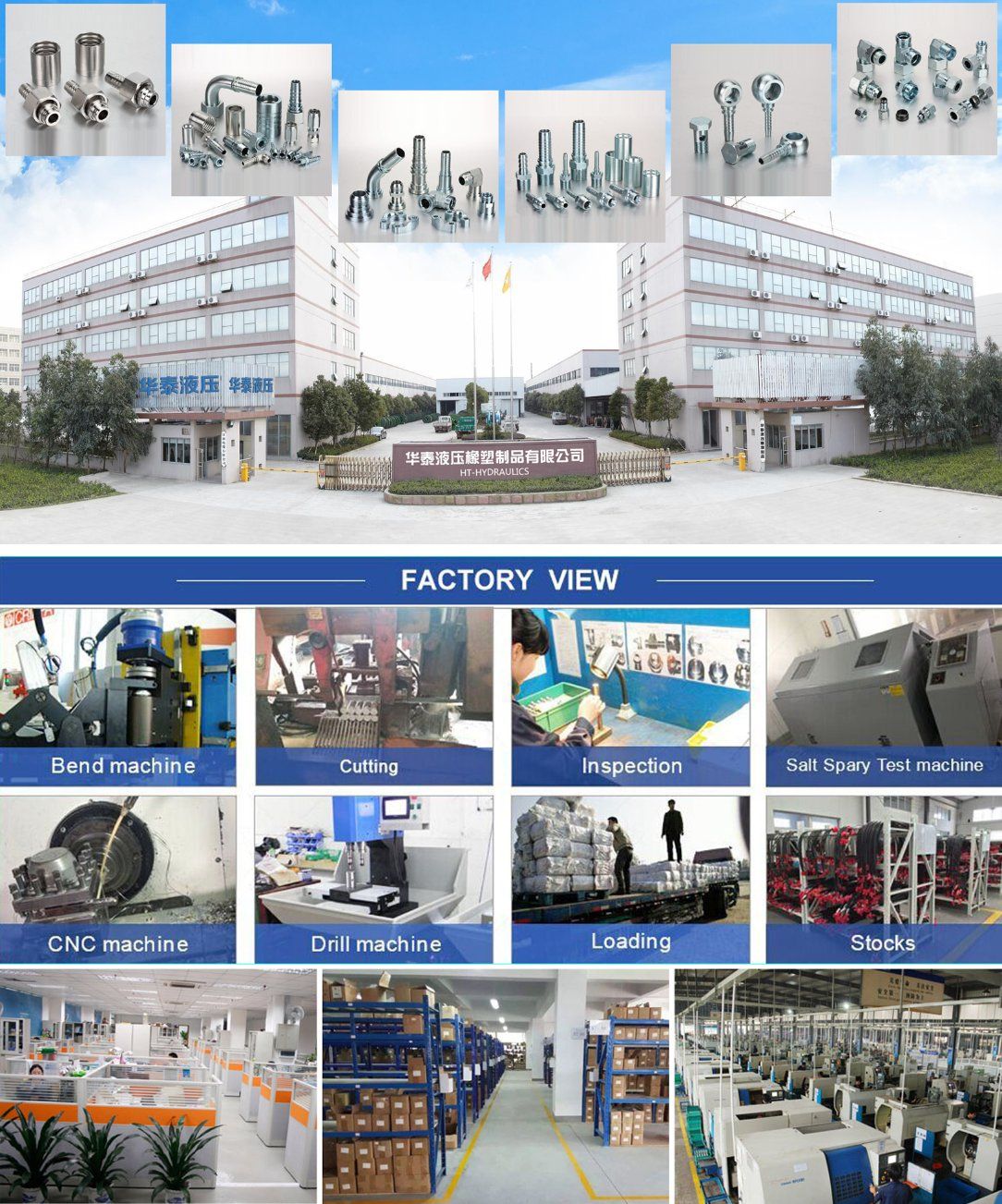

Jingxian Huatai Hydraulic Rubber Co., Ltd is located in Jingxian, Hebei Province which is well known as the hometown of hydraulic hose and tube. The company enjoys a superior geographical location, 300km far from the capital city Beijing and 1 hour by high speed rail train; 1000km far from Shanghai and 4 hours by high speed rail train. Moreover, the location is close to Tianjin and Qingdao sea ports and convenient for import and export. The company is hi-tech focused in R&D and integrated with manufacturing and sales, especially for advanced processing equipment and testing procedures, which are all for offering products with reliable quality. |
Volume: 0.022m³ for one carton Weight: according to your order quantity Packaging Details: The normal package is carton box(Size: L*W*H). The carton can hold 300 big sizes ferrules and 500 small sizes ferrules. Or we can pack it according to customers special request. |
Q: What about shipping? A: We ship small batches by air, or large orders by container. Q: Do you offer hydraulic fittings OEM service and can we customize product? A: Yes, We offer hydraulic hose and fittings OEM service. We always produce custom-made hydraulic hose fittings for our customers, according to drawings or samples. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample free of charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=3000USD, 100% in advance. B: Payment>=3000USD, 30% T/T in advance ,balance before shipment. |
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 10311-12-04 | M12X1.25 | 6 | 4 | 22.5 | 10 | 14 |
| 10311-14-04 | M14X1.5 | 6 | 4 | 23.5 | 11 | 17 |
| 10311-16-04 | M16X1.5 | 6 | 4 | 23.5 | 11 | 17 |
| 10311-16-05 | M16X1.5 | 8 | 5 | 23.5 | 11 | 17 |
| 10311-16-06 | M16X1.5 | 10 | 6 | 23.5 | 11 | 17 |
| 10311-18-06 | M18X1.5 | 10 | 6 | 23.5 | 11 | 19 |
| 10311-22-05 | M22X1.5 | 8 | 5 | 27 | 12 | 22 |
| 10311-22-06 | M22X1.5 | 10 | 6 | 26 | 12 | 22 |
| 10311-22-08 | M22X1.5 | 12 | 8 | 26.5 | 12 | 22 |
| 10311-27-10 | M27X1.5 | 16 | 10 | 31.5 | 13 | 27 |
| 10311-30-12 | M30X1.5 | 20 | 12 | 33.5 | 14 | 32 |
| 10311-36-12 | M36X2 | 20 | 12 | 35.5 | 16 | 38 |
| 10311-36-14 | M36X2 | 22 | 14 | 35.5 | 16 | 38 |
| 10311-39-16 | M39X2 | 25 | 16 | 39 | 16 | 41 |
| 10311-45-20 | M45X2 | 32 | 20 | 44.5 | 20 | 46 |
| 10311-52-24 | M52X2 | 40 | 24 | 47.5 | 22 | 55 |
| 10311-64-32 | M64X2 | 50 | 32 | 52.5 | 27 | 65 |
| Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10312-xx-xx; | ||||||
| PART NO. | TUBE O.D. | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 13011-02-03SP | R1/8×28 | 5 | 3 | 22 | 10 | 12 |
| 13011-02-04SP | R1/8×28 | 6 | 4 | 22.5 | 10 | 12 |
| 13011-04-04SP | R1/4×19 | 6 | 4 | 27 | 14.5 | 14 |
| 13011-04-05SP | R1/4×19 | 8 | 5 | 25 | 15.4 | 14 |
| 13011-04-06SP | R3/8×19 | 10 | 6 | 27 | 14.5 | 17 |
| 13011-06-04SP | R3/8×19 | 6 | 4 | 27.5 | 15 | 17 |
| 13011-06-05SP | R3/8×19 | 8 | 5 | 26.5 | 15 | 17 |
| 13011-06-06SP | R3/8×19 | 10 | 6 | 27.5 | 15 | 17 |
| 13011-06-08SP | R1/2×14 | 12 | 8 | 30 | 20 | 19 |
| 13011-08-06SP | R1/2×14 | 10 | 6 | 34.5 | 20 | 22 |
| 13011-08-08SP | R1/2×14 | 12 | 8 | 35 | 20 | 22 |
| 13011-08-10SP | R1/2×14 | 16 | 10 | 38 | 20 | 22 |
| 13011-08-12SP | R1/2×14 | 20 | 12 | 38 | 20 | 27 |
| 13011-12-08SP | R3/4×14 | 12 | 8 | 37 | 20 | 27 |
| 13011-12-10SP | R3/4×14 | 16 | 10 | 38 | 20 | 27 |
| 13011-12-12SP | R3/4×14 | 20 | 12 | 38.5 | 20 | 27 |
| 13011-12-16SP | R3/4×14 | 25 | 16 | 39.5 | 20 | 32 |
| 13011-16-12SP | R1×11 | 20 | 12 | 44 | 23.5 | 36 |
| 13011-16-16SP | R1×11 | 25 | 16 | 45 | 23.5 | 36 |
| 13011-20-20SP | R1.1/4×11 | 32 | 20 | 49.5 | 26.5 | 46 |
| 13011-24-24SP | R1.1/2×11 | 40 | 24 | 51.5 | 26.5 | 50 |
| 13011-32-24SP | R2×11 | 40 | 24 | 57 | 30 | 65 |
| 13011-32-32SP | R2×11 | 50 | 32 | 57 | 30 | 65 |
| Note:1.For use with braide hoses.2.if use with spiral hoses,hose fitting series number is 13012-xx-xx | ||||||
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||
| DN | DASH | C | S2 | ||
| P16011-04-04 | 7/16"x20 | 6 | 04 | 9.1 | 14 |
| -05-04 | 1/2"x20 | 6 | 04 | 9.1 | 17 |
| -06-05 | 9/16"x18 | 8 | 05 | 9.9 | 17 |
| -06-06 | 9/16"x18 | 10 | 06 | 9.9 | 17 |
| -08-06 | 3/4"x16 | 10 | 06 | 11.1 | 22 |
| -08-08 | 3/4"x16 | 12 | 08 | 11.1 | 22 |
| -10-08 | 7/8"x14 | 12 | 08 | 12.7 | 27 |
| -10-10 | 7/8"x14 | 16 | 10 | 12.7 | 27 |
| -12-10 | 1.1/16"x12 | 16 | 10 | 15.1 | 32 |
| -12-12 | 1.1/16"x12 | 20 | 12 | 15.1 | 32 |
| -16-16 | 1.5/16"x12 | 25 | 16 | 15.1 | 38 |
| Part No. | Thread E | Hose Bore | Dimensions | |||
| DN | DASH | A | C | S1 | ||
| 15611-02-03 | Z1/8"X27 | 5 | 03 | 21.5 | 10.5 | 12 |
| 15611-02-04 | Z1/8"X27 | 6 | 04 | 22.5 | 10.5 | 12 |
| 15611-04-03 | Z1/4"x18 | 5 | 03 | 27 | 15 | 17 |
| 15611-04-04 | Z1/4"x18 | 6 | 04 | 28 | 15 | 17 |
| 15611-04-05 | Z1/4"x18 | 8 | 05 | 28 | 15 | 17 |
| 15611-04-06 | Z1/4"x18 | 10 | 06 | 28 | 15 | 19 |
| 15611-06-04 | Z3/8"x18 | 6 | 04 | 28 | 16 | 19 |
| 15611-06-05 | Z3/8"x18 | 8 | 05 | 29 | 16 | 19 |
| 15611-06-06 | Z3/8"x18 | 10 | 06 | 29 | 16 | 19 |
| 15611-06-08 | Z3/8"x18 | 12 | 08 | 30.5 | 16 | 22 |
| 15611-08-06 | Z1/2"x14 | 10 | 06 | 34 | 19.5 | 22 |
| 15611-08-08 | Z1/2"x14 | 12 | 08 | 35.5 | 19.5 | 22 |
| 15611-08-10 | Z1/2"x14 | 16 | 10 | 37.5 | 19.5 | 27 |
| 15611-12-08 | Z3/4"x14 | 12 | 08 | 37.5 | 19.5 | 27 |
| 15611-12-10 | Z3/4"x14 | 16 | 10 | 38.5 | 19.5 | 27 |
| 15611-12-12 | Z3/4"x14 | 20 | 12 | 39.5 | 19.5 | 32 |
| 15611-16-10 | Z1"x11.5 | 16 | 10 | 45 | 19.5 | 36 |
| 15611-16-12 | Z1"x11.5 | 20 | 12 | 45 | 25.5 | 36 |
| 15611-16-16 | Z1"x11.5 | 25 | 16 | 46.5 | 25.5 | 36 |
| 15611-20-16 | Z1.1/4"x11.5 | 25 | 16 | 49 | 25.5 | 46 |
| 15611-24-20T | Z1.1/2"x11.5 | 32 | 20 | 50.5 | 26.5 | 46 |
| 15611-24-24 | Z1.1/2"x11.5 | 40 | 24 | 51 | 27.5 | 50 |
| 15611-32-32 | Z2"x11.5 | 50 | 32 | 55 | 27.5 | 65 |
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 16711-04-03 | 7/16"X20 | 5 | 3 | 26 | 14 | 12 |
| 16711-04-04 | 7/16"X20 | 6 | 4 | 26.5 | 14 | 12 |
| 16711-05-04 | 1/2"X20 | 6 | 4 | 26.5 | 14 | 14 |
| 16711-05-05 | 1/2"X20 | 8 | 5 | 26.5 | 14 | 14 |
| 16711-05-06 | 1/2"X20 | 10 | 6 | 26.5 | 14 | 17 |
| 16711-06-04 | 9/16"X18 | 6 | 4 | 26.5 | 14.1 | 17 |
| 16711-06-05 | 9/16"X18 | 8 | 5 | 26.5 | 14.1 | 17 |
| 16711-06-06 | 9/16"X18 | 10 | 6 | 26.5 | 14.1 | 17 |
| 16711-08-06 | 3/4"X16 | 10 | 6 | 31.5 | 16.7 | 22 |
| 16711-08-08 | 3/4"X16 | 12 | 8 | 32 | 16.7 | 22 |
| 16711-10-06 | 7/8"X14 | 10 | 6 | 32 | 19.3 | 24 |
| 16711-10-08 | 7/8"X14 | 12 | 8 | 34.3 | 19.3 | 24 |
| 16711-10-10 | 7/8"X14 | 16 | 10 | 35.5 | 19.3 | 24 |
| 16711-12-08 | 1.1/16"X12 | 12 | 8 | 39 | 21.9 | 27 |
| 16711-12-10 | 1.1/16"X12 | 16 | 10 | 40 | 21.9 | 27 |
| 16711-12-12 | 1.1/16"X12 | 20 | 12 | 40 | 21.9 | 27 |
| 16711-12-16 | 1.1/16"X12 | 25 | 16 | 41 | 21.9 | 30 |
| 16711-14-10 | 1.3/16"X12 | 16 | 10 | 41.5 | 22.6 | 32 |
| 16711-14-12 | 1.3/16"X12 | 20 | 12 | 40.6 | 22.6 | 32 |
| 16711-16-12 | 1.5/16"X12 | 20 | 12 | 42.5 | 23.1 | 36 |
| 16711-16-16 | 1.5/16"X12 | 25 | 16 | 43.5 | 23.1 | 36 |
| 16711-20-16 | 1.5/8"X12 | 25 | 16 | 46.5 | 24.3 | 46 |
| 16711-20-20 | 1.5/8"X12 | 32 | 20 | 47.5 | 24.3 | 46 |
| 16711-24-20 | 1.7/8"X12 | 32 | 20 | 53 | 27.5 | 50 |
| 16711-24-24 | 1.7/8"X12 | 40 | 24 | 53 | 27.5 | 50 |
| 16711-32-32 | 2.1/2"X12 | 50 | 32 | 62 | 33.9 | 65 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 16712-XX-XX. | ||||||
26711-08-06 | 3/4"X16 | 10 | 6 | 17.5 | 11 | 24 |
| 26711-08-08 | 3/4"X16 | 12 | 8 | 18 | 11 | 24 |
| 26711-08-10 | 3/4"X16 | 16 | 10 | 19.5 | 11 | 24 |
| 26711-10-08 | 7/8"X14 | 12 | 8 | 18.5 | 13 | 27 |
| 26711-10-10 | 7/8"X14 | 16 | 10 | 20 | 13 | 27 |
| 26711-10-12 | 7/8"X14 | 20 | 12 | 20 | 13 | 27 |
| 26711-12-08T | 1.1/16"X12 | 12 | 8 | 19 | 15 | 32 |
| 26711-12-10 | 1.1/16"X12 | 16 | 10 | 21.5 | 15 | 32 |
| 26711-12-12 | 1.1/16"X12 | 20 | 12 | 21.5 | 15 | 32 |
| 26711-12-16 | 1.1/16"X12 | 25 | 16 | 23 | 15 | 32 |
| 26711-14-12 | 1.3/16"X12 | 20 | 12 | 21.5 | 15 | 36 |
| 26711-16-12T | 1.5/16"X12 | 20 | 12 | 18.5 | 16 | 41 |
| 26711-16-16 | 1.5/16"X12 | 25 | 16 | 23 | 16 | 41 |
| 26711-16-20 | 1.5/16"X12 | 32 | 20 | 24 | 16 | 41 |
| 26711-20-16T | 1.5/8"X12 | 25 | 16 | 23 | 17 | 50 |
| 26711-20-20W | 1.5/8"X12 | 32 | 20 | 26 | 17 | 50 |
| 26711-24-20W | 1.7/8"X12 | 32 | 20 | 26.5 | 20 | 55 |
| 26711-24-24W | 1.7/8"X12 | 40 | 24 | 26.5 | 20 | 55 |
| 26711-32-24T | 2.1/2"X2 | 40 | 24 | 27 | 23.5 | 75 |
| 26711-32-32T | 2.1/2"X2 | 50 | 32 | 27 | 23.5 | 75 |
| JIC Thread Female 45 Dreege Hydraulic Pipe Fittings | |||||||
| E | HOSE BORE | DIMENSIONS | |||||
| PART NO. | THREAD E | DN | DASH | A | C | H | S2 |
| 26741-04-03 | 7/16"X20 | 5 | 3 | 37.6 | 9 | 17.2 | 15 |
| 26741-04-04 | 7/16"X20 | 6 | 4 | 40.2 | 9 | 18.1 | 15 |
| 26741-05-04 | 1/2"X20 | 6 | 4 | 40.5 | 9.5 | 18.5 | 17 |
| 26741-05-05 | 1/2"X20 | 8 | 5 | 42.7 | 9.5 | 19.3 | 17 |
| 26741-05-06 | 1/2"X20 | 10 | 6 | 44.6 | 9.5 | 20.3 | 17 |
| 26741-06-04 | 9/16"X18 | 6 | 4 | 40.5 | 10.5 | 18.5 | 19 |
| 26741-06-05 | 9/16"X18 | 8 | 5 | 42.7 | 10.5 | 19.3 | 19 |
| 26741-06-06 | 9/16"X18 | 10 | 6 | 44.3 | 10.5 | 20 | 19 |
| 26741-06-08 | 9/16"X18 | 12 | 8 | 56.8 | 10.5 | 21.9 | 19 |
| 26741-08-06 | 3/4"X16 | 10 | 6 | 45.7 | 11 | 21.4 | 24 |
| 26741-08-08 | 3/4"X16 | 12 | 8 | 58.6 | 11 | 23.5 | 24 |
| 26741-10-08 | 7/8"X14 | 12 | 8 | 58.9 | 13 | 24 | 27 |
| 26741-10-10 | 7/8"X14 | 16 | 10 | 70.1 | 13 | 25.3 | 27 |
| 26741-10-12 | 7/8"X14 | 20 | 12 | 77 | 13 | 28.9 | 27 |
| 26741-12-08 | 1.1/16"X12 | 12 | 8 | 60 | 15 | 25 | 32 |
| 26741-12-10 | 1.1/16"X12 | 16 | 10 | 71.2 | 15 | 26.4 | 32 |
| 26741-12-12 | 1.1/16"X12 | 20 | 12 | 77.4 | 15 | 30 | 32 |
| 26741-12-16 | 1.1/16"X12 | 25 | 16 | 85.3 | 15 | 31 | 32 |
| 26741-14-12 | 1.3/16"X12 | 20 | 12 | 77.4 | 15 | 30 | 36 |
| 26741-16-12 | 1.5/16"X12 | 20 | 12 | 77.4 | 16 | 30 | 41 |
| Part No. | Thread E | Hose Bore | Dimensions | ||||
| DN | DASH | A | C | H | S2 | ||
| 26791-04-03 | 7/16"x20 | 5 | 03 | 26.5 | 9 | 30.5 | 15 |
| 26791-04-04 | 7/16"x20 | 6 | 04 | 30 | 9 | 33.5 | 15 |
| 26791-05-04 | 1/2"x20 | 6 | 04 | 30 | 9.5 | 34 | 17 |
| 26791-05-05 | 1/2"x20 | 8 | 05 | 33 | 9.5 | 37 | 17 |
| 26791-05-06 | 1/2"x20 | 10 | 06 | 35.3 | 9.5 | 39.3 | 17 |
| 26791-06-04 | 9/16"x18 | 6 | 04 | 30 | 10.5 | 34 | 19 |
| 26791-06-05 | 9/16"x18 | 8 | 05 | 33 | 10.5 | 37 | 19 |
| 26791-06-06 | 9/16"x18 | 10 | 06 | 35.3 | 10.5 | 39.3 | 19 |
| 26791-06-08 | 9/16"x18 | 12 | 08 | 35.8 | 10.5 | 39.8 | 19 |
| 26791-08-06 | 3/4"x16 | 10 | 06 | 35.3 | 11 | 41.3 | 24 |
| 26791-08-08 | 3/4"x16 | 12 | 08 | 41 | 11 | 47.5 | 24 |
| 26791-08-10 | 3/4"x16 | 16 | 10 | 49 | 11 | 47.5 | 24 |
| 26791-10-08 | 7/8"x14 | 12 | 08 | 41 | 13 | 48 | 27 |
| 26791-10-10 | 7/8"x14 | 16 | 10 | 56 | 13 | 52.5 | 27 |
| 26791-10-12 | 7/8"x14 | 20 | 12 | 64.9 | 13 | 62 | 27 |
| 26791-12-08 | 1.1/16"x12 | 12 | 08 | 41 | 15 | 49.5 | 32 |
| 26791-12-10 | 1.1/16"x12 | 16 | 10 | 56 | 15 | 54 | 32 |
| 26791-12-12 | 1.1/16"x12 | 20 | 12 | 65.5 | 15 | 63.5 | 32 |
| 26791-12-16 | 1.1/16"x12 | 25 | 16 | 74 | 15 | 63.5 | 32 |
| 26791-14-12 | 1.3/16"x12 | 20 | 12 | 65.5 | 15 | 63.5 | 36 |
| 26791-16-12 | 1.5/16"x12 | 20 | 12 | 65.5 | 16 | 63.5 | 41 |
| 26791-16-16 | 1.5/16"x12 | 25 | 16 | 76.7 | 16 | 70 | 41 |
| 26791-20-20W | 1.5/8"x12 | 32 | 20 | 91.5 | 17 | 80.5 | 50 |
| 26791-24-20W | 1.7/8"x12 | 32 | 20 | 91.5 | 20 | 80.5 | 55 |
| 26791-24-24W | 1.7/8"x12 | 40 | 24 | 109.4 | 20 | 94 | 55 |
| 26791-32-32W | 2.1/2"x12 | 50 | 32 | 133.1 | 23.5 | 121.8 | 75 |
| PART NO. | HOSE BORE | DIMENSIONS | |||||
| THREAD E | DN | DASH | A | C | S1 | S2 | |
| 26711D-04-04 | 7/16"X20 | 6 | 4 | 20 | 9 | 15 | 15 |
| 26711D-05-04 | 1/2"X20 | 6 | 4 | 20.5 | 9.5 | 17 | 17 |
| 26711D-06-04 | 9/16"X18 | 6 | 4 | 21 | 10.5 | 19 | 19 |
| 26711D-06-06 | 9/16"X18 | 10 | 6 | 21 | 10.5 | 19 | 19 |
| 26711D-08-06 | 3/4"X16 | 10 | 6 | 25 | 11 | 24 | 24 |
| 26711D-08-08 | 3/4"X16 | 12 | 8 | 24.5 | 11 | 24 | 24 |
| 26711D-08-10 | 3/4"X16 | 16 | 10 | 25.5 | 11 | 24 | 24 |
| 26711D-10-08 | 7/8"X14 | 12 | 8 | 28 | 13 | 27 | 27 |
| 26711D-10-10 | 7/8"X14 | 16 | 10 | 29 | 13 | 27 | 27 |
| 26711D-12-12 | 1.1/16"X12 | 20 | 12 | 31.5 | 15 | 32 | 32 |
| 26711D-16-12 | 1.5/16"X12 | 20 | 12 | 33.5 | 16 | 41 | 41 |
| 26711D-16-16 | 1.5/16"X12 | 25 | 16 | 34.5 | 16 | 41 | 41 |
| 26711D-16-20 | 1.5/16"X12 | 32 | 20 | 36.5 | 16 | 41 | 41 |
| 26711D-20-20 | 1.7/16"X12 | 32 | 20 | 39 | 17 | 50 | 50 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 26712D-XX-XX. | |||||||
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | S2 | ||
| 26711D-04-04SM | 7/16"X20 | 6 | 4 | 20 | 9 | 12 | 15 |
| 26711D-05-04SM | 1/2"X20 | 6 | 4 | 20.5 | 9.5 | 12 | 17 |
| 26711D-06-04SM | 9/16"X18 | 6 | 4 | 21 | 10.5 | 14 | 19 |
| 26711D-06-06SM | 9/16"X18 | 10 | 6 | 21 | 10.5 | 17 | 19 |
| 26711D-08-06SM | 3/4"X16 | 10 | 6 | 23 | 11 | 19 | 24 |
| 26711D-08-08SM | 3/4"X16 | 12 | 8 | 24.5 | 11 | 22 | 24 |
| 26711D-08-10SM | 3/4"X16 | 16 | 10 | 25.5 | 11 | 22 | 24 |
| 26711D-10-08SM | 7/8"X14 | 12 | 8 | 24 | 13 | 22 | 27 |
| 26711D-10-10SM | 7/8"X14 | 16 | 10 | 27 | 13 | 22 | 27 |
| 26711D-12-12SM | 1.1/16"X12 | 20 | 12 | 31.5 | 15 | 27 | 32 |
| 26711D-16-12SM | 1.5/16"X12 | 20 | 12 | 31.5 | 16 | 32 | 41 |
| 26711D-16-16SM | 1.5/16"X12 | 25 | 16 | 32.5 | 16 | 32 | 41 |
| 26711D-20-20SM | 1.7/16"X12 | 32 | 20 | 37 | 17 | 41 | 50 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 26712D-XX-XXSM. | |||||||
