| Prod Model: |
HXSAW125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
105mm, 115mm, 125mm, 175mm |
| Customized: |
Yes |
| Usage: |
Stone Cutting, Engineering Material, Optical Gla |
| Manufacturing Arts: |
Sinter |
| Kind: |
Handheld Saw |
| Saw Blade External Diameter: |
350mm |
Product Description
Specifications
Diamond tools:
1.30% faster Sharpness
2.30%-40% higher Cutting Life
3.Noise reduction by 30%
4.Save 20% Power Absorption

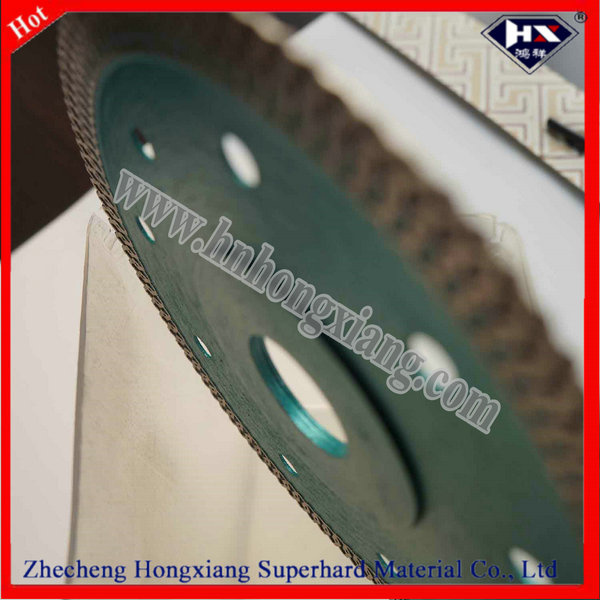

HOT PRESSED SUPER THIN TURBO BLADES
| Item No. | Diameter
(inch/mm) | Segment Thickness
(mm) | Segment Height
(mm) | Arbor
(mm) |
| TTB-115 | 4.5" / 115 | 1.2 | 8 | 22.2 |
| TTB-125 | 5" / 125 | 8 |
| Other specifications are available upon request. Please specify wet or dry use. |
Features:
Super thin turbo rim and soft band are especially designed for fast and smooth cutting.
Applications:
All kinds of ceramic tiles and porcelain.
Machinery:
Angle hand grinder, circular saw.
Diamond saw blade for marble and granite
Diamond saw blade are designed for masonry, ceramic tiles, brick, marble wall, stone and other building material.
Advange
----fast cutting speed, high cutting efficiency
---best diamond grits choose
---mature production technology, low cost
---different grade, type, color choose, offer customized service
---Sale 20 years to many foreign countries
Diameter: 105mm--1600mm
Type: Continuous, segment, turbo, turbo segment etc
Usage:
Please read carefully of the instructions and other items on the packing items before use the diamond saw blade and the electric equipment.
1. The selection of diamond saw blade is based on the variety usage. Please check whether the blade is in good conditio n, if not, do not use it.
2. Please ensure that the installation of electrical equipment associated with the protective shield, and wearing protective goggles, masks and safety boots.
3. Please make sure the Electric tool spindle cannot tremble, the space between shield and blade are not too large. Use the gasket and nut to fix Saw blade while install it.
4. Electric Tool idling speed should be less than the maximum speed of Saw blade (or on packing box). Wet Cutting Blade must add enough water or cooling liquid. Be sure Electric tools may wet use, and prevent creepage...The installation of Saw Blade should be in accordance with the rotation direction.
5. Prohibit curve cutting, broken line cutting, incline cutting, digging and the gouging etc. Cutting Blade not used for grinding.
6. If it appears sharpness drop in the process of use, please use the refractory brick to re-bladed it. | Size |
| Diameter(mm) | Hole
(mm) | Thickness
(mm) | Hight Segment
(mm) |
| 105 | 20 | 2 | 7 |
| 110 | 20 | 2 | 7 |
| 115 | 20 | 2.2 | 7 |
| 125 | 20 | 2.2 | 7 |
| 150 | 20 | 2.4 | 7 |
| 180 | 22.23 | 2.4 | 7 |
| 200 | 22.23 | 2.4 | 7 |
| 230 | 22.23 | 2.6 | 7 |
| 250 | 25.4 | 2.6 | 10 |
| 300 | 25.4 | 3 | 10 |
| 350 | 25.4 | 3.2 | 10 |
| 400 | 25.4 | 3.4 | 10 |
| 500 | 50 | 3.6 | 12 |
| 600 | 50 | 4.2 | 12 |
| 700 | 50 | 4.2 | 12 |
| 800 | 50 | 4.8 | 12 |
| 1000 | 100 | 6.4 | 12 |
| 1200 | 100 | 6.4 | 12 |
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
