Physiological Functions of Diagnosis and Monitoring Equipment
Type:
Digital EEG/ECG/EKG/EMG/VCG
Certification:
ISO13485
Group:
Adult
Product Description

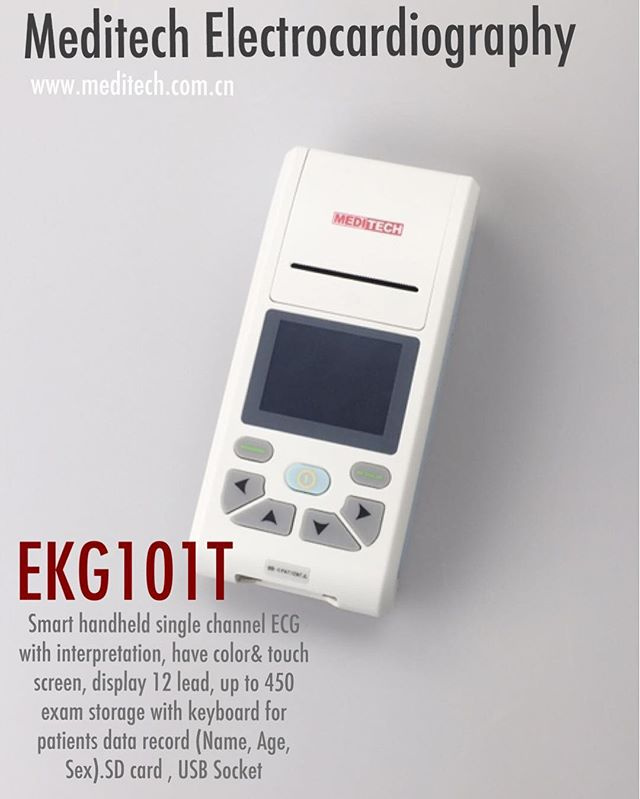

EKG101T Smart handheld single channel ECG with interpretation, Color&Touch screen, Digital isolation technology and signal processing solution, digital filter, Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard. Storage more than 450 exam, Built-in lithium rechargeable battery, Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket Comes with PC Software and USB Connector

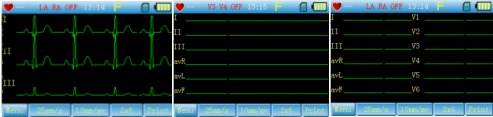

PRODUCT FEATURES High resolution thermal-array output system (8 dots/mm) 150Hz. Large Screen shows 12/6/3/1 Lead(s) and remark real-time and continuously. ECG101T Display Keyboard The remark includes: lead sign sensitivity paper speed filter state etc. Touch TFT screen shows the working status Safety Class: Class I Type CF applied part with defibrillation protection. AC and DC. Power Supply and built-in lithium polymer rechargeable battery Record 450 pieces of ECG and review the stored cases and patient information anytime. Print & store different time length of case to convenient for doctor's case review and statistics. Selectable print mode print length gain paper speed and report print selection. And for 4 hours continually under the best DC state. Exterior SD card convenient for use. With SD card the device can store 100 case most. USB2.0 port working mode can be selected freely between store and synchronization. Digital signal processing to obtain the ECG of higher quality by AC DFT and EMG filter. Auto-measurement interpretation and auto-diagnosis of regular ECG parameter Small in Size 1.20 Size: 207mm (L) ×96mm (W) ×62mm (H) and light in weight 0.6 kg
PRODUCT SPECIFICATIONS Lead: Standard 12 leads Patient leak current: <10μA Input impedance: ≥5MΩ Frequency response: 1Hz~75Hz Time constant: Time constant>3.2s CMRR: >60dB EMG interference filter: 25/35Hz(-3dB) Recording way: Thermal array printing system Specification of recording paper: 80mm(W)×20m(L) high-speed thermal paper Paper speed:
Sensitivity selections: 2.55102040mm/mV 5 options error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV . Auto record: Record setup according to record format and auto mode automatically changing leads measuring and analysing. Manual record: Record setup according to record format manually changing leads. Measurement parameters: HR P-R interval P Duration QRS Duration T Duration Q-T interval Q-Tc P Axis QRS Axis T Axis R(V5) S(V1) R(V5)+S(V1) Product safety type: Class I Type CF defibrillation proof applied part. Enduring polarization voltage: ±300mV Noise level: ≤15μVp-p Fuse specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power supply 220V) Operation a) Environment temperature: +5ºC~+35ºC b) Relative humidity: ≤80% c) Power supply: AC:100~240V50/60Hz DC:7.4V 3700 mAh rechargeable lithium battery d) Atmospheric pressure: 86kPa~106kPa Transportation and Storage a) Environment temperature: -10ºC~55ºC b) Relative humidity: ≤95% c) Atmospheric pressure: 50kPa~106kPa Input way: Floating and defibrillation protection
Size: 207mm(L)×96mm(W)×62mm(H) Net Weight: 0.6Kg
RELATED ACCESSORIES Standard: Chest Electrode ......... 6Pcs Clamp Electrode ........... 4Pcs EKG Cable ................. 1Pcs USB Cable ..................... 1Pcs Ground Wire .................. 1Pcs Paper Role ...................... 1Pcs Power cable .................... 1Pcs Cleaning Cloth ................ 1Pcs
Meditech was founded in 1998, is a group dedicated to provide state-of-the-art Medical Equipments with top-ranking quality and outstanding reputation. As one of the leading medical equipment manufactures, we are involved in R&D, manufacturing and marketing. And as a global enterprise, our products are selling in more than 70 countries worldwide.
We produce a wide range of medical products used in hospitals and clinics, such as ECG machine, Defibrillator, Multiparameter Patient Monitor, Ultrasound scanner, Pulse Oximeter, Fetal Doppler and monitor, Visual stethoscope.
All of our products have been approved by ISO13485 and have passed CE Certificates. We stick to delivering our high quality product and best service to our global base of customers.
