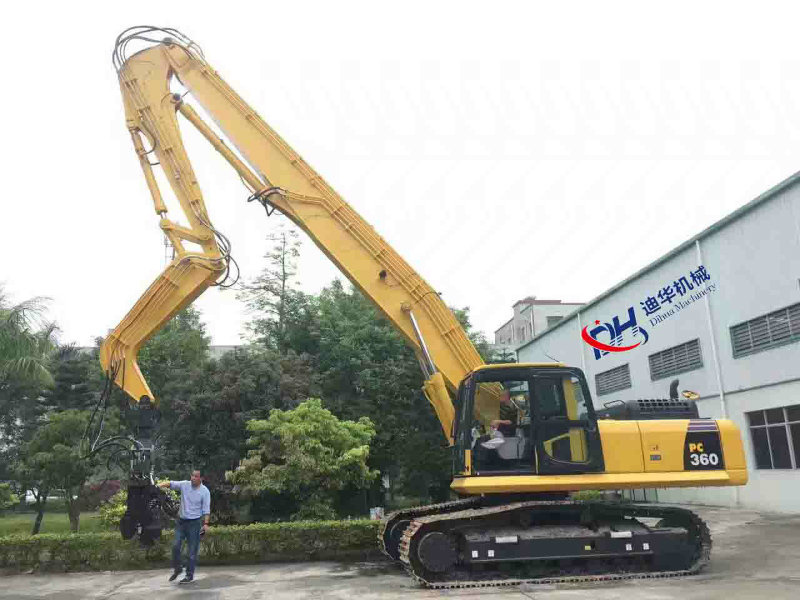

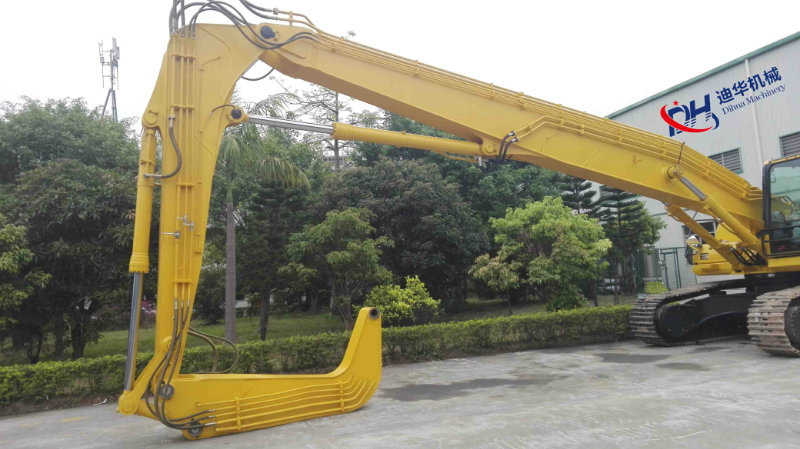

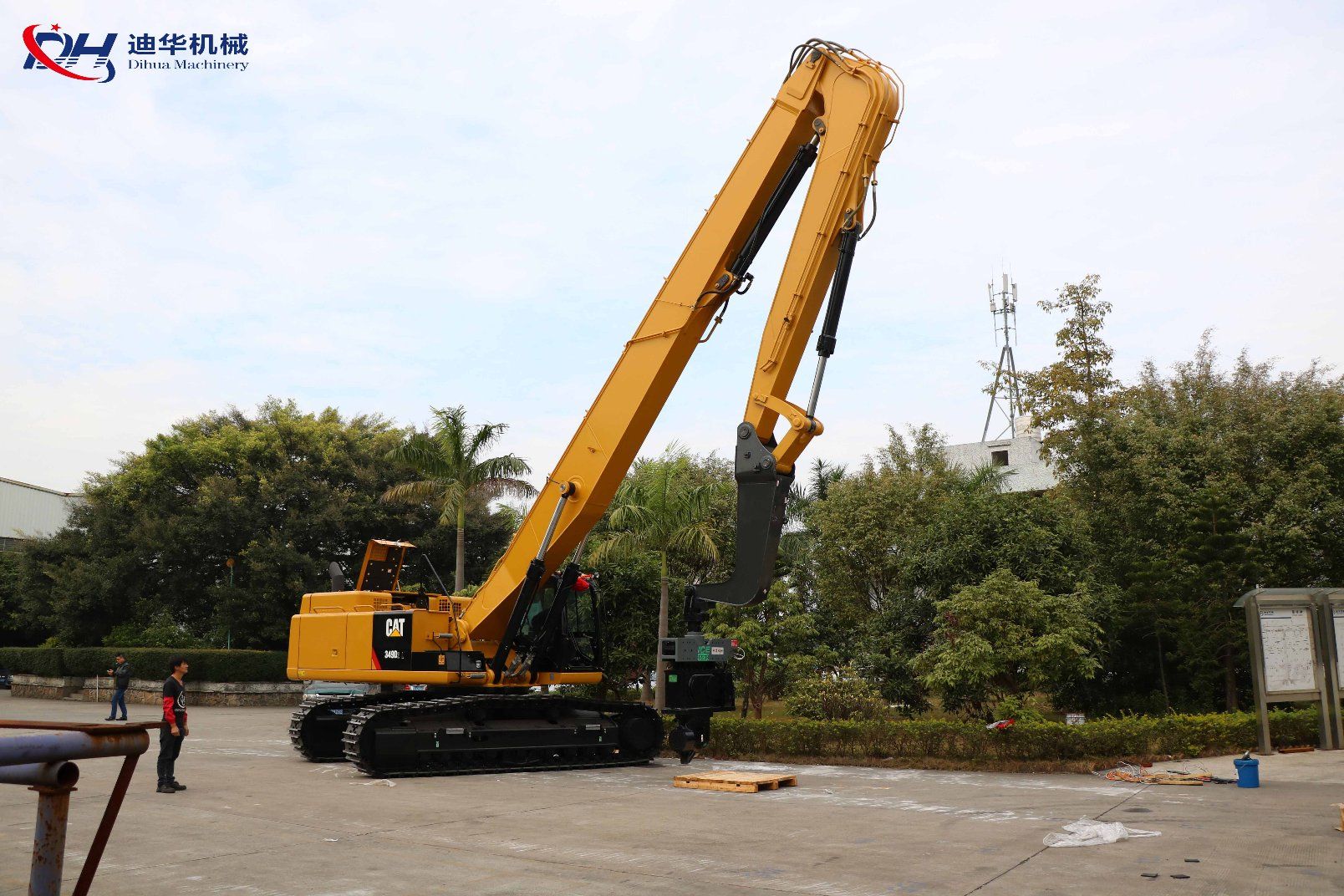

1. The high reach pipe hammer boom can drive pipe for 11-15m steel pipe,the long boom designed straight in order to lift higher ,so it can drive longer steel pipe.
2. Our company established on years 2006, we have over 10 years experience in designing and customize the long reach boom for all brand excavators.
3. Applicable for all the excavator model,OEM service is also available.
4. Advanced manufacturing process, Technique is in the line with global standards.
5. We have all the installation dimensions of most excavator, we can customize this long reach boom for your excavator.
6. The main material of this long boom is Q345B + Q690D, the top and bottom cover plate use Q690D, other place use Q345B. Weldox also optional to suit to your application. Pin's material is 42CrMo4.

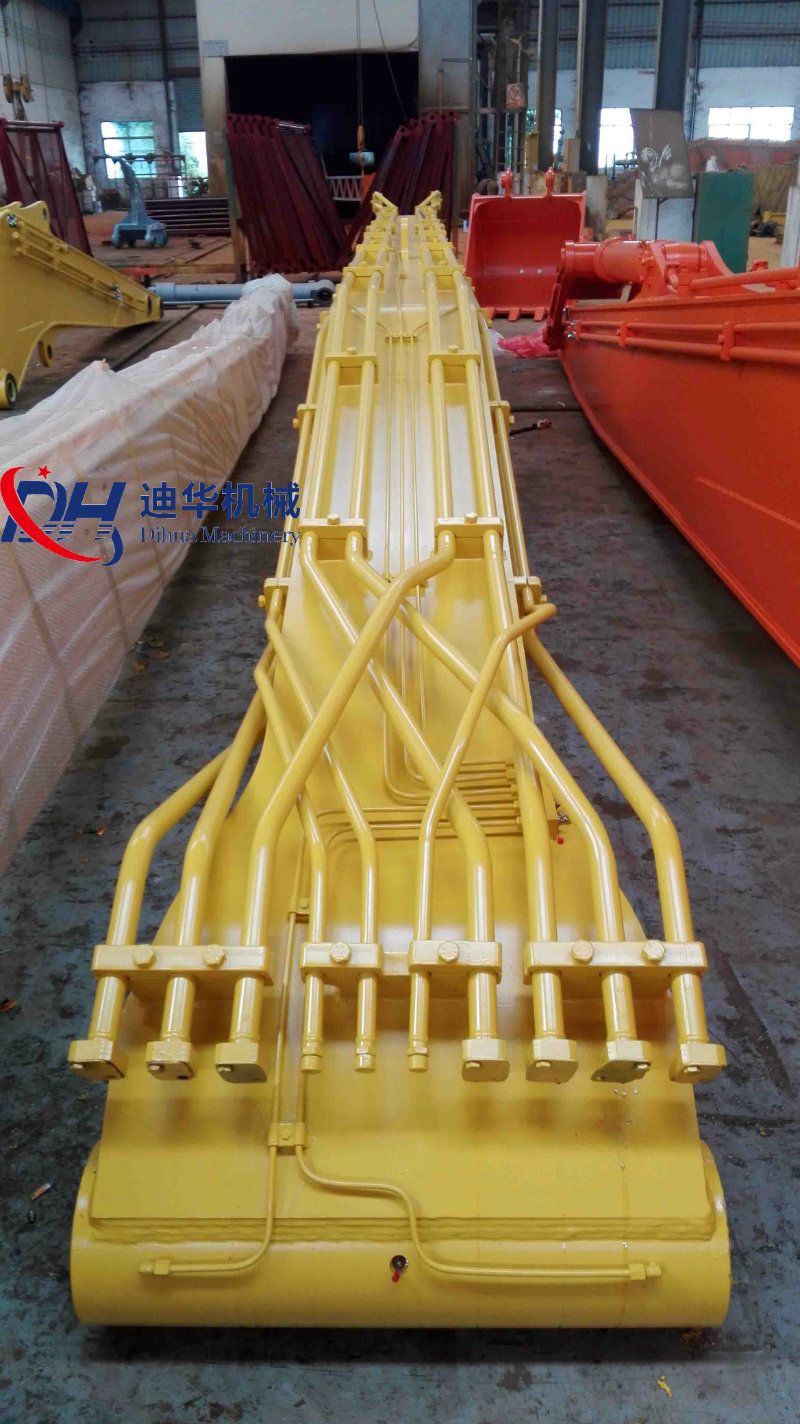

7. The long reach boom include lubricant pipe system, hydraulic system, 1 bucket, 1 bucket cylinder, 1 linkage, 6 pins and 4 hoses.

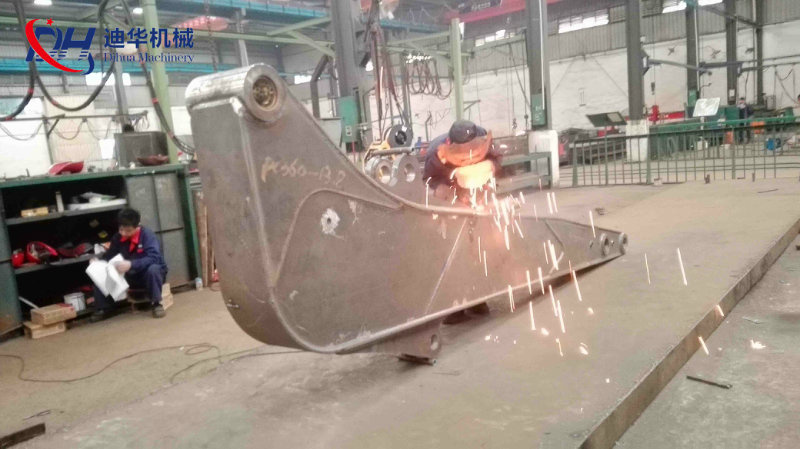

8. Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance. Also the inside have strength plate make it more stronger.
9. If necessary, extra pipeline can be added to suit to some extra application.
10. Stick cylinder of the long boom, can use your original stick cylinder to save the cost, if you need the stick cylinder, we also can prepare for you.
11. Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.
12. Welding is protective-gas welding, the protective gas is 80% Argon and 20% CO2 mixed. This is golden standard for protective gas.
13. Before welding, we have use big edge milling machine mill the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
14. For all base,joint and other main structure of the long boom, we use boring machine adjust the precision after welding, to avoid the welding-stress leading to big tolerance.
15. The manufacture time about 25 days. Warranty time 6 month after installation.
16. We will also supply parts list for the long reach boom, so it's easy for Maintenance and after-sales service.
Brand and Model show
BRAND
MODEL
KOBELCO
SK60
SK100
SK120
SK200
SK230
SK300
SK350
SK400
KOMATSU
PC120
PC200
PC220
PC300
PC350
PC400
PC450
PC1250
KATO
HD250
HD400
HD450
HD700
HD820
HD1230
HD1430
HD1880
SUMITOMO
SH60
SH100
SH120
SH220
LS280
SH300
SH350
SH450
HITACHI
EX60
EX100
EX200
EX220
EX230
EX300
EX350
EX400
CATERPILLAR
CAT312
CAT320
CAT325
CAT330
CAT336
CAT349
CAT450
CAT6018
CASE
CX75
CX130B
CX210B
CX240B
CX360B
CX470B
CX800B
DAEWOO
DH200
DH220
DH300
DH330
DH340
DH420
DH470
HYUNDAI
R60
R130
R150
R200
R220
R300
R350
R400
VOLVO
EC210B
EC240B
EC290B
EC360B
EC460B
EC700B
R317
R906
R924
R954C
R974C
R9350
R996
R9800
Our company have been engaged in excavator spare part for more 15 year, original we are Dongguan Jianhua construction machieny Co., Ltd. Because corporate reorganization we renamed it Dongguan Di Hua Engineer Manufacturing Co., Ltd. It isas like before located at the Dalingshan Town, Dongguan City, which is the famous city of manufacturing in Pearl River Delta. It is adjacent to Shenzhen and Guangzhou, next to the 107 national road, Guangdong-shenzhen highway, Dongguan-Shenzhen highway and Changpin -Humen highway, with convenient transportation and elegant environment.
The company is specializing in the self research and development, producing excavator attachments such as long reach boom, high reach demolition, rock arm, standard boom, ripper, bucket, grapple, hydraulic orange peel grab and environmental protection equipment such as metal trash can, Hook arm type dumpster, light box type dumpster, which is an enterprise to face the market at home and abroad, possessing the bright prospect and strong comprehensive strength.
"A workman must first sharpen his tools if he is to do his work well. " From design, production to inspection, the company duly imports advanced Computer Aided Design (CAD) System, equipped with CNC plasma cutting machine, flame cutting robot, automatic welding Machine, welding positioner, bending machine, rolling machine, edge milling machine, large honing machine, digital control lathe, large floor type boring machine, pickling phosphating pool, sand-blast and spray equipment, high pressure simulation test platform, hydraulic test platform, ultrasonic fault detector to ensure the production capacity and quality.
Over the years, Dihua company consistently adheres to business concept "Beyond more than the pursuit of unlimited, public services, social returns", good faith-based, quality-oriented. It sticks to the innovation and excellence to promote the exquisite article strategy, build characteristic brand, pay more attention to the design of individual products, and continuously innovate the technology, thus to greatly satisfy the demand for improving the customer value. Build DiHua excavator attachments professional manufacturing brand.
