Zsound 15 Inch Rubber Edge Woofer KTV Speaker

Zsound 15 Inch Rubber Edge Woofer KTV Speaker
Price: US $ 500-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

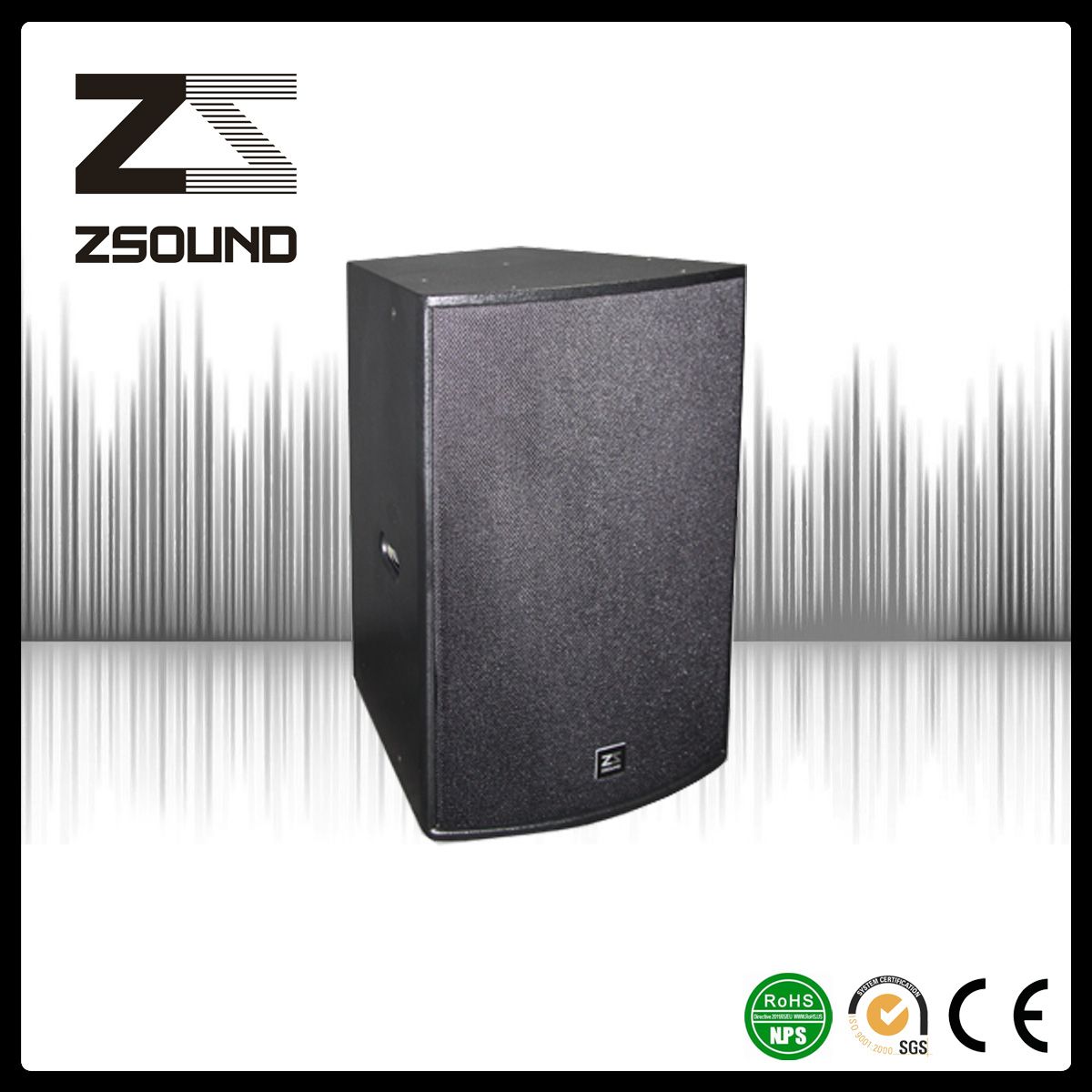

ZSound U15 500w Full way KTV Singing Audio Loudspeaker



ZSound U15 Speaker is a medium scale two-way passive system, utilizing the latest Phase control technology,the enclosure features a 15" LF driver and a 1.75"(44mm voice coil) HF compression driver mounted on a constant directivity horn, with the Phase correction technology to eliminate distortion between LF units and keep smooth frequency and Phase response.


Features:

Elastic bass;
Long throw rubber edge LF driver;
Rotatable 80x50 degree directivity horn




Specification:



TECHNICAL SPECIFICATION
Frequency Response:50Hz-18KHz(±3dB) 30Hz-20KHz(-10dB)
Nominal Coverage:80degrees (H) 50degrees (V)Constant directivity
Sensitivity (@1w/1m):97dB SPL
Power Rating (AES):500W(continuous) 2000W(peak)
1000W(Recommended amplifier power)
Nominal Impedance:8Ohm
Maximum SPL:123dB (continuous) 129dB(peak)
Drivers:LF 1*15inch (75mm voice coil)rubber edge woofer;
HF 1*3 inch (75mm voice coil) compression driver


PHYSICAL DATA
Dimension (H*W*D):681(H)*445(W)*447(D)mm
Weights:26kg
Connectors:2*NL4MP Neutrik Speakon connectors
Speaker Cables:1+1-
Materials:18mm multi-plywood
Finish:Black water paint
Grille:Black epoxy mesh grille with acoustically reticulated foam



Applications:

  1. Touring performance/Live Show;
  2. Theater/Cinema;
  3. Stadium/gymnasium/sport facilities;
  4. Auditorium/Church/Cathedral
  5. Club/Bar/Live Music Venus;
  6. Concert/Music Hall;
  7. Airport/Square;
  8. Fixed Installation Architecture.




Every year, Zsound took part in the Pro Audio Exhibition around the world almost 10 times.




Zsound Advantage:

1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

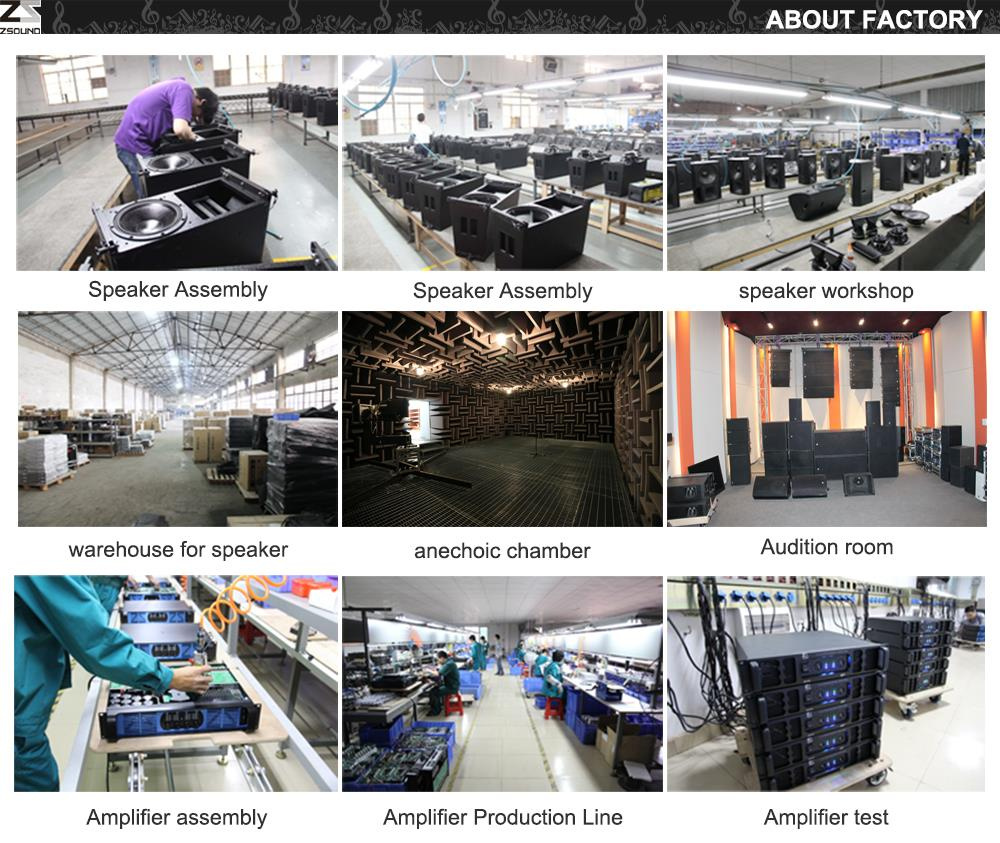

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
















FAQ:

Q1: How long is the warranty for the speakers?
A1: 1year warranty.

Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.

Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.

Q4: What's the MOQ?
A4: MOQ is 1pcs

Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .

Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.



Sunny Yan
Sale Representative
Website: www.prozs.com
Mobile: +86 15818739656
Address: No.33, Jiaoxin Road, Nanha District, Guangzhou, GD, China

Prod Model: U15
Certificate: Ce, RoHS
Nominal Impedance: 8ohm
Maximum Spl: 123dB(Continuous) 129dB (Peak)
Driver Number: Lf: 1X15 Inch; Hf: 1X3 Inch
Power Rating(AES): 500W
Frequency Response: 50Hz-18kHz(+-3dB) 40Hz-20kHz(-10dB)
Nominal Coverage(-6dB): 80degrees (H) 50degrees (V)Constant Directivity
Weight: 26kg
Connectors: 2X Nl4MP Neutrik Speakon Connectors
Materials: 18mm Birch Multi Plywood
Noise: <95dB
Hi-Fi: Hi-Fi
Operation Mode: Wire / Remote Control
Speaker System: Optional Combination
Speaker Material: Wood
Application: Club/Bar/Live Music Venus/Concert/Music Hall
Certification: SGS, ISO9001
THD: <0.005%
Monitor: None
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
