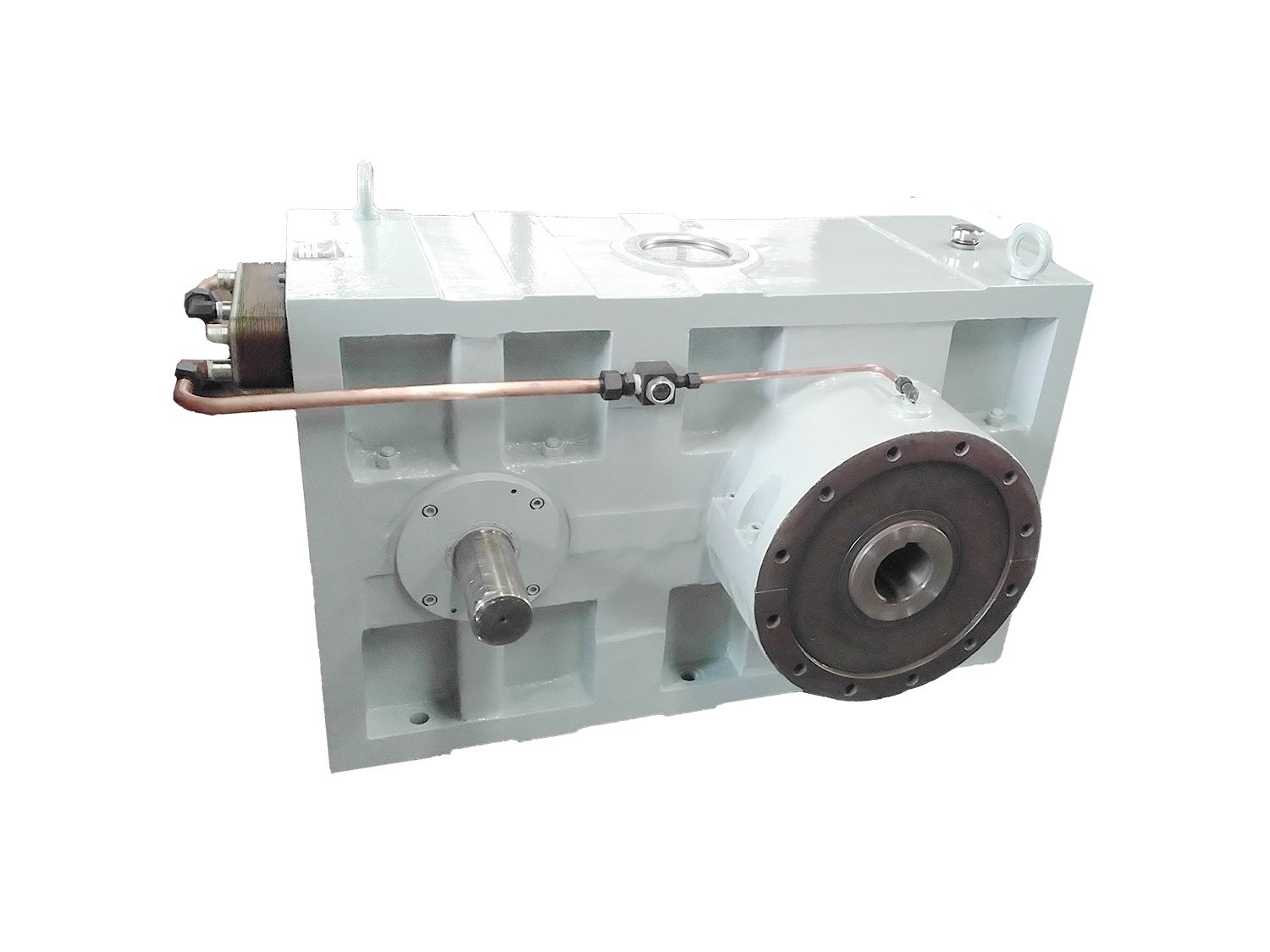

Structures and PropertiesZLYJ series speed reducer high precision gear surface gearing with thrust bearing that design that design for plastic screw extruder.
1.Product design uses all technical specifications that provides by JB/T9095.1-1999, which is characterized by using high strength HRC54-62.
2.The front end of hollow output shaft is equipped with super-specification thrust bearing, and bears working recoil of screw.
3.The main standard components of bearings and oil seal use domestic high quality products, and also can be equipped with imported products according to customer demands.
4.The complete machine has the features of small volume, high loading capacity, steady transmission, low noise and high efficiency.
Working Condition
1.Gearbox normal ambient temperture is -10°C~50°C, ambient humidity is ≤80%, outside the normal range, please consult the company.
2.The working environment should be no dust, and air exchange place, no corrosive gas, or vapor.
3.Gearbox input speed is generally not more than 1500r/min;Gears peripheral speed is not more than 20m/s.
Selection chart

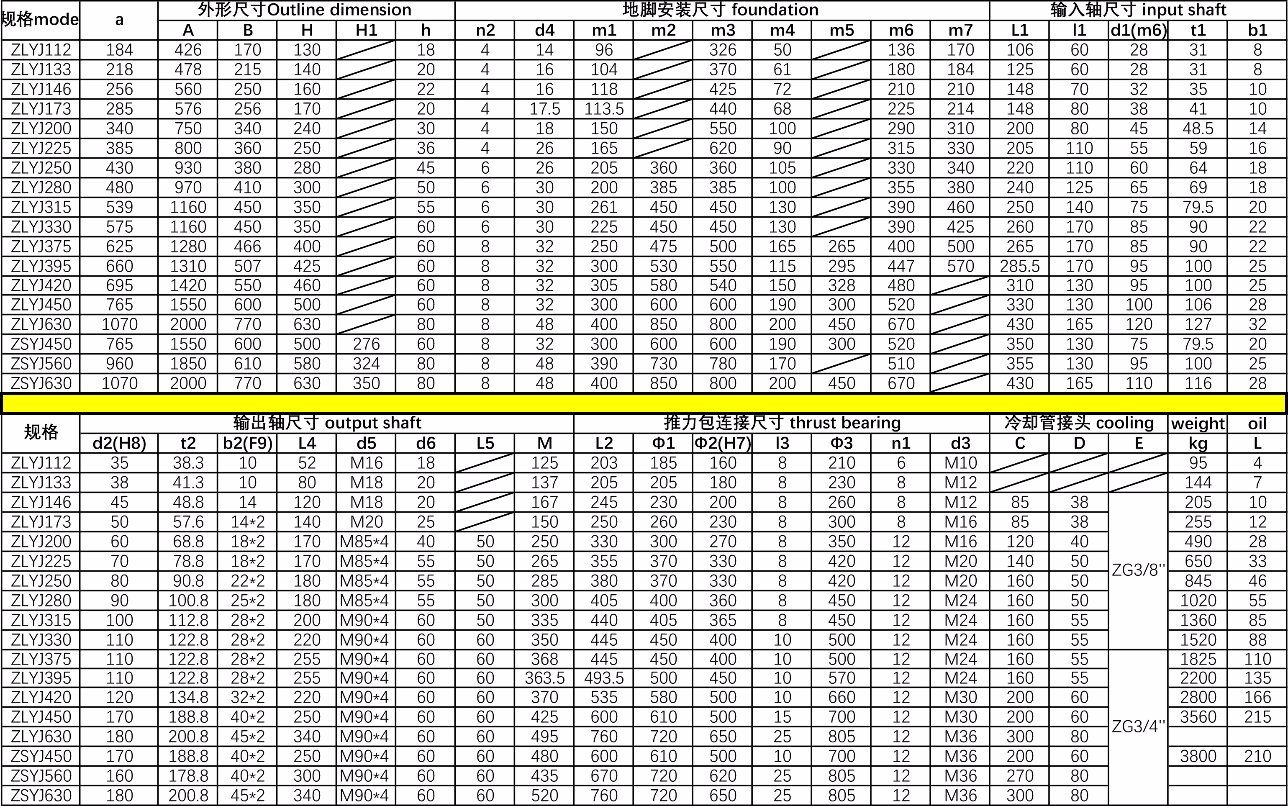

Parameter
Jiangyin Ya Kai Trade Co., Ltd., is under Jiangyin De Ling Machinery Co., Ltd., which has own export license. We are Industrial and trading company.
Jiangyin De Ling Machinery Co., Ltd., is located in Qiaoqi town Industrial Park, the Beijing Shanghai high way along the River interchange Qiaoqi exit, is the appointed enterprise specializing in the production of hardened gearbox.
Our company was established in 2002. From its very first day of operation to now, It has been concentrating in developing and manufacturing the gearbox especially for rubber and plastic machinery. Deling is a professional producer of gearboxes and well qualified for ISO 9001. By means of purchasing precised fabricating equipments consistently and continuously investigating and innovating, all of the gearboxes made by Deling are qualified with the features as high torque, low noise dB. Less trouble and longer lifetime, which was appreciated by the machinery makers. Our main products are SZ and SZL series conical twin-screw gearboxes, ZLYJ series single screw extruder gearboxes, ZJY series shaft mounted hardened gear speed reducers, SJZ new double screw extruder gearboxes, and YPS incongruous parallel double screw extruder gearboxes and other main parts of industrial reducers.
Deling will take the advantage of the experience accumulated from nearly twenty years and hundreds of thousands of gearboxes being made and to be always look at the demands of the customers to creat the most innovative models. Deling group would promote ourselves to the rubber and plastic machinery field of world and creat a new brand future. Our aim: Integrity, efficient, innovation and quality.
