Yuxing High Quality Multi-Needle Quilting Machine Chain Stitch for Mattresses

Yuxing High Quality Multi-Needle Quilting Machine Chain Stitch for Mattresses
Price: US $ 10000-50000/Set
Min Order: 1/Set
Pay Type: T/T
Contact Supplier
Dongguan Yuxing Machinery Equipment Technology Co., Ltd.
Showroom Product Company Profile

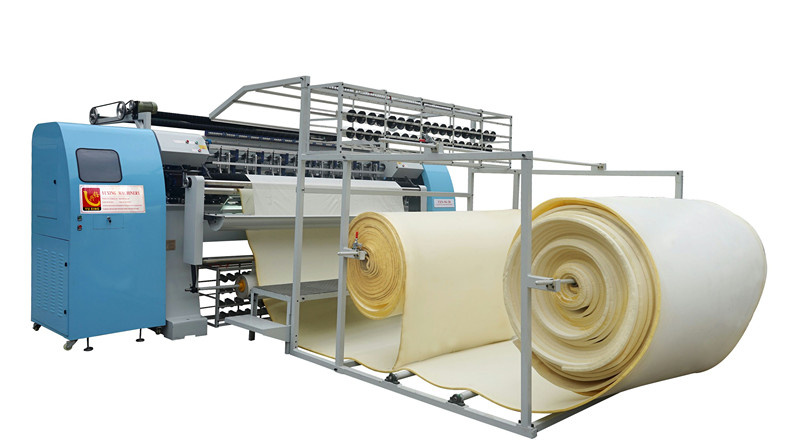

Computerized non-shuttle multi-needle quilting machine
YXN-94-3B(2"+3"/3"+3")

Feature:
1. Newest high speed computerized multi-needle quilting machine
2. 180°standard pattern and 360°tack & jump pattern
3. 19 inch liquid crystal display
4. Using high-quality bearings made in Japan

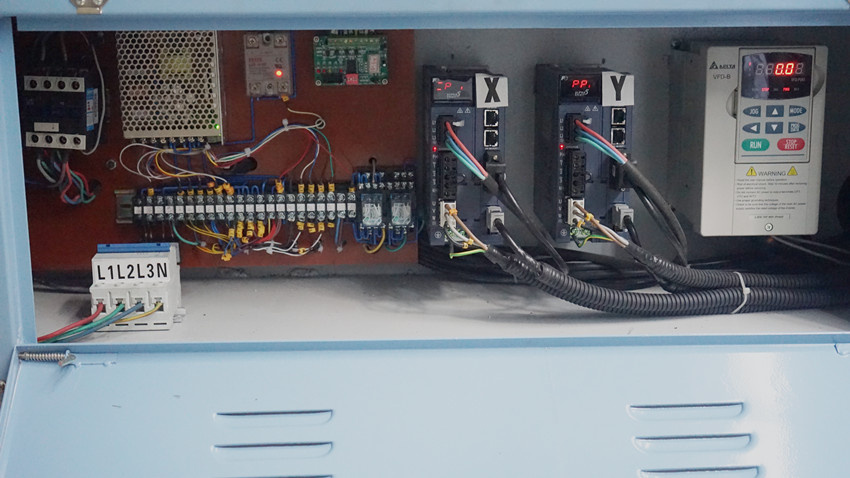

5. Using Panasonic servo motors to control X & y axis

Function:
1.New fabric loading design. Easy loading material.
2.New design.
3.Thread brake detector.
4.Using air cylinder for thread cutting tail length.

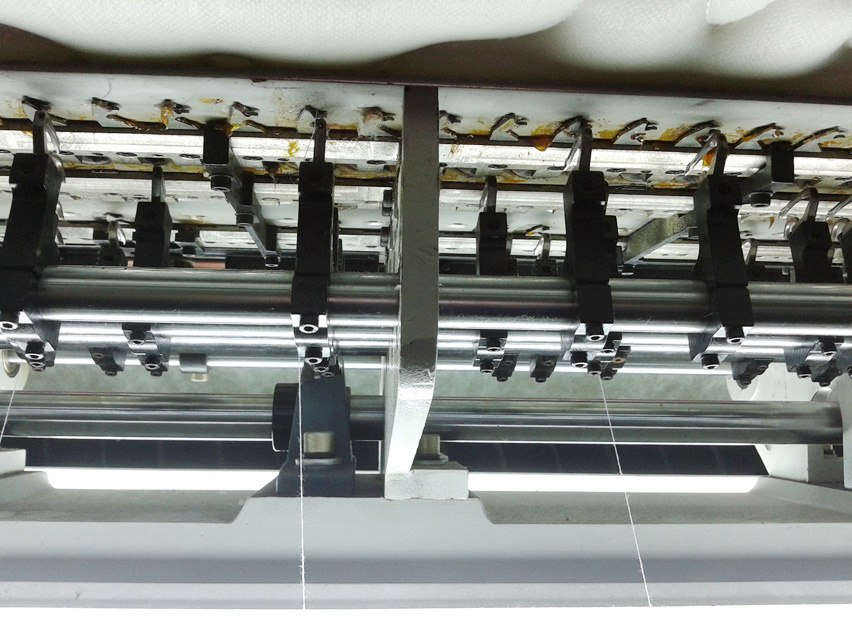

5.Needle rod design is reliable and stable.
6.Improved quilting software control system allows more precise and stable quilting operations.

7.Error problem detection system.
8.CAD pattern drawing pattern system allows you to create your own designs.
9.Machine comes with 100-300 design patterns.
10.Function of automatic stop on breaking of thread and needle raising.
11.Bottom thread cutting and fabric rolling are fast with production rate of 20% To 50% higher than any other quilting machines.

12.Buttom stitch uses common mixed cotton thread for all patterns.
13.Very little deformation when quilting between thick and thin fabric.
14.Uses high speed aero dynamic bottom thread cutting machine architecture,And therefore, can produce an uniform and threadless edge.
15.Both X and y axes are driven by high power Panasonic servo motors that are capable of quilting fabric materials at 50mm in thickness.

16.Extended horizontal movement (moving distance of 450mm), can produce super large patterns.
17.Spacious look with single unit design.
18.Capable of quilting single independent, all round 360 degree and 180 degree Patterns.


Product  NameComputer  Non-shuttle  (chain  stitch)  Multi-needle  Quilting  Machine
Model            YXN-94-3B(2" +3" /3" +3" )

Size(L*W*H)4800*1600*2000mm
Weight4500kg
Quilting  width2485mm
Needle  bar  space50.8, 76.2, (2" +3" ); 76.2, 76.2(3" +3" )
Quilting  thickness80mm
Rolling  speed600-900r/min
Output  10-180m/hour
Needle  type#21-#24
X-axis  movement410mm
Needle  space25.4mm
Stitch 2-8mm
Rated  voltage(AC)380V/50HZ, /220V/60HZ
Power7KW



After-sale service:
As we know deeply after-service is of top importance. We will provide one-stop after services and promise to sort all problems out with high speed; Moreover, we could help our customer to draw new patterns according to their different requirements. We will make every effort to supply our good service.




Prod Model: YXN-94-3B
Quilting Width: 94 Inch
Width: 2.5m
Yuxing Machinery Equipment Technology Co., Ltd is founded in 2002, located at Jiaoli Industrial Zone, Zhongtang Town, Dongguan City, Adjacent to the Dongguan bus station, connected the highway Guangzhou to Shenzhen and the Wuhuan Road, besides G107 with very convenient transportation. Our company produces the computerized high-end shuttle multi-needle quilting machine, computerized shuttle (lock stitch ) multi-needle quilting machine, non-shuttle(chain stitch) multi-needle quilting machine, quilting embroidery machine, cutting machine, and bobbin winder, with more than 10 kinds of producs, specialized in manufacturing computerized quilting machines, includng scientific research, process manufacturer and sales management and after service.

Successful implemented of the company into ISO9001: 2000 international Quality Managerment System, honored as "Private Scientific and Technological Enterprises"by Dongguan City Science&Technology office and Dongguan City Intellectual Property office. Our company owns about 200 workers. The machinery, automation, computers and over 20 technical engineers. It's good capability on products' development and improvement, owning lots of patents. In these years, Yuxing Machinery, owing to good quality and substantial price, have earned a hot market in China. We have established branches and dispatched technicians in over ten cities. At the same time, products are exported to Southeast Asia, Middle East, Europe, Oceania and Africa. Yuxing Machinery get a high credit standing at the correlative industry.

We always insist"Quality first, customer first, credit management, credit-oriented"purposes, in the highly competitive market conditions. We have been aggressive, innovative, self-developement in the competition, at the service of self-perfection, with modern business philosophy, excellent products, quality service to serve our customers.
