Yt24 Gold Mining Rock Drill Jack Hammer for Mining

Name: Yt24 Gold Mining Rock Drill Jack Hammer for Mining
Brand: tool-buy.com
SKU: 717756332
Availability: InStock
Rating: 4.9 (42 reviews)

Price:	US $ 260-320/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Henan Jeao Heavy Industry Machinery Co., Ltd.

Showroom Product Company Profile

1. YO18,Y19A,YO20,Y24,Y26 are Hand Held Jack hammer.
2. YT23,YT24,YT26,YT27,YT28,YT29A,MZ7665 are Air leg Jack hammer

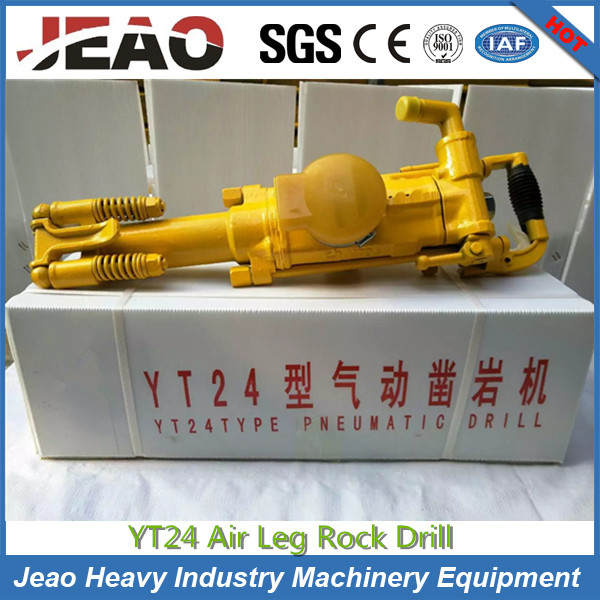

YT24 Air-leg Rock Drill

YT24 Air-leg Rock Drill is a product that we developed, having advantages of all kinds of air-leg rock drills. Compared with other rock drills, YT24 adopts the latest designing technology, with the superiority of its high speed, low failure rate, durable wearing parts, low noise, and light weight. It is also efficient, energy saving and environmentally sound.

Specification for Pneumatic YT24 Rock Drill and Rock Drill bits :

Technology parameter	Parameters unit	parameters
Weight	kg	≈28
Length	mm	670
Cylinder diameter	mm	Φ80
Piston stroke	mm	60
Air consumption	L/S	≤81.6
Impact frequency	Hz	≥ 37
Impact strength	J	≥ 70
Drilling speed	mm/min	≥ 470
Drilling diameter	mm	Φ34~45
Drilling depth	m	5
Shank dimensions	mm	22×108±1(hex×lengt)
Remark: The air pressure of function specification is 0.5Mpa

This type Jack hammer use compressed air as power, mainly used in construction sites, various types of mines, tunnel, railways, water conservancy construction and national defense construction areas for drilling operations.Suitable for either drilling downward or incline of blast holes in medium-hard rock, of for second blasting operation,Centrally grouped control, nimble starting, stable running and easy maintenance.

Specification for Hand Held Jack Hammer:

Model No	YO18	Y19A	YO20	Y24	Y26
Weight (kg)	18	19	20	24	26
Length (mm)	550	600	561	604	650
Cylinder Dia*Stroke (mm)	58*45	65*54	63*55	70*70	65*70
Working Pressure (Mpa)	0.4-0.63
Impact energy (J)	≥22	≥28	≥26	≥44.7	≥23
Impact frequency (Hz)	≥32	≥28	≥33	≥27	≥30
Air consumption (L/S)	≤20	≤37	≤33	≤55	≤47
Hose size (mm)	19	19	19	19	19
Rork drill hose diameter(mm)	34-42	34-42	34-42	34-42	34-42
Rock drill hose depth (m)	5	5	5	5	5
Shank size (mm)	22x108	22x108	22x108	22x108	22x108

Specification for Air Leg Rock Drill

Model No	YT23	YT24	YT26	YT27	YT28	YT29A	MZ7665
Weight (kg)	24	24	26	27	28	27	26
Length (mm)	628	678	690	668	661	659	720
Cylinder Dia*Stroke (mm)	76*60	70*70	95X60	80*60	80*60	82*60	76*70
Working Pressure (Mpa)	0.4-0.63
Impact energy (J)	≥65	≥65	≥64	≥75.5	≥70	≥78	≥70
Impact frequency (Hz)	≥37	≥31	≥36.5	≥36.7	≥37	≥37	≥37
Air consumption (L/S)	≤78	≤67	≤55	≤83.3	≤81	≤88	≤81
Hose size (mm)	19	25	25	25	25	25	25
Rork drill hose diameter(mm)	34-42	34-42	34-42	34-42	34-42	34-42	34-42
Rock drill hose depth (m)	5	5	5	5	5	5	5
Shank size (mm)	22x108	22x108	22x108	22x108	22x108	22x108	22x108

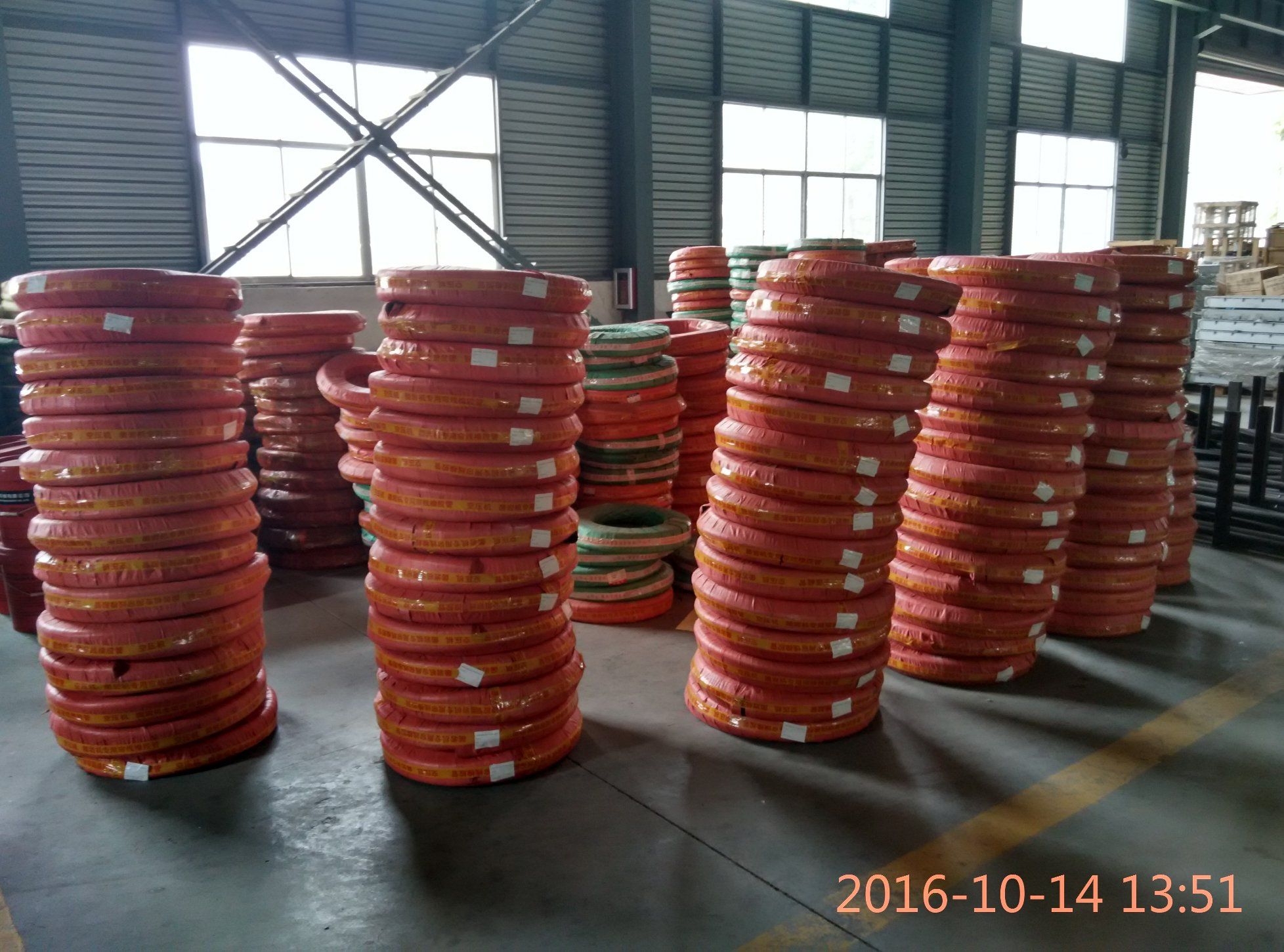

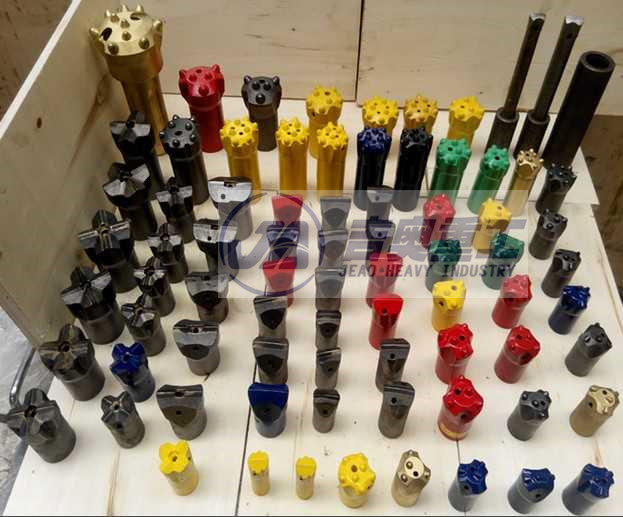

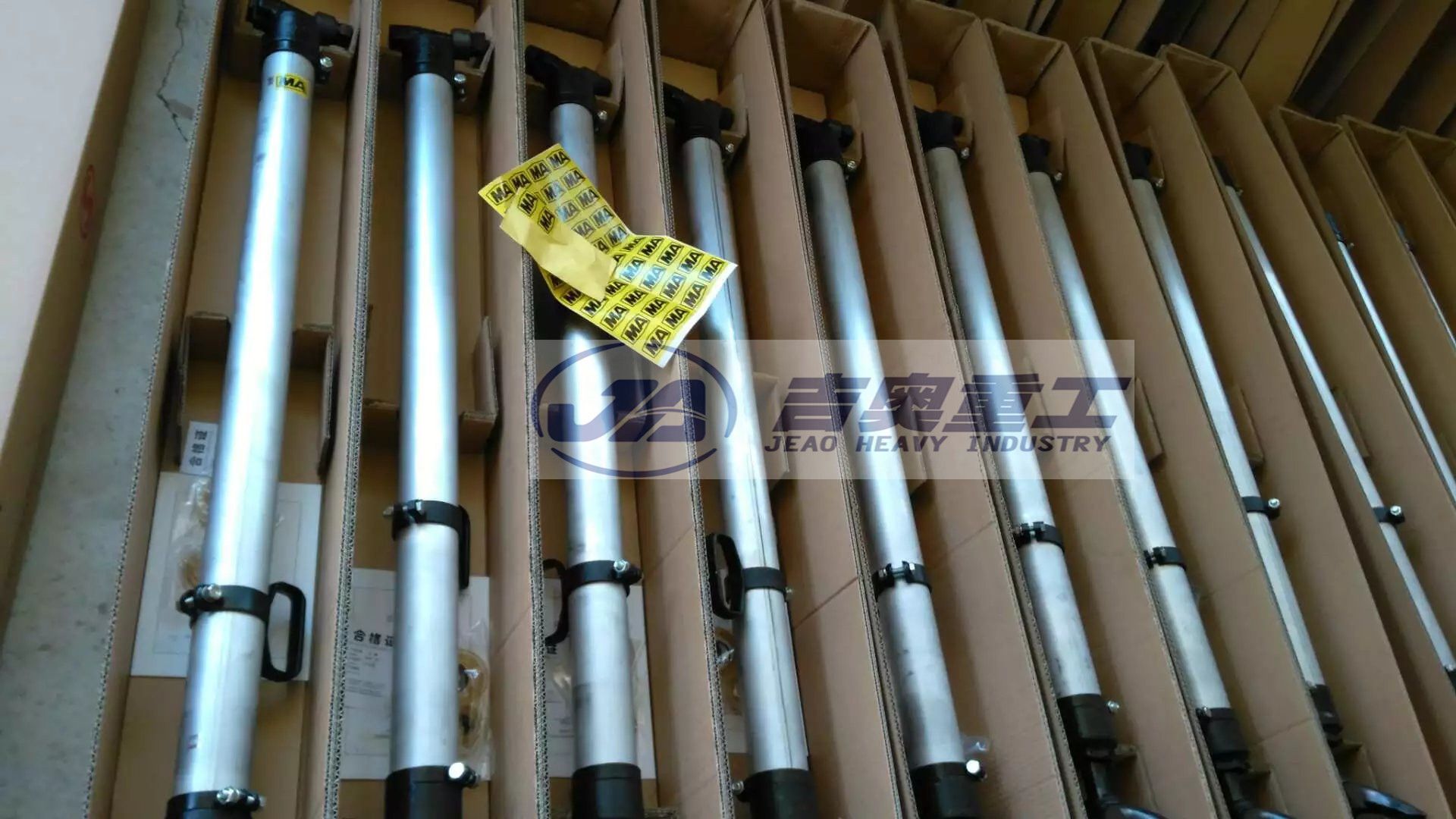

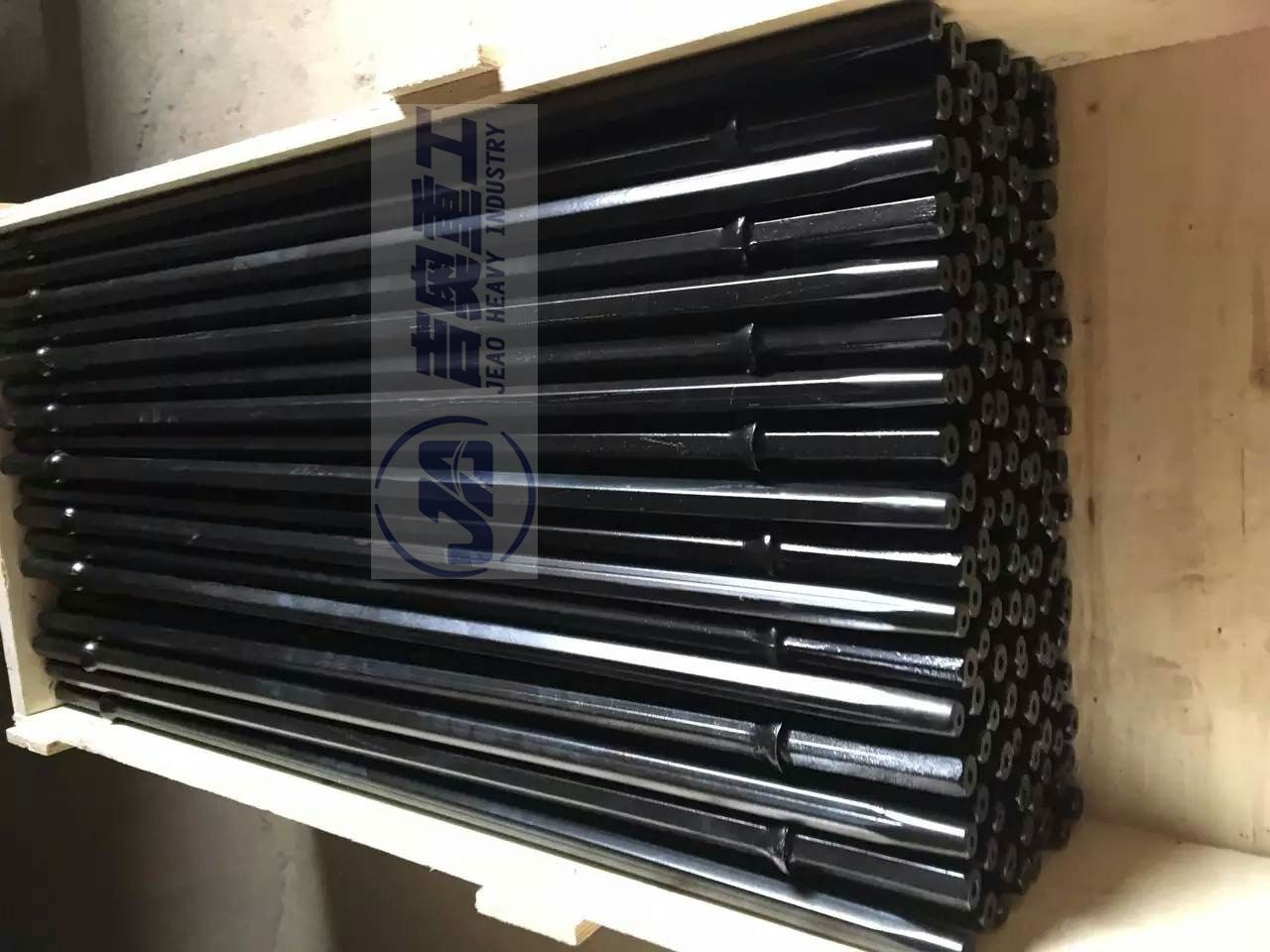

Photo for one complate set rock drill tools:

Photo for one complate set rock drill tools:

Prod Model:	YT24
Weight:	24kg
Length:	678mm
Cylinder Dia:	70mm
Piston Stroke:	70mm
Work Pressure:	0.4-0.63
Air Pipe:	25mm
Hole Diameter:	34-42mm
Shank Size:	22X108
Usage:	Coal, Ore

A Company You Can Trust:

Located in Xinxiang City, Henan Province, China, Henan Jeao Heavy Industry Machinery Co., Ltd. is a professional manufacturer of screw(piston) air compressors, crawler drilling rigs, pneumatic tools, mining construction machines, crushers, etc. We have 12 years' experience in mining construction machinery and have a good reputation in this field. Our products have a vast market in foreign countries such as Nigeria, Zambia, Zimbabwe, Congo, Kenya, USA, UK, Sudan, and other countries and regions.

Quality and Safety:

We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed QC, ISO & CE certifications.

Your Success, Our Glory:

Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
