Yo18 Portable Hand Held Pick Hammer

Yo18 Portable Hand Held Pick Hammer
Price: US $ 150-300/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Product Description:

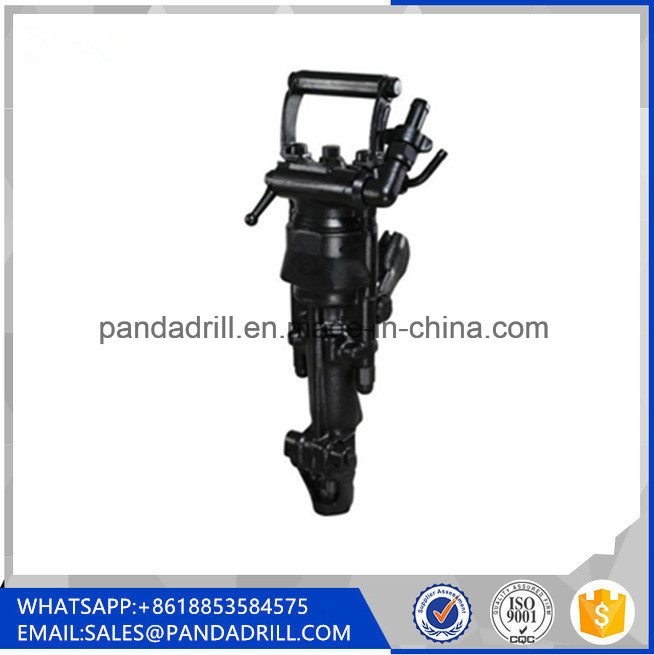

PANDADRILL Hand-held Rock Drill is widely used for dry drilling in the medium-hard and hard rock. It is mainly used for blasting holes and other drilling works in quarries, railway construction,water conservancy construction and defence project facility.It is suitable for drilling and blasting under various of rocks at any direction angles.Blast hole dia. is 34-42mm,drill hole depth is 5 m.

Advantage.:

1 Higher efficiency

2 Lower noise

3 Stronger impact frequency

4 Lighter weight

5 Longer life of wearing parts

6 Better economic returns

7 Environment protection

Specification:
HAND HELD ROCK DRILL SPECIFICATION
TYPEY20LYY24Y26Y28TY24C
WEIGHT(KG)1823262523
SHANK SIZE(MM)22*10822*10822*10822*10822*108
CYLINDER DIA(MM)6570758067
PISTON STROKE(MM)6070706070
WORKING PRESSURE(MPA)0.40.4-0.630.4-0.630.4-0.50.4-0.63
IMPACT FREQUENCY(HZ)2828282828
AIR CONSUMPTION2555477555
AIR PIPE INNER DIA(MM)1919191919
ROCK DRILL HOLE DIA(MM)30-4530-4530-4530-4530-45
ROCK DRILL HOLE DEPTH(M)36566



FAQ:

Q1: Can I have a sample for testing?

A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?

A:Free replacement will provide once the problems casued by our product quality.

Q4: Can I have a visit to your factory before the order?



A: Sure, welcome, here is our address: Yantai, Shandong.


CONTACT:



Prod Model: y19a, y24, y20, y26, ty24, y6, y8, yo18, y20ly
Drilling Diameter: 32-65mm
Processing Type: Forging
Material: High Manganese Steel,Tungsten Carbide
Use: Coal Mining,Quarry Drilling or Well Drilling
Transfer: Air/Sea/Express
Color: Request
Advantage: High Performance
Product Name: Rock Drill/Jack Hammer
Working Pressure: 0.4-0.8MPa
Air Consumption: 85(L/S)
Working Style: Rotary Type
Type: Drill Tools
Brand: Panda
Pandadrill, founded on 2008 year, is a specialized manufacturers and supplier of Rock Drilling Tools, Stone and demolition tools and consumables for quarrying, mining and construction with 10 years experiences.

We produces high quality rock drilling products by using high quality raw material, utilizing advanced craft technology and imposing strict quality inspection. The products made by Pandadrill are being adopted by various users from all over China and exported to more than 50 countries including America, France, Australia, Canada, Brazil, South Africa, Malaysian, South Korea and other countries. All of our products are highly-reputed by our customers.

Pandadrill tools always committed to provide low cost Rock Drills, stone tools, rock drilling tools, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.

"Continues to provide you with better products", which keep business purposes, we still make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers. We believe in Fair Quality, Fair Price, Fair Trading, we are aim to provided quality, convenient, quick service to customer and have gained good reputation in the market.

We are confident for our products and technology and we are always improving our product quality and service to satisfy our clients' various requirement.

Main products:

SMALL HOLE DRILLING TOOLS

TOP HAMMER DRILLING TOOLS

HAND HELD DRILLING MACHINE

DTH TOOLS

ROTRAY DRILL TOOLS

BREAKING TOOLS (STONE & CONSTRUCTION)

GRINDING TOOLS

STONE CUTTING TOOLS

MINING EQUIPMENT
