Yg8 Yg11 Drawing Die Tungsten Carbide Drawing Dies
| Price: |
US $ 4.4-4.6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |

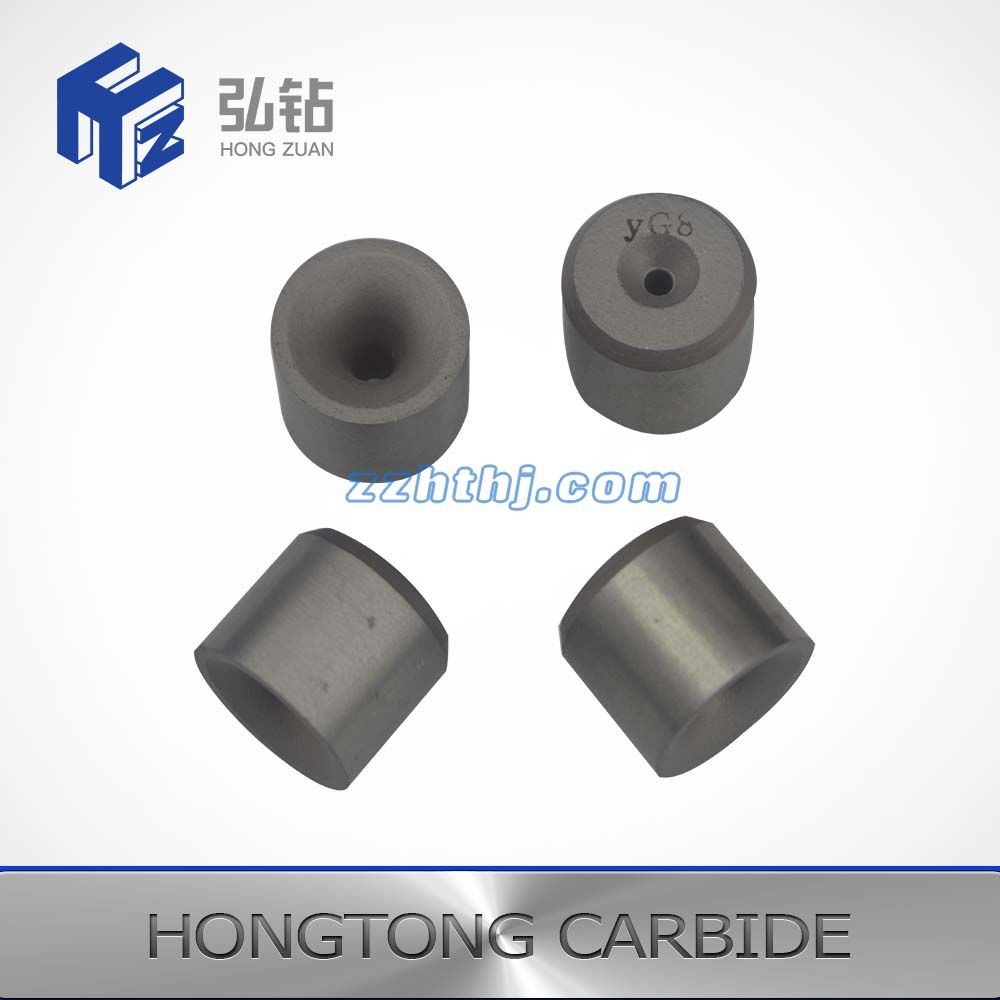

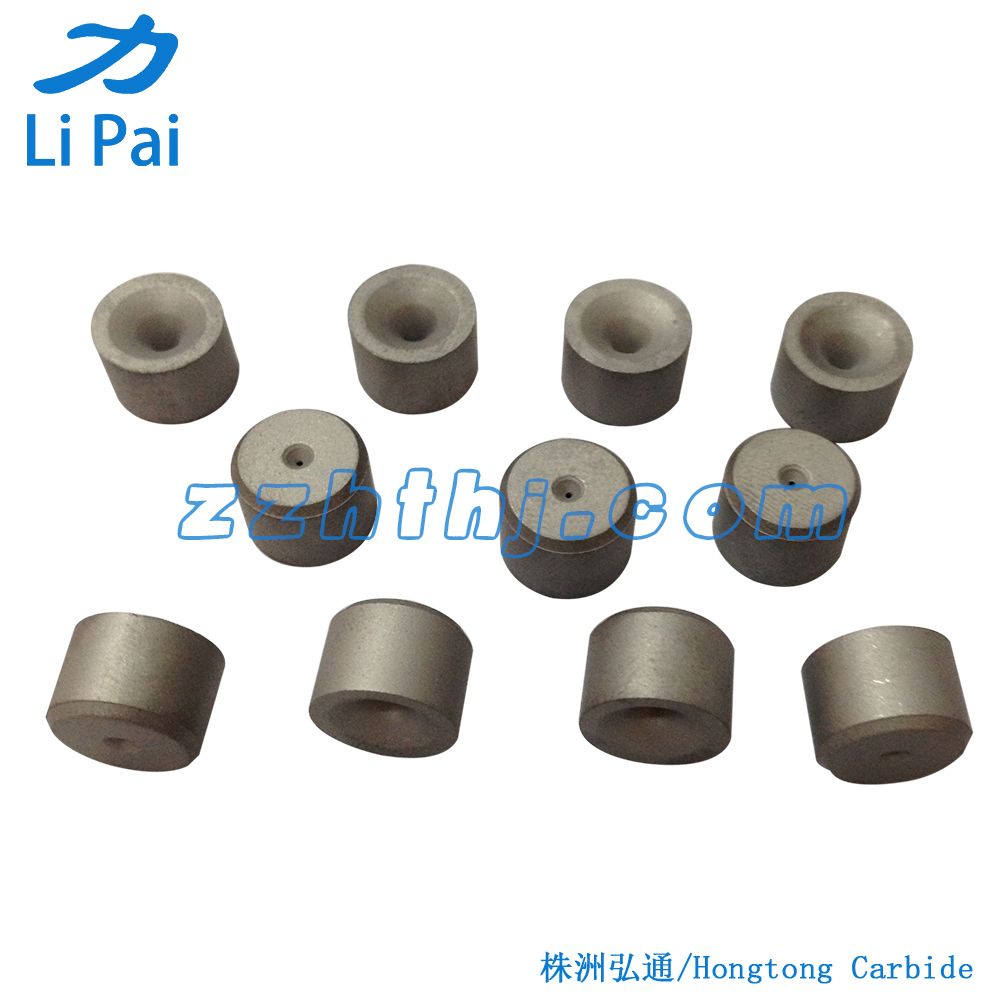

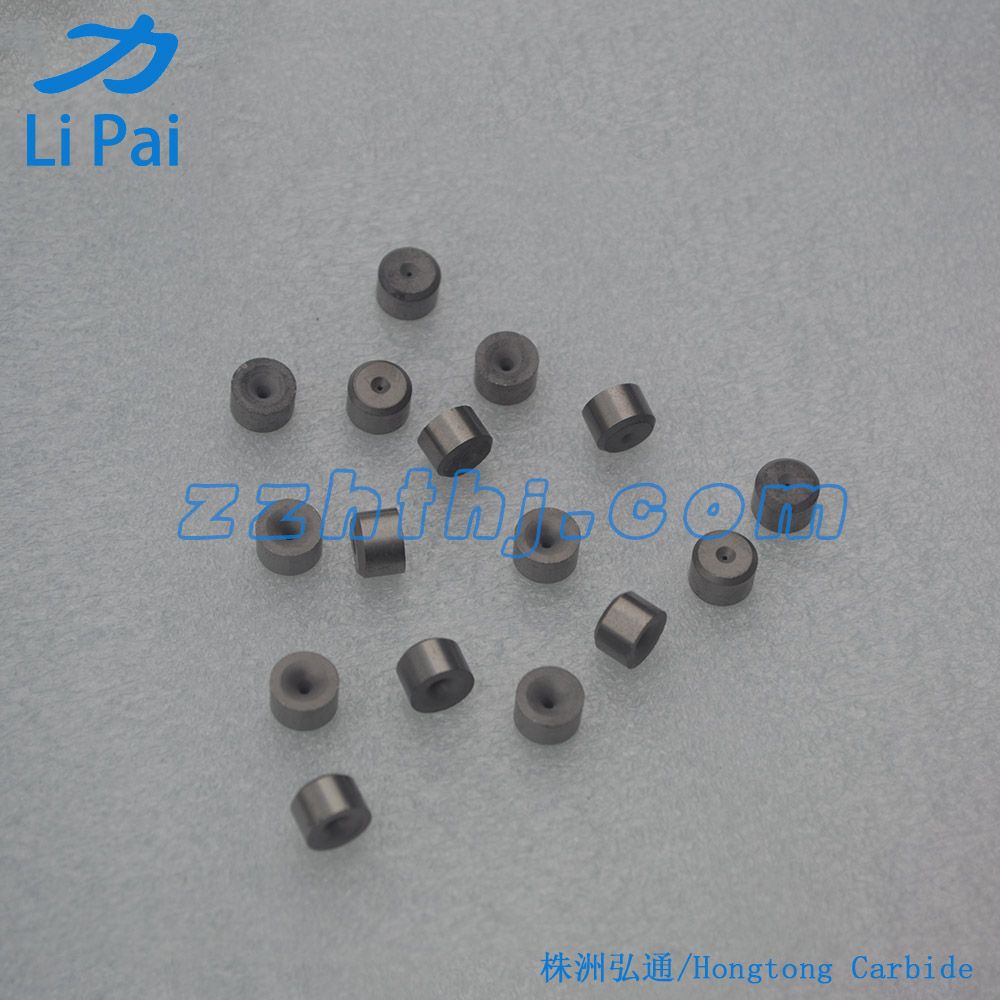

Tugsten carbide drawing dies
Application.Tungsten carbide wire drawing wire are used in both drawing and extrusion machines where material is forced under pressure through the die. They can draw different material like mild steel, high carbon, stainless steel, brass, aluminum etc. And they could long time ensure the high surface roughness for high speed roughness for high-speed drawn process.There are various sizes you can choose, and we can produce according to your design.Properties.--Bore size can be 0.1mm
--Fast delivery and high quality
--Different grades for option
--Sintered in HIP Furnace
--OEM & ODM are welcomed
--After-sale service timelyGrades recommend. | Grade/ Properties / Application |
|
| Grade | Equal to ISO Category Number | Performance | Performance&application recommended |
| Density | Bend Strength | Hardness |
| G/Cm 3 | N/mm 2 | HRA |
| YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 | Sand-blasting nozzles qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting n |
| YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 |
| YG8C | | 14.8 | 2400 | 88.5 | and as the inserts of rotary prospecting bits to cut soft and |
| medium hard formations. |
| YG6 | | 14.95 | 1900 | 90.5 | For coring crowns,electric coal drill bits, coal cutting picks,oil |
| cone bits and scraping knife bits,used in coal geological prospecting, |
| mining and oil well boring. |
| YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
| YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 |
| YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
| YG8 | K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
| YG10X | | 14.5 | 2400 | 91.5 | Fine grain alloy, good wear resistance,Used for processing hard |
| wood, veneer board,PCB,PVC and metals. |
| YG11 | | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmental powders. |
| YG11C | K40 | 14.4 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium |
| hard, hard and very hard formations. |
| YG15 | K40 | 14 | 2800 | 87.5 | For fabricating drawing dies of steel tubesand rods under high |
| compressibility ratio;punching,stamping,forging tools under large stress. |
| YG15C | | 14 | 3000 | 85.5 | For oil cone dril bits, for medium soft and medium-hard rocks. |
Company info.Zhuzhou Hongtong, a professional Chinese manufacturer of tungsten carbide products. We supply tungsten carbide ball/seat, seal ring,plate,strip,nozzle,rod,brazed tips,mining tips,inserts,disc cutter,wire drawing die,cold heading die,and so on. With more than 10 years experience, we can provide you more than you can image.Contact.Arris Zhang
Oversea sales manager
Mobil: 86 13974173665
Web: www.zzhthj.com
Add: No.86, Mingri Rd, Tianyuan Dist,Zhuzhou,Hunan,China.
Postal:412007
| Prod Model: |
S11 S13 WTA W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Grade: |
Yg8 Yg6 K10 K20 K30 |
| Precision: |
Blank |
| Sample: |
Free |
| Delivery: |
Fast |
| Material: |
Metal |
| Application: |
Car |
