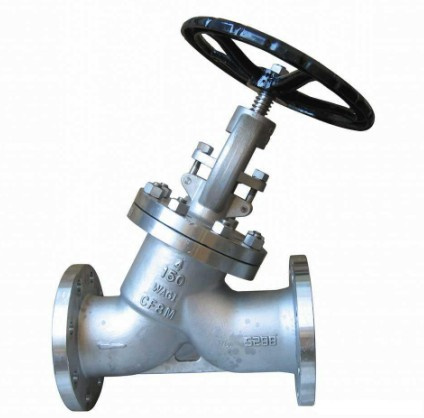

Y-Type Bolted Bonnet Globe Valve

Y-Type Bolted Bonnet Globe Valve
Price: US $ 1000-10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Y-Type Bolted Bonnet Globe Valve
Globe Valve / Feature:
Proven technology
Y patteren body design
OS & Y,outside screw and yoke
BB,Bolted bonnet
Yoke intergral with bonnet
Rising stem and handwheel
Loose disc,choice of plug or ball
Renewable seat ring or Body seat ring
Impact handwheel for 10" & above
Horizontal servece
NPS & Class :

NPS 2"~18" Class 150L
NPS 2"~18" Class 300LB~600LB
Main Parameters :
Design and Manufacture :API 600,BS 1873 Face to
Face Dimension :ASME B16.10,EN558
Flange Connection Dimension :ASME B16.5,ASME B16.47
BW Connection Dimension :ASME B16.25
Pressure-Temperature Ratings :ASME B16.34
Test and Inspection :API 598
Type of Operation :Manual,Gear,Electric,Pneumatic,Hydraulic
Main Materials :WCB,WCC,WC6,WC9,C5,C12,LCB,LCC,CF8,CF8M,CF3,CF3M,CN7M,CF8C



DescriptionMaterialSpecs.
BodyStainless SteelSCS13,14, CF8, 8M
BonnetStainless SteelSCS13,14, CF8, 8M
DiscStainless SteelSCS13,14, CF8, 8M
StemStainless SteelSCS13,14, CF8, 8M
Disc GlandStainless SteelSCS13,14, CF8, 8M
Gland FlangeStainless SteelSCS 13
Yoke BushStainless SteelHBS C2, A439, D2C
Bonnet Bolt & NutStainless SteelSUS 304
Gland BoltStainless SteelSUS 304
Set ScrewStainless SteelSUS 304
Hand WheelStainless SteelFCD40
Wheel NutStainless SteelSUS 304
Name PlateAl
PackingAsbestos+TeflonRainforced Teflo


(MM)
SIZE2540506580100125150200250300
L160190210270295370400470565675797
H130145170205220275305330440650750
Prod Model: GLV
Operation: Handwheel or Gear
Wenzhou Bewell Steel Industry Co., Ltd. is a professional producer of valve, stainless steel pipe, pipe fitting, flange etc, which is situated in Bajia Industrial Zone, Shacheng, Binhai Section

It is close to Wenzhou 10000t Dock, Ningbo-Taizhou-Wenzhou Express and Wenzhou Airport, thus enjoying a superior geographic location which is easily accessible by water and land and endowed with development advantages.

As a hi-tech enterprise integrationg R&D, production and sale, we produce such valve series ans API, ball valve, gate valve, stop valve, check valve, low-temperature valve, Y-type filter and non-standard products.

Through more than a decade of production and development, weve been carrying forward the diligent, practical and innovative spirit of Wenzhou people and adhering to the operational concept of "credit oriented and quality first" so that our integrated capacitoes in technology and development have been strengthened constantly.

Our product diameter: 1/2-48", Pressure: 150Lb-2500Lb, Material: WCB, WC6, WC9, A105, CF8, CF3, CF8M, CF3M, Applicable Medium: Acid, alkali, steam, sea water, coal gas, oil products, etc.

Shitong valves are widely applied in such industries as electricity, hydraulic power, heat supply, chemical engineering, coal, metallurgy, chemical fertilizer, brewage, paper making and medicine, which have won a good reputation among customers. With the increasingly intense market competition, our factory will apply new technologies, processes and materials constantly and develop new products vigorously to continue to provide high-quality valves and better before-sale and after-sale service for customers. We expect you to join us and sincerely welcome both old and new customers to cooperate with us to make glories together in the new century.

Our main products are four kinds: Valve, flange, pipe and fitting.

Our valves are Gate Valve, Ball Valve, Globe Valve, Check Valve, plug valves etc. They can be casted or forged. The connect end can be RF/RTJ/ NPT/ SW/BW etc.

Our flange are Weld Neck, Slip On, Thread, Socket, Blind etc.

Our fittings are Elbow, reducer, tee, cap etc.

Our pipes are stainless steel welded or seamless type.

The pressure is from 150LB to 2500Lb, PN10-640.

The O. D size is Dn15-1200, 1/2" ~ 48".

The material is carbon steel, stainless steel, duplex steel, Ni-Alloy stc.

The standards are: ANSI / API / JIS / DIN / BS / GOST etc.

We warmly welcome the friends all over the world to visit our factory.
