Xy-4 Portable Hydraulic Diamond Coring Sample Drilling Rig Machine

Xy-4 Portable Hydraulic Diamond Coring Sample Drilling Rig Machine
Price: US $ 100-10000/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Introduction of Xy-4 Portable Hydraulic Diamond Coring Sample Drilling Rig Machine

Applicable to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc
With hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity
The ball cassette clamping mechanism, can not achieve stop lever, convenient operation, safe and reliable
Handle concentrated, easy to operate. Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master hole
Compact structure, drilling machine, water pump and engine (diesel or motor) assembled on the same base, occupying the airport area is small. Decomposition and light weight, easy to move

Technical Parameters of Xy-4 Portable Hydraulic Diamond Coring Sample Drilling Rig Machine
ModelXY-4
drill hole depth42drill rod m1000
 50 drill rod m700
Hole Angle0-360
Spindle stroke mm600
Bore dia mm68
maximum lifting load KN80
The vertical pressure KN60
The biggest up pulling force KN150
maximum torque KN640
Hoist the maximum lift KN30
Dynamic power (electromotor) KW30
diesel engine(kw)40,60
Dimension mm2640*1100*1750
Weight(Do not contain power) kg1500

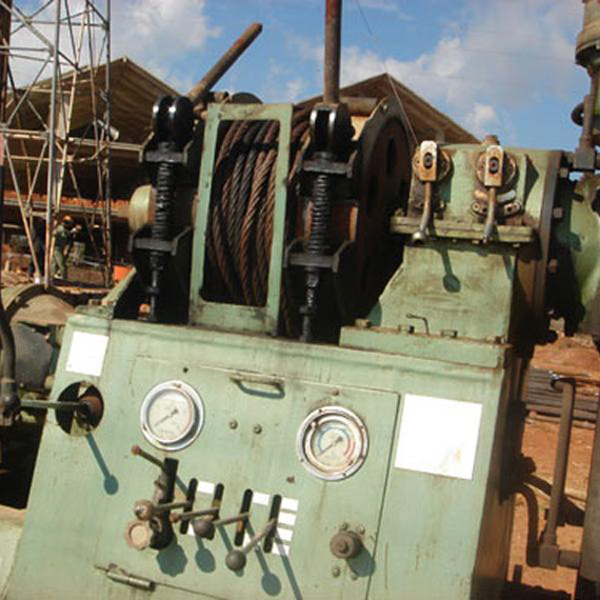

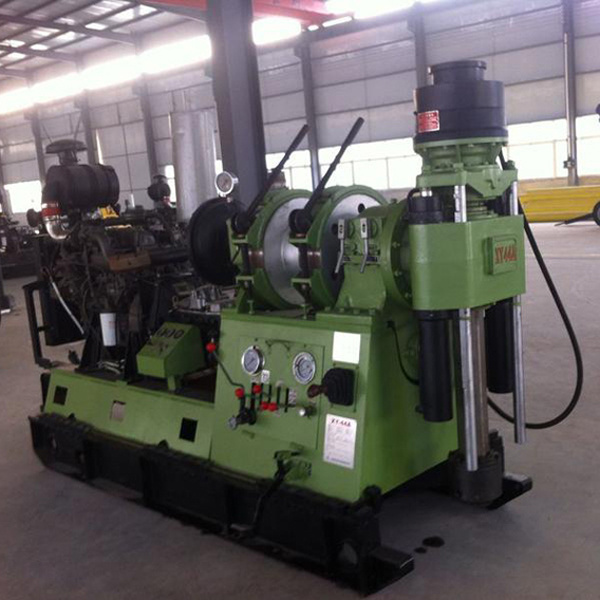

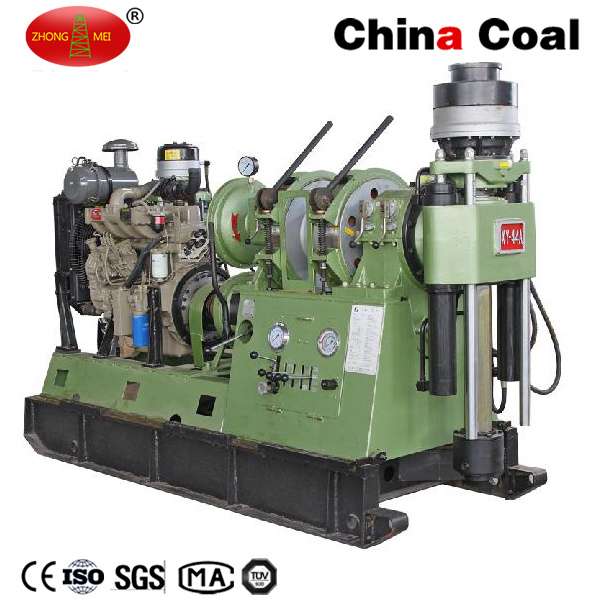

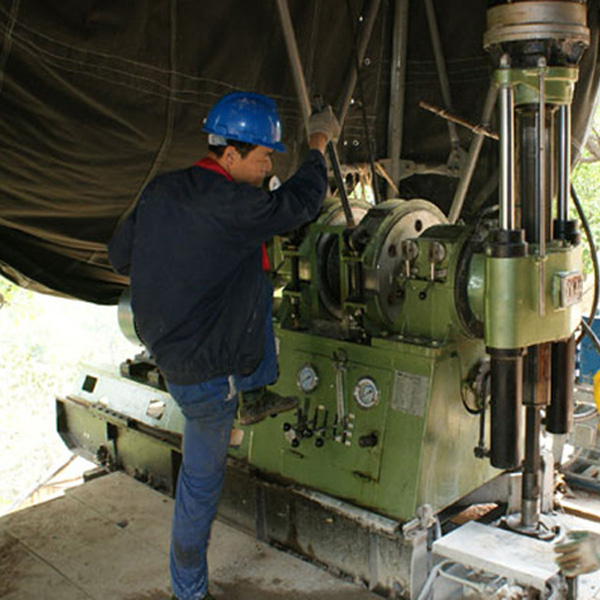

Photos Of Xy-4 Portable Hydraulic Diamond Coring Sample Drilling Rig Machine




Prod Model: XY-4
Hole Angle: 0-360
Spindle Stroke Mm: 600
Bore Dia Mm: 68
Maximum Lifting Load Kn: 80
The Vertical Pressure Kn: 60
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd (hereinafter referred to as China Coal Group) was founded in the 1990s, Group now has 3 subsidiaries, 36 professional companies, 3 Hong Kong companies, 1 British Cayman company, 1 US company, with more than 1, 100 employees. We are a large diversified industry group consolidates machinery and intelligent terminal manufacturing, e-commerce, software R&D, intelligent logistics which key supported by MIIT, Ministry of Commerce, Development and Reform Commission.

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. is a Big Joint-Stock Enterprise and Was Founded at The Beginning of 1980s, Which Is an Comprehensive Company Specially Doing The Business of The Mine Construction Materials, Mechanical and Electrical Equipments, Pneumatic Machineries and Accessories, construction machinery, instrument and meters, drilling machinery, mining and tunnel construction machinery, packaigng machinery, golf carts and related products, household application, high tech equipment, food machinery. We Have Six Economy and Trading Branches and One Machinery Manufacturing Branch.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the high quality at the reasonable price.
