Xts Heavy Duty Straight Side Single Crank Mechanical Power Press (200ton-600ton)

Price:	NegotiableSET
Min Order:	1SET
Pay Type:	L/C,T/T

Contact Supplier

Xuzhou Metalforming Precision Machinery Co., Ltd.

Showroom Product Company Profile

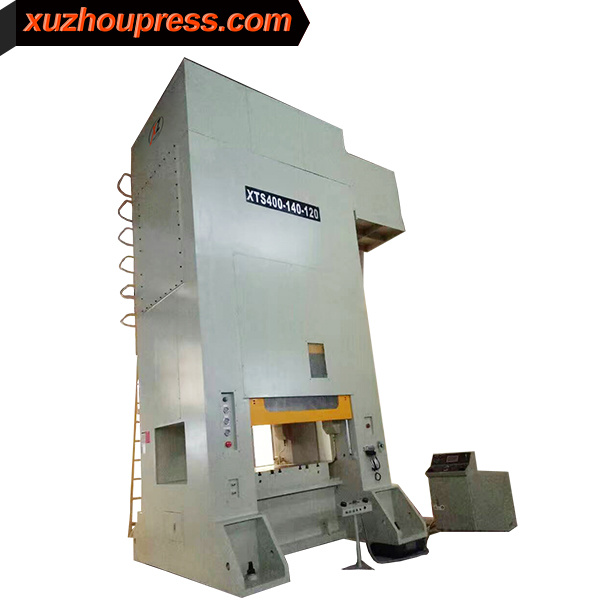

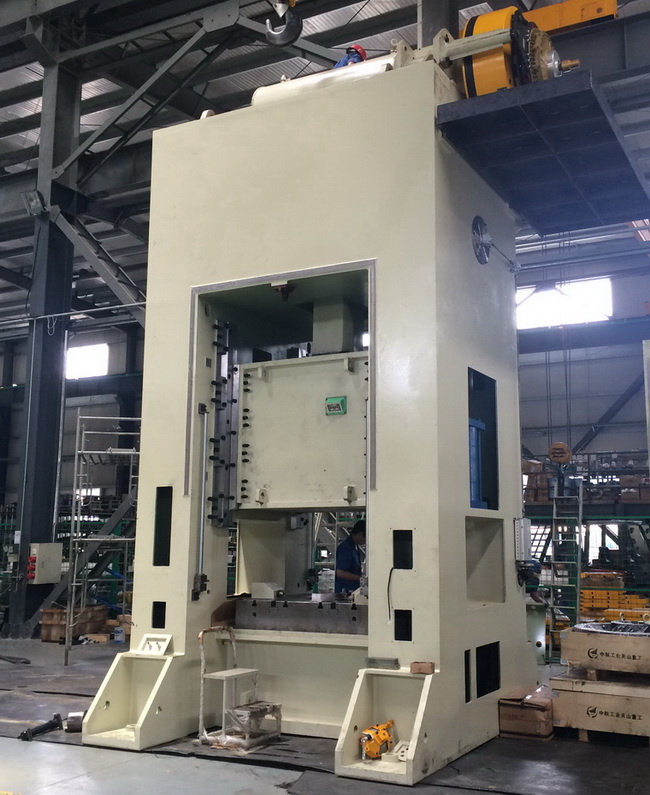

XTS Heavy Duty Straight Side Single Crank Mechanical Power Press (200ton-600ton)
Manufacturing Standards : ISO/CE/Japanese JIS 1 Class

* Provide Customized Personalized Service

1. Parameters
1) 200ton -- 300ton Parameters

Name	Unit	XTS-200		XTS-250		XTS-300
Name	Unit	XTS-200		XTS-250		XTS-300
Capacity	ton	200	200	250	250	300	300
Rated tonnage point	mm	4	7	4	7	9	7
Stroke	mm	40	250	40	250	300	250
Speed changing	s.p.m	60-130	20-40	50-110	20-40	20-35	20-35
Die height	mm	350	550	380	550	650	550
Maximum	kg	1000	1200	800	800	1500	1500
counterbalancer
capacity
Slide adjustment	mm	100	150	100	150	150	150
Slide area	mm	900x800	900x800	900x800	900x800	1000x900	1000x900
Bolster area	mm	1000x900	1000x900	1000x900	1000x900	1100x1000	1100x1000
Bolster thickness	mm	170	170	180	180	200	200
Side opening	mm	400x400	400x400	400x400	400x400	400x500	400x500
Height of the top surface of bed from floor level	mm	850	850	850	850	850	850
Work energy	kgxm	800	1500	1000	2000	3000	2500
Main Motor	Hpxp	30x4	30x4	30x4	30x4	30x4	30x4
Slide adjusting moter	kwxp	2x4	2x4	2x4	2x4	2x4	2x4
Frame structure		one piece frame

2) 400ton -- 600ton Parameters

Name	Unit	XTS-400		XTS-500		XTS-600
Name	Unit	XTS-400		XTS-500		XTS-600
Capacity	ton	400	400	500	500	600	600
Rated tonnage point	mm	9	7	13	7	7	13
Stroke	mm	300	200	350	250	250	350
Speed changing	s.p.m	15-30	20-35	10-25	15-30	15-25	15-20
Die height	mm	600	650	650	700	700	650
Maximum	kg	1500	1500	1500	1500	1500	1500
counterbalancer
capacity
Slide adjustment	mm	150	150	150	150	150	150
Slide area	mm	1100x1100	1100x1100	1200x1200	1200x1200	1200x1200	1200x1200
Bolster area	mm	1200x1200	1200x1200	1300x1200	1300x1200	1300x1200	1300x1200
Bolster thickness	mm	200	200	220	220	240	240
Side opening	mm	400x500	400x500	500x650	500x650	500x650	500x650
Height of the top surface of bed from floor level	mm	1090	1090	1200	1200	1350	1350
Work energy	kgxm	3600	2800	7000	3800	5000	8000
Main Motor	Hpxp	30x4	30x4	30x4	30x4	30x4	30x4
Slide adjusting moter	kwxp	2x4	2x4	3x4	3x4	3x4	3x4
Frame structure		tie rod type

2. Technical Descriptions :

Product Features:
1) Combined with European, American, and Japanese advanced technologies/adopt functional structure/ CAE dynamic simulation optimization design
2) High-rigidity and high-quality steel welding or whole frame casting for tempering/ vibration stress processing
3) High-standard fabrication processing for key parts of gears and bent axles for hard chrome plating/nitriding/grinding
4) High-performance configurations such as controllers/drive parts/electromagnetic clutches/ pneumatic elements and bearings
5) Technical grade of international stamping equipment and high inspection index.
6) High-response multi-functional superposition expansion/high-quality industrial control processor
7) High-memory module/individual design franchised software compilation
8) High-compatibility multi-axial variable speed drive/automation equipment onboard expansion
9) High-intelligent human-computer interface/high-frequency real-time control/Ethernet & USB interface

Standard Configuration:
> Hydraulic overload protector
> Electric slider adjusting device
> Digital moulding-height indicator(unit: 0.1 mm)
> Slider and mould balancing device
> Rotary cam switch
> Crank angle indicator
> Circulation centralization lubrication oil feeding device
> Electromagnetic stroke counter
> Over-run safety device
> Programmable controller
> Moveable T-type operating floor
> Air source connector
> Independent electric control cabinet
> Maintenance tool and tool box

Optional Configuration:
> Die cushion
> Upper slider knock out device
> Die Light
> Main motor inversion device
> Photo-electric safety device
> Safety groove and safety pin
> Pre-set counter (6 digits)
> Loading inspection device
> Misfeed detection consent
> Frequency converter
> Basic bolt and soleplate
> Anti-vibration foot
> Safety shelf and safety ladder
> Power socket
> Quick die change device

3. Company Introduction :

Prod Model:	XTS
Precision Standard:	GB(Japan 1 Class)
Frequency Inverter:	Taiwan Delta / Japan Yaskawa
Hydraulic Over-Load Protector:	Japan Showa/ Taiwan King Air
Dry Clutch:	Italian Ompi
Main Motors:	Taiwan Teco
Double Solenoid Valve:	Japan's Taco
Oil Lubricator/Filter:	German Rexroth/Japan SMC
Bearings:	Japan NTN/NSK
PLC:	Japan Omron
Welded Steel Structure:	Elimination of Internal Stress Process, CNC Precis
Controlling Mode:	CNC
Power Source:	Mechanical Drive
Precision:	High Precision
Type:	High Precision Power Press
Punch Shape:	H Frame Press
Automatic Grade:	PLC Control ,Human-Machine Interface

Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.

* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.

* Factory Area 200, 000.00 square meters.

* Staff of about 400 people

Main Products:

*Mechanical Press

* Coil Feeder

* Hydraulic Press

*Forging Hydraulic Press

* Special Purpose Customized Power Press.

Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.

Technology advantages:

* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.

* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China

Manufacturing Strength:

*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.

*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.

Marketing:

* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.

*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
