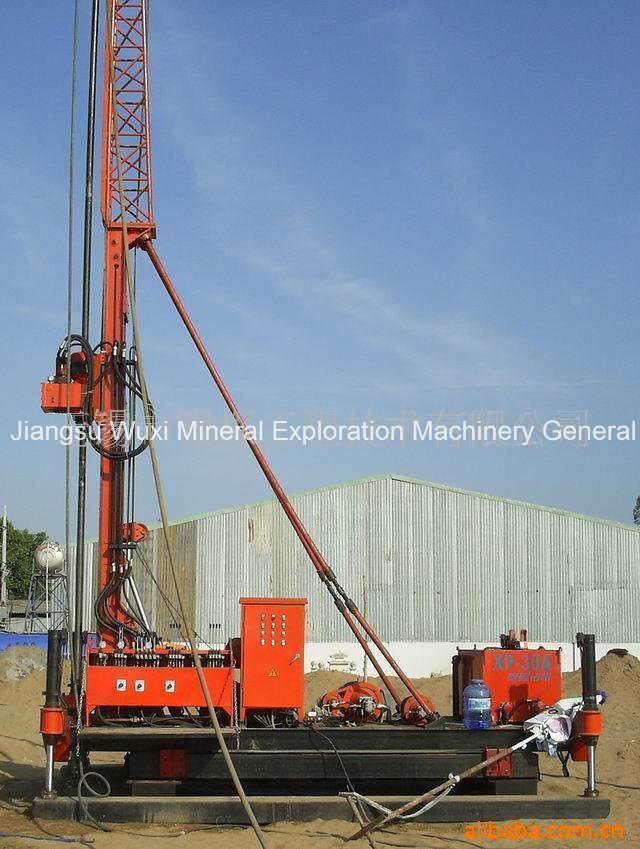

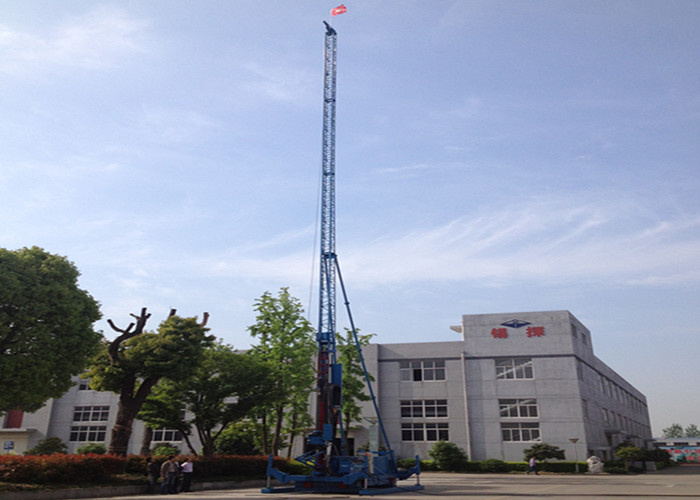

Xpg-65 Elevated Jet Grouting Drilling Rig Drilling Machine with 27m Drill Tower

Xpg-65 Elevated Jet Grouting Drilling Rig Drilling Machine with 27m Drill Tower
Price: US $ 23500-53200/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

                                  XPG - 65 JET-GROUTING DRILLING RIG


1.  XPG-65 drilling rig is one kind of full hydraulic power head drilling rig.

2.  The assistant tower of XPG-65 jet grouting drill rig is high, which achieves 20 m,it can ruduce the time to

     add and wrench the tools.

3.  Because of big torque, the depth of high pressure jet grouting drilling rig is deeper. Depending on big power,   this rig can be applicable for more engineering construction.

4.  The assistant tower can be made up of 4 parts,can be reached 5m,10m and 20m.





1.  XPG-65 drilling rig can accomplish drilling hole and jet grouting process in once time when operating in some certain soft layer. During the jet grouting lifting, the depth of the rotary jet shall not exceed the height of the assistant tower (20m). There is no need to dismantle the drill rod.

2. With good adaptability, this jet grouting drilling rig can be configured with different modules and drilling tools, so as to solve various jet grouting processes.

3. Besides jet grouting process, this jet grouting drilling rig is available for the construction of anchoring technology.

4.Using the hydraulic chuck,it is easy to change the tools,do not need the joint.

5.The shifting and turning of the drill rig, speed change of power head and drill lifting are all adopted hydraulic control, featuring in flexible operation, saving time and labor cost.

6.The drill rigs adopt double winches and electrical control which can reduce labor force and enhance production efficiency.

1. For jet-grouting and anchoring

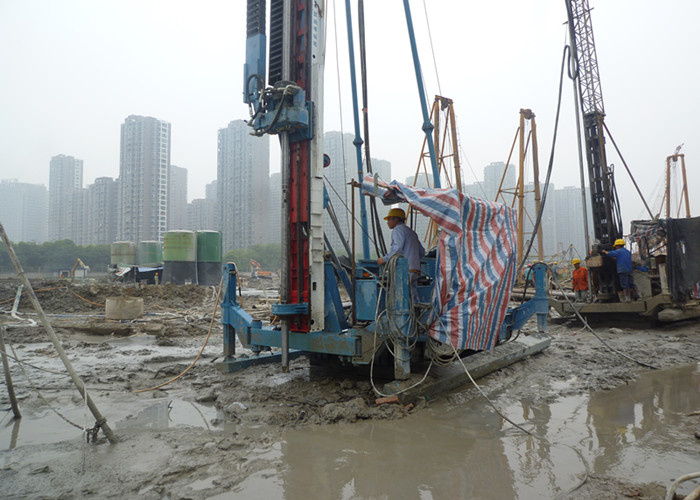

2. Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.

3. Single pipe, duplex pipe, triple pipe


SPECIFICATION:

SpecificationXPG-65
Hole diameter(mm)Φ150~Φ250
Hole depth(m)150~180
Rod diameter(mm)Φ73,Φ89,Φ102,Φ114
Jrt groutingsingle,double,triple
Stake Diameter(mm)400-600,600-1200,800-1600
A joint pipe7000,12000,17000,22000
Hole angle(°)0~90
Output rotary speed of power head (r/min)0~12,0~25,30,60,75,120,150
Output torque of power head (N ▪ m)5800
Stroke of power head(mm)4000
Stroke of Slide Frame(mm)1500
Lifting force of power head (KN)66
Lifting speed of power head (m/min)0~1.3/8/18/27
Feeding force of power head (KN)34
Feeding speed of power head(m/min)2.5 /16/36/53 m/min
Input power(electromotor) (KW)55+11+3
Dimension(L×W×H) (mm)6385×2050×2550
Construction(L×W×H) (mm)6385×3340×27530
Weight(kg)8200





Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets









Prod Model: XPG-65
Application: Jet-Grouting and Anchoring Reinforcement of Railw
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.

Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.

We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.

Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
