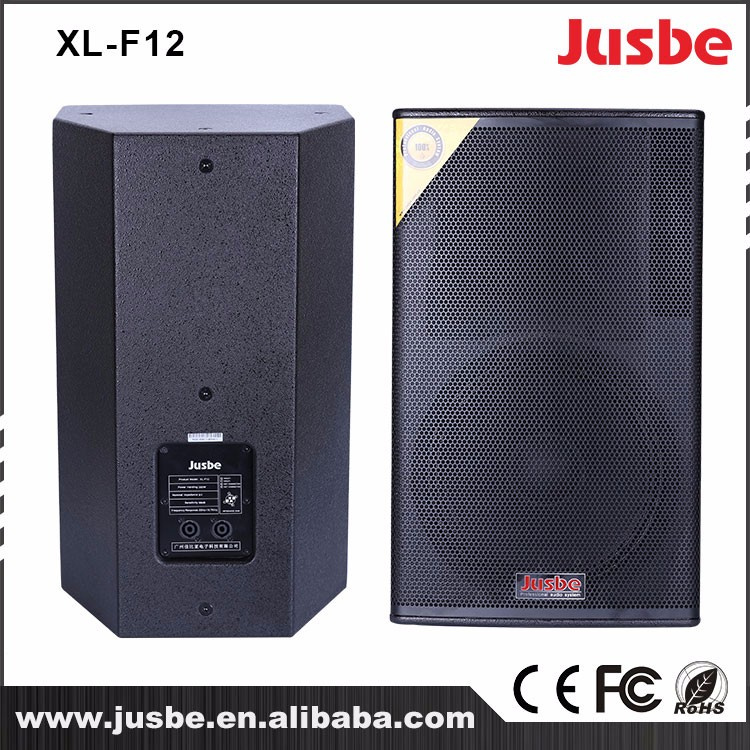

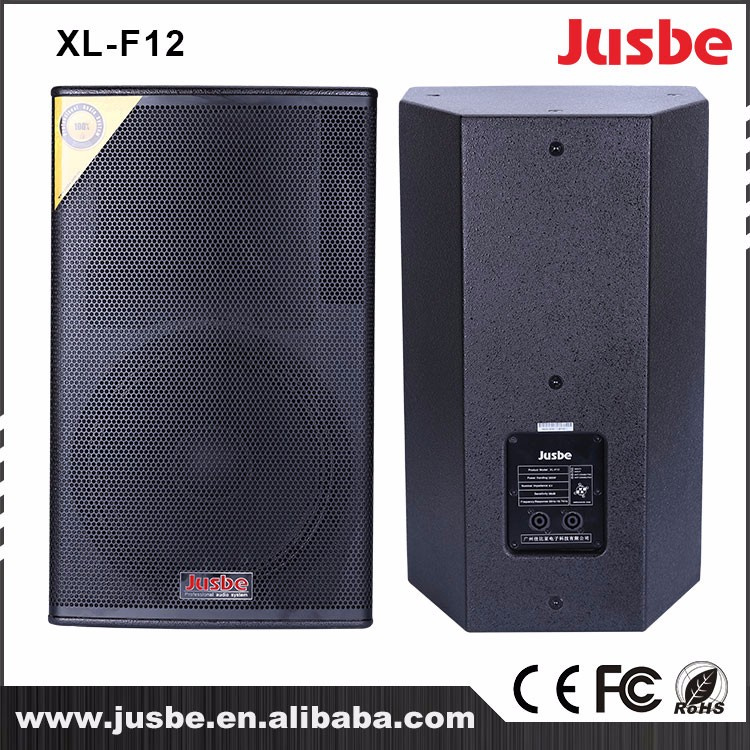

XL-F12 Professional Sound Speaker 12" 300W Powered DJ Speakers

Price:	US $ 110-130/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Guangzhou Jusbe Electronic Technology Co., Ltd.

Showroom Product Company Profile

Features:
★F series of speakers with its outstanding flexibility and extremely strong structure, to play a variety of sound reinforcement from the occasion of high-quality speakers;
★With a high smooth frequency response and exciting dynamic sound quality performance;
★Classic ergonomic box design, small, multi-angle, equipped with flexible, so that large-scale sound reinforcement system to build efficient and stable;
★Application areas: the main sound reinforcement of the hall sound reinforcement system;
★Theater, auditorium; club and DISCO main sound reinforcement and auxiliary speakers;
★Large - scale mobile performance of the main sound reinforcement, the stage back, side return, the former fill sound;

Main technical parameters:

Rated power	300W
Maximum input power	600W
Impedance	8Ω
Frequency response	55Hz-19.7KHz
System type	12-inch two-way two full-range
Tweeter	44 core treble × 1
Woofer	12 inch bass × 1
Standard coverage angle	90 ° (H) x50 ° (V)
Maximum sound pressure level	127dB
Sensitivity (1W / 1m)	98dB / W (lm)
Connector	SPEAKON NL4 × 1 PIN1 + / 2 + POS. PIN1- / 2-NEG (positive and negative 4-pin security plug); hanging hardware 8xM8 hanging point,
Material and surface treatment	plywood, environmentally friendly water-based paint
Colour	Black

Packaging & Shipping

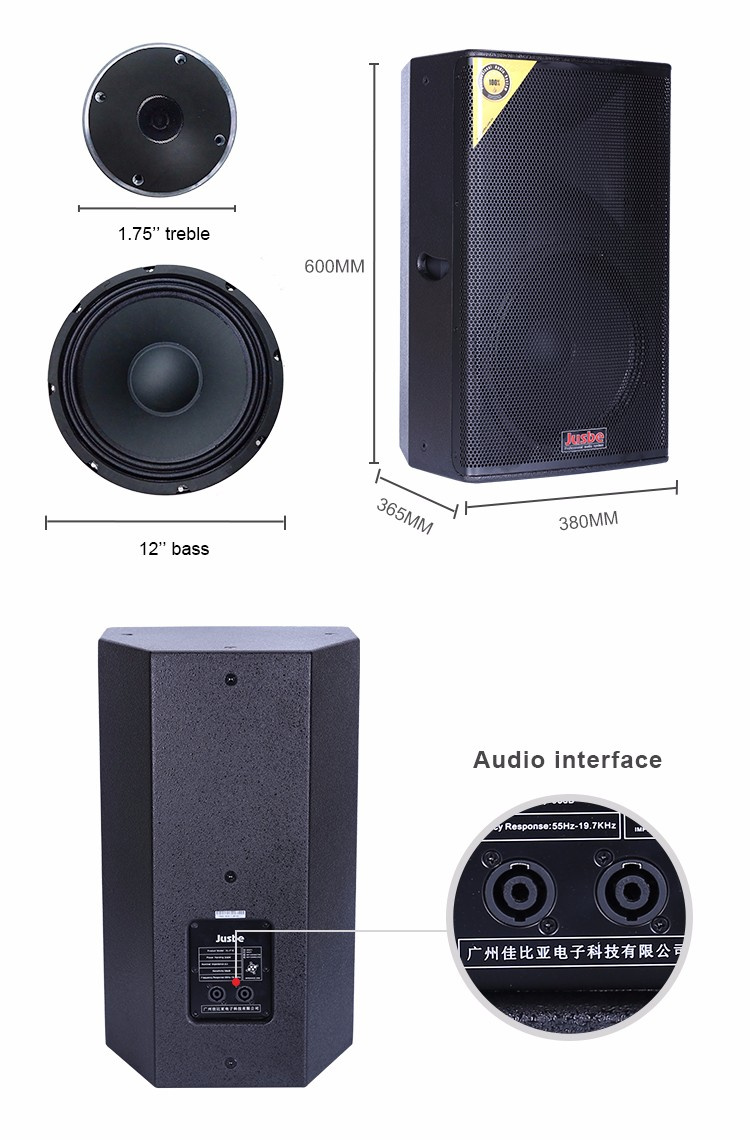

★Product Size: 600 * 365 * 380 (unit: mm)
★Packing size: 720 * 470 *440 (unit: mm)
★Net Weight: 24kg / pcs.
★Gross Weight: 25kg / pcs

Payment term
Smaple:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery time
Sample:3 days
Mass production:5-7 day,depand on quantity

XL-F12 Professional sound speaker 12" 300W Powered DJ Speakers

Item No.	XL-F10	XL-F12	XL-F15	XL-GF15
Raterd Power	200W	300W	350W	400W
Max Input Power	400W	600W	700W	800W
Impedance	8Ω
Frequency Response	50Hz-20KHz	55Hz-19.7KHz	45Hz-20KHz	35Hz-19KHz
System Type	10 inch, two channel, two unit, full-frequency	12 inch, two channel, two unit, full-frequency	15 inch, two channel, two unit, full-frequency	15 inch, two channel, two unit, full-frequency
Tweeter Unit	1.5 inch tweeter * 1	1.75 inch tweeter * 1	1.75 inch tweeter * 1	3 inch tweeter * 1
Woofer Unit	10 inch woofer* 1	12 inch woofer* 1	15 inch woofer* 1	15 inch woofer* 1
Standard coverage angle	90°(H) * 50°(W)
Max SPL	125dB	127dB	129dB	132dB
Sensitivity(1W/1m)	96dB/W(1m)	98dB/W(1m)	99dB/W(1m)	102dB/W(1m)
Connector	SPEAKON NL4*1 PIN1+/2+POS. PIN1-/2-NEG(plus/minus 4 cores plugs)
Suspension Hardware	10*M8 suspension point, base
Material	plywood		18mm plywood
Surface treatment	environmental protection water based paint
Color	Black
Product Size(mm/pc WDH )	330330530	380365600	430450670	430450670
Net Weight	18KG	24KG	30KG	30KG

FAQ

1.Q: Are you a factory or trading company?

A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.

About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !

3.Q: Can you do OEM and ODM?

A: Yes, both. We can put your idea into products.

We have professional research development team, develop the products according to customer required.

Prod Model:	XL-F12
Rated Power:	300W/8ohm
Frequency Response:	55Hz-19.7kHz
Sensitivity:	98dB
Max Spl:	127dB
Connector:	Speakon Pin1 Nl4 * 1 + 2 + / POS
Product Size:	600365380
N.G:	24 Kg
Noise:	<102dB
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	2.0 Channel
Speaker Material:	Wood
Certification:	FCC
THD:	<0.005%
Application:	Stage
Monitor:	No

Guangzhou Jusbe Electronics Technology Co. Ltd. was established in 2002. For 14 years, we have been dedicated in the field of Professional audio system industry. As the solution supplier and manufacturer of Audio system, we're using artificial intelligence to change the world step by step: Amplifier, speakers, microphone, line array series, peripheral equipment, mixer...

Our factory covers 10 thousand square meters, including 2 main workshop(professional audio products workshop, teaching audio products workshop) and accessory workshop. In order to provide our clients with high performance products in competitive price, we import ISO9001 Quality Management System, ISO14000 Environment Management System and SRRC System to our factory. What's more, there're nearly 300 marketing staff, 30 branches all over the country.

In order to meet the global trend, our brand Jusbe has been registrated in USA, Hongkong. In the meantime, we have built strategic relationship with 20 excellent global partners.

It's rarely to find such a manufacturing basement of large scale and multiple systems. Relying on 15 major series and more than 1000 products, we're confidence to provide our clients from various area with complete and individual solution. For now, it's proud to say that we have 100 thousand successful cases worldwide and our clients're satisfied with them.

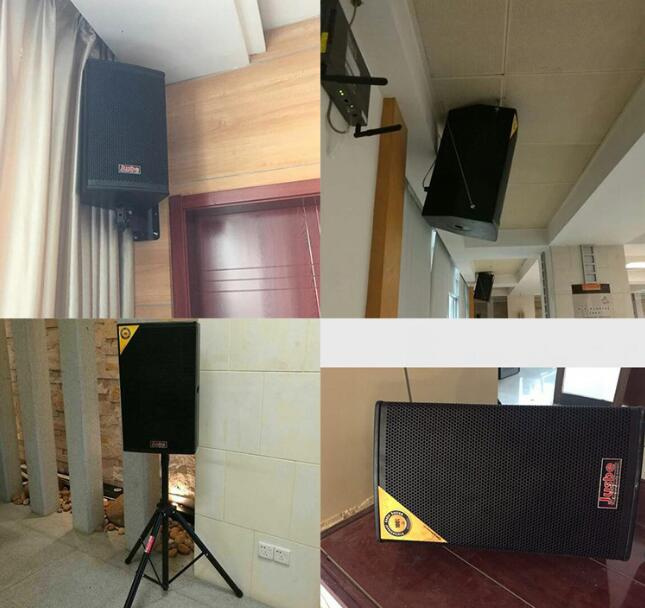

Our products have been applied to many important events or buildings, such as Google experience center, China Telecom, Guangzhou South Railway Station, Hengda Real Estate Group etc.
