Woodworking Machinery Sliding Table Panel Saw Mj6132ta From Sosn Factory

Woodworking Machinery Sliding Table Panel Saw Mj6132ta From Sosn Factory
Price: US $ 2000-3000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union

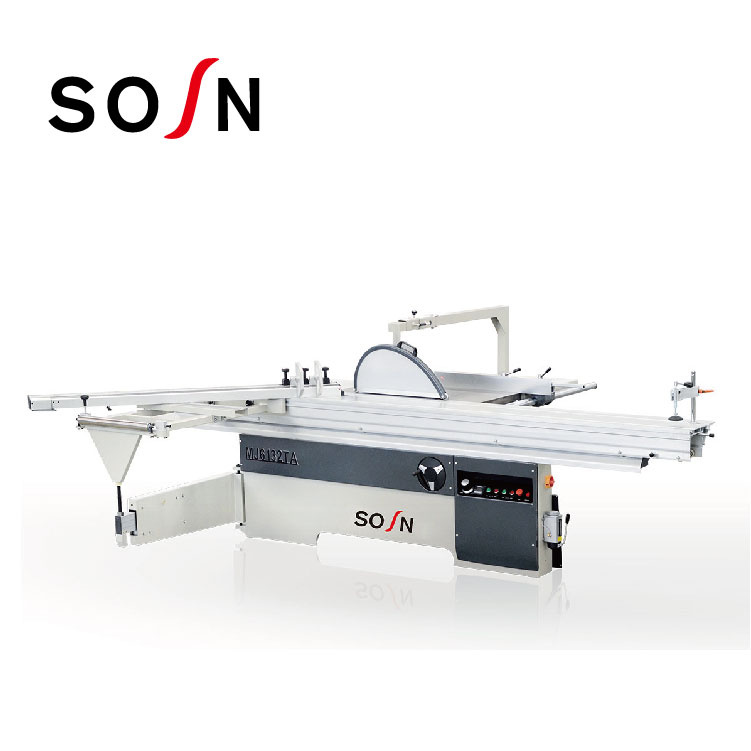

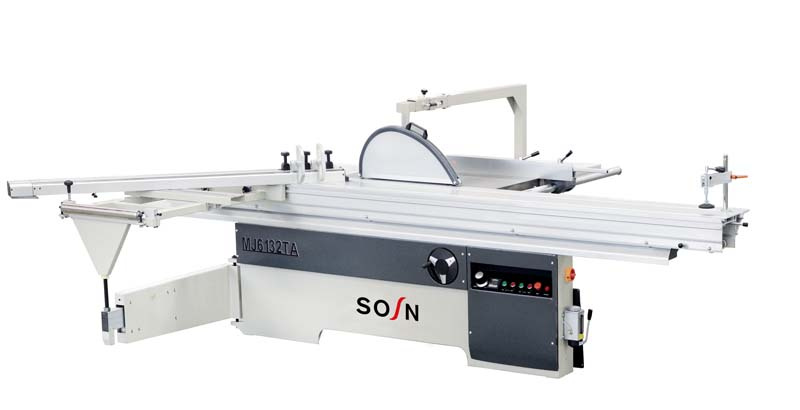

Woodworking machinery Sliding Table Panel Saw MJ6132TA From Sosn Factory

Parameters
Model(Manual control)MJ6132TA
Sliding table size3200*375mm
Gross cut capacity3200mm
Width between saw blade&rip fence1250mm
Saw blade diameter300(250-400)mm
Height of cut (300mm)90mm
Main saw spindle Speed4500/6000rpm
Main spindle diameter30mm
Tilting saw blade0-45°
Motor Power5.5kw
Scoring saw blade dia120mm
Scoring saw blade speed7000-8000rpm
Scoring saw diameter20mm
Scoring motor1.1kw
Weight900kg
Machine body Package size2200*1150*1100
Sliding table Pack size (mm)3350*480*320
Features:
1.Steel bar sliding table,with inner lock, more rigidity and strength,smooth movement.
2.For saw spindle, every axis has been tested for perfect balance.
3.Perfect inner structure, to make sure the machine work precision, easy-operation.
4.Static spray paint technology for machine, never paint off,
5.Thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.
6.Fine micro adjustment,stable and precision.
7.Auto power off saw blade cover added the working safety
8.5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
9.European quality button
10.Aluminum extruded fence with large stopper

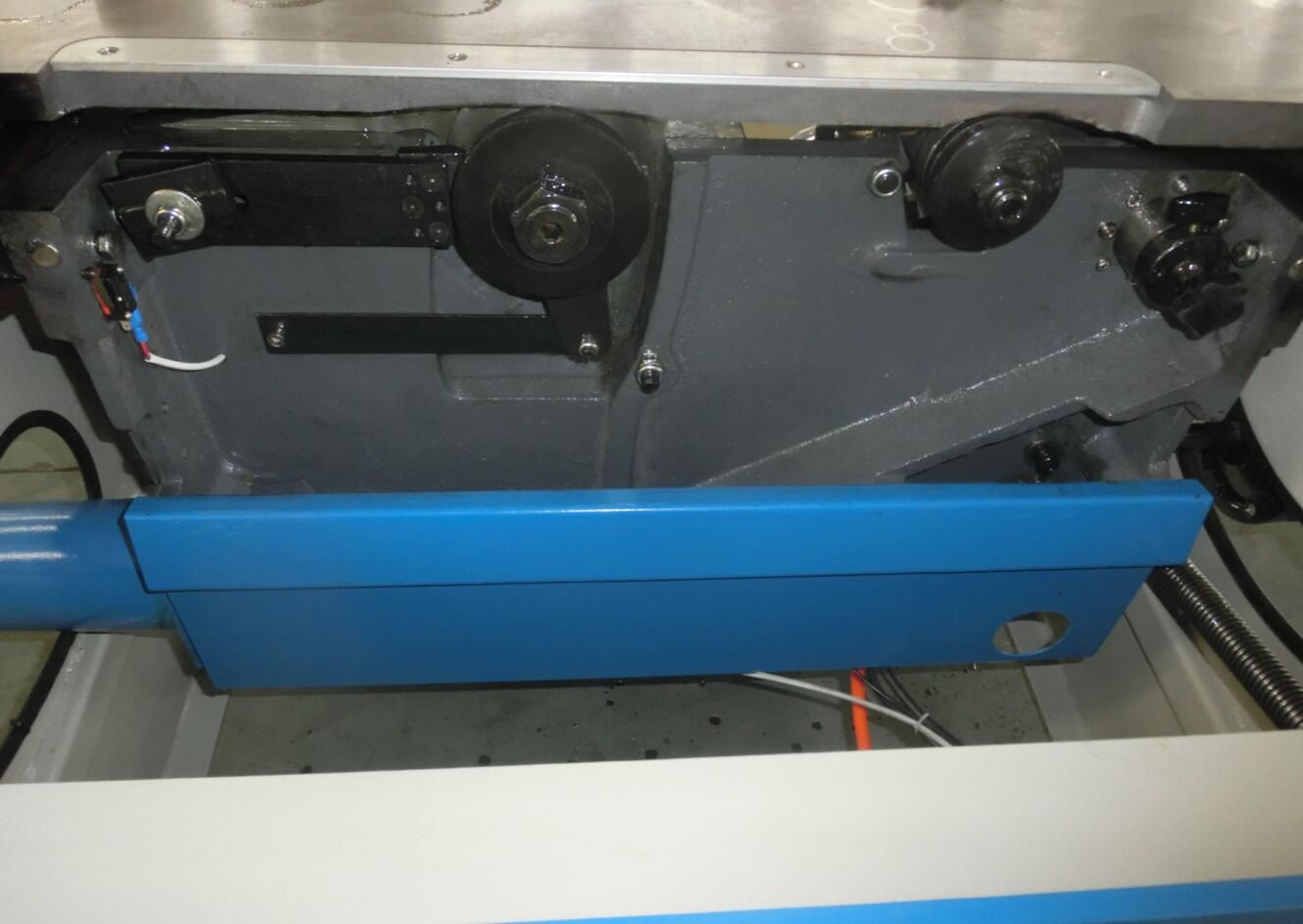

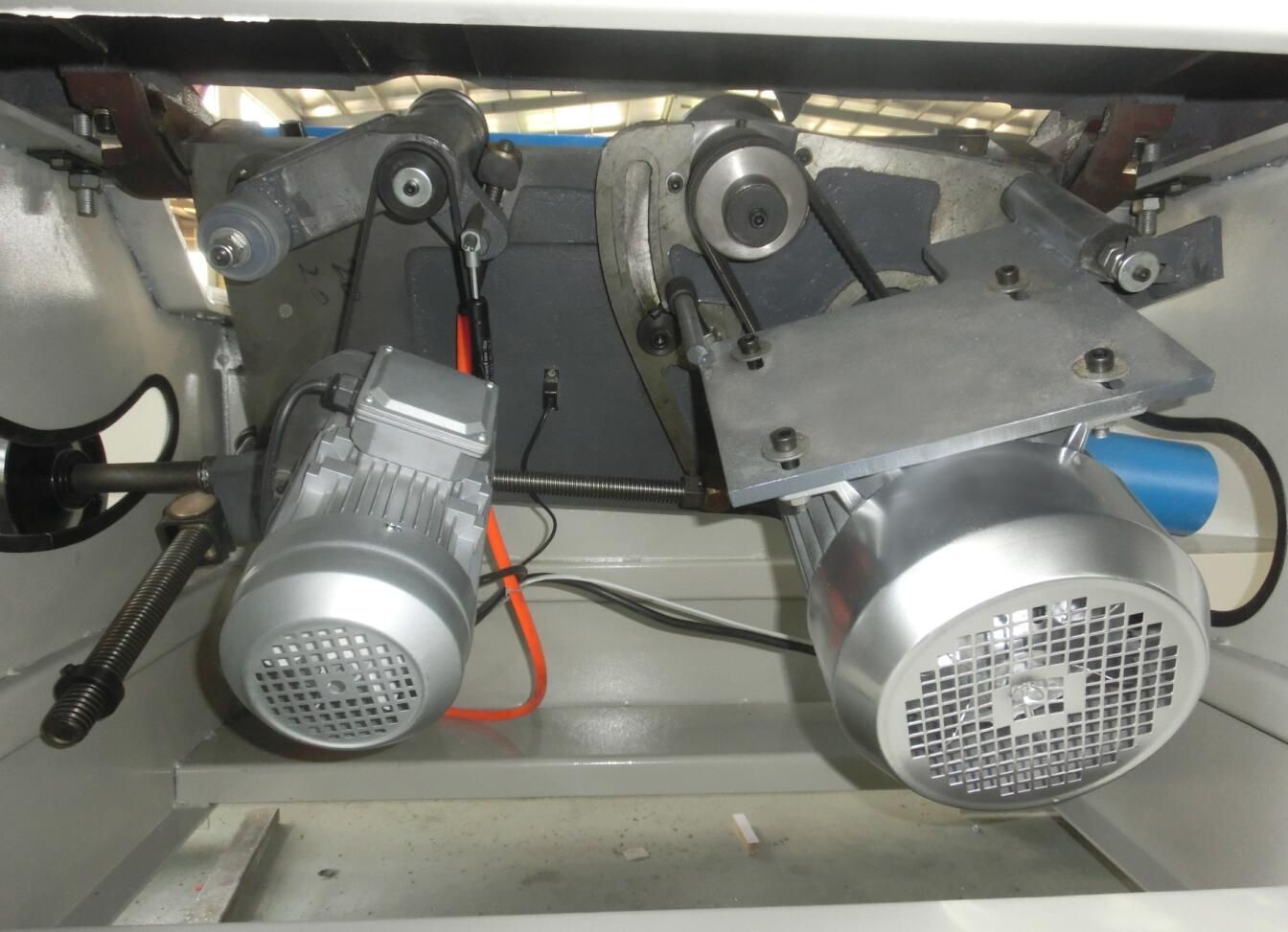

Inner structure : 5.5kw +1.1kw National standard motor

300mm main blade +120 mm scoring blade. with micrp switch, the operation will be more safe.

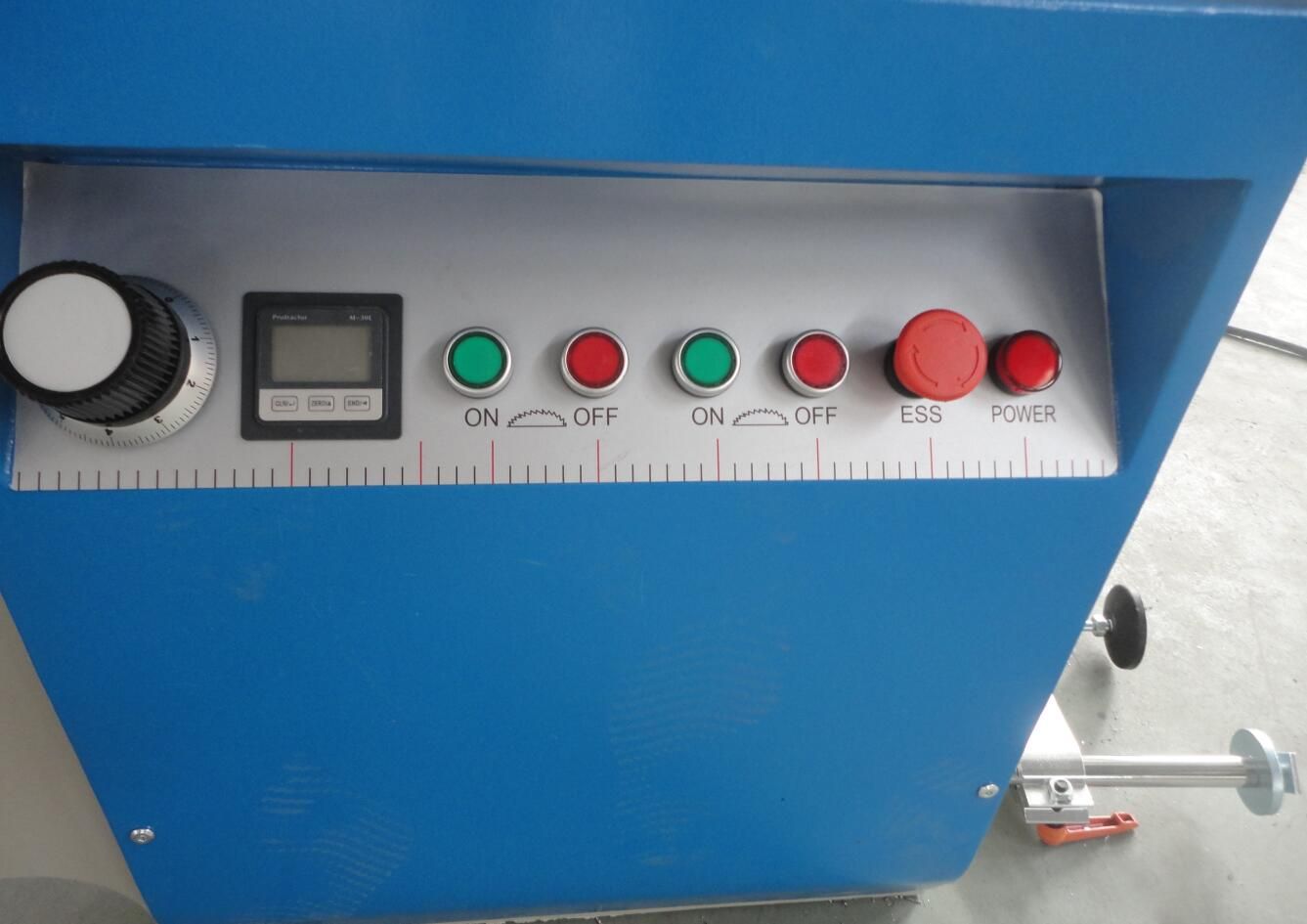

Control boards:


FAQ
1.Payment term:30% TT as deposit,70%TT after readiness of the machine
2.Package:standard wooden case for export
3.Delivery time:15-20 days after getting deposit
4.Warranty:2 years for whole machine.
5.FOB Qingdao China usually, also can be CIF/DDU/DDP to your side if you need.


Have any question, pls feel free to contact us
Prod Model: MJ6132TA
Name: Sliding Table Panel Saw
Dimension Of Sliding Table: 3200*375mm
Motor Power: 5.5+1.1kw
Tilting: 0-45 Degree
Spindle Diameter: 30+20mm
Saw Blade Diameter: 300+120mm
Height Of Cut: 90mm
Speed Of Main Saw Spindle: 4500-6000rpm
Speed Of Scoring Saw Blade: 7000-8000rpm
Gross Weight: 850kg
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: Artificial
Automatic Grade: Manual
Precision: High Precision
Certification: ISO
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
